Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 10 illustrations

Illustrations

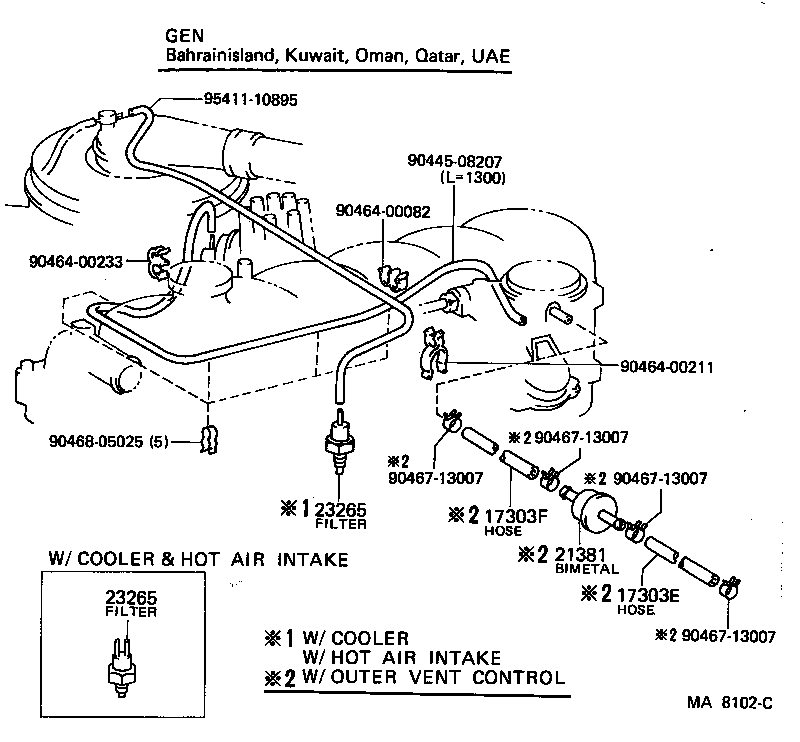

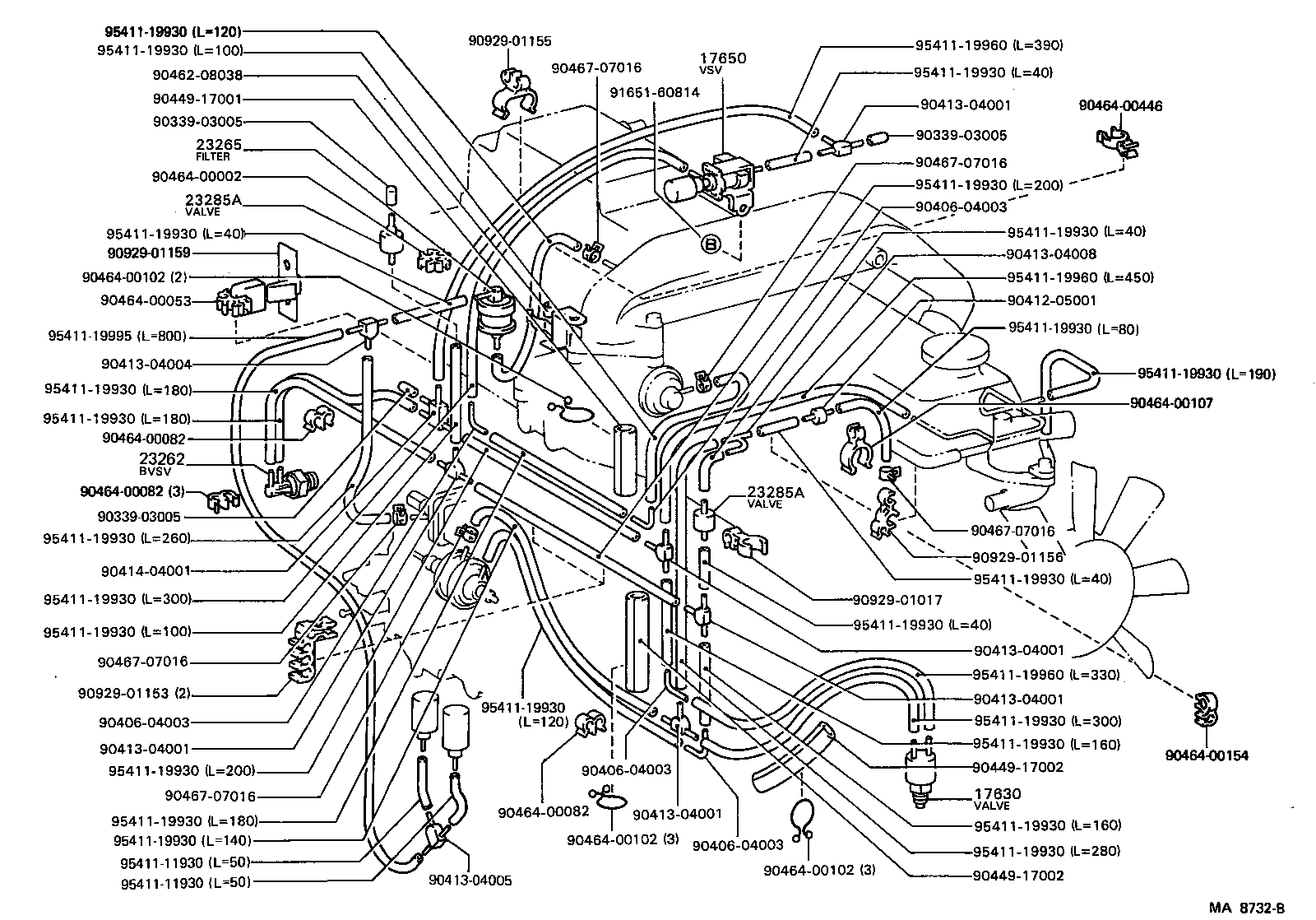

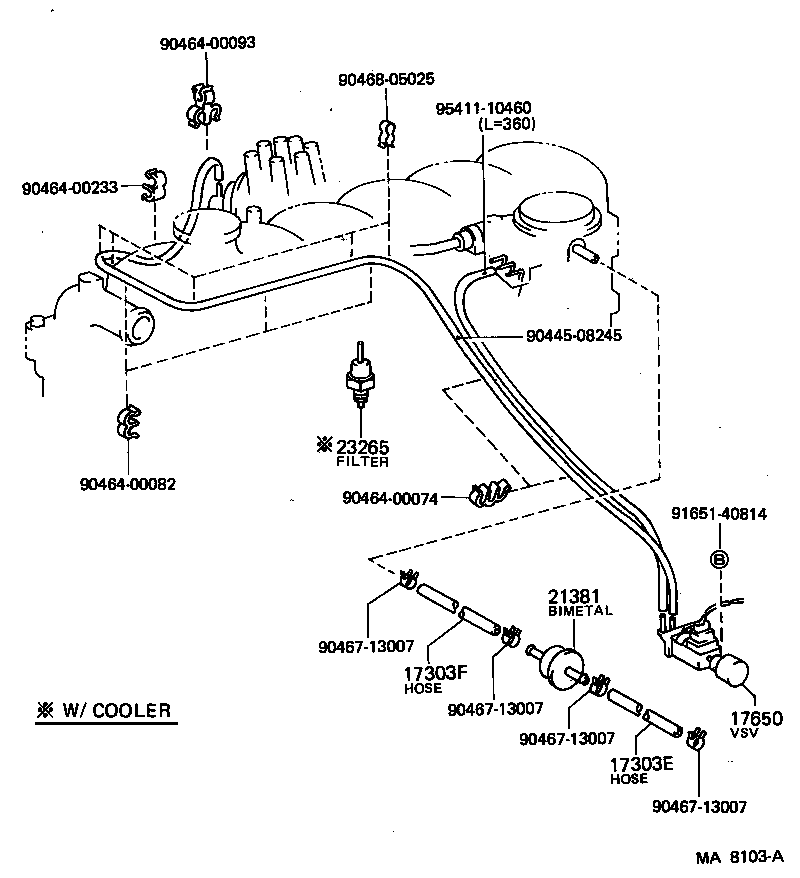

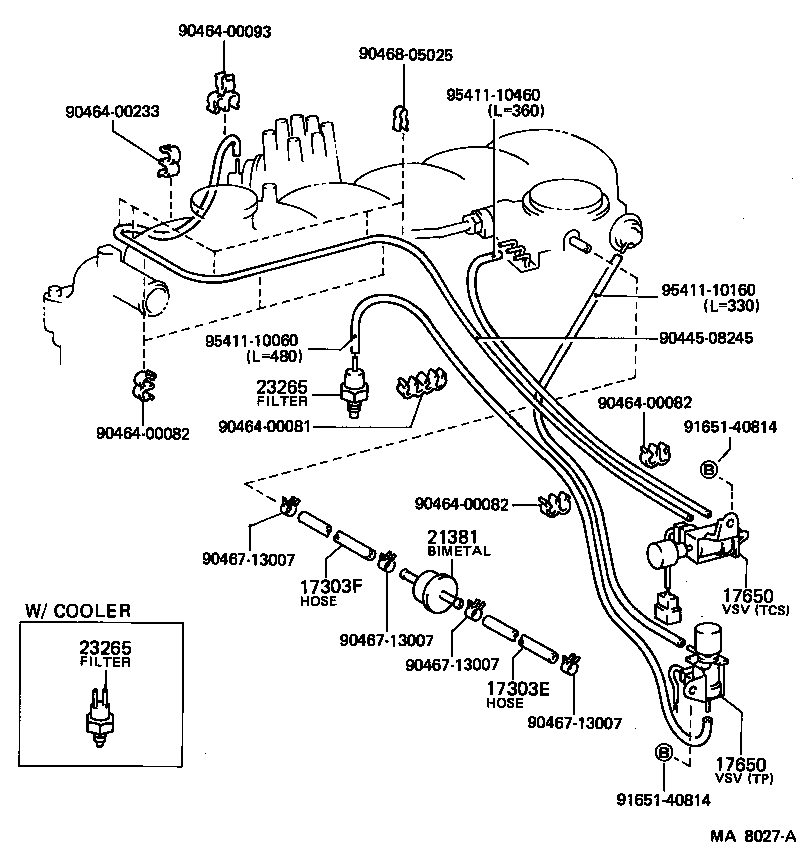

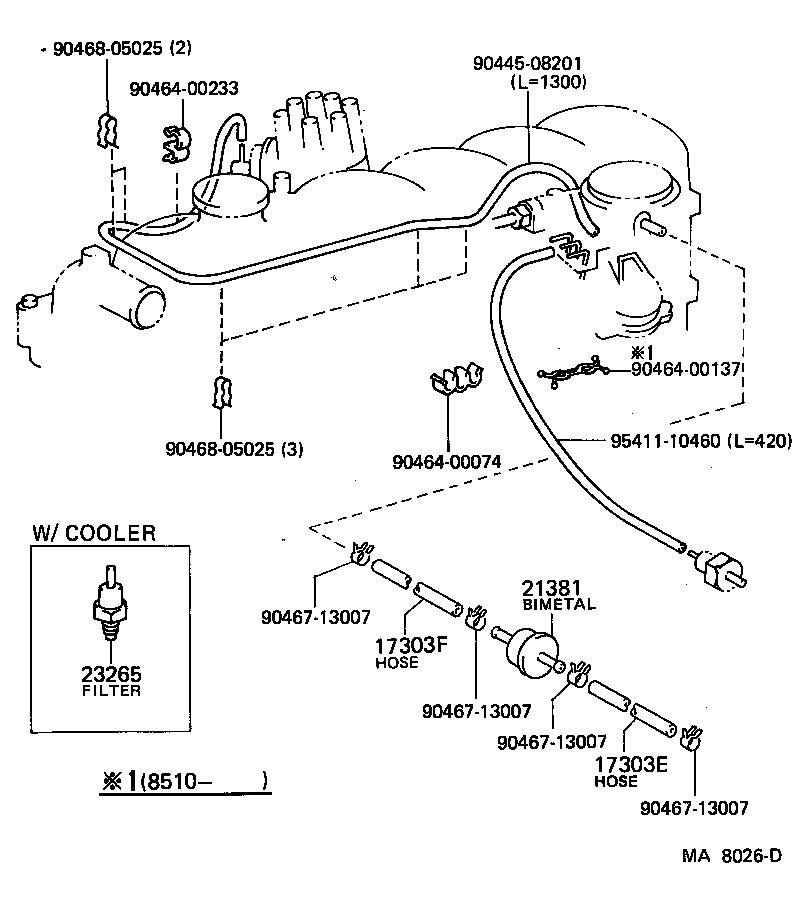

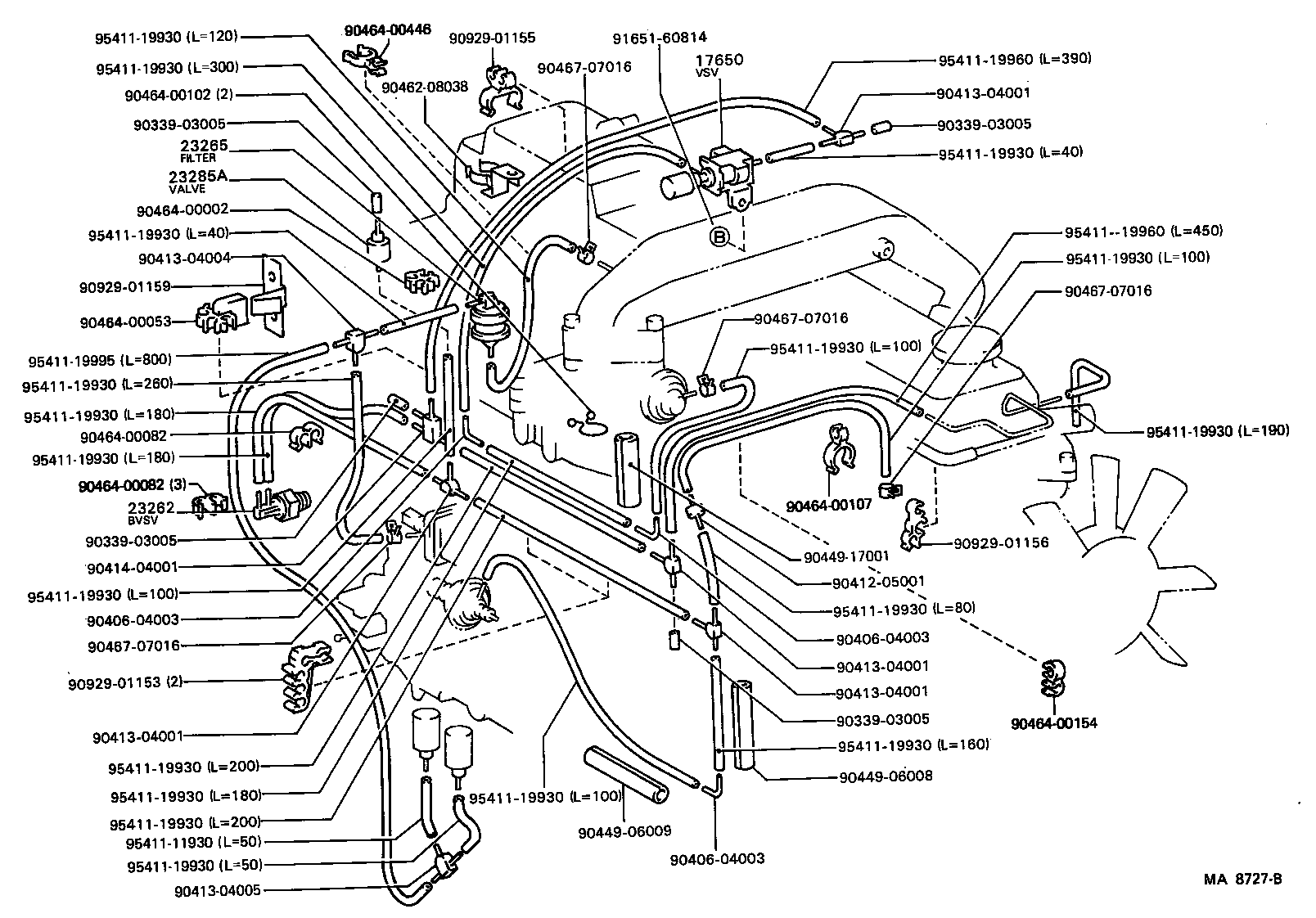

Figure MA9504A MA9504A 1980-08 → — Figure MA4841F MA4841F 1980-08 → 1984-11 Figure MA8102C MA8102C 1984-11 → — Figure MA8026D MA8026D 1984-11 → — Figure MA8027A MA8027A 1984-11 → — Figure MA8103A MA8103A 1984-11 → — Figure MA9504A MA9504A 1980-08 → — Figure MA8940A MA8940A 1984-11 → — Figure MA8727B MA8727B 1985-10 → — Figure MA8732B MA8732B 1985-10 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
