Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

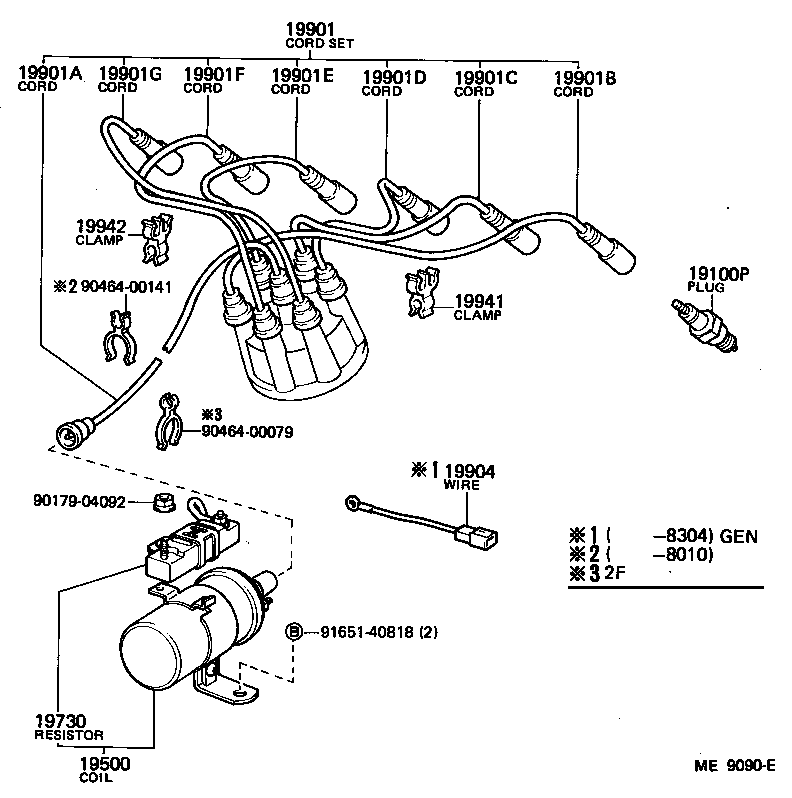

Ignition Coil & Spark Plug / Glow Plug
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19730 | Resistor, Ignition Coil |
| 19810 | Heater Assy, Intake |
| 19821 | Insulator, Intake Heater Terminal |
| 19822 | Insulator, Intake Heater Terminal, NO.2 |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901F | Cord, Spark Plug Resistive, NO.5 |
| 19901G | Cord, Spark Plug Resistive, NO.6 |
| 19904 | Wire Sub-assy, Distributor Primary |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19942 | Clamp, Resistive Cord, NO.2 |
| 22560 | Magnet Assy, Over Injection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
