Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

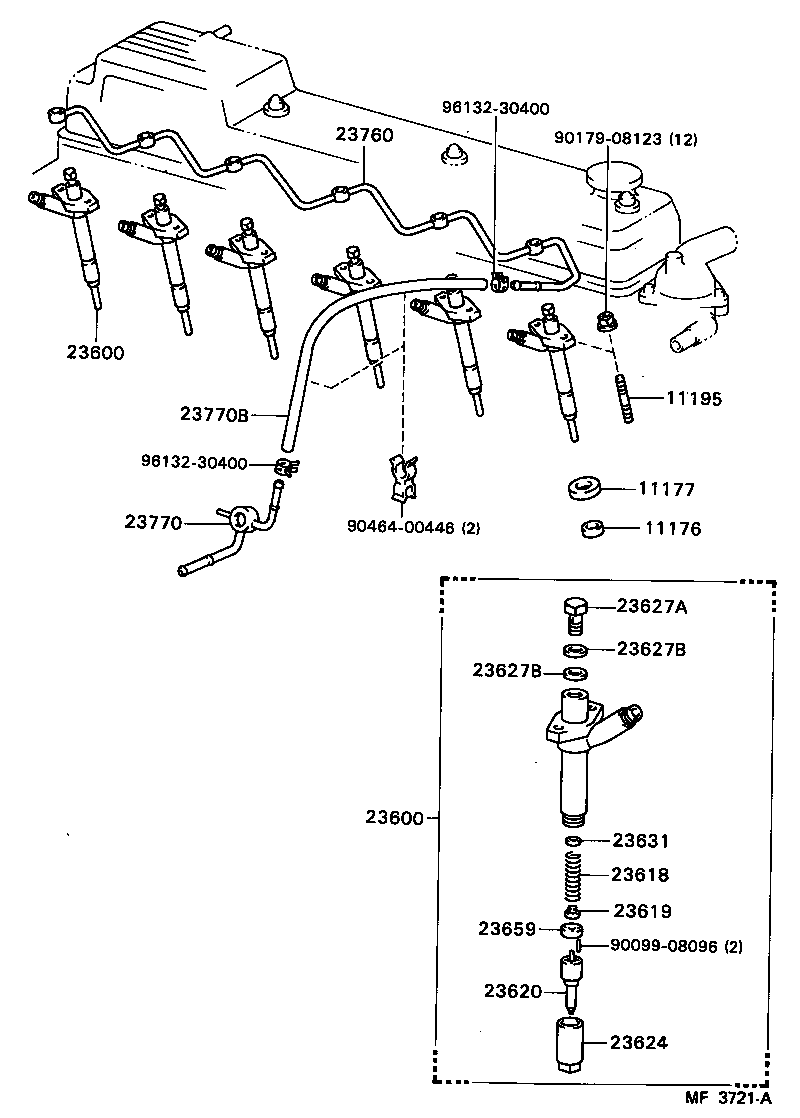

Injection Nozzle
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11106 | Chamber Sub-assy, Combustion |
| 11176 | Seat, Injection Nozzle |
| 11177 | Gasket, Injection Nozzle Seat |
| 11195 | Bolt, Nozzle Set, Stud |
| 23600 | Holder & Nozzle Set, Nozzle |
| 23618 | Spring, Nozzle Holder Pressure |
| 23619 | Pin, Nozzle Holder Pressure |
| 23620 | Nozzle Assy |
| 23624 | Nut, Nozzle Retaining |
| 23627A | Screw, Follow(FOR NOZZLE) |
| 23627B | Washer, Copper Plate(FOR NOZZLE) |
| 23628 | Nut(FOR RING PACKING SETTING) |
| 23629 | Piece, Distance(FOR NOZZLE) |
| 23631 | Washer(FOR NOZZLE HOLDER PRESSURE SPRING) |
| 23654 | Washer(FOR RING PACKING) |
| 23659 | Packing, Tip(FOR NOZZLE) |
| 23760 | Pipe Assy, Nozzle Leakage |
| 23770 | Pipe Assy, Nozzle Leakage, NO.2 |
| 23770A | Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET) |
| 23770B | Hose, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
