Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

17 part groups · 3 illustrations

Illustrations

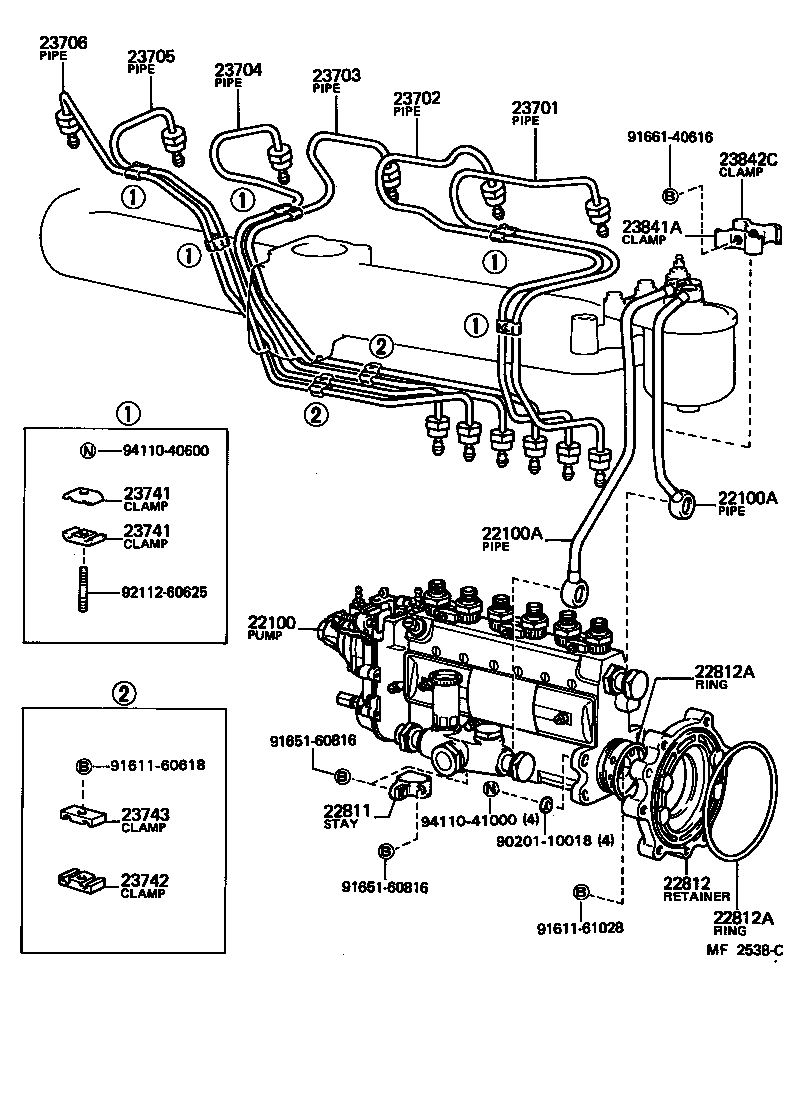

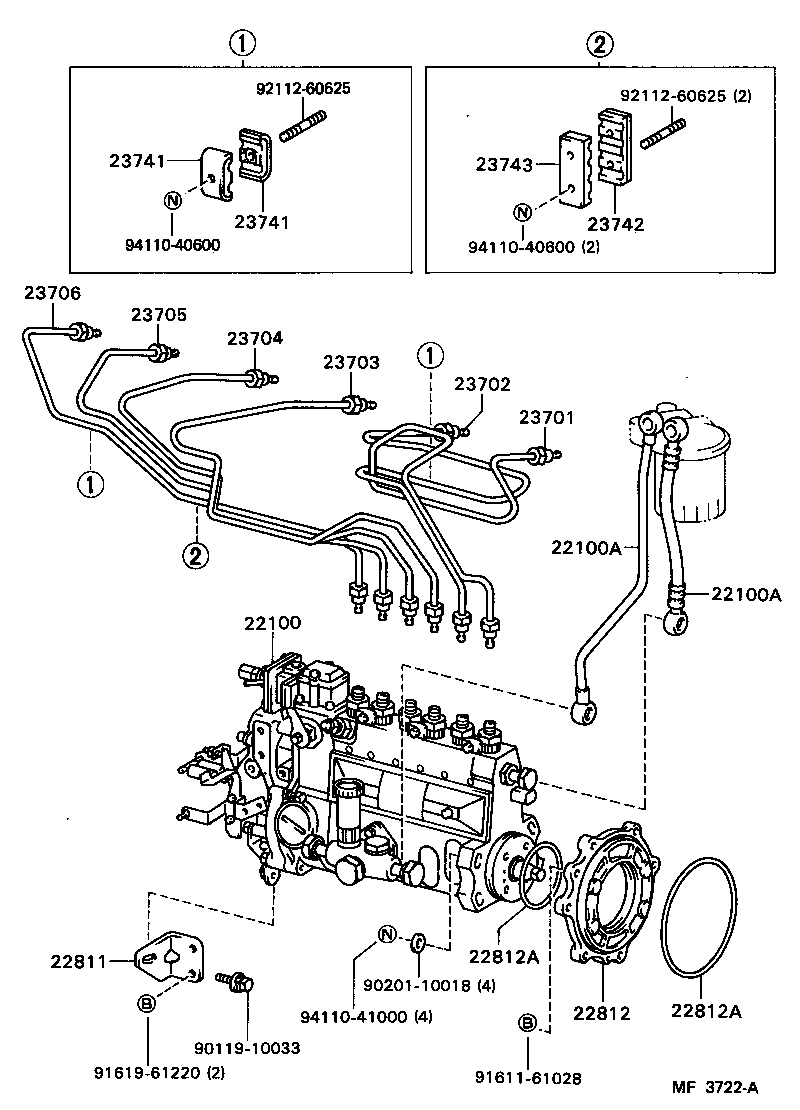

Figure MF2553G MF2553G 1980-08 → — Figure MF2538C MF2538C 1980-08 → — Figure MF3722A MF3722A 1985-10 → —

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22811 Stay, Injection Pump, NO.1
22812 Retainer, Injection Pump
22812A Ring, O
22821 Gasket, Injection Pump
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23743 Clamp, Injection Pipe, NO.3
23841A Clamp, Fuel Pipe, NO.1(FOR INJECTION PUMP)
23842C Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
