Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

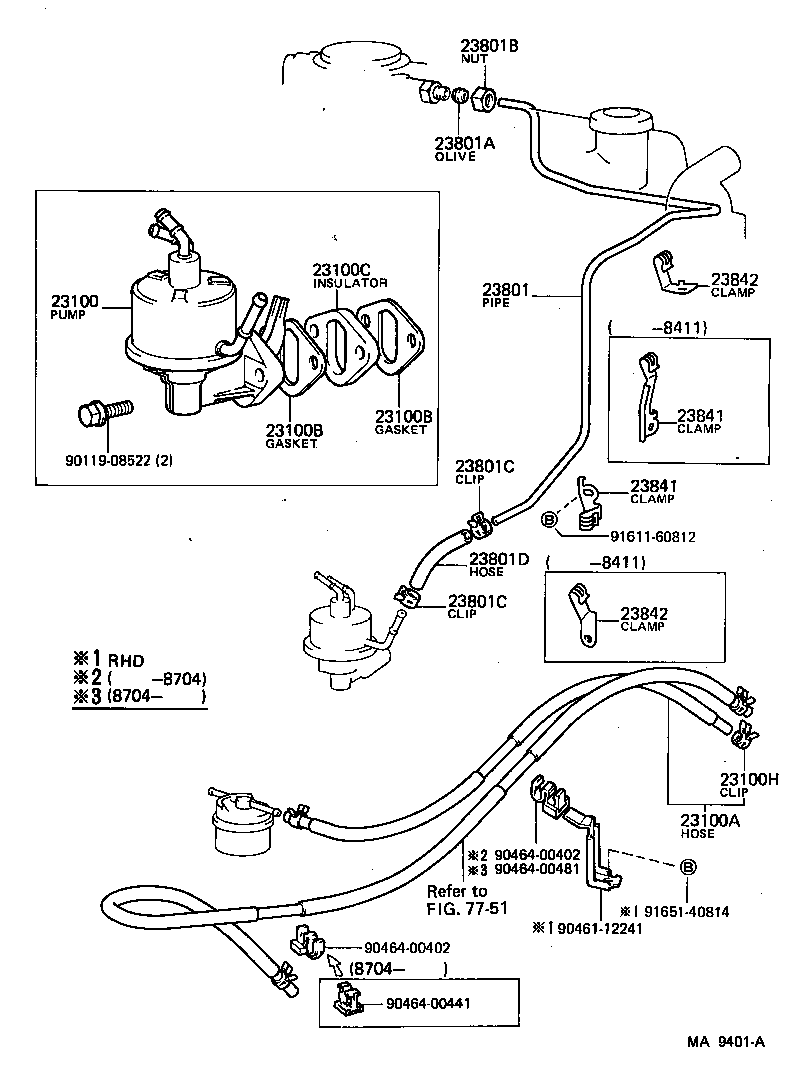

Fuel Pump & Pipe
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23100 | Pump Assy, Fuel |
| 23100A | Hose, Fuel |
| 23100B | Gasket, Fuel Pump |
| 23100C | Insulator, Fuel Pump |
| 23100H | Clip(FOR FUEL HOSE) |
| 23801 | Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1 |
| 23801A | Olive(FOR FUEL PIPE) |
| 23801B | Nut, Union(FOR FUEL PIPE) |
| 23801C | Clip(FOR CARBURETOR FUEL HOSE) |
| 23801D | Hose, Fuel Pipe, NO.1 |
| 23841 | Clamp, Fuel Pipe(HOSE), NO.1 |
| 23842 | Clamp, Fuel Pipe(HOSE), NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
