Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

20 part groups · 8 illustrations

Illustrations

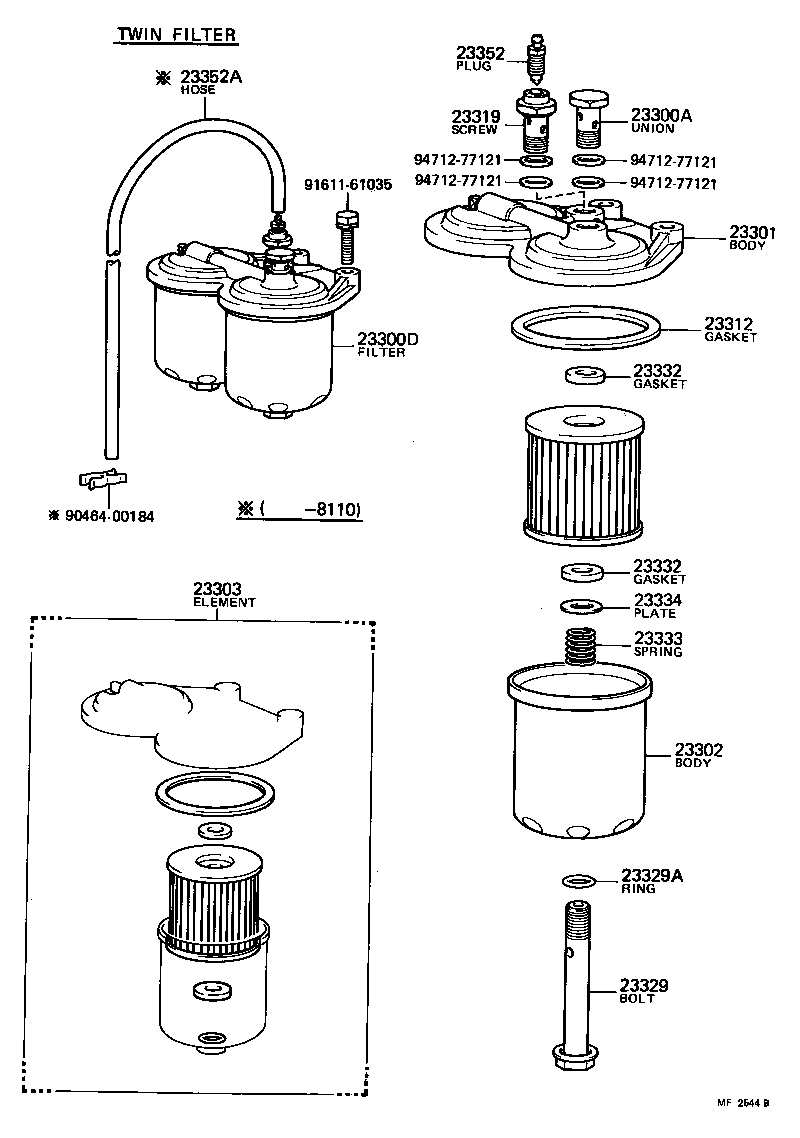

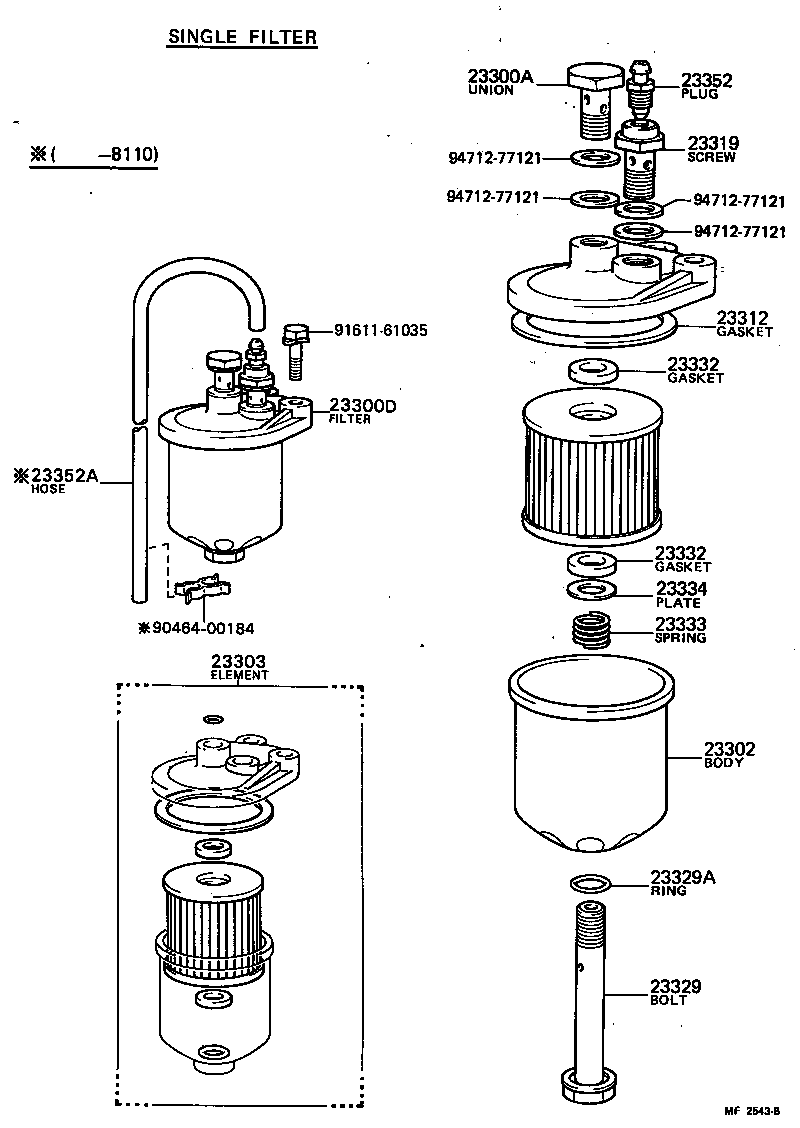

Figure MF2556D MF2556D 1980-08 → — Figure MF2545D MF2545D 1980-08 → — Figure MF2530 MF2530 1980-08 → 1987-04 Figure MAA651 MAA651 1987-04 → — Figure MF2543B MF2543B 1980-08 → 1982-04 Figure MF2544B MF2544B 1980-08 → 1982-04 Figure MF2801B MF2801B 1981-10 → — Figure MF2545D MF2545D 1980-08 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23300A Union, Nipple(FOR FUEL FILTER INLET)
23300D Filter Assy, Fuel(FOR DIESEL)
23301 Body Sub-assy, Fuel Filter
23302 Body Sub-assy, Fuel Filter, Lower
23303 Element Sub-assy, Fuel Filter
23312 Gasket, Filter Bowl
23319 Screw, Fuel Pipe Follow
23329 Bolt, Fuel Filter Center
23329A Ring, O(FOR FUEL FILTER CENTER BOLT)
23332 Gasket, Element(FOR FUEL FILTER)
23333 Spring, Filter Element Set
23334 Plate, Spring(FOR FILTER ELEMENT)
23338 Gasket(FOR WARNING SWITCH)
23351 Plug, Air Vent
23352 Plug, Bleeder
23352A Hose(FOR BLEEDER PLUG)
23353 Ring, O(FOR AIR VENT PLUG)
23921 Support, Fuel Filter
23930 Sedimenter Assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
