Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

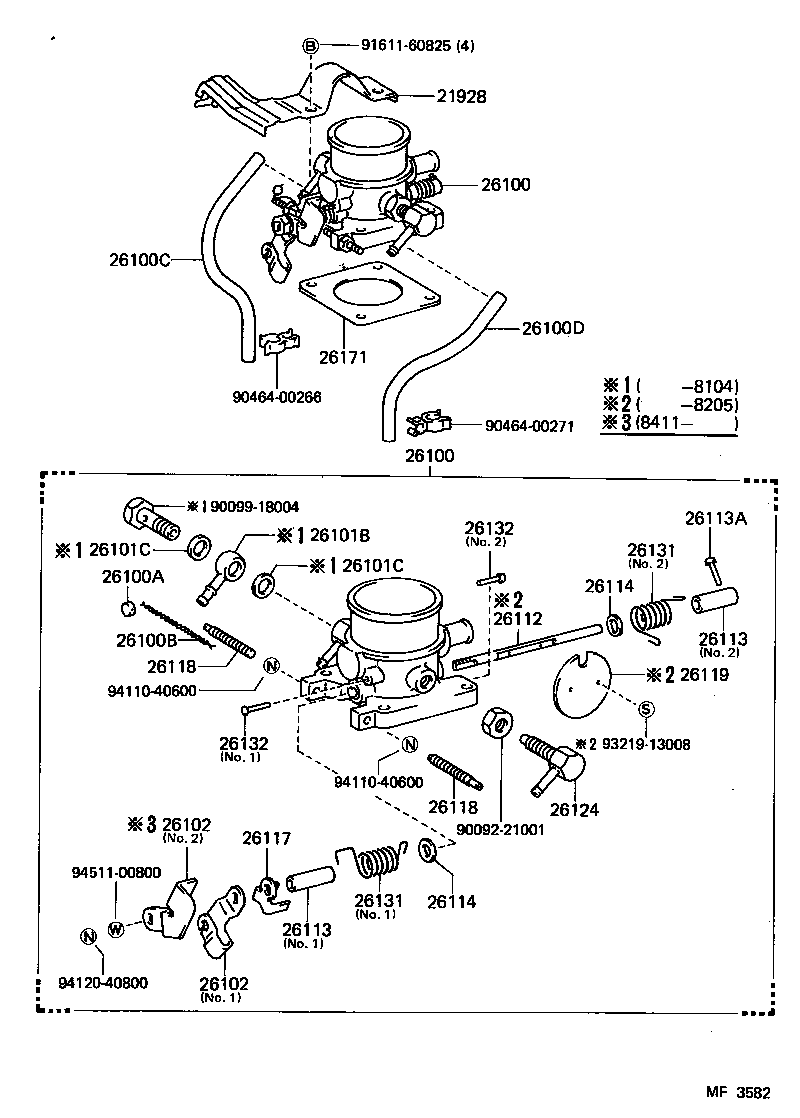

Venturi
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 21927 | Support, Wire(FOR ACCELERATOR BELLCRANK) |
| 21928 | Support, Throttle Wire |
| 22770 | Actuator, Idel UP |
| 26100 | Venturi Assy |
| 26100A | Seal, Lead |
| 26100B | Wire, Seal |
| 26100C | Hose, Vaccum, NO.1(VENTURI TO GOVERNOR) |
| 26100D | Hose, Vaccum, NO.2(VENTURI TO GOVERNOR) |
| 26101B | Union(FOR VENTURI PIPE) |
| 26101C | Washer(FOR VENTURI PIPE UNION) |
| 26102 | Lever Sub-assy, Throttle Shaft Adjusting |
| 26112 | Shaft, Venturi Throttle Valve |
| 26113 | Collar, Throttle Valve Shaft |
| 26113A | Pin, Throttle Valve Shaft |
| 26114 | Washer, Throttle Valve Shaft Adjusting |
| 26117 | Plate, Throttle Valve Shaft Stop |
| 26118 | Screw, Stop Plate Adjusting |
| 26119 | Valve, Venturi Throttle |
| 26124 | Connector, Venturi Pipe |
| 26131 | Spring, Return |
| 26132 | Pin |
| 26171 | Gasket, Venturi |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
