Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

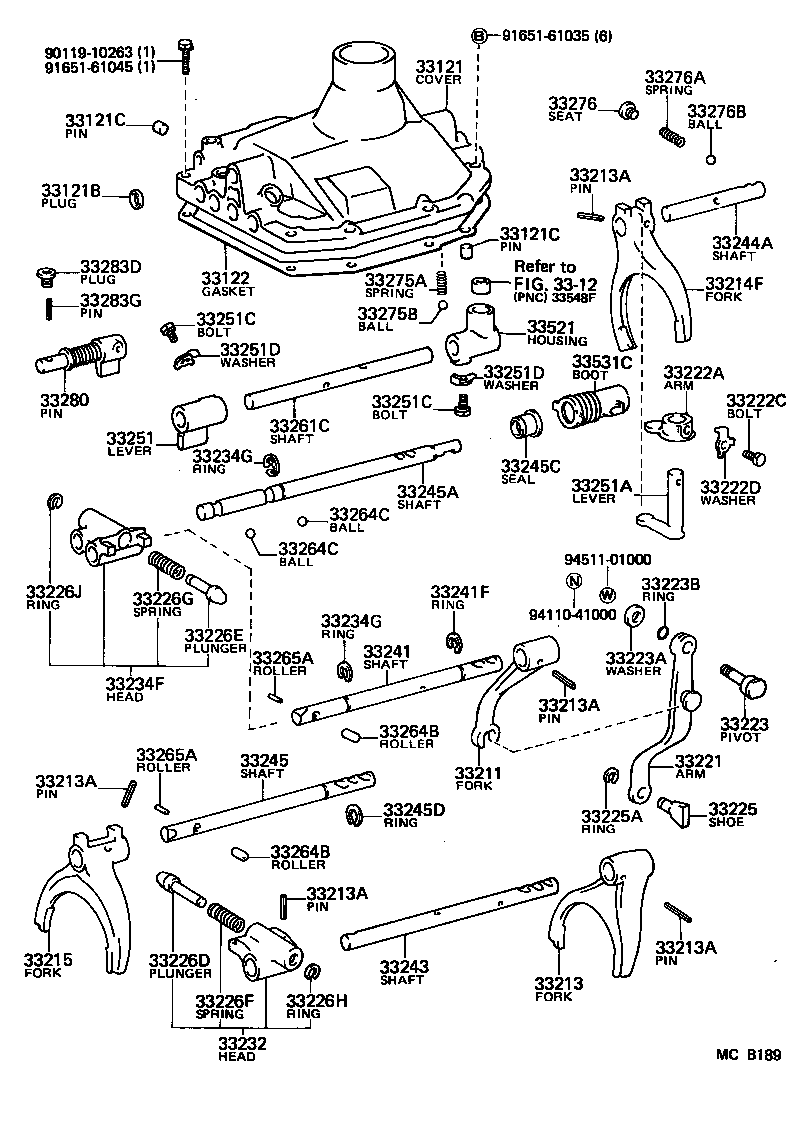

Gear Shift Fork & Lever Shaft (MTM)
59 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33121 | Cover, Manual Transmission Case |
| 33121B | Plug, Expansion OR Tight(FOR TRANSMISSION CASE COVER) |
| 33121C | Pin(FOR TRANSMISSION CASE COVER) |
| 33122 | Gasket, Manual Transmission Case Cover |
| 33211 | Fork, Reverse Shift |
| 33213 | Fork, 1ST & 2ND Shift |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33214F | Fork, 5TH Shift |
| 33215 | Fork, 3RD & 4TH Shift |
| 33221 | Arm, Reverse Shift |
| 33222A | Arm, 5TH Shift |
| 33222C | Bolt(FOR 5TH SHIFT ARM) |
| 33222D | Washer(FOR 5TH SHIFT ARM) |
| 33223 | Pivot, Shift Arm |
| 33223A | Washer(FOR SHIFT ARM PIVOT) |
| 33223B | Ring, O(FOR SHIFT ARM PIVOT) |
| 33225 | Shoe, Shift Arm |
| 33225A | Ring, Shaft Snap(FOR SHIFT ARM SHOE) |
| 33226 | Plunger, Reverse Shift Return |
| 33226A | Spring, Compression(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33226B | Washer, Type C(FOR REVERSE SHIFT RETURN PLUNGER) |
| 33226D | Plunger, 1ST & 2ND Shift Return |
| 33226E | Plunger, Reverse & 5TH Shift Return |
| 33226F | Spring, Compression(FOR 1ST & 2ND SHIFT RETURN PLUNGER) |
| 33226G | Spring, Compression(FOR REVERSE & 5TH SHIFT RETURN PLUNGER) |
| 33226H | Ring, Shaft Snap(FOR 1ST & 2ND SHIFT RETURN PLUNGER) |
| 33226J | Ring, Shaft Snap(FOR REVERSE & 5TH SHIFT RETURN PLUNGER) |
| 33231 | Head, Reverse Shift |
| 33231A | Spring, Reverse Shift Restrict |
| 33231B | Ball, Reverse Shift Restrict |
| 33232 | Head, 1ST & 2ND Shift |
| 33234F | Head, Reverse & 5TH Shift |
| 33234G | Ring, E (FOR REVERSE & 5TH SHIFT HEAD) |
| 33241 | Shaft, Reverse Shift Fork |
| 33241F | Ring, E(FOR REVERSE SHIFT FORK SHAFT) |
| 33243 | Shaft, 1ST & 2ND Shift Fork |
| 33244A | Shaft, 5TH Shift Fork |
| 33245 | Shaft, 3RD & 4TH Shift Fork |
| 33245A | Shaft, 5TH Shift Arm |
| 33245C | Seal, Oil (FOR 5TH SHIFT ARM SHAFT) |
| 33245D | Ring, Shaft Snap (FOR 3RD & 4TH SHIFT FORK SHAFT) |
| 33251 | Lever, Shift & Select |
| 33251A | Lever, Shift, Inner NO.1 |
| 33251C | Bolt, Set (FOR SHIFT & SELECT LEVER) |
| 33251D | Washer, Lock (FOR SHIFT & SELECT LEVER) |
| 33261C | Shaft, Shift & Select Lever |
| 33264B | Roller, NO.1 (FOR SHIFT INTERLOCK ) |
| 33264C | Ball (FOR SHIFT INTERLOCK) |
| 33265A | Roller, NO.2 (FOR INTERLOCK) |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33276 | Seat, Shift Detent Ball Spring, NO.2 |
| 33276A | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33276B | Ball, Shift Detent, NO.2 |
| 33280 | Pin Assy, Reverse Restrict |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33521 | Housing, Shift Lever |
| 33531C | Boot, Dust (FOR 5TH SHIFT ARM SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
