Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

18 part groups · 3 illustrations

Illustrations

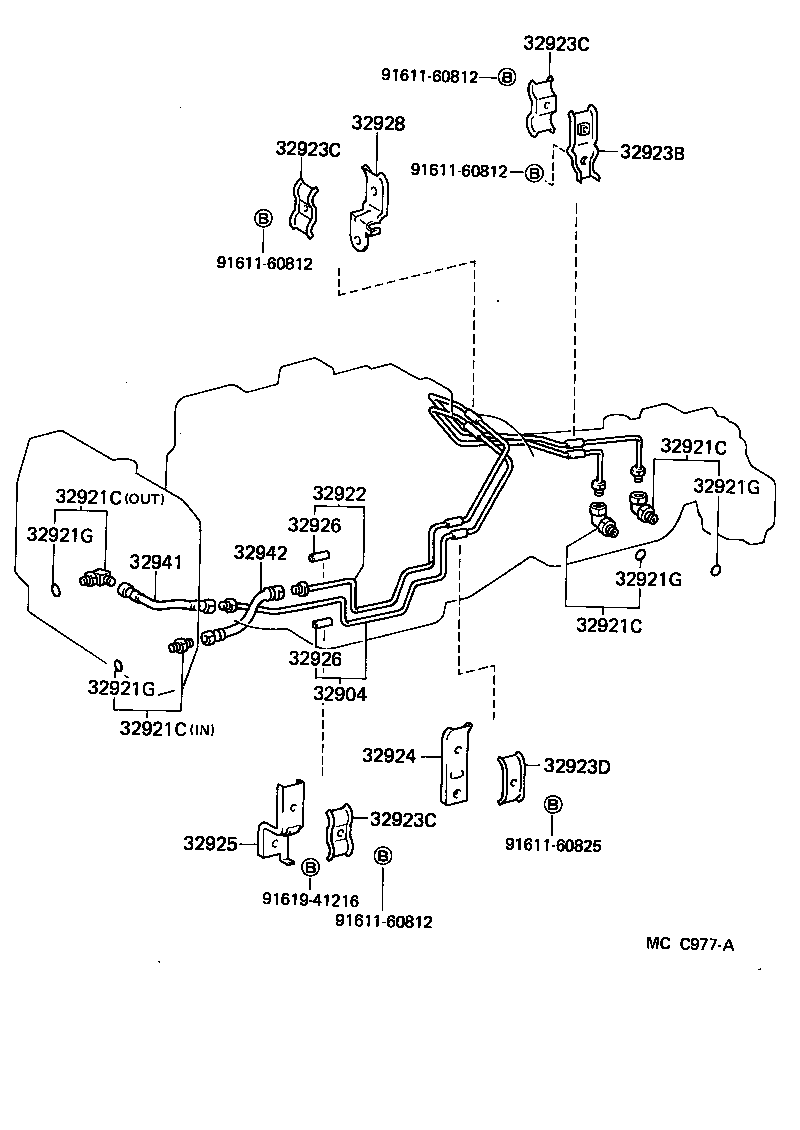

Figure MCB969B MCB969B 1984-11 → — Figure MCC977A MCC977A 1985-10 → — Figure MCB970C MCB970C 1984-11 → —

Part groups

PNCDescription
32904 Tube Sub-assy, Oil Cooler Inlet, NO.1
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32906D Tube Sub-assy, Oil Cooler, NO.2
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32923D Clamp, Automatic Transmission Oil Cooler Tube, NO.5
32924 Clamp, Oil Cooler Tube, NO.2
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32929 Clamp, Flexible Hose, NO.2
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
