Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

13 part groups · 3 illustrations

Illustrations

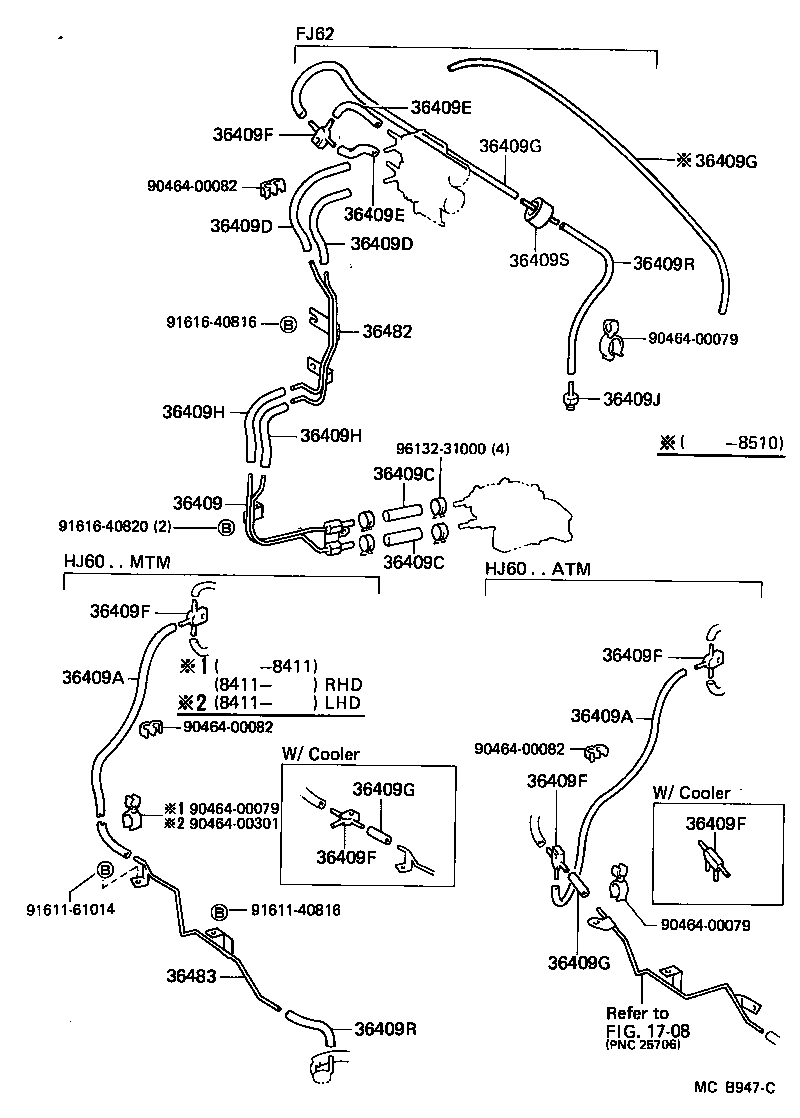

Figure MCB941C MCB941C 1984-11 → — Figure MCB947C MCB947C 1984-11 → — Figure MCC985 MCC985 1985-10 → —

Part groups

PNCDescription
36409 Support Sub-assy, Vacuum Tube Union
36409A Hose (FOR VACUUM TUBE)
36409C Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
36409D Hose, Vacuum, NO.2 (FOR FRONT DRIVE SHIFT)
36409E Hose, Vacuum, NO.3 (FOR FRONT DRIVE SHIFT)
36409F Way, 3, NO.1 (FOR FRONT DRIVE SHIFT)
36409G Hose, Vacuum, NO.4 (FOR FRONT DRIVE SHIFT)
36409H Hose, Vacuum, NO.5 (FOR FRONT DRIVE SHIFT)
36409J Union (FOR FRONT DRIVE SHIFT)
36409R Hose, Vacuum, NO.10 (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36482 Tube, Front Drive Vacuum, NO.2
36483 Tube, Front Drive Vacuum, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
