Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

17 part groups · 3 illustrations

Illustrations

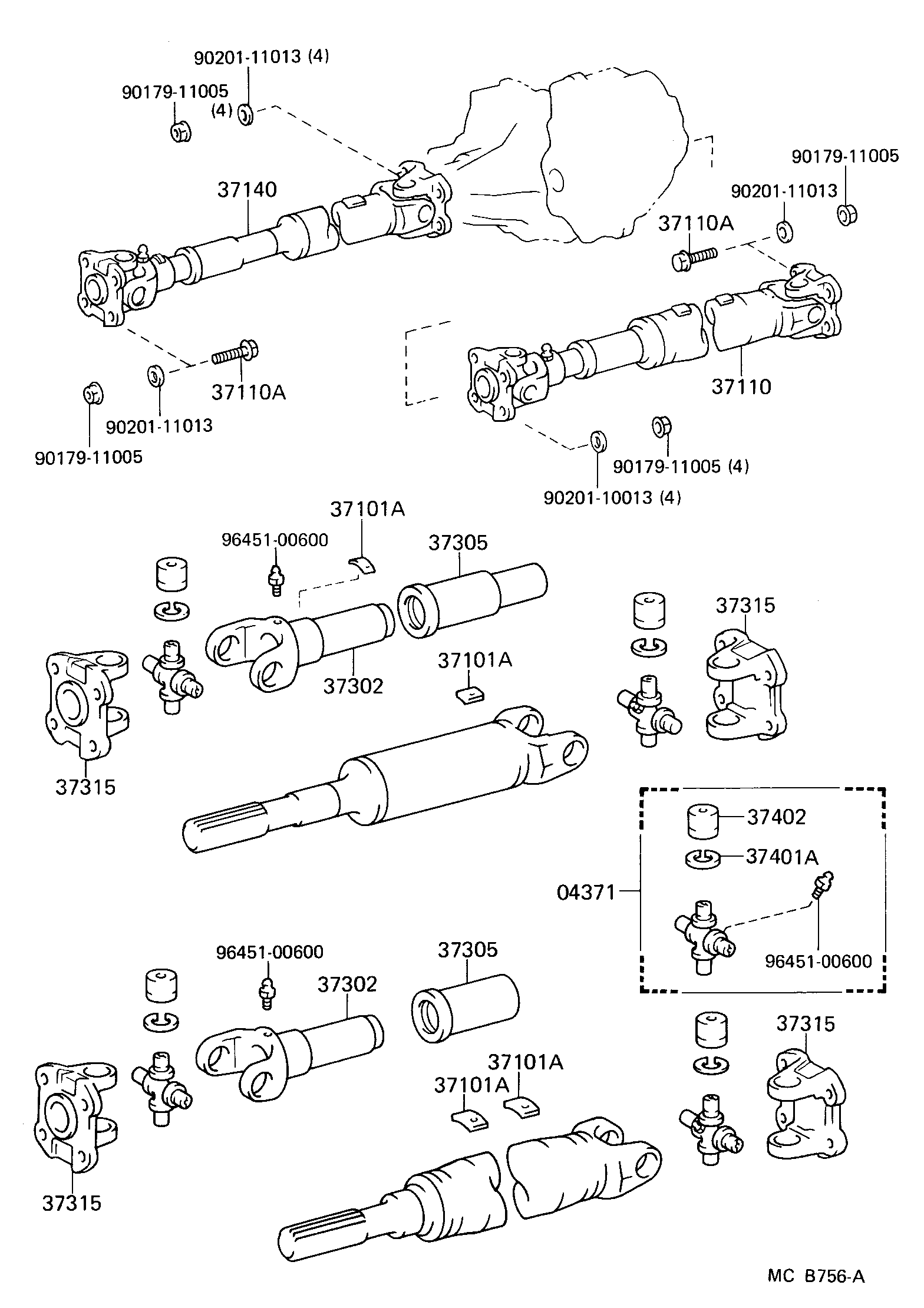

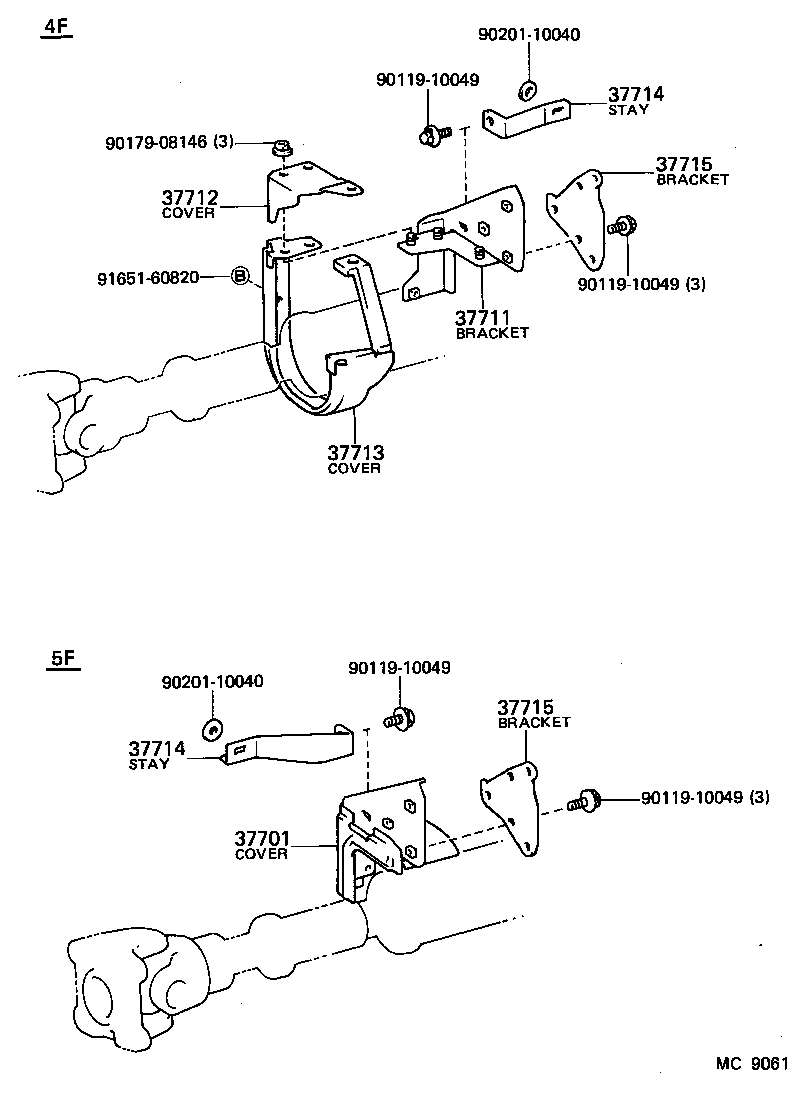

Figure MC8627D MC8627D 1980-08 → 1984-11 Figure MC9061 MC9061 1980-08 → 1984-11 Figure MCB756A MCB756A 1984-11 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37140 Shaft Assy, Propeller, Front
37302 Yoke Sub-assy, Universal Joint Sleeve
37305 Cover Sub-assy, Sliding Shaft Dust
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
37701 Cover Sub-assy, Propeller Shaft Dust
37711 Bracket, Propeller Shaft Dust Cover, NO.1
37712 Cover, Propeller Shaft Dust, NO.1
37713 Cover, Propeller Shaft Dust, NO.2
37714 Stay, Propeller Shaft Dust Cover
37715 Bracket, Propeller Shaft Dust Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
