Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

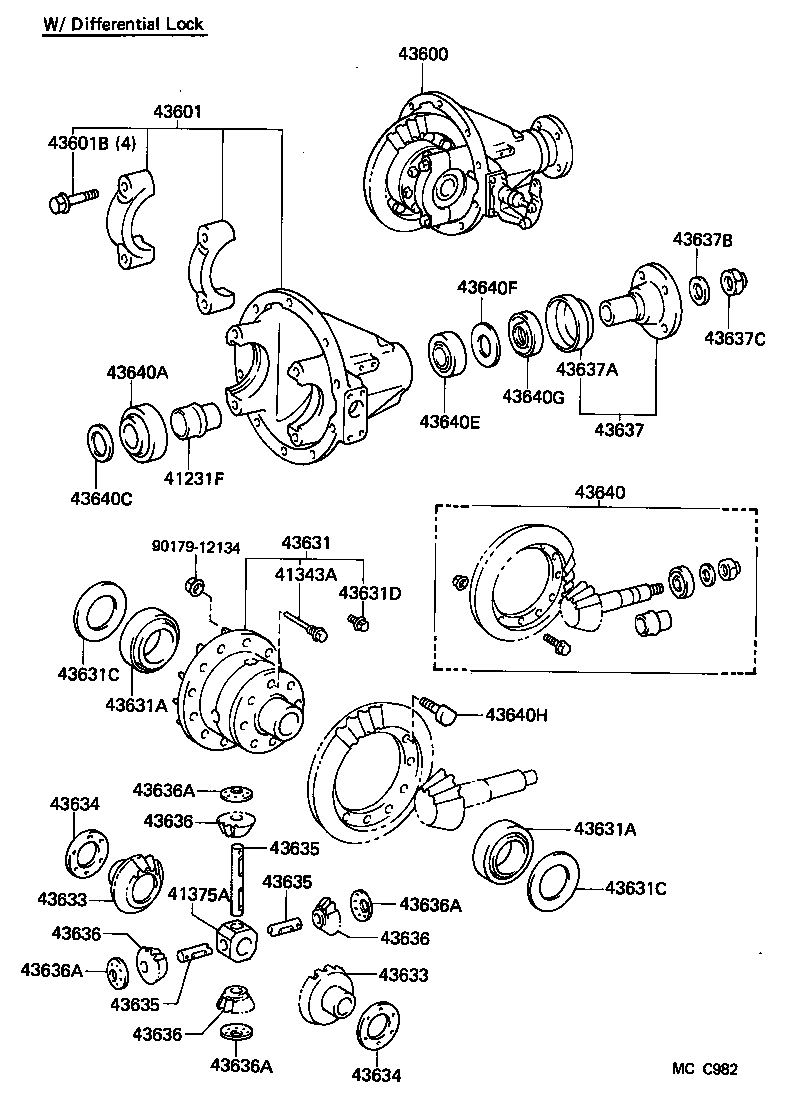

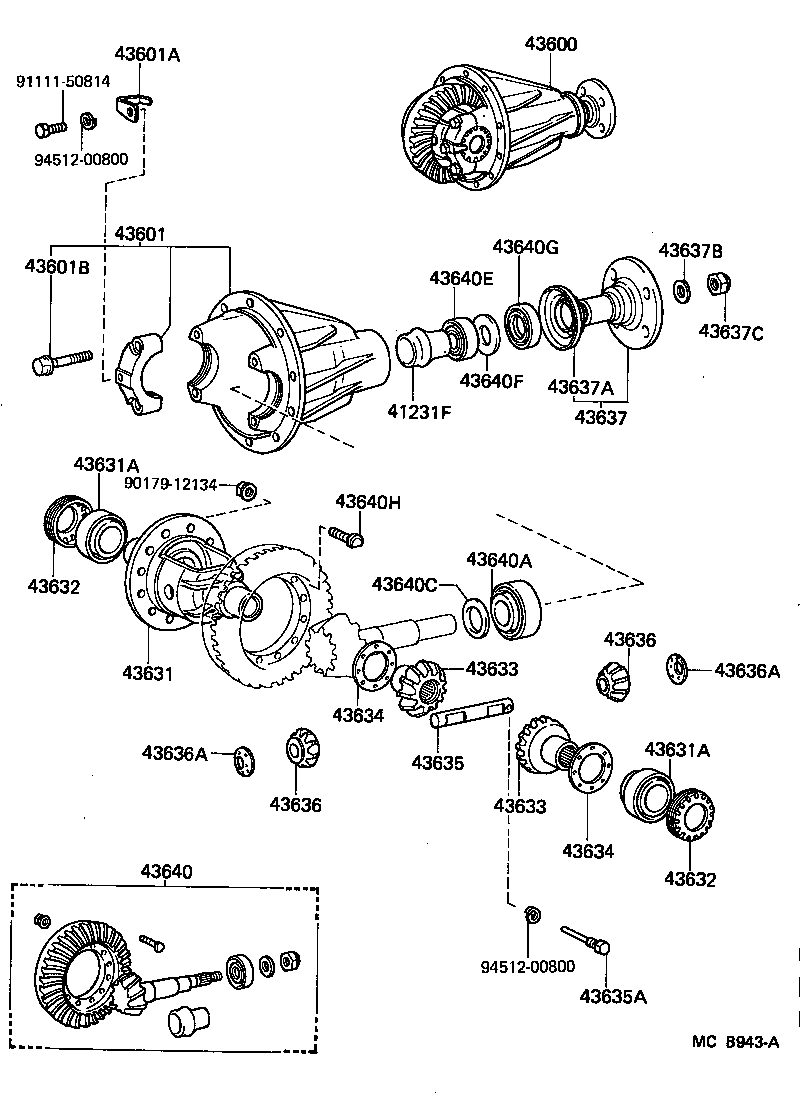

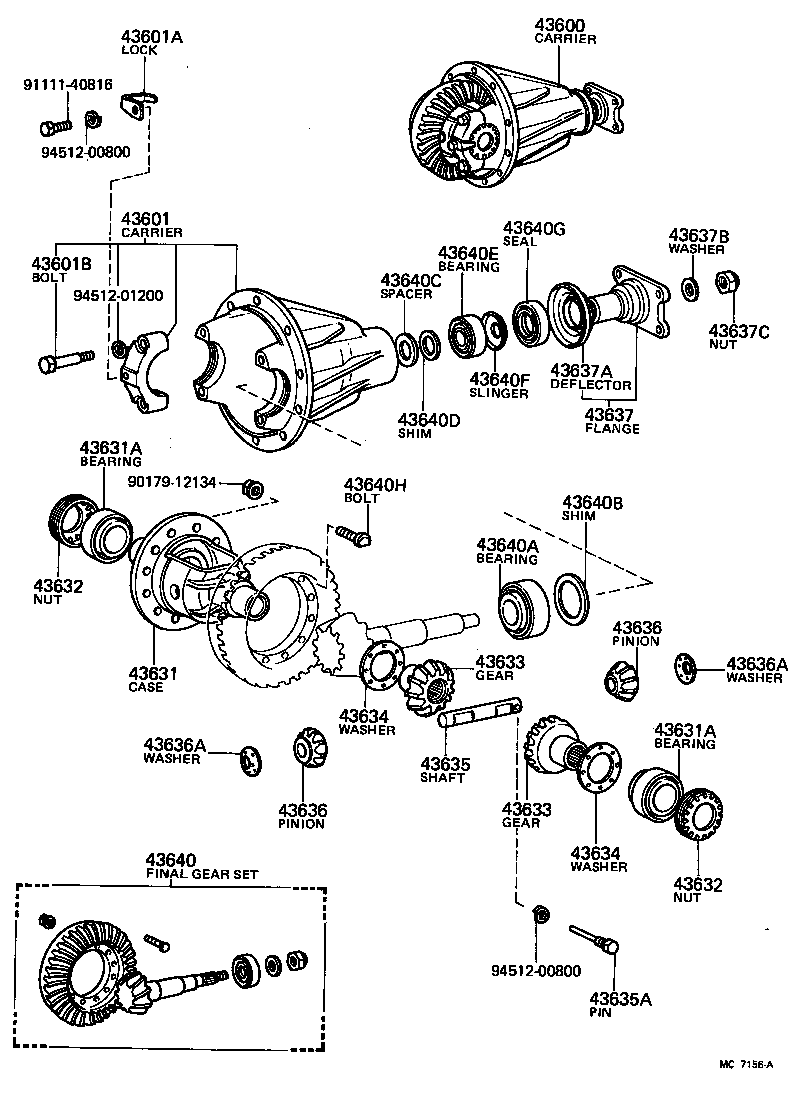

Front Axle Housing & Differential
59 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04412B | Gasket Kit, Front Differential Carrier |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41343A | Pin, Front Differential Pinion Shaft |
| 41375A | Holder, Front Differential Pinion Shaft |

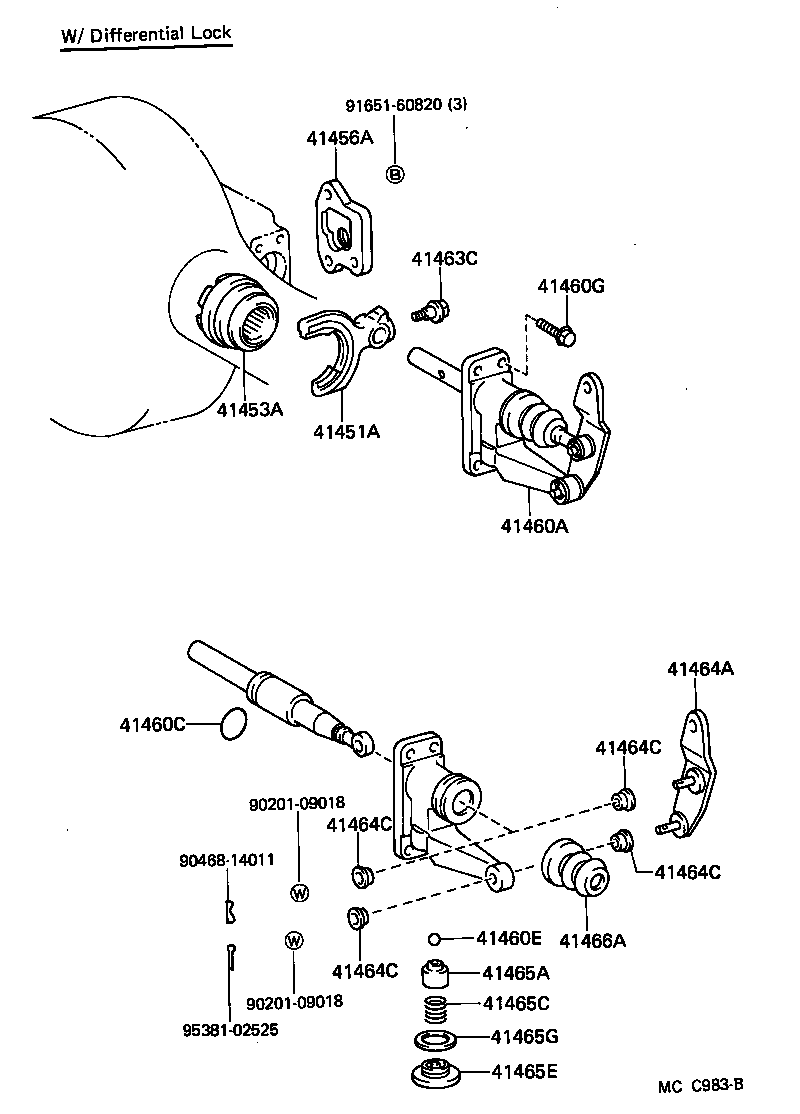

| 41451A | Fork, Front Differential Lock Shift |
| 41453A | Sleeve, Front Differential Lock |
| 41456A | Cover, Front Differential Lock |
| 41460A | Cylinder Assy, Front Differential Lock |
| 41460C | Ring, O (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41460E | Ball (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41460G | Bolt (FOR FRONT DIFFERENTIAL LOCK CYLINDER SET) |
| 41463C | Bolt (FOR FRONT DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) |
| 41464A | Lever, Front Differential Lock Cylinder |
| 41464C | Bush(FOR FRONT DIFFERENTIAL LOCK CYLINDER LEVER) |
| 41465A | Retainer, Front Differential Lock Spring |
| 41465C | Spring, Compression(FOR FRONT DIFFERENTIAL LOCK RETAINER) |
| 41465E | Plug (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41465G | Gasket (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41466A | Boot, Front Differential Lock Cylinder |
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43209 | Hose Sub-assy, Front Axle Breather |
| 43209A | Union (FOR FRONT AXLE BREATHER HOSE) |
| 43209B | Clamp (FOR FRONT AXLE BREATHER HOSE) |
| 43209C | Clip, Hose (FOR FRONT AXLE BREATHER HOSE) |
| 43411D | Seal, Type T Oil (FOR FRONT DRIVE SHAFT) |
| 43600 | Carrier Assy, Front Axle |
| 43600A | Bolt, Stud (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING) |
| 43601 | Carrier Sub-assy, Front Axle |
| 43601A | Lock, Front Axle Differential Adjust Nut |
| 43601B | Bolt, Front Axle Differential Bearing Cap |
| 43611 | Gasket, Front Axle Differential Carrier |
| 43631 | Case, Front Axle Differential |
| 43631A | Bearing, Front Axle Differential |
| 43631C | Washer (FRONT DIFFERENTIAL TAPERED ROLLER BEARING) |
| 43631D | Bolt, Hexagon (FOR DIFFERENTIAL CASE) |
| 43632 | Nut, Front Axle Differential Bearing Adjust |
| 43633 | Gear, Front Axle Differential Side |
| 43634 | Washer, Front Axle Differential Side Gear Thrust |
| 43635 | Shaft, Front Axle Differential Pinion |
| 43635A | Pin, Front Axle Differential Pinion Shaft |
| 43636 | Pinion, Front Axle Differential |
| 43636A | Washer, Front Axle Differential Pinion Thrust |
| 43637 | Flange, Front Axle Drive Pinion, W/Deflector |
| 43637A | Deflector, Dust (FOR FRONT AXLE) |
| 43637B | Washer, Plate (FOR FRONT AXLE DRIVE PINION) |
| 43637C | Nut, Castle (FOR FRONT AXLE DRIVE PINION) |
| 43640 | Final Gear Set, Front Axle Differential |
| 43640A | Bearing, Front Axle Drive Pinion, Front |
| 43640B | Shim, Front Axle Drive Pinion Spacer Rear Adjust |
| 43640C | Spacer OR Washer, Front Axle Drive Pinion Thrust |
| 43640D | Shim, Front Axle Drive Pinion Spacer Front Adjust |
| 43640E | Bearing, Front Axle Drive Pinion, Rear |
| 43640F | Slinger, Front Axle Drive Pinion Oil |
| 43640G | Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER) |
| 43640H | Bolt, Ring Gear Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
