Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

25 part groups · 9 illustrations

Illustrations

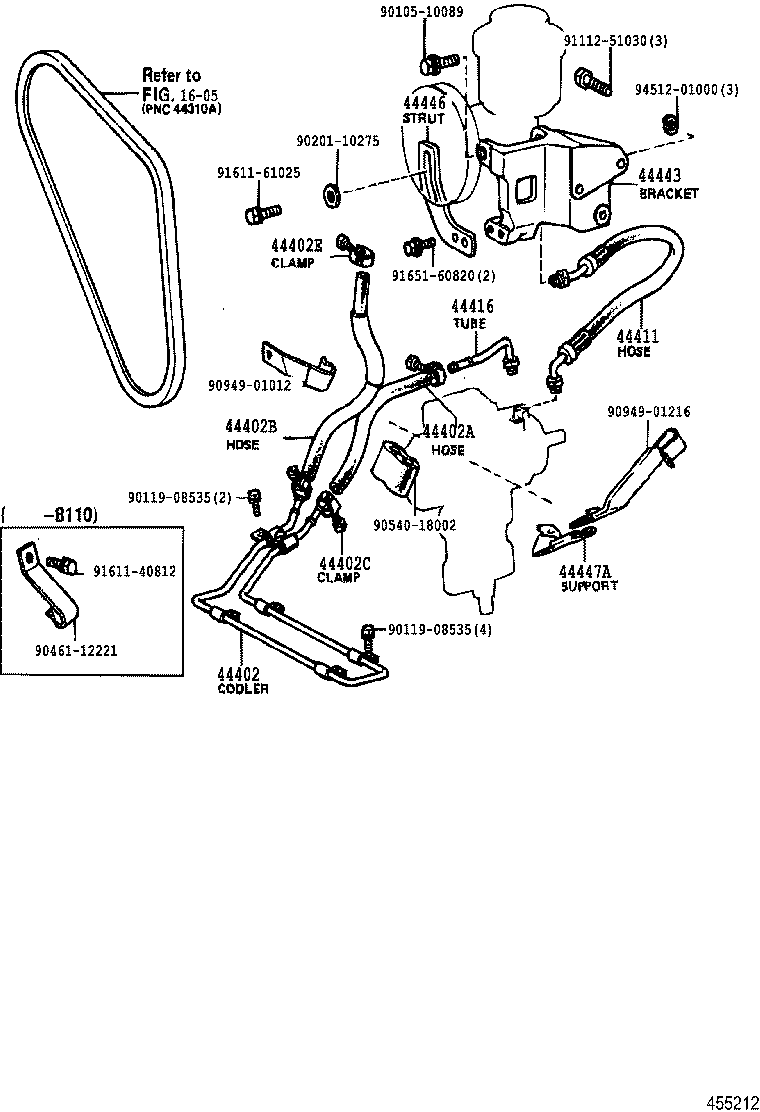

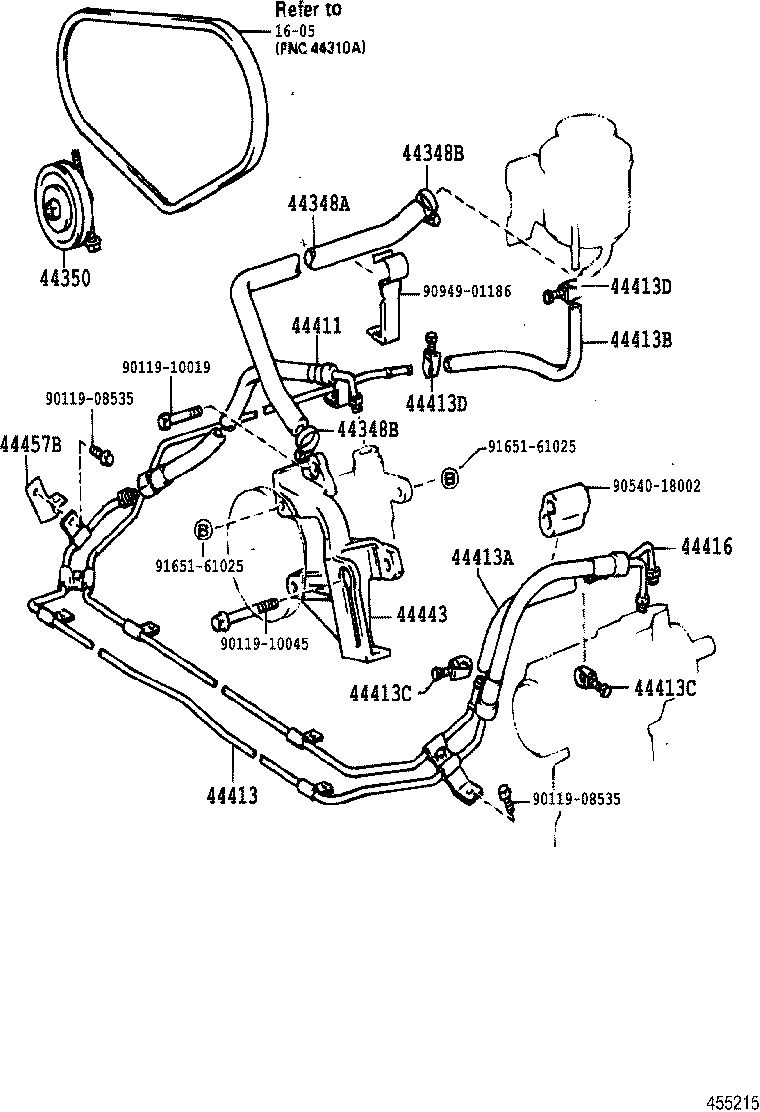

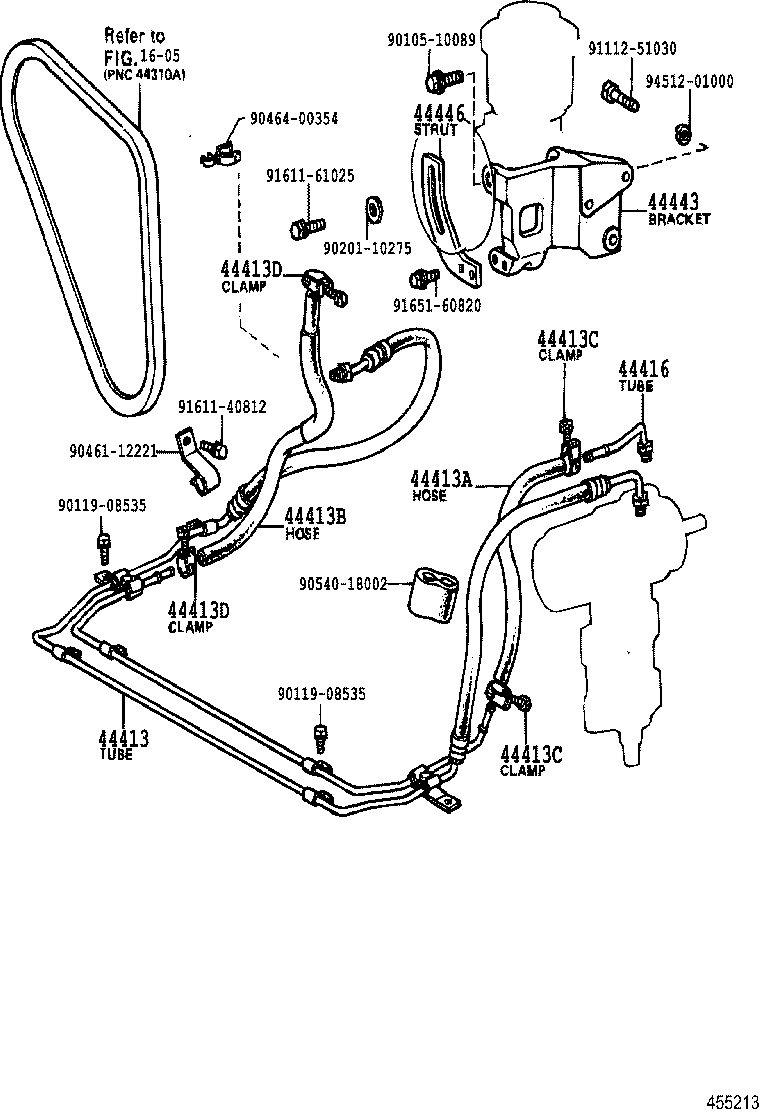

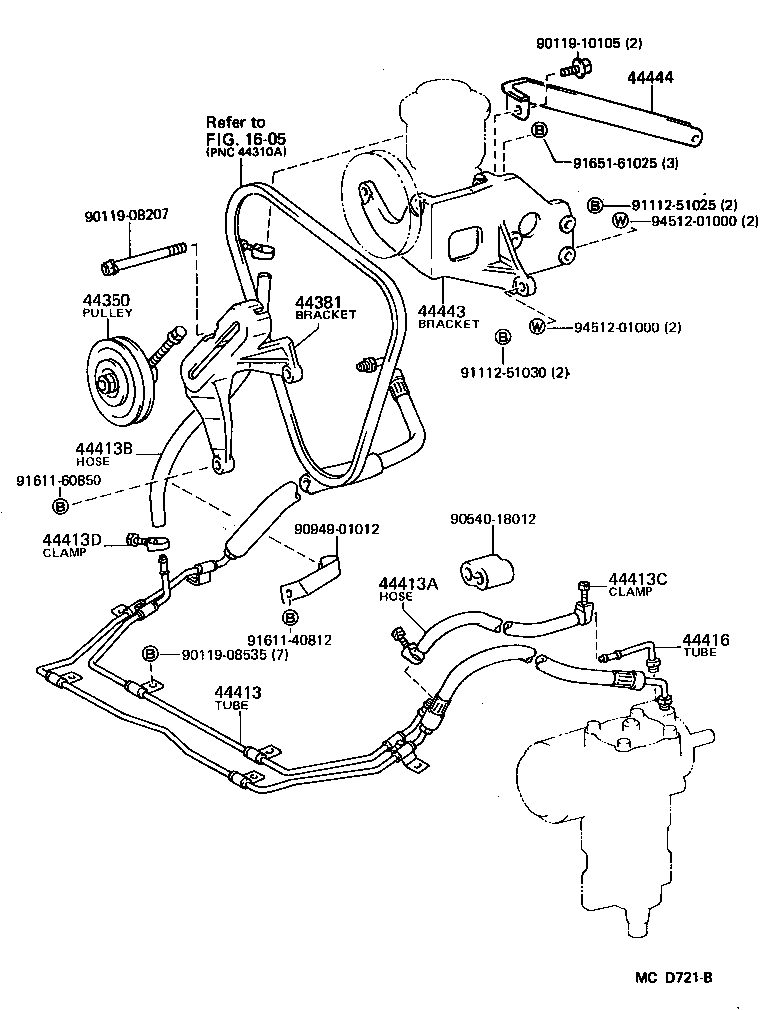

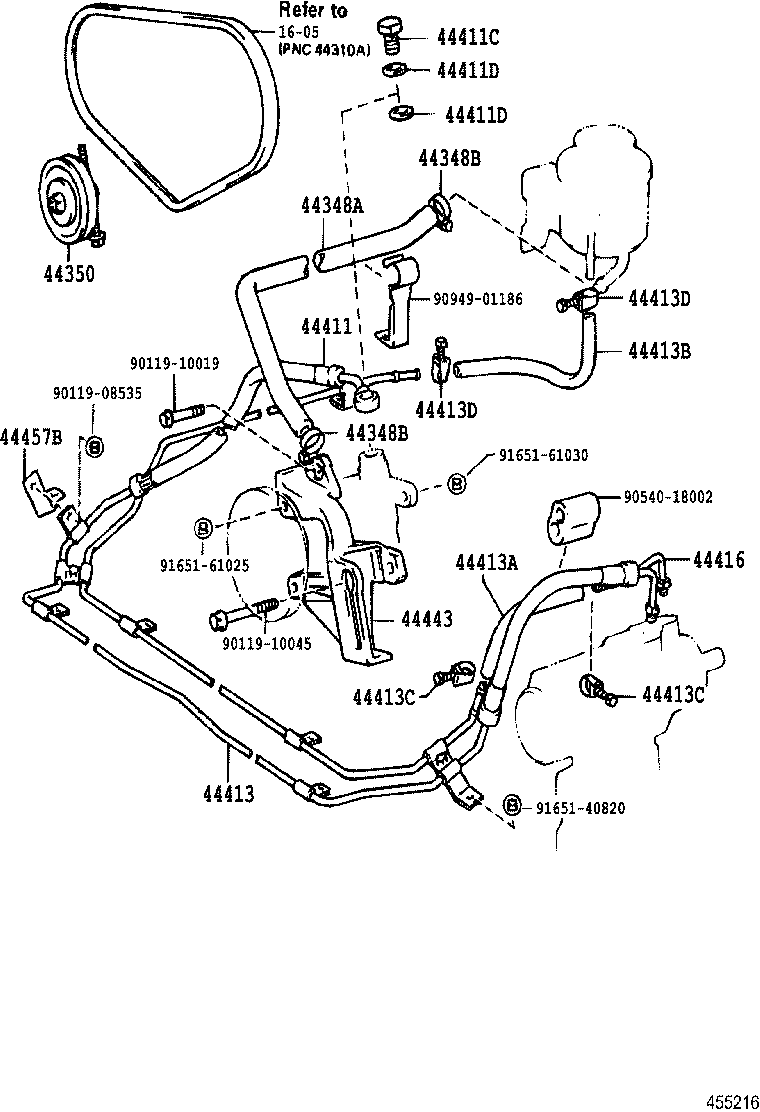

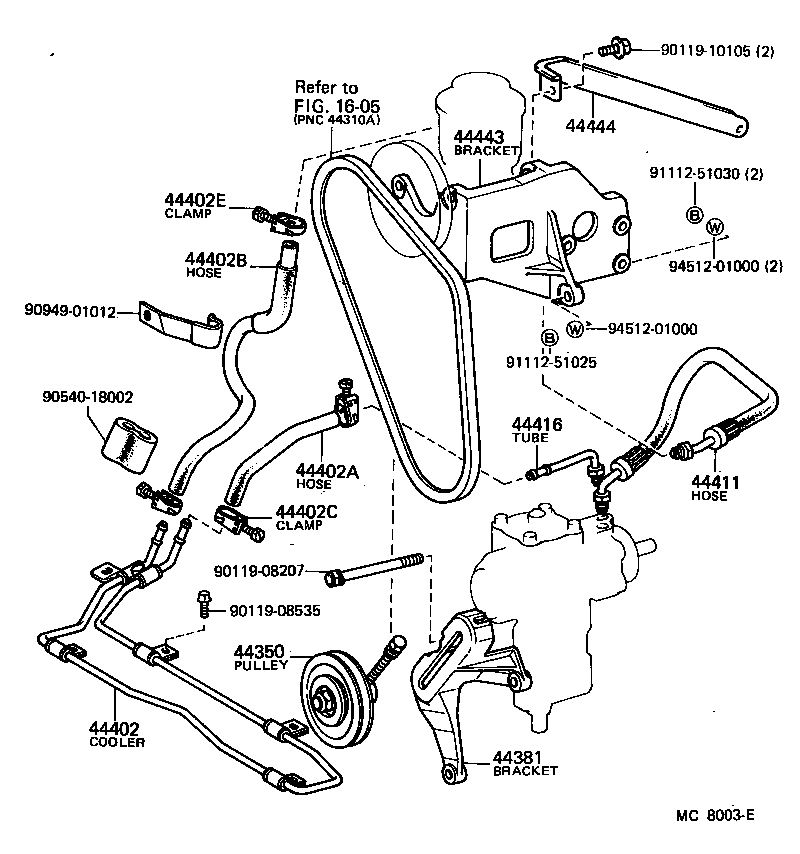

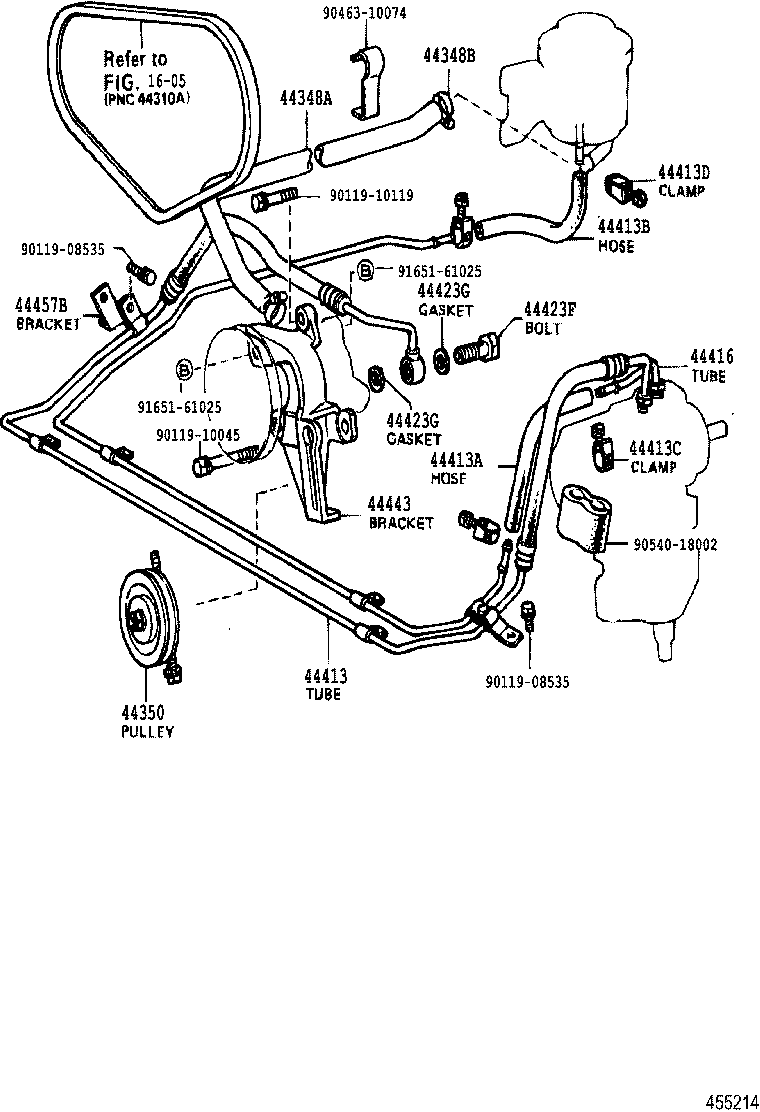

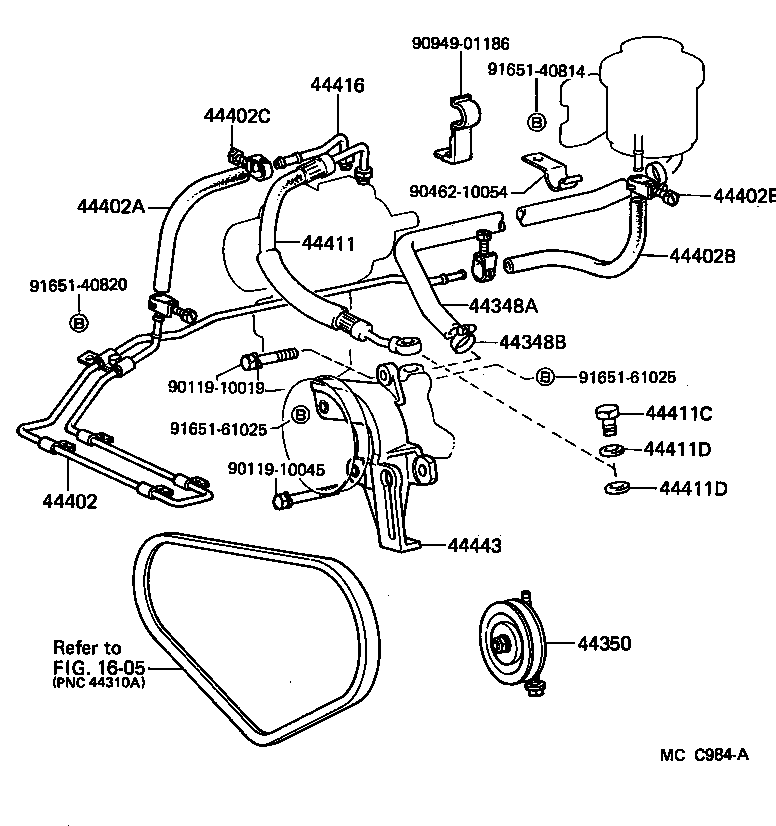

Figure MC7197F MC7197F 1980-08 → 1985-10 Figure MCC984A MCC984A 1985-10 → — Figure 455214 455214 1980-08 → 1984-11 Figure 455215 455215 1984-11 → 1985-10 Figure 455216 455216 1985-10 → — Figure 455212 455212 1980-08 → — Figure 455213 455213 1980-08 → — Figure MC8003E MC8003E 1984-01 → — Figure MCD721B MCD721B 1984-01 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413B Hose(FOR RESERVOIR TANK INLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423F Bolt, Union
44423G Gasket, Union Bolt
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44447A Bracket, Hose Support, NO.1
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
