Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

45 part groups · 19 illustrations

Illustrations

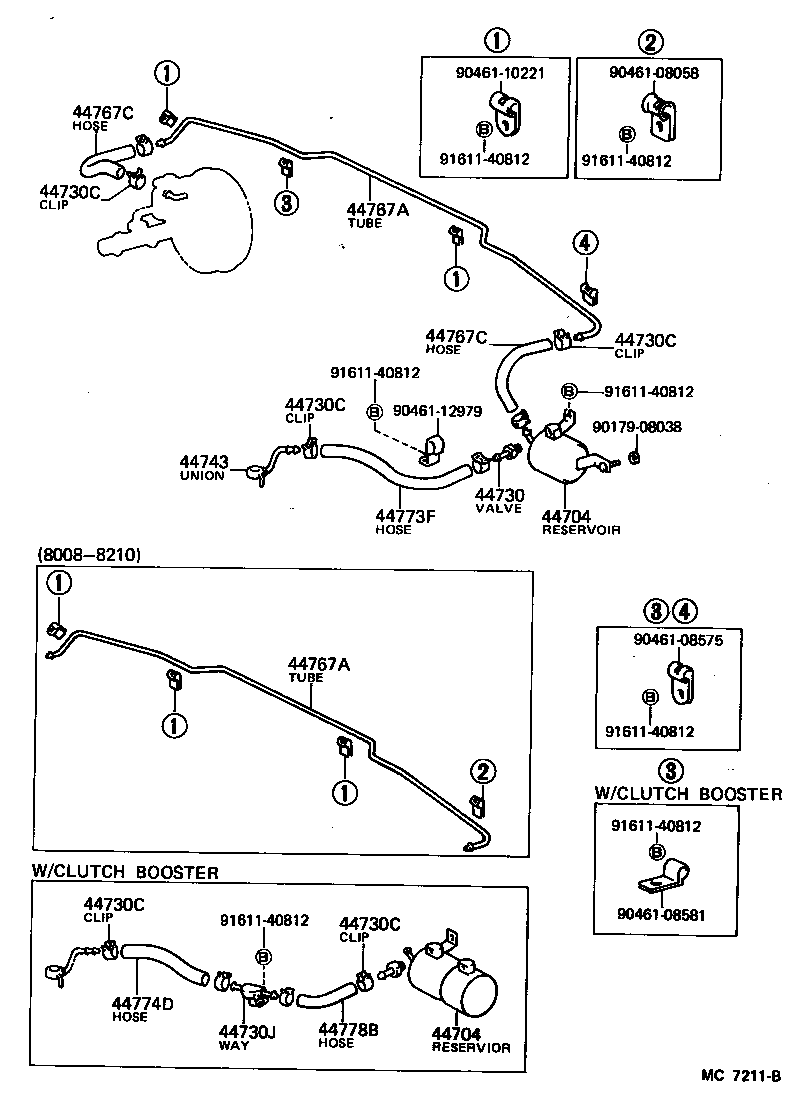

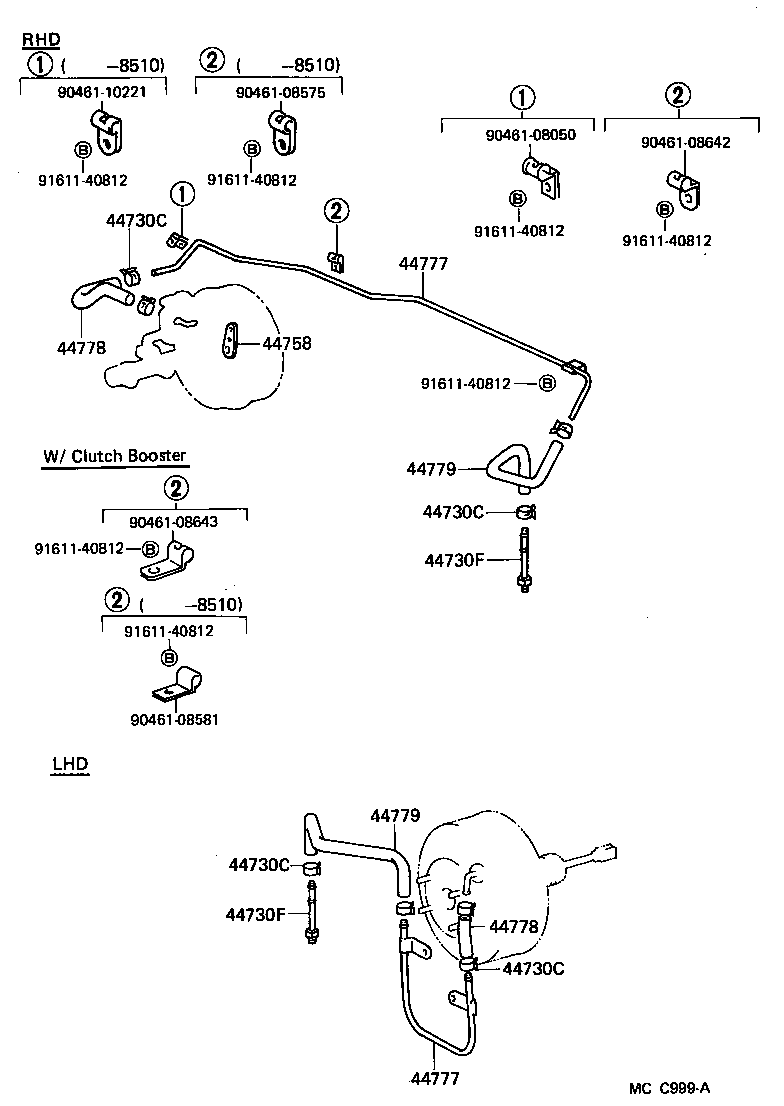

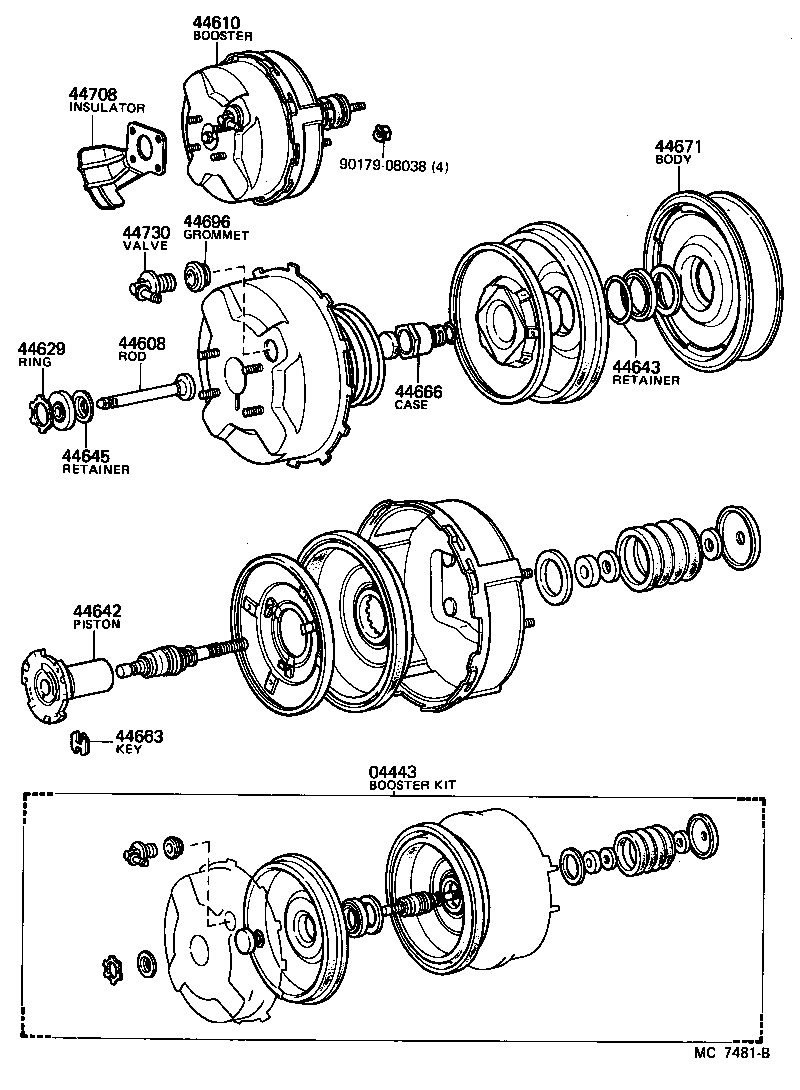

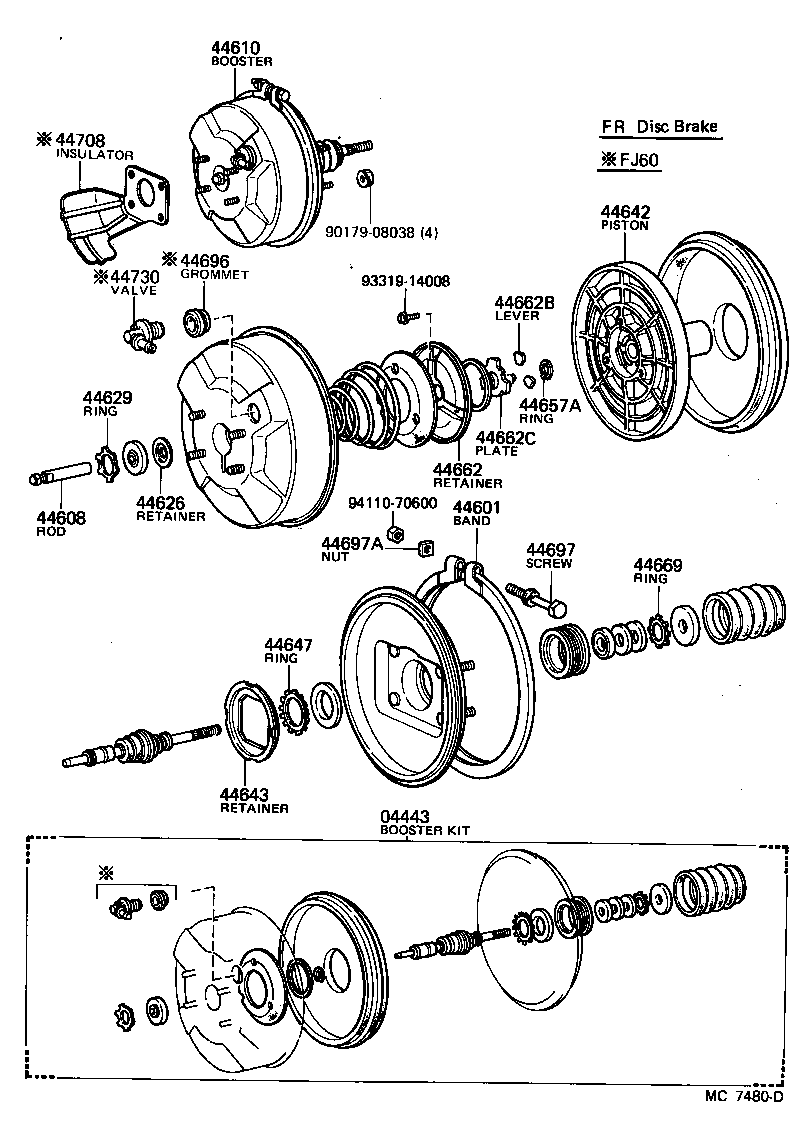

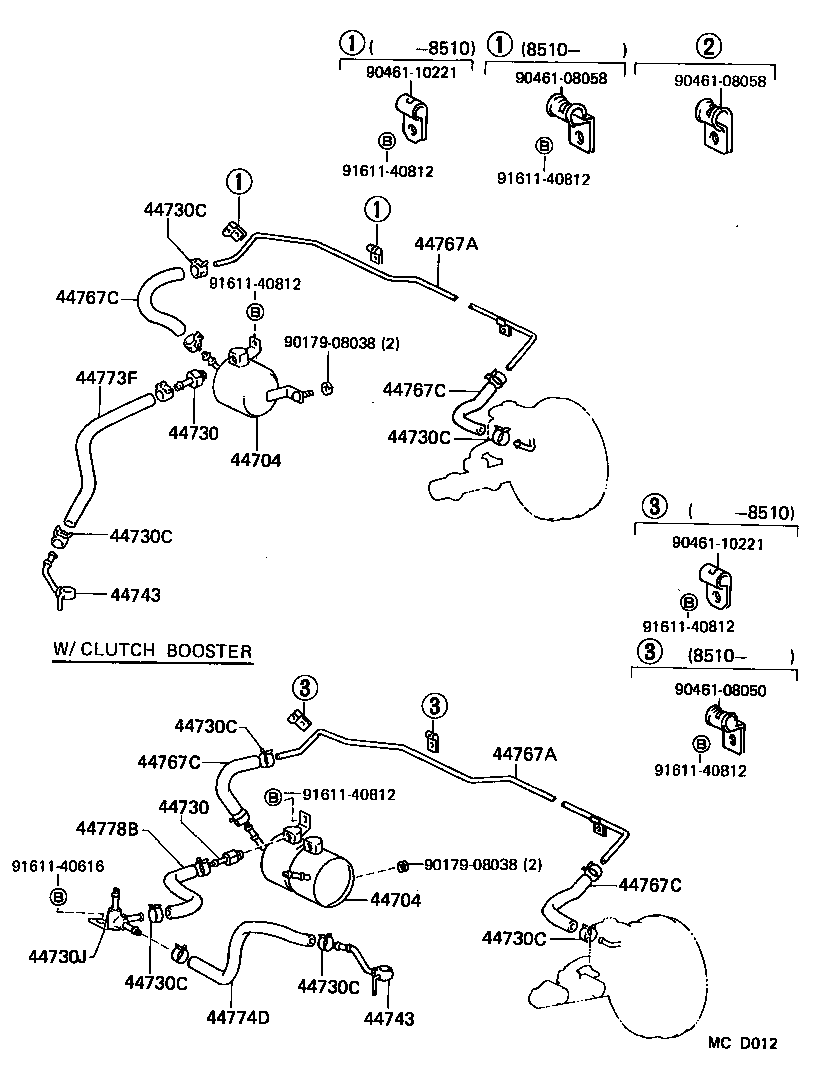

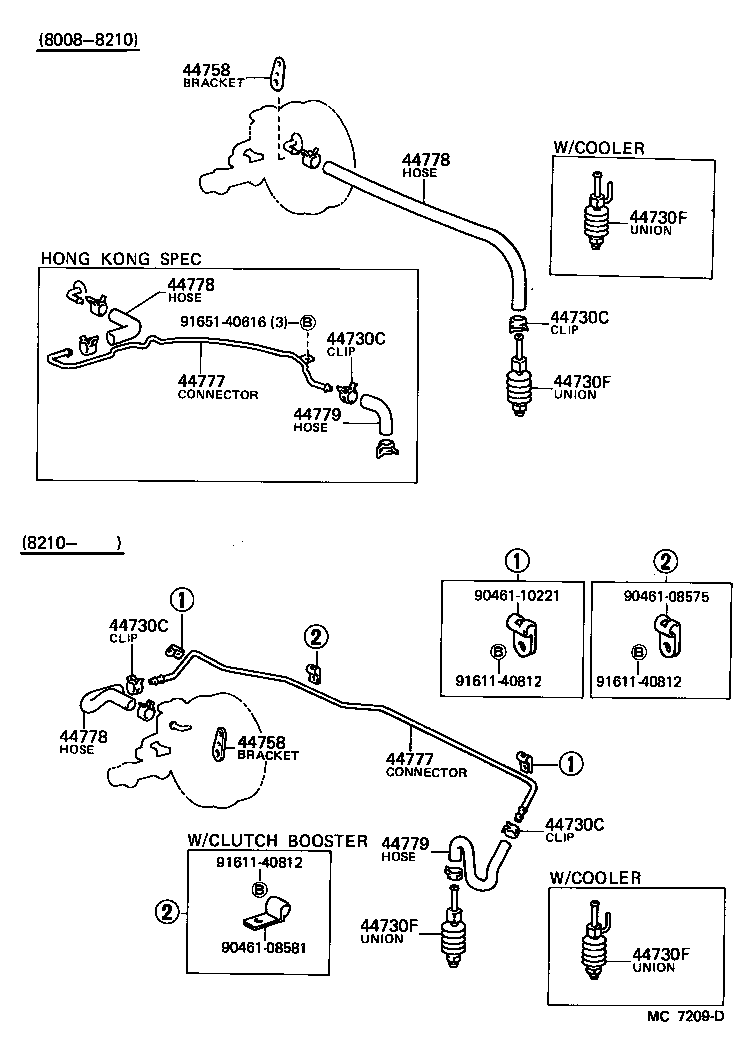

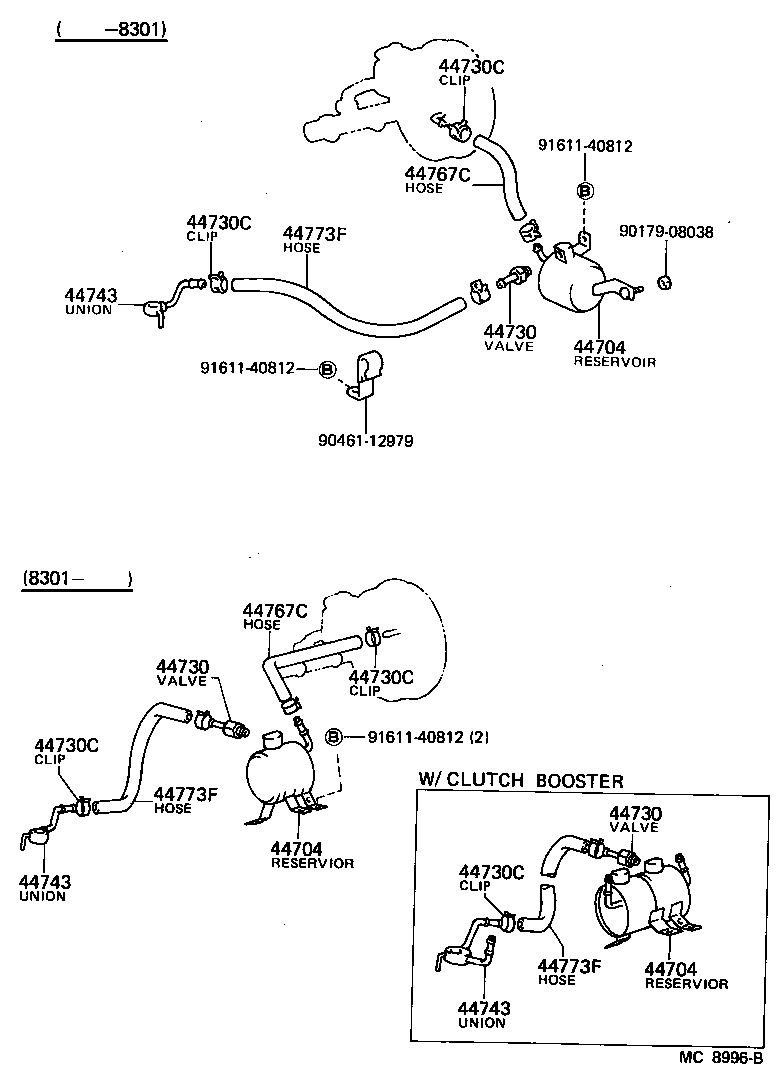

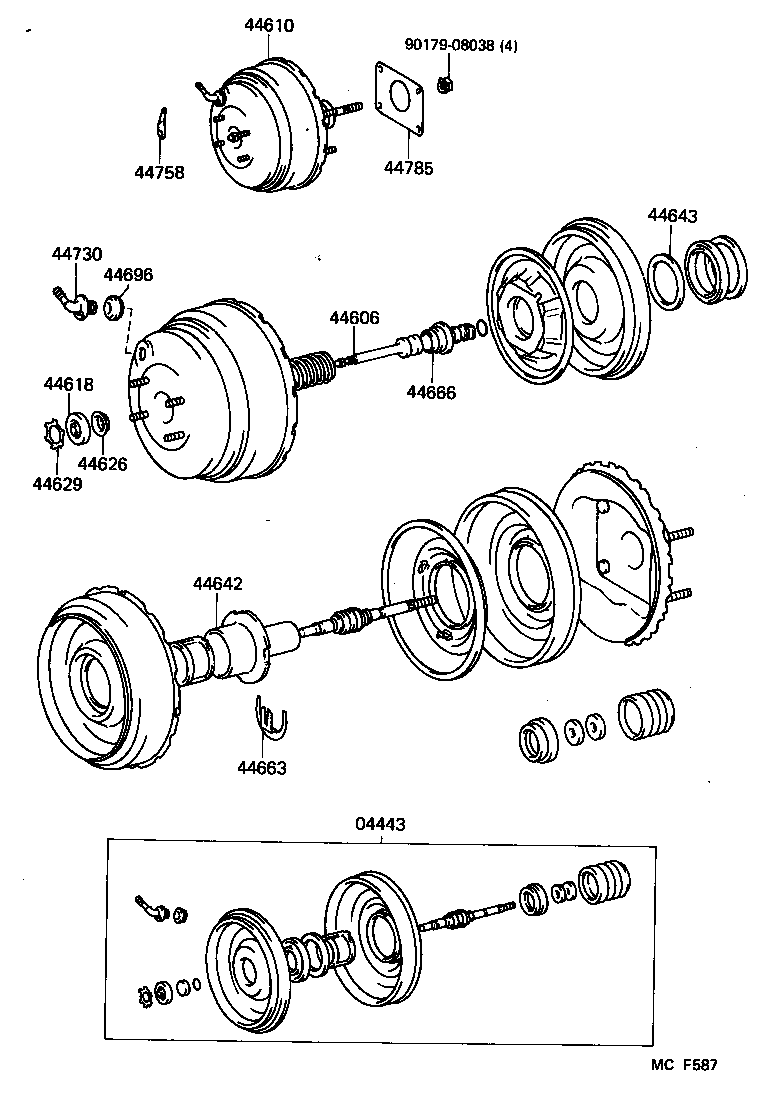

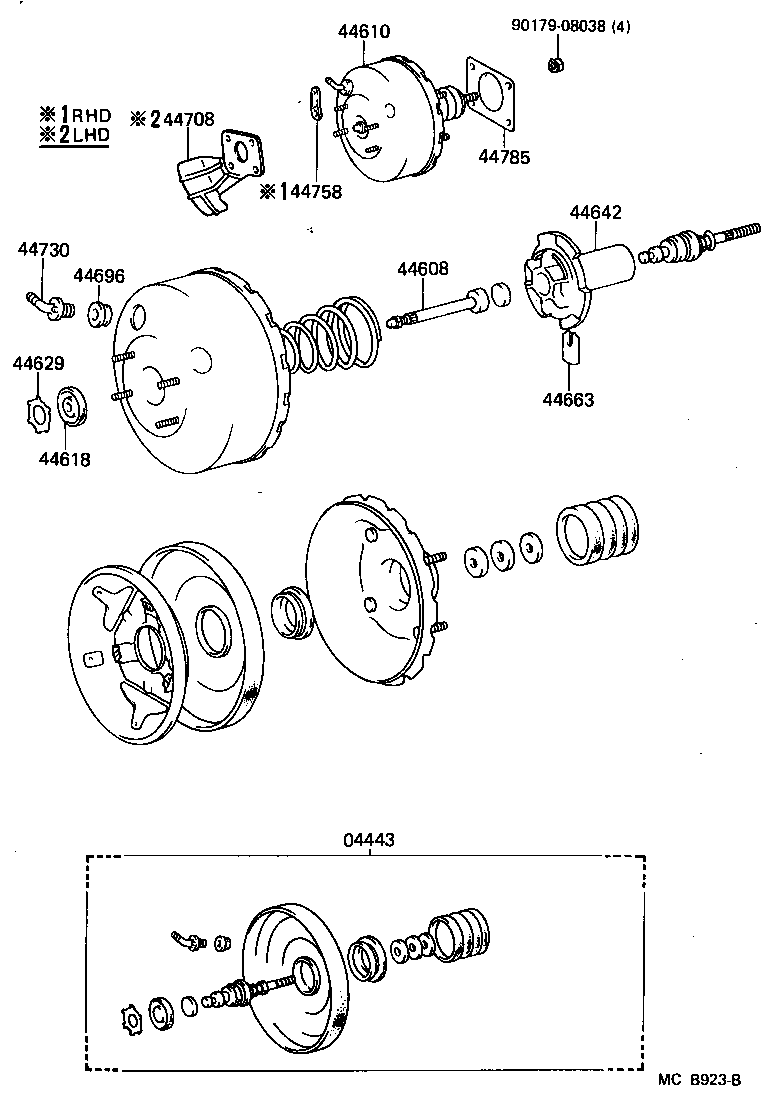

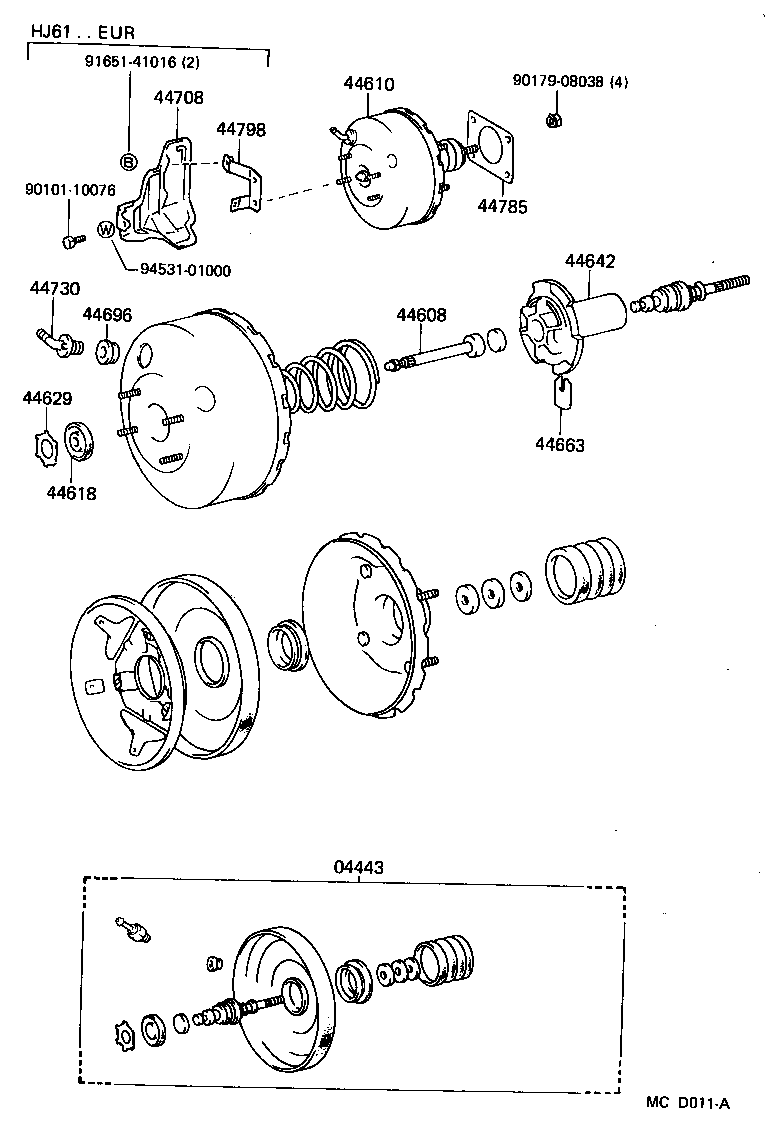

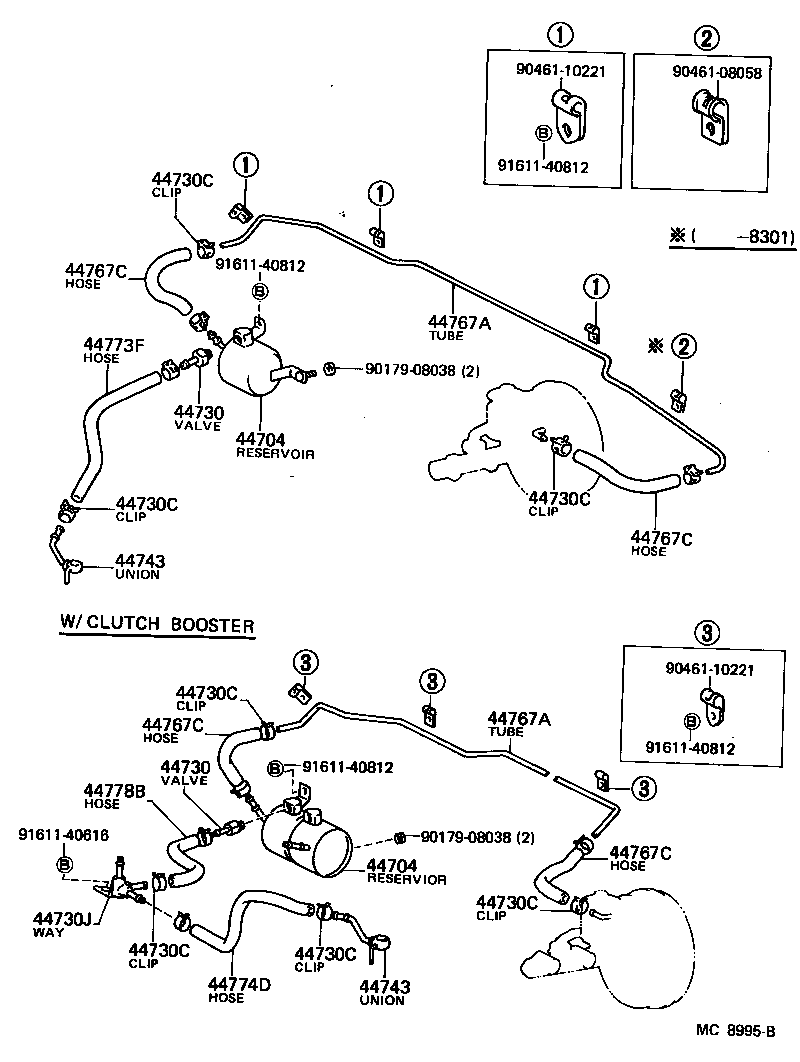

Figure MC7479C MC7479C 1980-08 → 1984-11 Figure MC7480D MC7480D 1980-08 → 1984-11 Figure MC7481B MC7481B 1980-08 → 1984-11 Figure MCB923B MCB923B 1984-11 → 1987-04 Figure MCB923B MCB923B 1987-04 → — Figure MCD011A MCD011A 1984-11 → — Figure MCF587 MCF587 1987-04 → — Figure MC7210C MC7210C 1980-08 → — Figure MC8995B MC8995B 1980-08 → 1984-11 Figure MCD012 MCD012 1984-11 → — Figure MC7211B MC7211B 1980-08 → 1985-10 Figure MCD013B MCD013B 1985-10 → — Figure MCD464 MCD464 1985-10 → — Figure MC8996B MC8996B 1980-08 → 1986-01 Figure MC8996B MC8996B 1986-01 → — Figure MCD465 MCD465 1986-01 → — Figure MC7209D MC7209D 1980-08 → 1984-11 Figure MC8997D MC8997D 1980-08 → 1984-11 Figure MCC999A MCC999A 1984-11 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44580 Valve Assy, Actuator Check
44601 Band Sub-assy, Booster Body
44606 Exhaust Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44626 Retainer, Booster Rod Cup
44629 Ring, Circular Internal
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44647 Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER)
44657A Ring, Snap(FOR BOOSTER AIR VALVE STOPPER)
44657B Washer, Plate(FOR BOOSTER AIR VALVE STOPPER)
44662 Retainer, Reaction, NO.1
44662B Lever, Reaction
44662C Plate, Reaction, NO.1
44663 Key, Valve Stopper
44666 Case, Reaction Disc
44669 Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER)
44671 Body Sub-assy, NO.3
44683 Connector, Booster Body
44683A Lock, Connector
44696 Grommet, Check Valve
44697 Screw, Booster Band Set
44697A Nut(FOR BOOSTER BAND SET)
44704 Reservoir Sub-assy, Vacuum
44708 Insulator Sub-assy, Brake Booster Heat
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730J Way(FOR BOOSTER VACUUM)
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44767A Tube, Vacuum Reservoir TO Brake Booster
44767C Hose(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44773F Hose, Union TO Check Valve
44774D Hose, Union TO Way
44777 Connector, Vacuum Hose, NO.1
44778 Hose, Connector TO Check Valve
44778B Hose, Way TO Check Valve
44779 Hose, Union TO Connector
44785 Gasket, Brake Booster
44798 Bracket, Heat Insulator, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
