Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

47 part groups · 11 illustrations

Illustrations

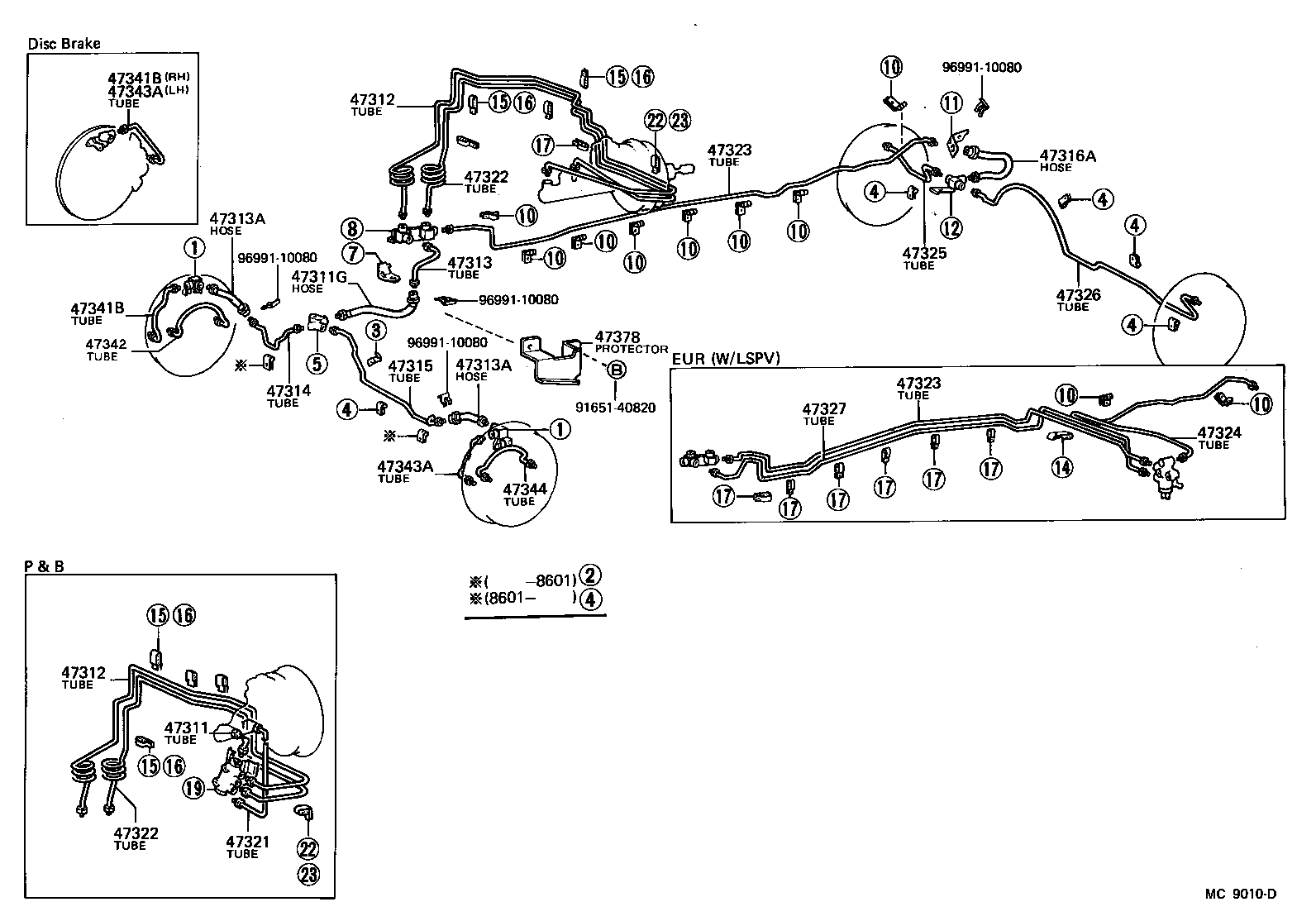

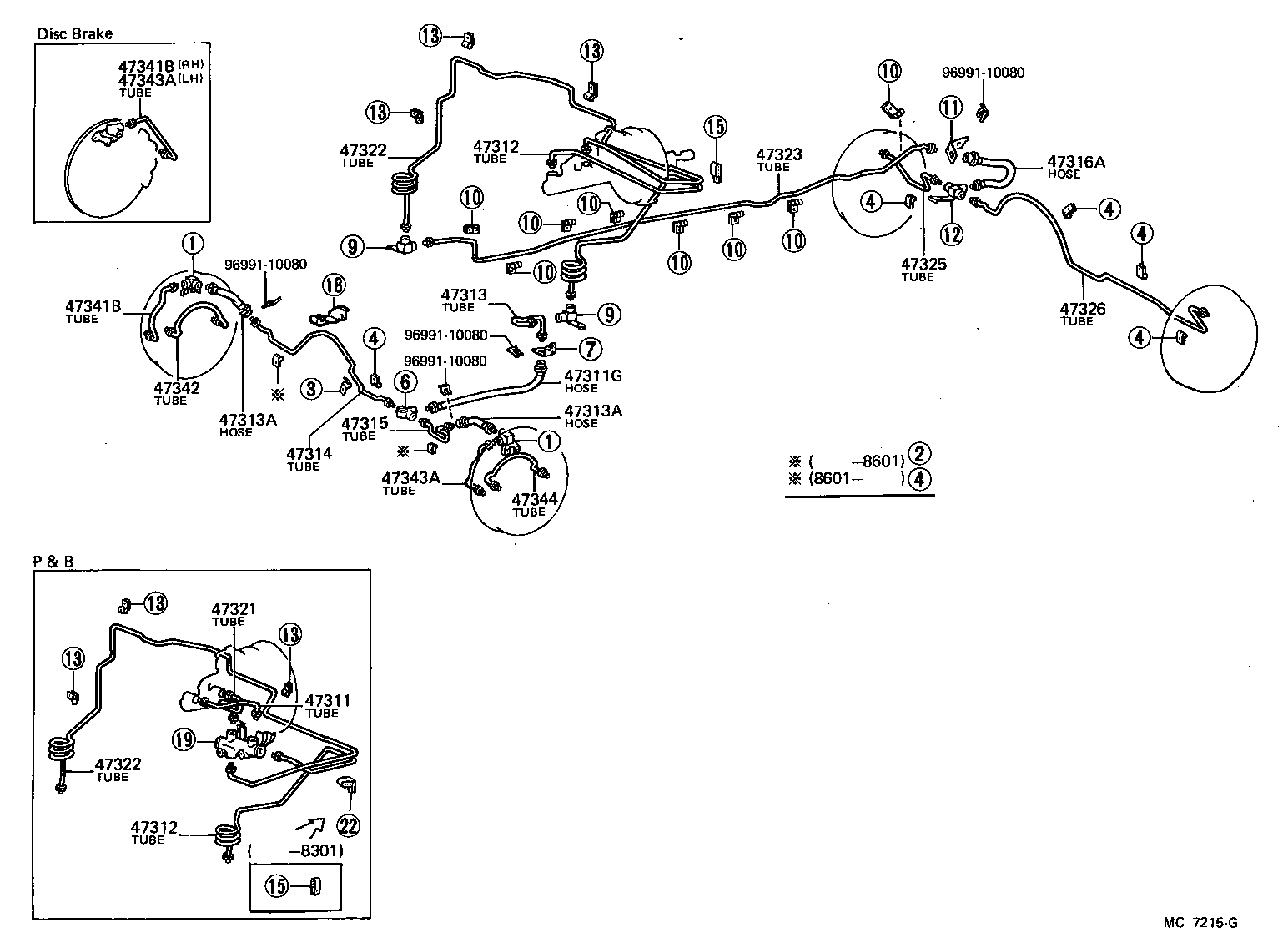

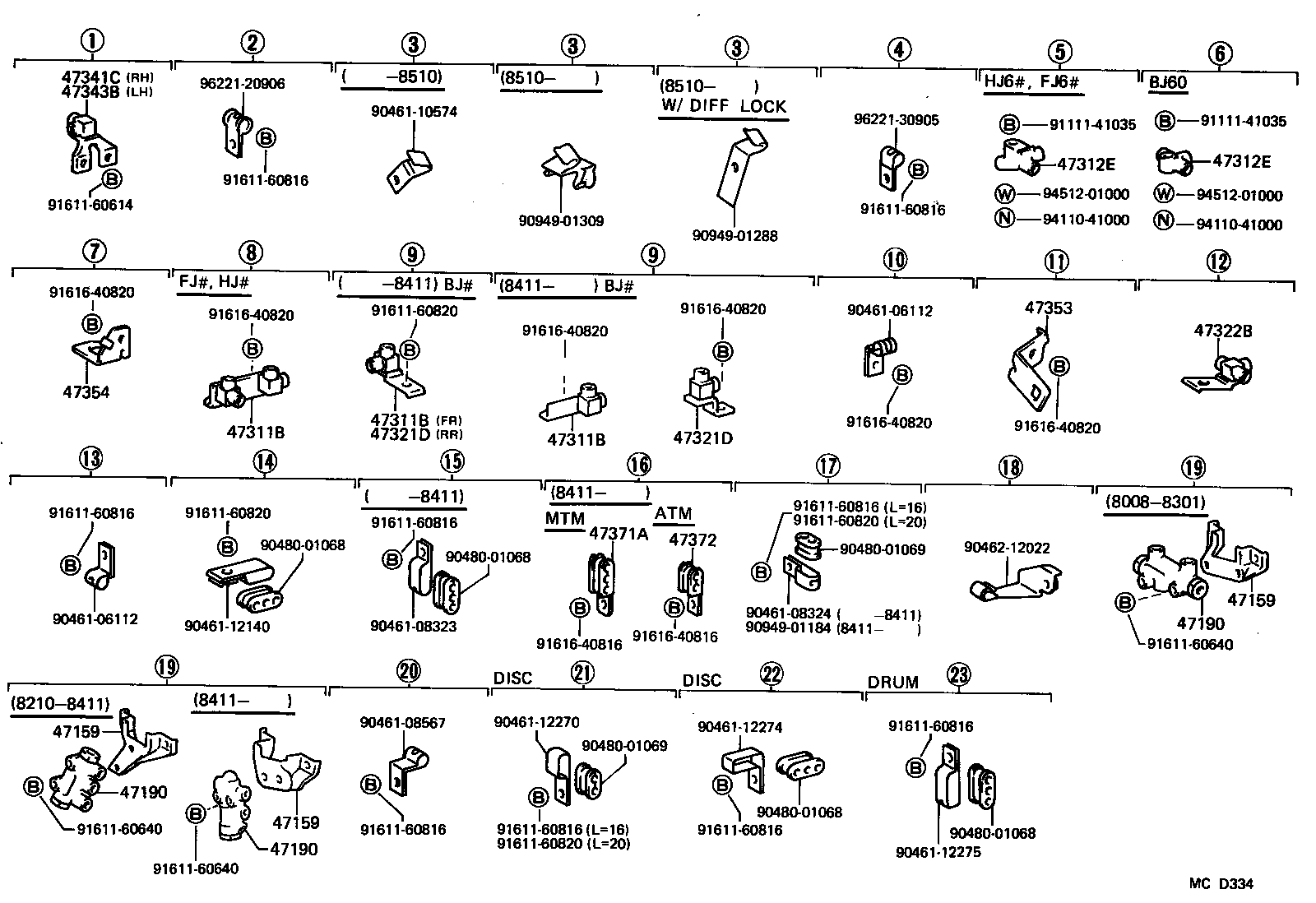

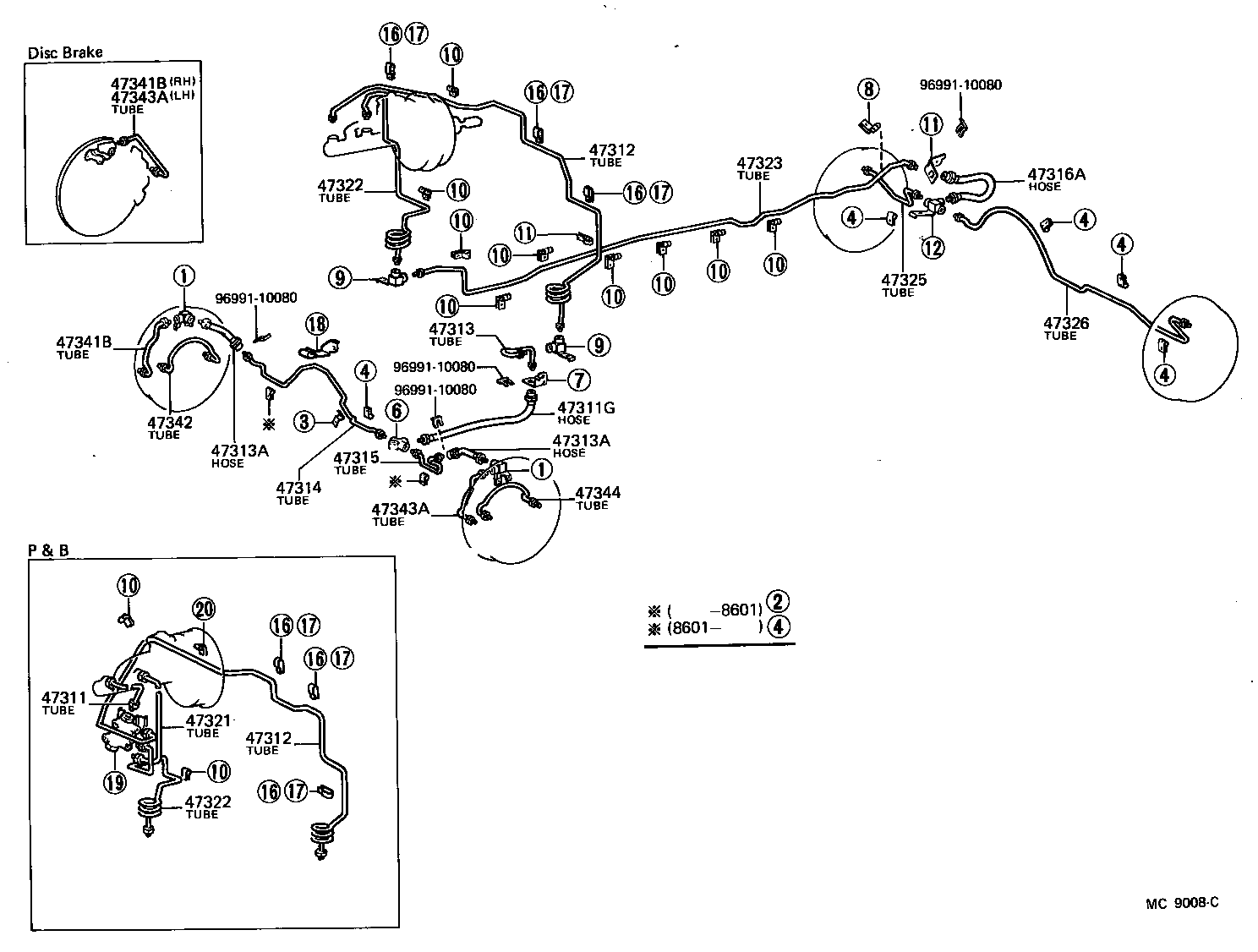

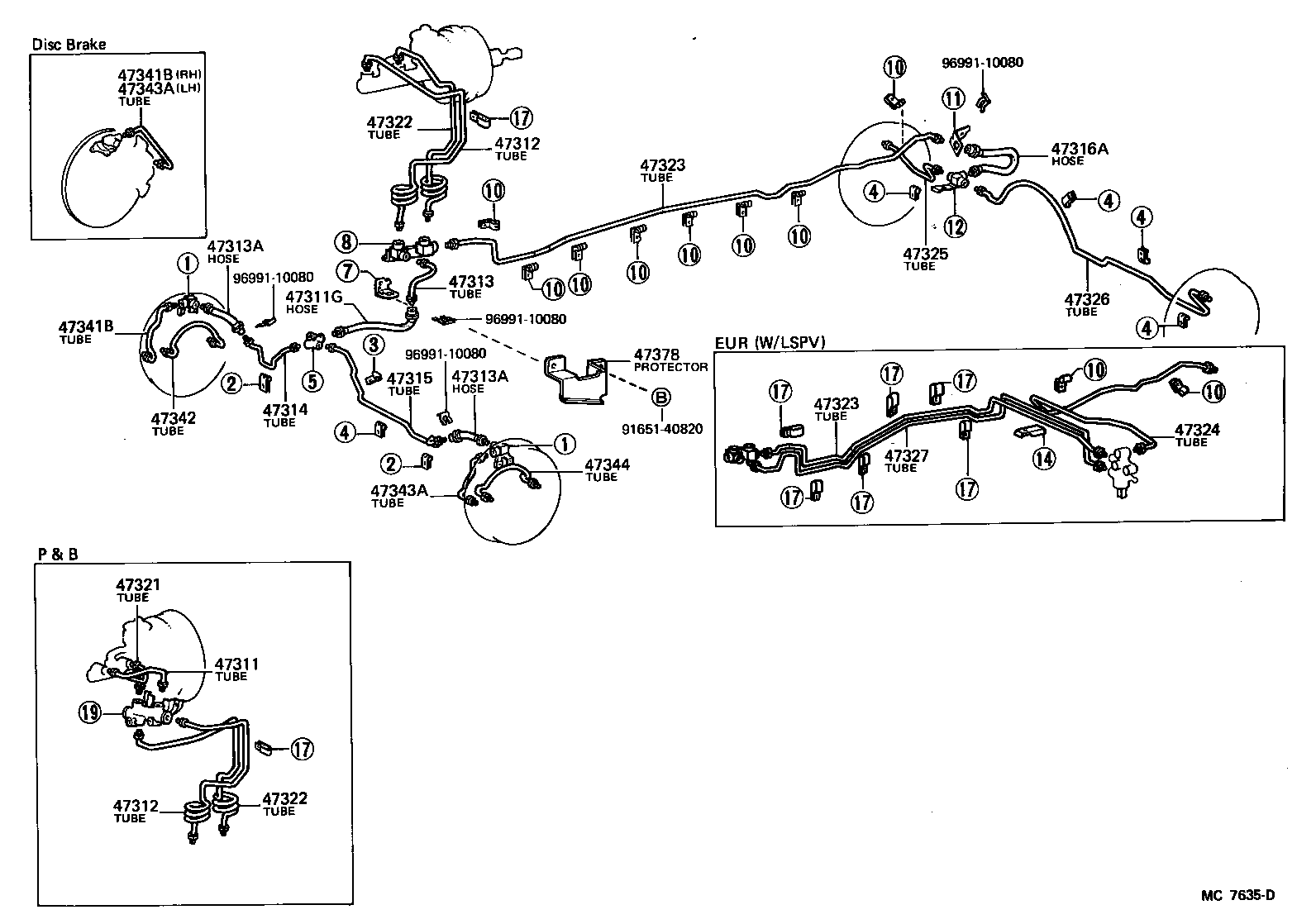

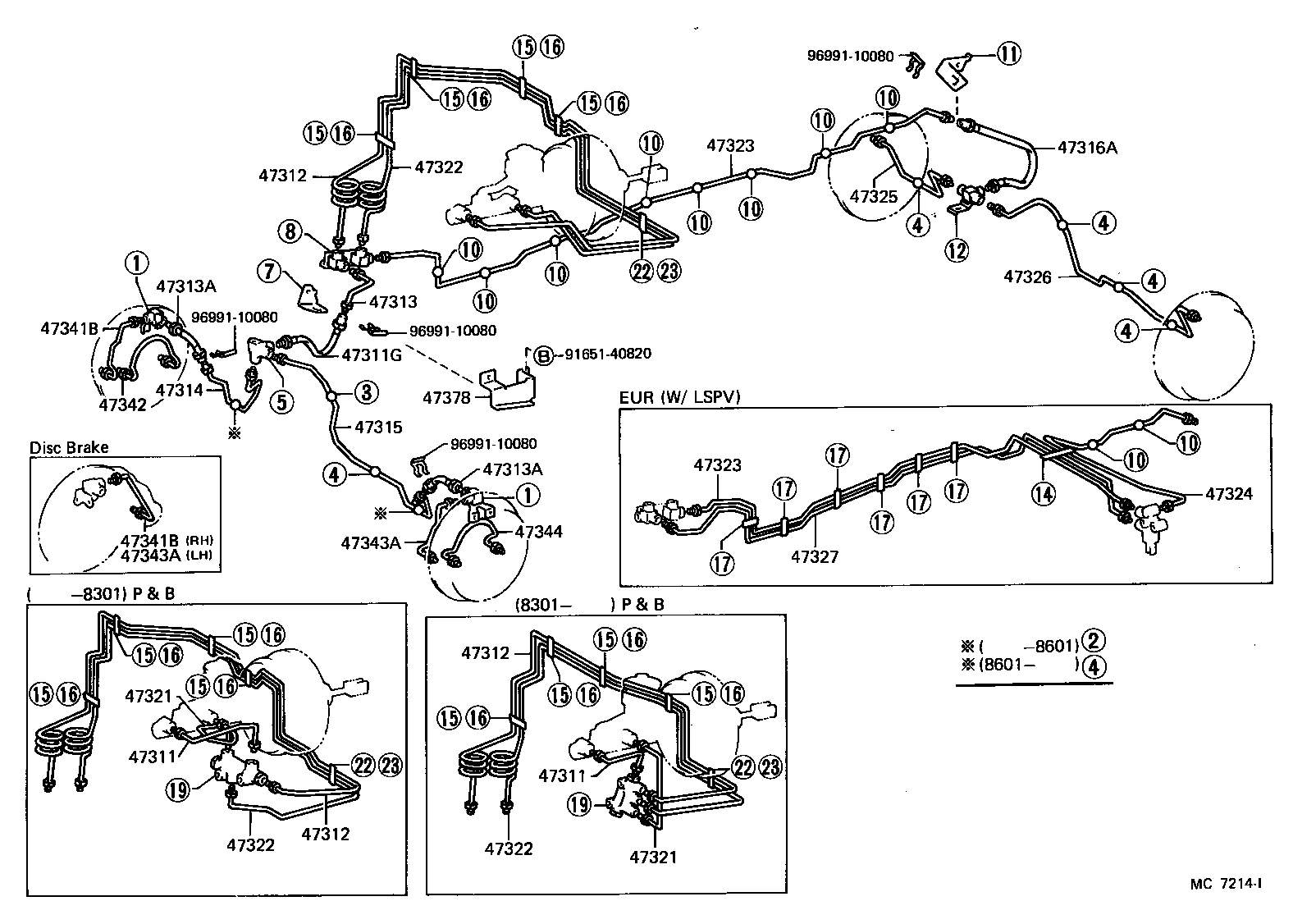

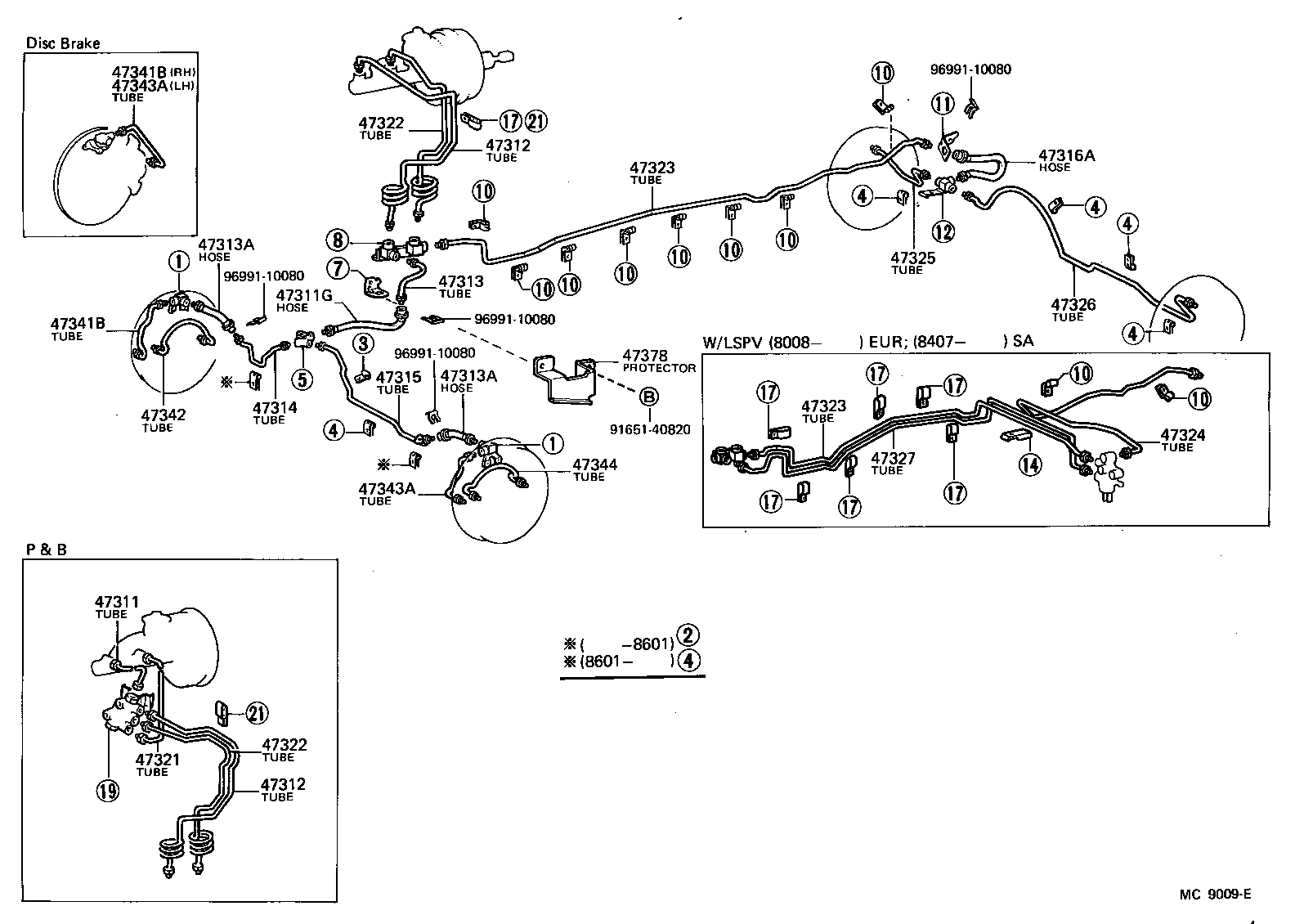

Figure MCD317 MCD317 1980-08 → 1982-10 Figure MC9008C MC9008C 1982-10 → — Figure MC7215G MC7215G 1980-08 → — Figure MC7635D MC7635D 1980-08 → 1982-10 Figure MC9009E MC9009E 1982-10 → — Figure MC7214I MC7214I 1980-08 → 1982-10 Figure MC7214I MC7214I 1982-10 → — Figure MC9010D MC9010D 1982-10 → — Figure MCD334 MCD334 1980-08 → — Figure MC7227D MC7227D 1980-08 → — Figure MC7227D MC7227D 1984-07 → 1984-11

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
47159 Bracket, Proportioning Valve
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47341B Tube, Wheel Cylinder, Front RH NO.1
47341C Way(FOR WHEEL CYLINDER FRONT RH TUBE)
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47343B Way(FOR WHEEL CYLINDER FRONT LH TUBE)
47344 Tube, Wheel Cylinder, Front LH NO.2
47353 Bracket, Flexible Hose(FOR REAR)
47354 Bracket, Front Flexible Hose
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47378 Protector, Brake Tube
47910 Valve Assy, Load Sensing Proportioning
47910D Insulator, Load Sensing Valve Heat
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
