Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

46 part groups · 9 illustrations

Illustrations

MC7217C 1980-08 → 1983-05

MC7217C 1983-05 → 1986-08

MC7217C 1986-08 → —

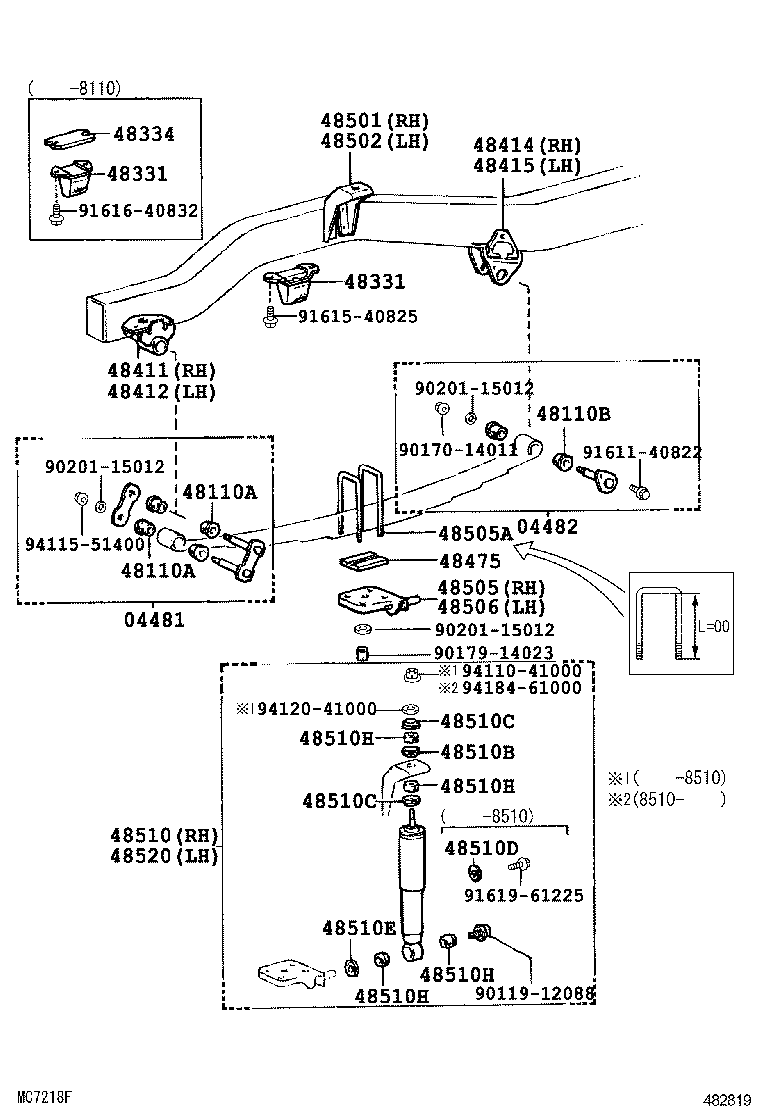

482819 1980-08 → —

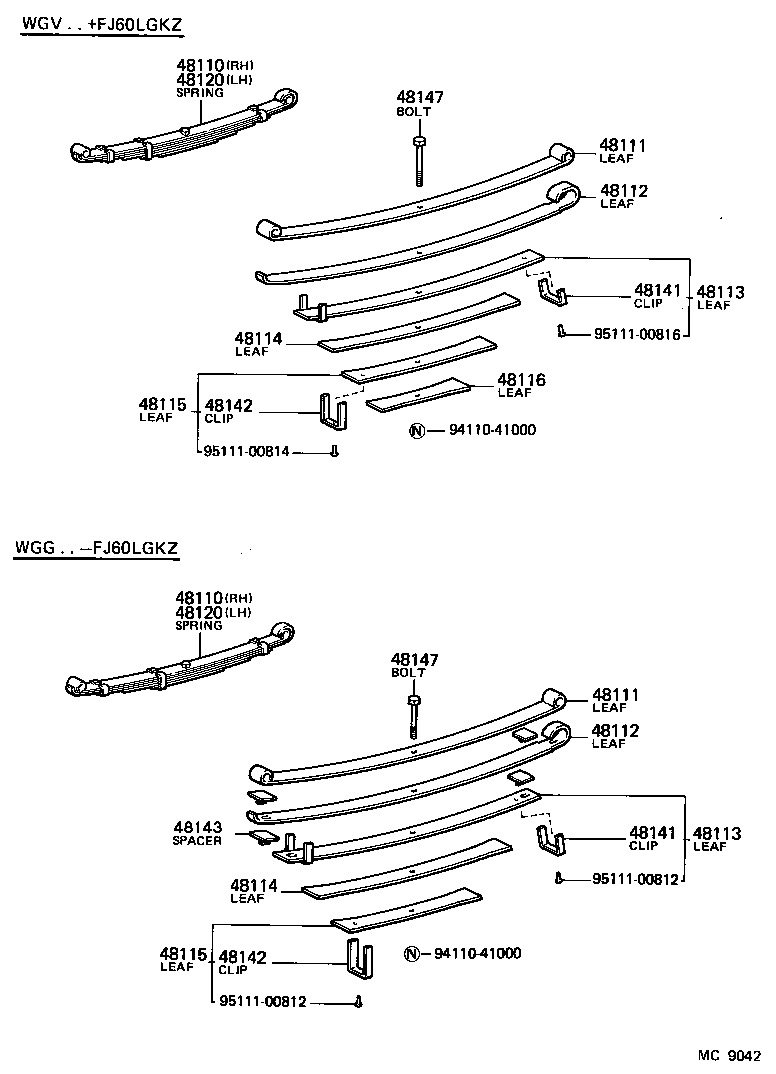

MC9042 1980-08 → 1984-11

Part groups

PNC	Description
04481	Shackle Kit, Front Spring
04482	Pin Kit, Front Spring
48110	Spring Assy, Front, RH
48110A	Bush(FOR FRONT SPRING SHACKLE)
48110B	Bush(FOR FRONT SPRING PIN)
48111	Leaf, Front Spring, NO.1
48112	Leaf, Front Spring, NO.2
48113	Leaf, Front Spring, NO.3
48114	Leaf, Front Spring, NO.4
48115	Leaf, Front Spring, NO.5
48116	Leaf, Front Spring, NO.6
48117	Leaf, Front Spring, NO.7
48120	Spring Assy, Front, LH
48141	Clip, Front Spring, NO.1
48142	Clip, Front Spring, NO.2
48143	Silencer, Front Spring
48147	Bolt, Front Spring, Center
48152	Seat, Front Spring
48191	Wedge, Caster(FOR FRONT LEAF SPRING)
48331	Bumper, Front Spring, NO.1
48334	Plate, Bumper, Front
48411	Bracket, Front Spring(FOR FRONT RH)
48412	Bracket, Front Spring(FOR FRONT LH)
48414	Bracket, Front Spring(FOR REAR RH)
48415	Bracket, Front Spring(FOR REAR LH)
48475	Plate, Distance(FOR FRONT)
48501	Bracket Sub-assy, Front Shock Absorber, Upper RH
48502	Bracket Sub-assy, Front Shock Absorber, Upper LH
48505	Seat, Front Spring, RH
48505A	Bolt, U(FOR FRONT SPRING)
48506	Seat, Front Spring, LH
48510	Absorber Assy, Shock, Front RH
48510B	Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C	Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510D	Washer, Front Shock Absorber Cushion, NO.1
48510E	Washer, Front Shock Absorber Cushion, NO.2
48510H	Bush(FOR FRONT SHOCK ABSORBER)
48520	Absorber Assy, Shock, Front LH
48811	Bar, Stabilizer, Front
48815	Bush, Front Stabilizer Bar, NO.1
48817	Cushion, Front Stabilizer
48817A	Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B	Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817C	Collar(FOR STABILIZER BAR)
48823	Cover, Stabilizer Link(FOR FRONT)
48825	Bracket, Stabilizer, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
