Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

18 part groups · 2 illustrations

Illustrations

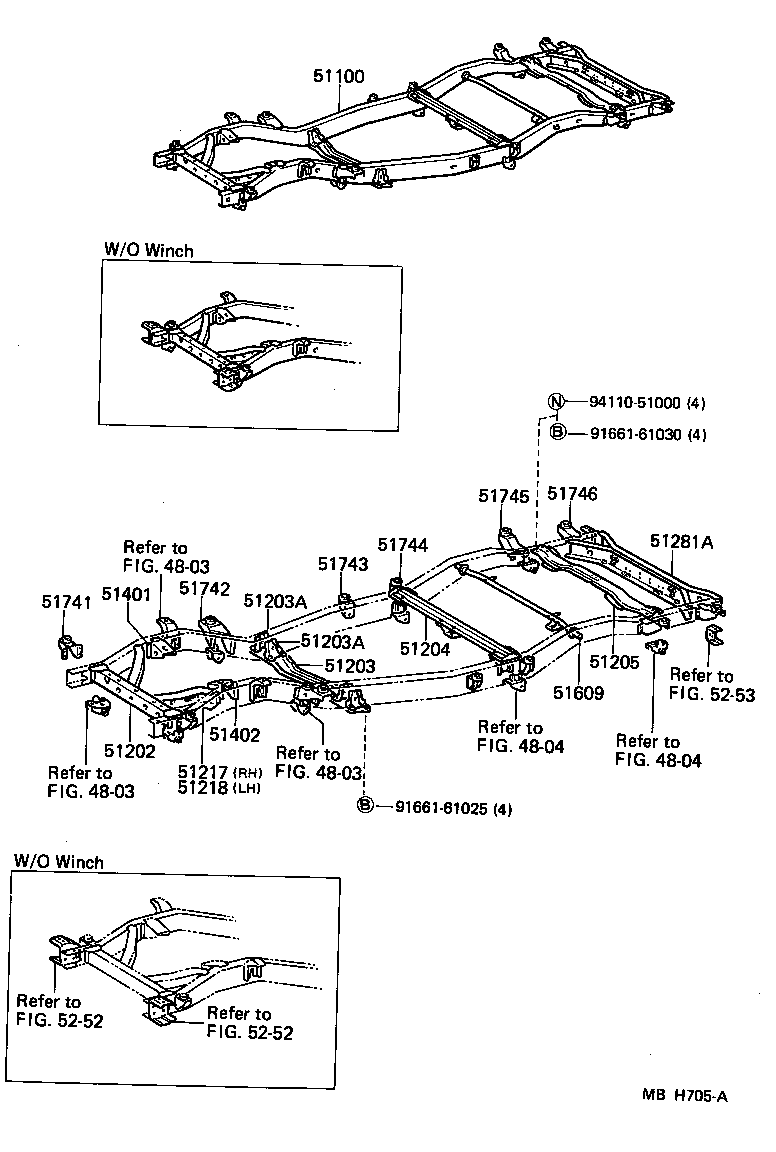

Figure MBB631F MBB631F 1980-08 → 1984-11 Figure MBH705A MBH705A 1984-11 → —

Part groups

PNCDescription
51100 Frame Assy
51202 Crossmember Sub-assy, Frame, NO.1
51203 Crossmember Sub-assy, Frame, NO.2
51203A Gusset Sub-assy, Crossmember, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51217 Reinforcement, Front Crossmember, Lower RH
51218 Reinforcement, Front Crossmember, Lower LH
51281A Member, Rear Diagonal
51401 Bracket Sub-assy, Engine Front Mounting, RH
51402 Bracket Sub-assy, Engine Front Mounting, LH
51609 Crossmember Sub-assy, Rear Shock Absorber Support
51741 Bracket, Rear Body Mounting, NO.1
51742 Bracket, Body Mounting, NO.2
51743 Bracket, Body Mounting, NO.3
51744 Bracket, Body Mounting, NO.4
51745 Bracket, Body Mounting, NO.5
51746 Bracket, Body Mounting, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
