Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

19 part groups · 4 illustrations

Illustrations

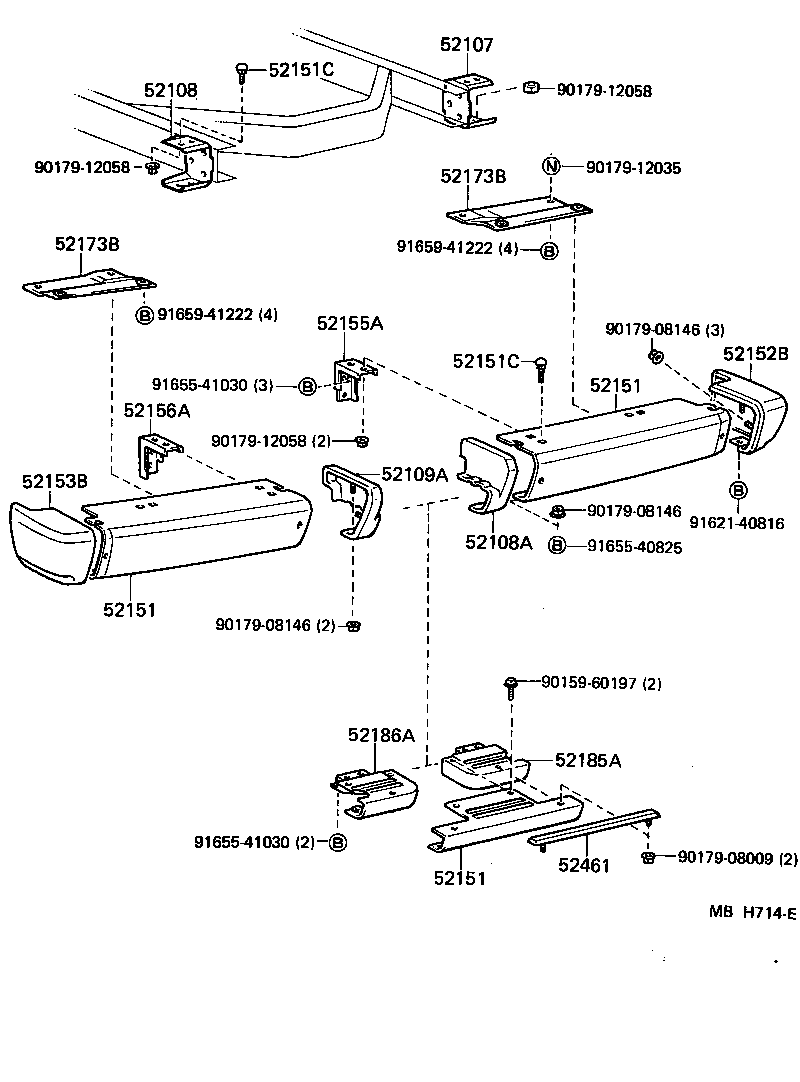

Figure MBB682C MBB682C 1980-08 → 1984-11 Figure MBC208B MBC208B 1980-08 → 1984-11 Figure MBH715E MBH715E 1984-11 → — Figure MBH714E MBH714E 1984-11 → —

Part groups

PNCDescription
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52108A Bumper Sub-assy, Rear Side, RH
52109A Bumper Sub-assy, Rear Side, LH
52151 Bumper Assy, Rear
52151C Bolt, Round Head Square Neck(FOR REAR BUMPER)
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52164A Plate, Rear Bumper, LH
52172A Reinforcement, Rear Bumper Bar, Center
52173B Reinforcement, Rear Bumper
52173C Reinforcement, Rear Bumper, NO.3
52179B Plate, Rear Bumper Bar
52183A Arm, Rear Bumper, Lower Side
52185A Bracket, Rear Bumper Side, RH
52186A Bracket, Rear Bumper Side, LH
52461 Pad, Rear Bumper, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
