Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

16 part groups · 2 illustrations

Illustrations

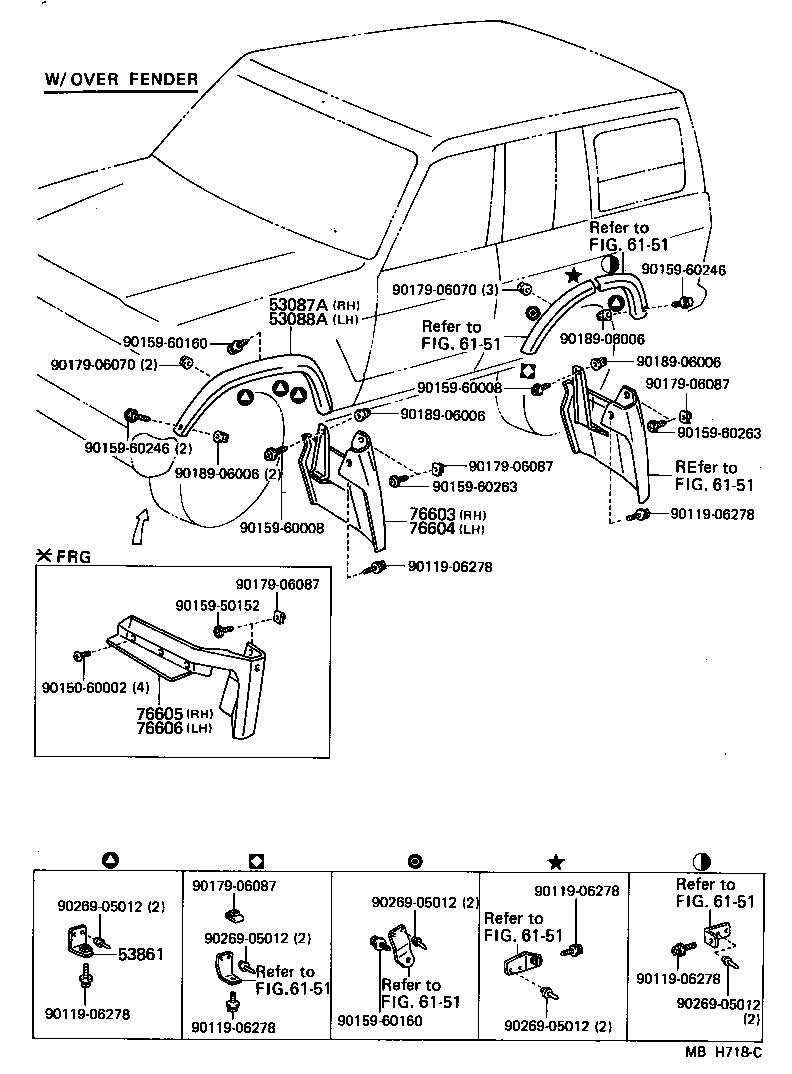

Figure MBB684G MBB684G 1980-08 → — Figure MBH718C MBH718C 1984-11 → —

Part groups

PNCDescription
53087A Extension Sub-assy, Front Wheel Opening, RH
53088A Extension Sub-assy, Front Wheel Opening, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53386 Bumper, Hood, Rear
53387 Seal, Hood TO Radiator Support
53387A Clip(FOR HOOD TO RADIATOR SUPPORT SET)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53861 Bracket, Front Wheel Opening, NO.1
53932 Panel Sub-assy, Front End
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76605 Mudguard Sub-assy, Front Fender, Front RH
76606 Mudguard Sub-assy, Front Fender, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
