Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

11 part groups · 2 illustrations

Illustrations

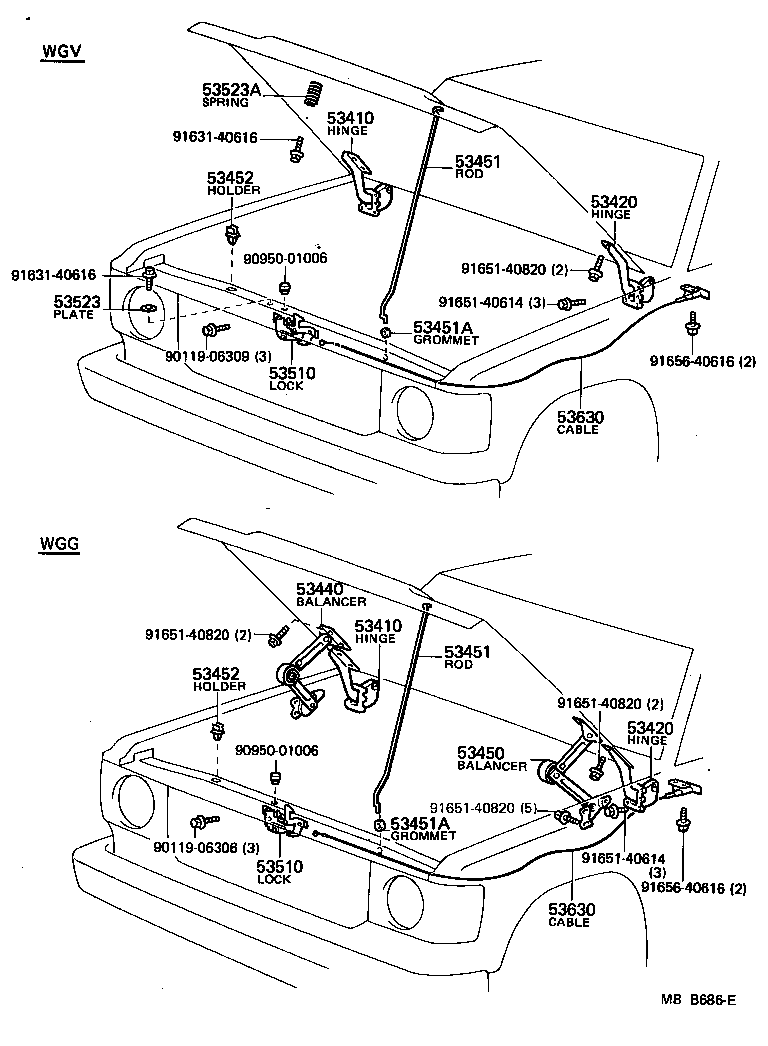

Figure MBB685D MBB685D 1980-08 → — Figure MBB686E MBB686E 1980-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440 Balancer Assy, Hood, RH
53450 Balancer Assy, Hood, LH
53451 Rod, Hood Support
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53510 Lock Assy, Hood
53523 Plate, Hood Lock Auxiliary Spring
53523A Spring, Hood Lock Auxiliary
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
