Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

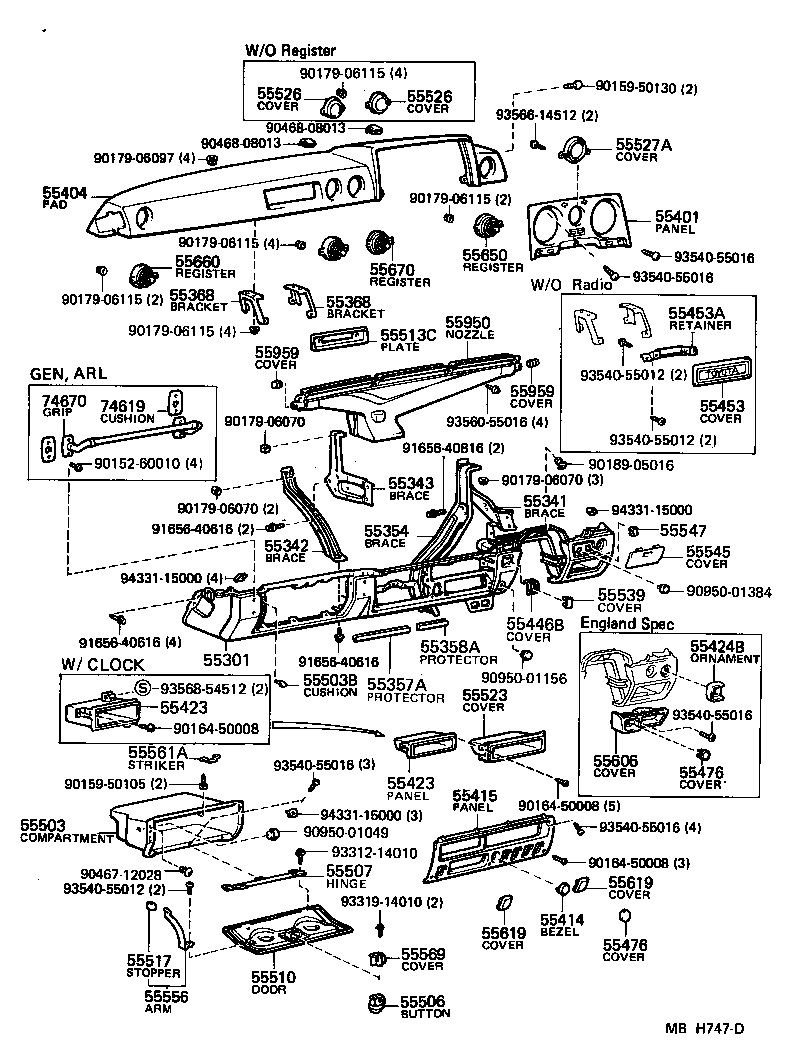

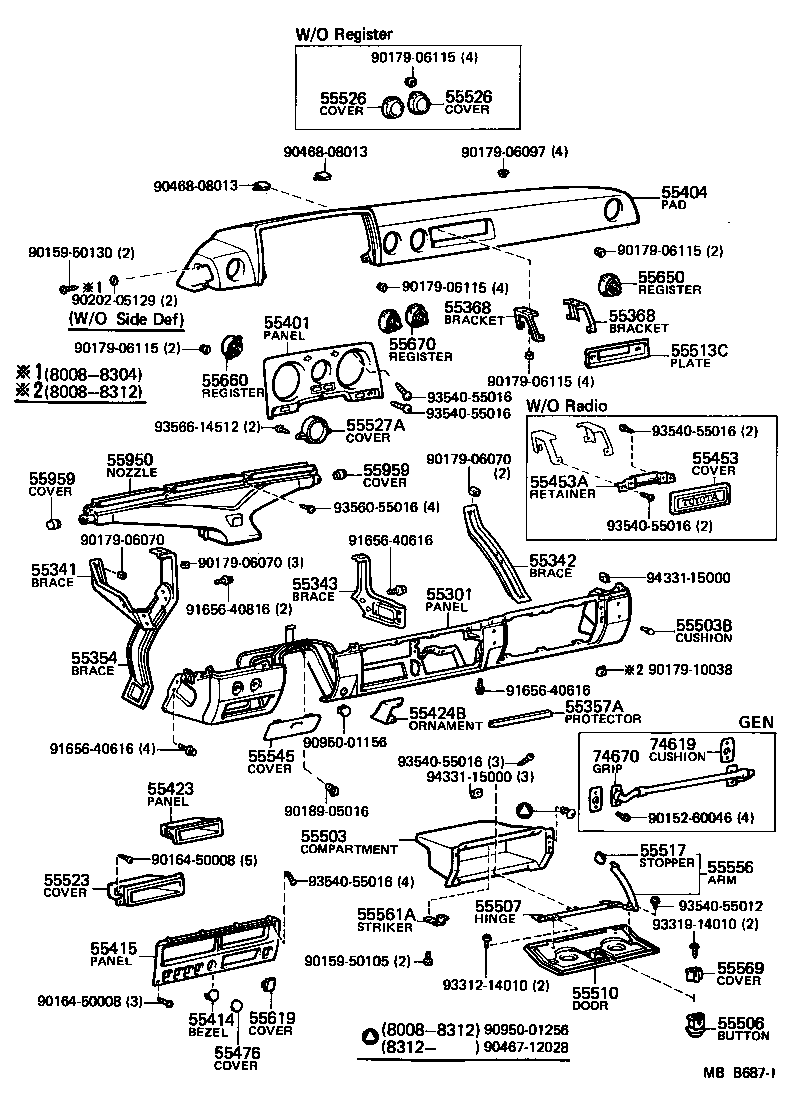

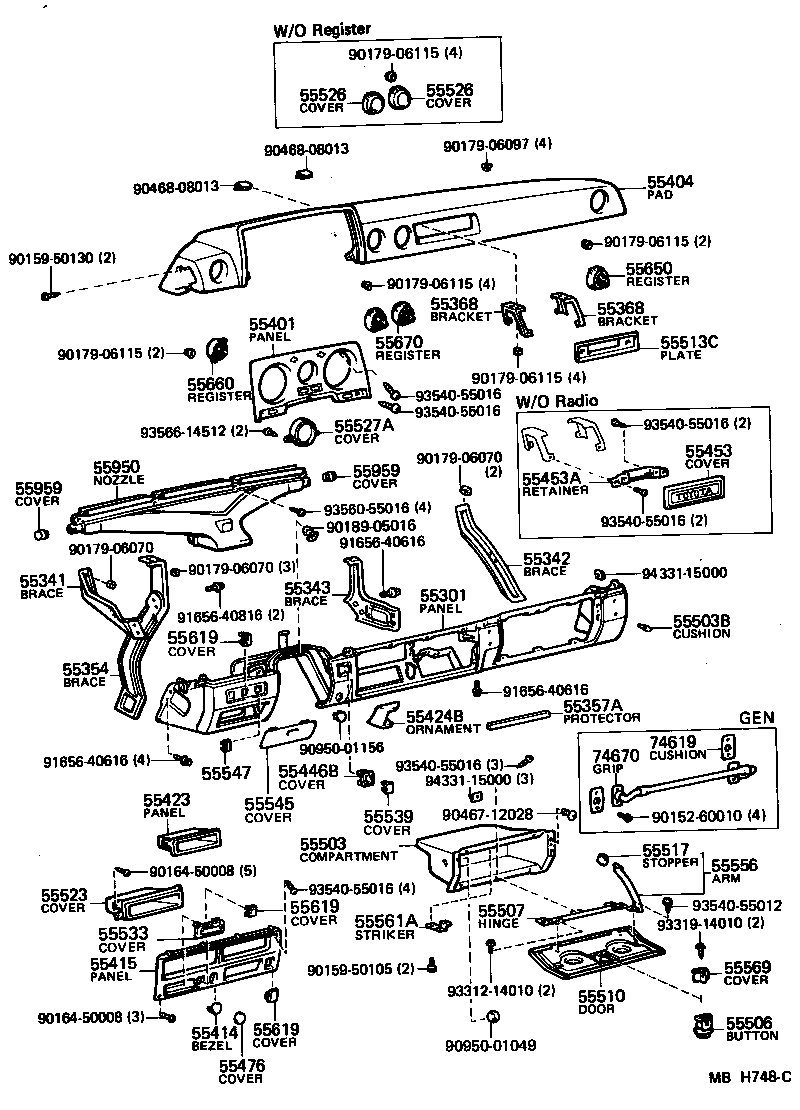

Instrument Panel & Glove Compartment
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55343 | Brace, Instrument Panel, NO.3 |
| 55354 | Brace, Instrument Panel TO Floor |
| 55357A | Protector, Edge, NO.1 |
| 55358A | Protector, Edge, NO.2 |
| 55368 | Bracket, Radio Tuner Mounting |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55414 | Bezel, Cigar Lighter Hole |
| 55415 | Panel, Instrument Cluster Finish, Center |
| 55423 | Panel, Stereo Player Finish |
| 55424B | Ornament, Throttle Control |
| 55446B | Spacer, Instrument Panel Safety Pad, Set |
| 55453 | Cover, Radio Tuner Opening |
| 55453A | Retainer, Radio Tuner Opening, NO.1 |
| 55476 | Cover, Cigarette Lighter Hole |
| 55503 | Compartment Sub-assy, Glove |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55506 | Button Sub-assy, Glove Compartment Door Lock |
| 55507 | Hinge Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55513C | Plate, Radio Tuner Finish |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55523 | Cover, Heater Control Opening |
| 55526 | Cover, Instrument Panel Register Opening |
| 55527A | Cover, Meter Opening |
| 55533 | Cover, Auto Clock Hole |
| 55539 | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55561A | Striker, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55619 | Cover, Switch Hole |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950 | Nozzle Assy, Defroster |
| 55959 | Cover, Defroster Nozzle Opening, NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 74619 | Cushion, Instrument Assist Grip |
| 74670 | Grip Assy, Instrument Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
