Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

22 part groups · 3 illustrations

Illustrations

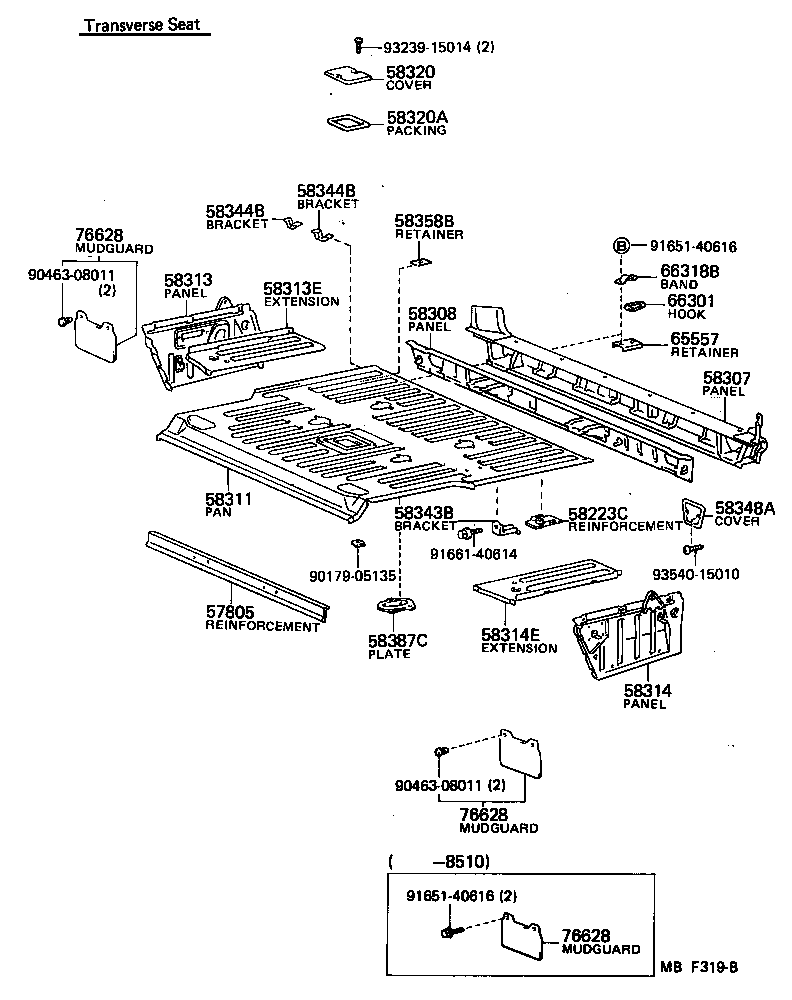

Figure MBB692E MBB692E 1980-08 → — Figure MBF319B MBF319B 1983-05 → — Figure MBC462B MBC462B 1980-08 → —

Part groups

PNCDescription
57805 Reinforcement Sub-assy, Belt Anchor
58223C Reinforcement, Seat Set, NO.1
58224C Reinforcement, Seat Set, NO.2
58249A Reinforcement, Rear Seat Mounting
58307 Panel Sub-assy, Body Lower Back
58308 Panel Sub-assy, Body Lower Back, Inner
58311 Pan, Rear Floor
58313 Panel, Rear Floor Side, RH
58313E Extension, Rear Floor Side Panel, RH
58314 Panel, Rear Floor Side, LH
58314E Extension, Rear Floor Side Panel, LH
58320 Cover, Rear Floor Service Hole
58320A Packing, Rear Floor Service Hole
58343B Bracket, Fuel Hose Protector, Front
58348A Cover, Rear Body Mounting Service Hole
58358B Retainer, Cooler Unit
58367 Bracket, Fuel Tube Clamp
58387C Plate, Rear Floor Finish
65557 Retainer, Rope Hook
66301 Hook Sub-assy, Rope
66318B Band, Rope Hook
76628 Mudguard, Quarter Panel, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
