Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

25 part groups · 5 illustrations

Illustrations

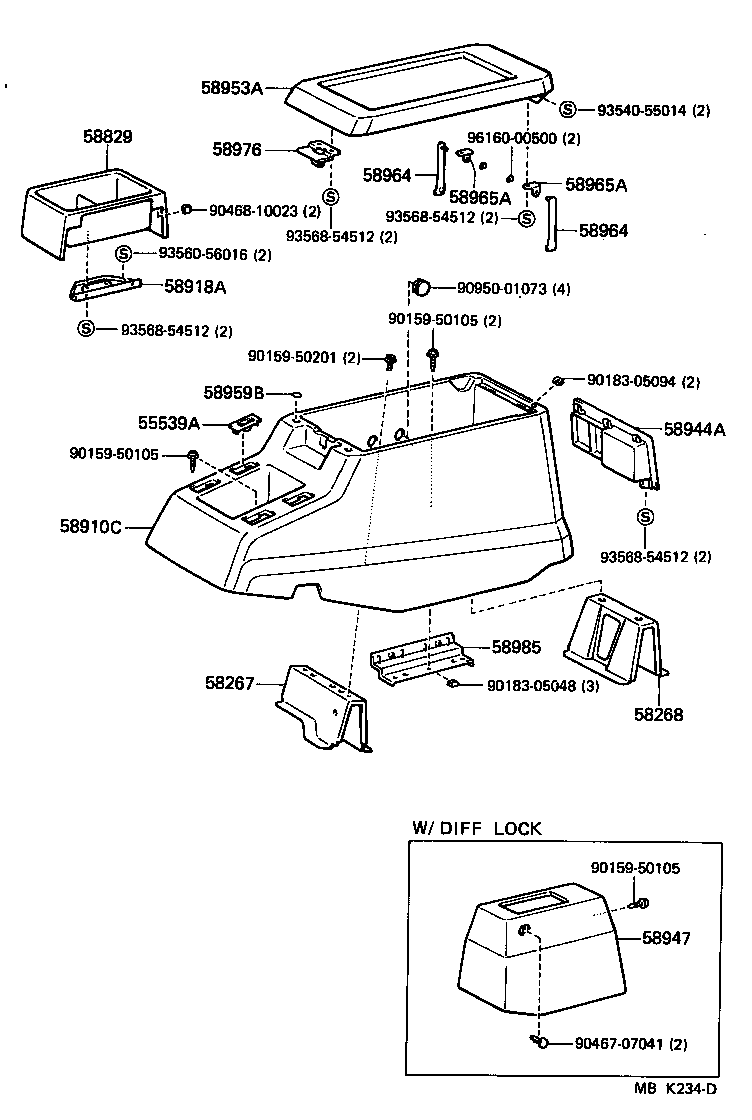

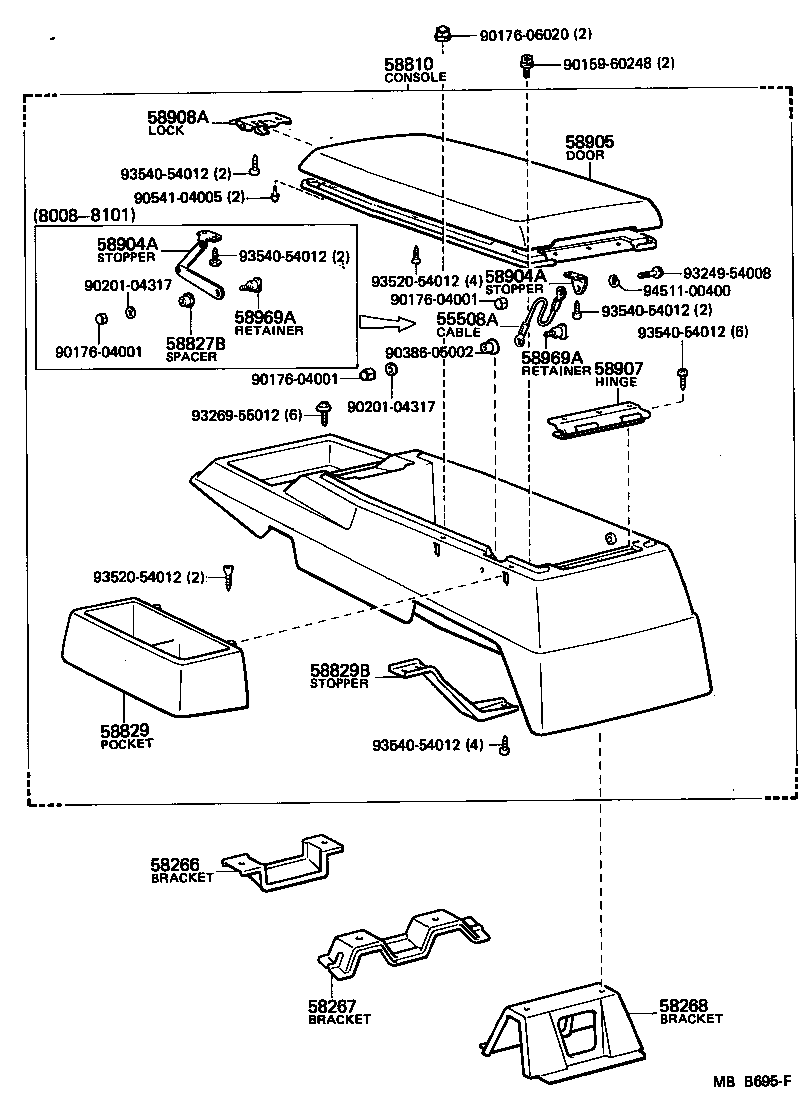

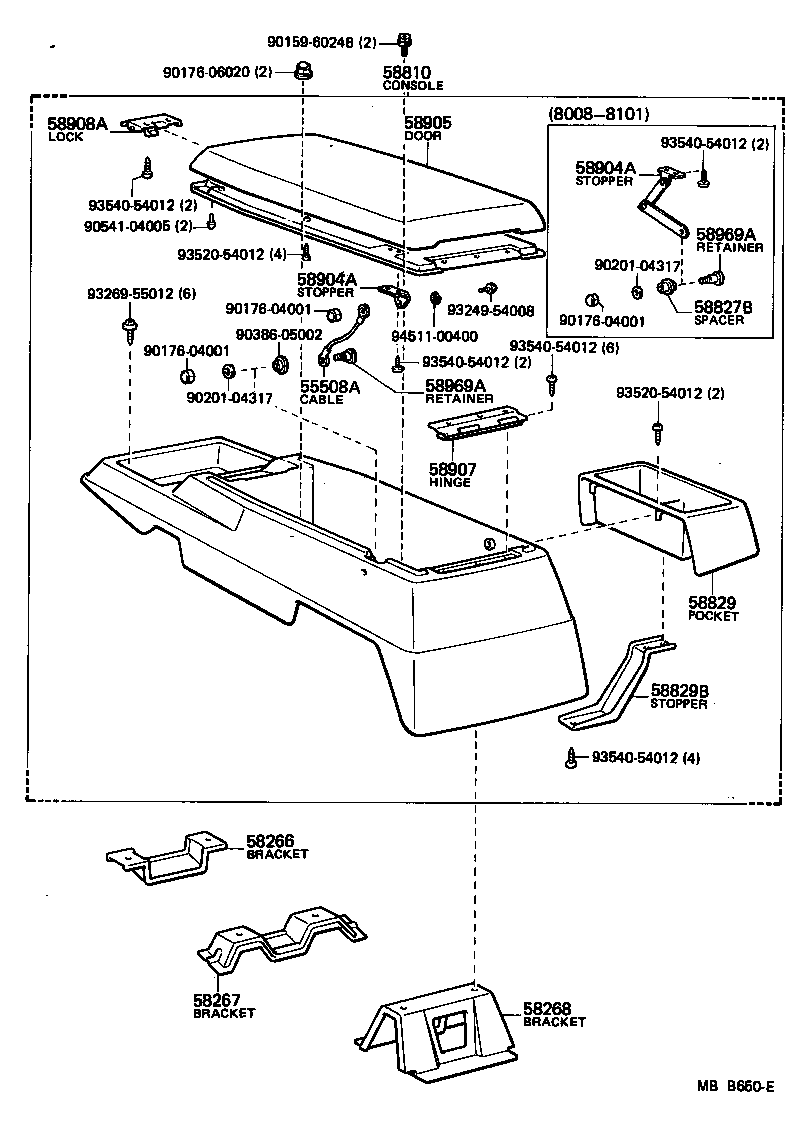

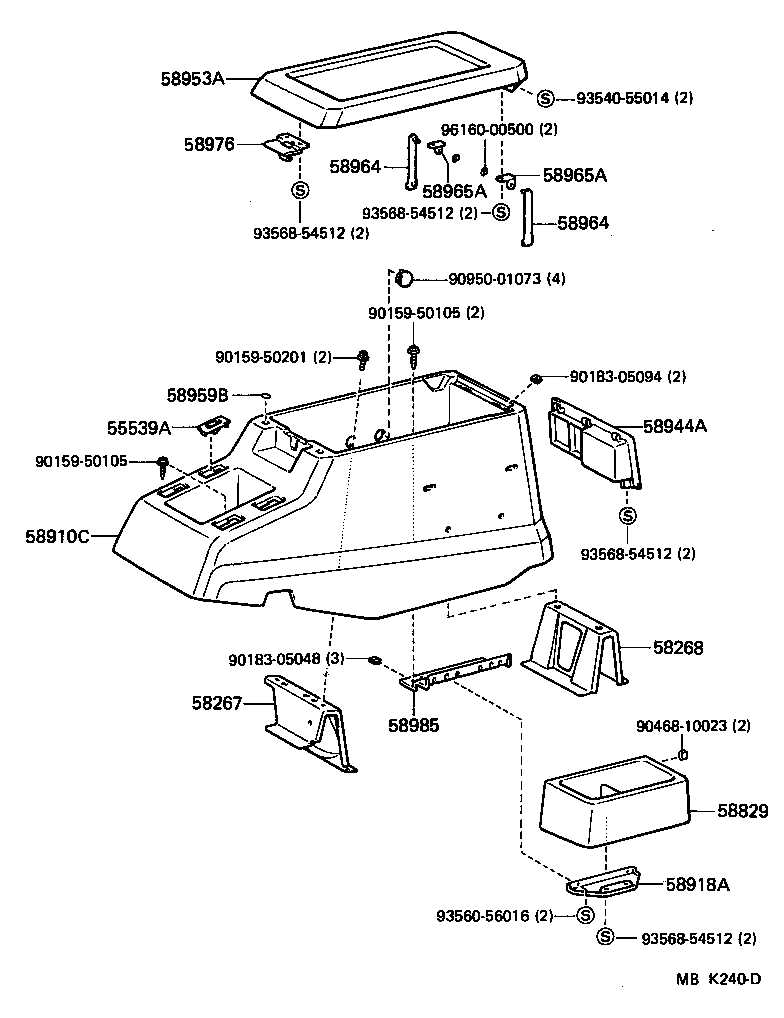

Figure MBH749 MBH749 1984-11 → — Figure MBB650E MBB650E 1980-08 → 1985-10 Figure MBK234D MBK234D 1985-10 → — Figure MBB695F MBB695F 1980-08 → 1985-10 Figure MBK240D MBK240D 1985-10 → —

Part groups

PNCDescription
55508A Cable Sub-assy, Glove Compartment Door Stopper
55539A Cover, Spare Switch Hole
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58829 Pocket, Console Box
58829B Stopper, Console Box Pocket
58841A Cover, Shifting Hole
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58918A Bracket, Box Support
58944A Cover, Console, Rear
58947 Cover, Differential Lock Lever
58953A Door, Console Compartment, Upper
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58969A Retainer, Console Compartment Door Stopper
58976 Striker, Console Compartment Door Lock
58985 Retainer, Console Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
