Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

85 part groups · 2 illustrations

Illustrations

MBC470J 1980-08 → —

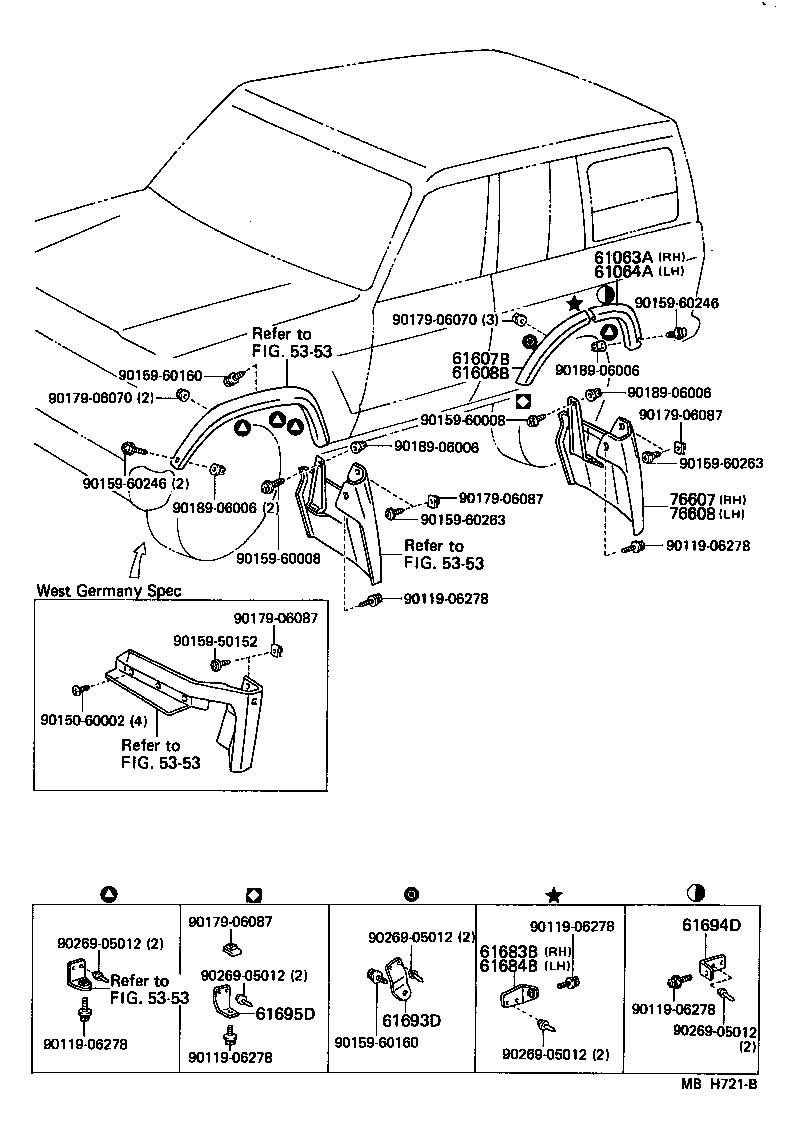

MBH721B 1984-11 → —

Part groups

PNC	Description
61053	Step Sub-assy, Quarter Panel, NO.1 RH
61054	Step Sub-assy, Quarter Panel, NO.1 LH
61057	Step Sub-assy, Quarter Panel, NO.2 RH
61058	Step Sub-assy, Quarter Panel, NO.2 LH
61063A	Extension Sub-assy, Rear Wheel Opening, NO.2 RH
61064A	Extension Sub-assy, Rear Wheel Opening, NO.2 LH
61101	Panel Sub-assy, Cowl Side, RH
61102	Panel Sub-assy, Cowl Side, LH
61107	Pillar Sub-assy, Front Body Outer, RH
61108	Pillar Sub-assy, Front Body Outer, LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61183	Bracket, Instrument Panel Side
61197A	Cover, Front Pillar, RH
61198A	Cover, Front Pillar, LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61261A	Channel, Roof Drip Side, Front RH
61262A	Channel, Roof Drip Side, Front LH
61263	Channel, Roof Drip, Rear RH
61264	Channel, Roof Drip, Rear LH
61281	Bracket, Sliding Roof Housing Mounting, NO.1
61282	Bracket, Sliding Roof Housing Mounting, NO.2
61283	Bracket, Sliding Roof Housing Mounting, NO.3 RH
61284	Bracket, Sliding Roof Housing Mounting, NO.3 LH
61285	Bracket, Sliding Roof Housing Side
61301	Pillar Sub-assy, Center Body, RH
61301B	Pillar, Center Body, Outer RH
61302	Pillar Sub-assy, Center Body, LH
61302B	Pillar, Center Body, Outer LH
61315	Retainer, Door Lock Striker Plate
61341	Pillar, Center Body, Inner Lower RH
61342	Pillar, Center Body, Inner Lower LH
61343	Pillar, Center Body, Inner Upper RH
61344	Pillar, Center Body, Inner Upper LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61481	Bracket, Roof Side Rail Reinforce, NO.1
61482	Bracket, Roof Side Rail Reinforce, NO.2
61511	Pillar, Quarter Lock, RH
61512	Pillar, Quarter Lock, LH
61607B	Extension Sub-assy, Rear Wheel Opening, RH
61608B	Extension Sub-assy, Rear Wheel Opening, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61625A	Extension Sub-assy, Quarter Panel, RH
61626A	Extension Sub-assy, Quarter Panel, LH
61631	Panel, Quarter Wheel House, RH
61631A	Panel, Quarter Wheel House, Outer RH
61631E	Gusset, Quarter Wheel House, Rear RH
61632	Panel, Quarter Wheel House, LH
61632A	Panel, Quarter Wheel House, Outer LH
61632E	Gusset, Quarter Wheel House, Rear LH
61641A	Retainer, Quarter Panel Step, NO.1 RH
61642A	Retainer, Quarter Panel Step, NO.1 LH
61643A	Retainer, Quarter Panel Stop, NO.2 RH
61644A	Retainer, Quarter Panel Step, NO.2 LH
61683A	Ornament, Quarter Panel Step, NO.1 RH
61683B	Bracket, Rear Wheel Opening, NO.1 RH
61684	Ornament, Quarter Panel Step, NO.1 LH
61684B	Bracket, Rear Wheel Opening, NO.1 LH
61685	Ornament, Quarter Panel Step, NO.2 RH
61686	Ornament, Quarter Panel Step, NO.2 LH
61693D	Bracket, Rear Wheel Opening, NO.1
61694D	Bracket, Rear Wheel Opening, NO.2
61695D	Bracket, Rear Wheel Opening, NO.3
61705	Panel Sub-assy, Roof Side, Inner RH
61706	Panel Sub-assy, Roof Side, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61719B	Bracket, Roof Side, Inner
61725	Box, Fuel Inlet
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61743	Reinforcement, Back Door Opening, Inner RH
61744	Reinforcement, Back Door Opening, Inner LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61792	Cover, Roof Side Inner Service Hole
61793B	Bracket, Cooler Condenser, NO.1
61794B	Bracket, Cooler Condenser, NO.2
76607	Mudguard Sub-assy, Quarter Panel, Rear RH
76608	Mudguard Sub-assy, Quarter Panel, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
