Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

24 part groups · 2 illustrations

Illustrations

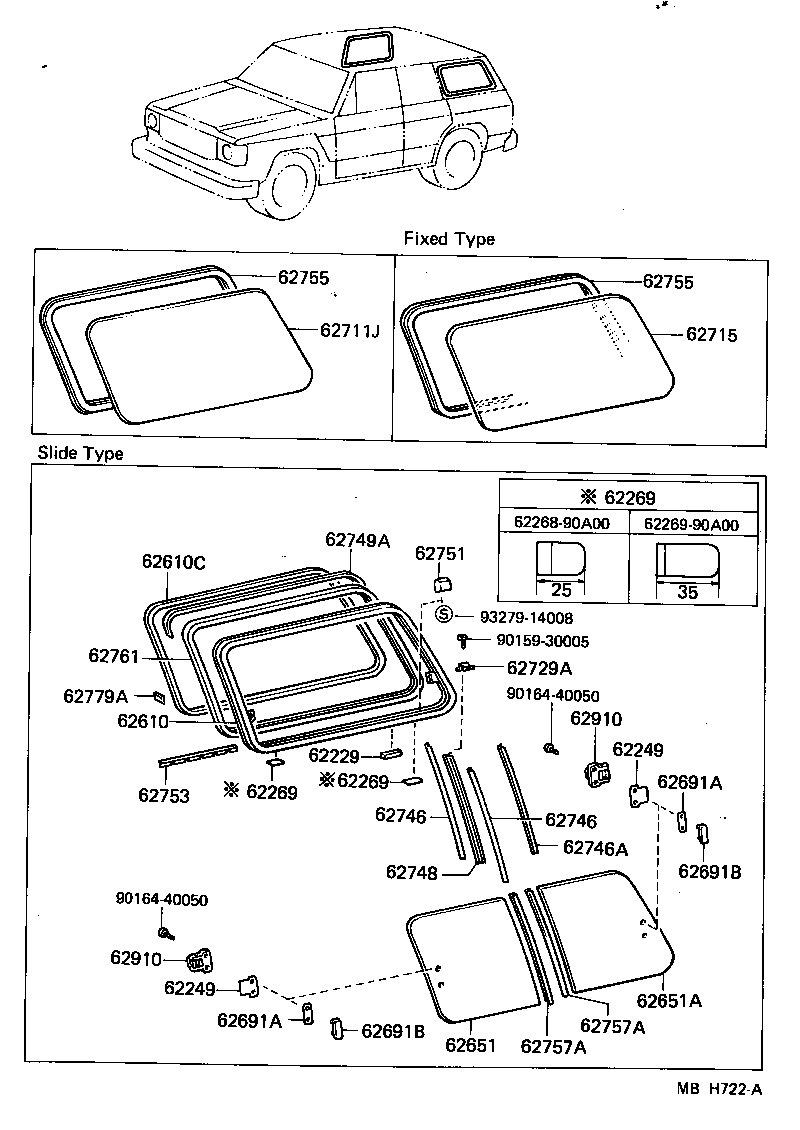

Figure MBB697B MBB697B 1980-08 → 1984-11 Figure MBH722A MBH722A 1984-11 → —

Part groups

PNCDescription
62229 Packing, Side Window
62249 Plate, Side Window, RH
62269 Film, Side Window Frame, RH
62610 Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
62610C Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
62651 Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
62651A Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
62691 Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE)
62691A Packing, Side Window Lock, NO.1
62691B Retainer, Side Window Lock, NO.1
62711J Panel, Quarter Window, RH
62715 Glass, Side Window, NO.1(FOR FIXED TYPE)
62729A Pad, Window Center Sash
62746 Weatherstrip, Side Window Glass Channel, NO.1
62746A Weatherstrip, Side Window Glass Channel, NO.2
62748 Channel, Side Window Glass
62749A Seal, Side Window, Upper
62751 Stop, Side Window Fix Glass
62753 Packing, Side Window
62755 Weatherstrip, Side Window, NO.1(FOR FIXED TYPE)
62757A Protector, Side Window Glass, NO.1
62761 Run, Side Window, NO.1(FOR SLIDE TYPE)
62779A Spacer, Side Window Frame
62910 Lock Assy, Quarter OR Side Window, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
