Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

87 part groups · 9 illustrations

Illustrations

MBB653B 1980-08 → —

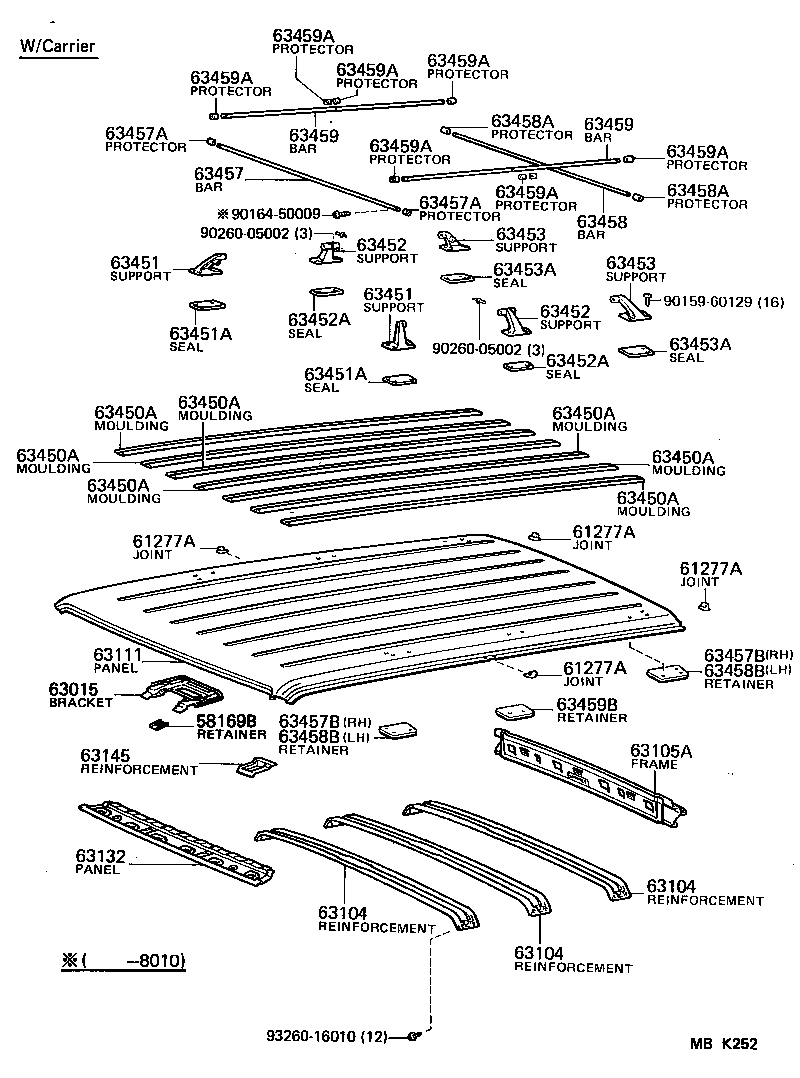

MBK252 1980-08 → —

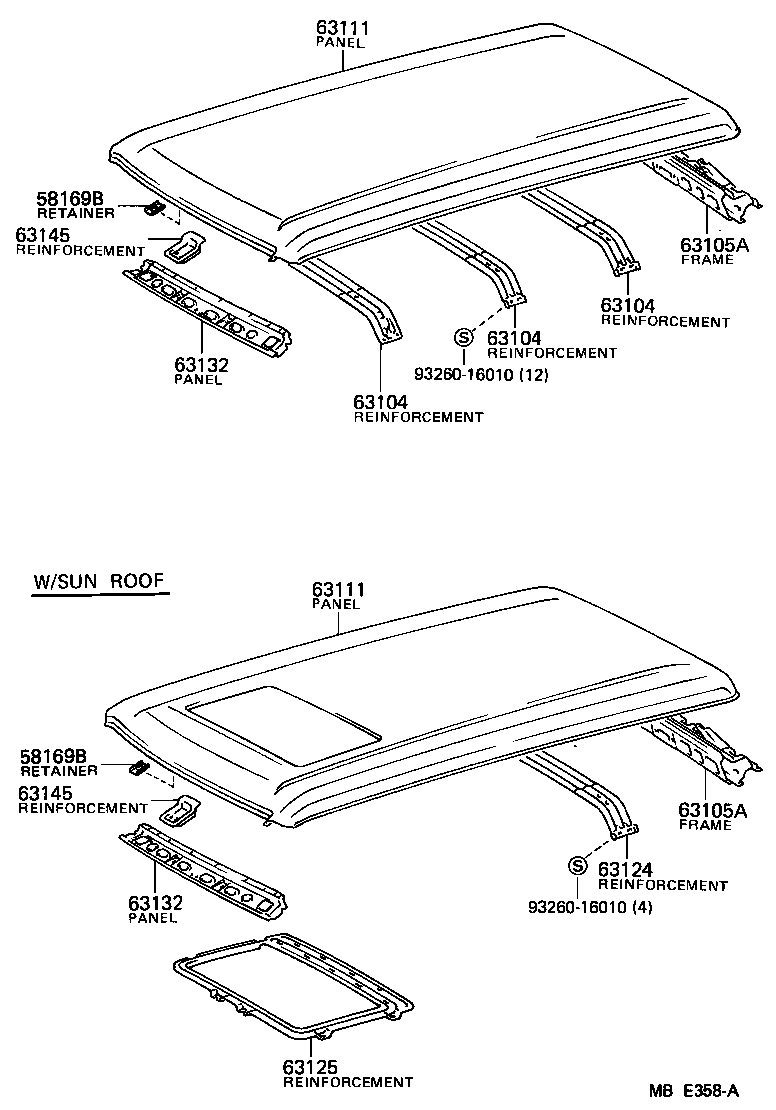

MBE358A 1982-10 → —

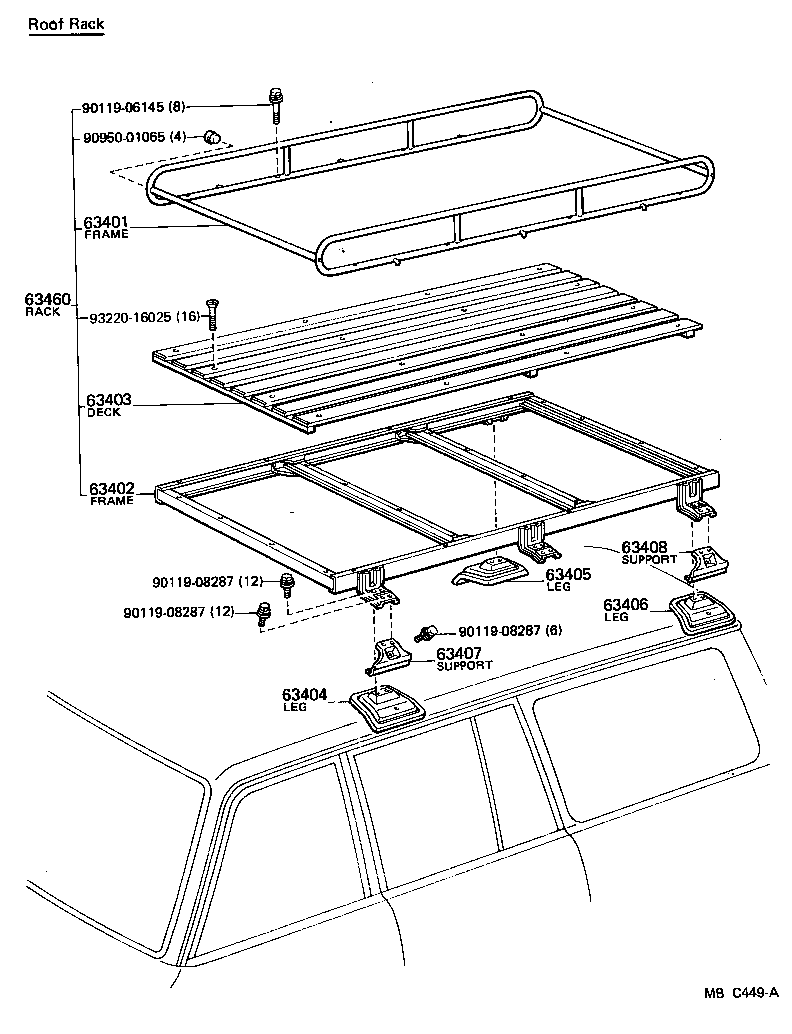

MBC449A 1980-10 → 1982-10

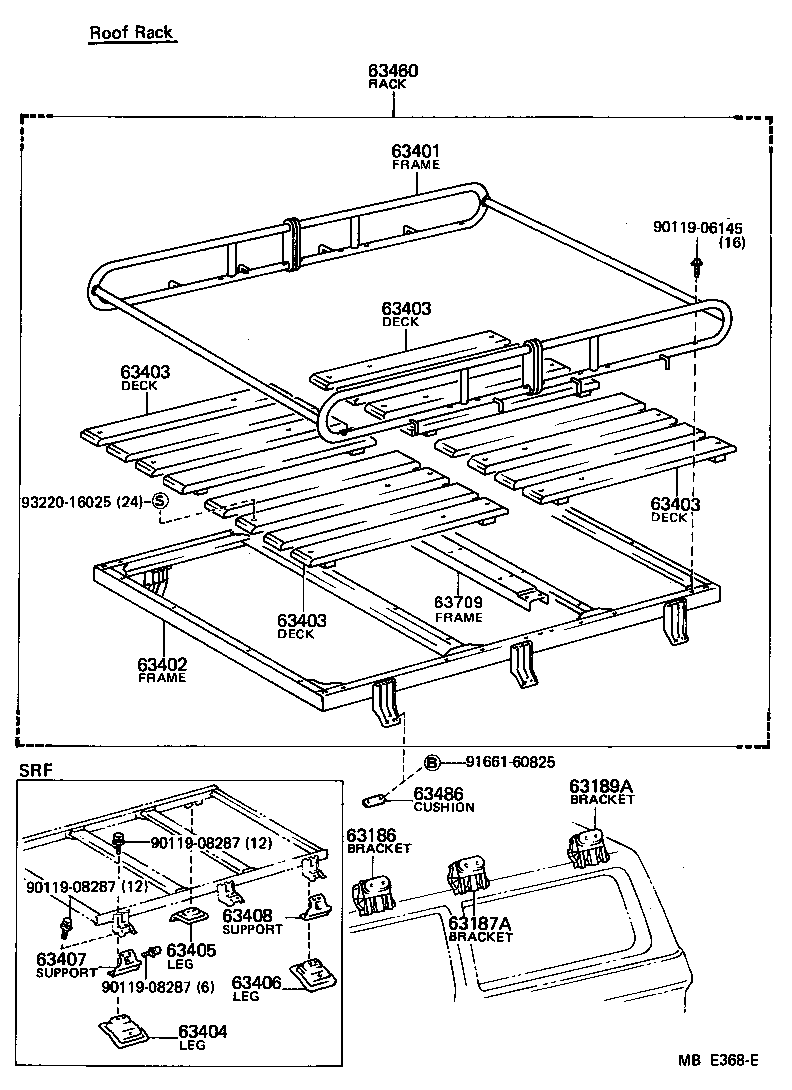

MBE368E 1982-10 → 1982-12

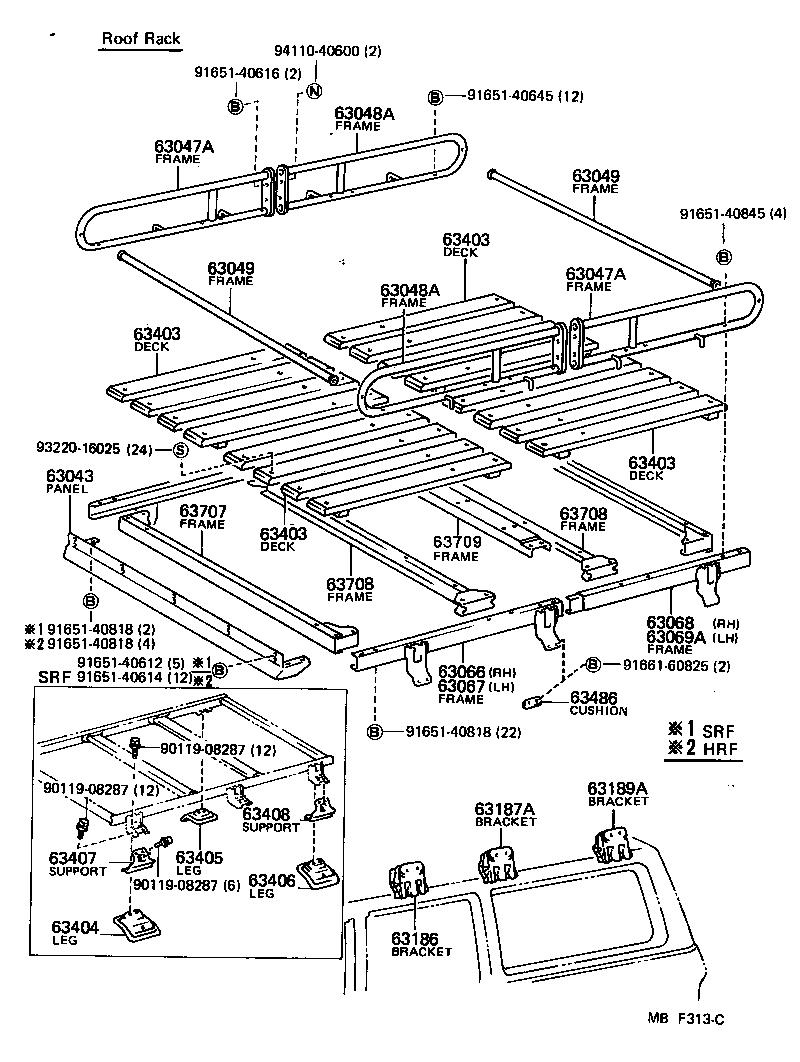

MBF313C 1982-12 → 1986-08

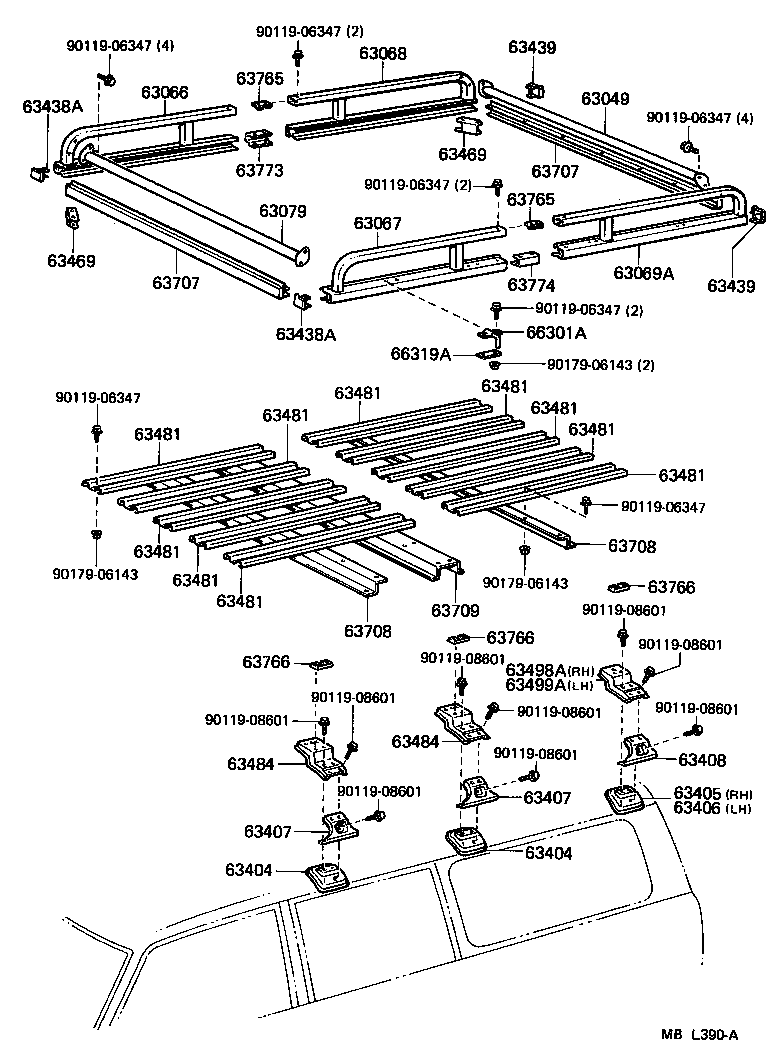

MBL390A 1986-08 → —

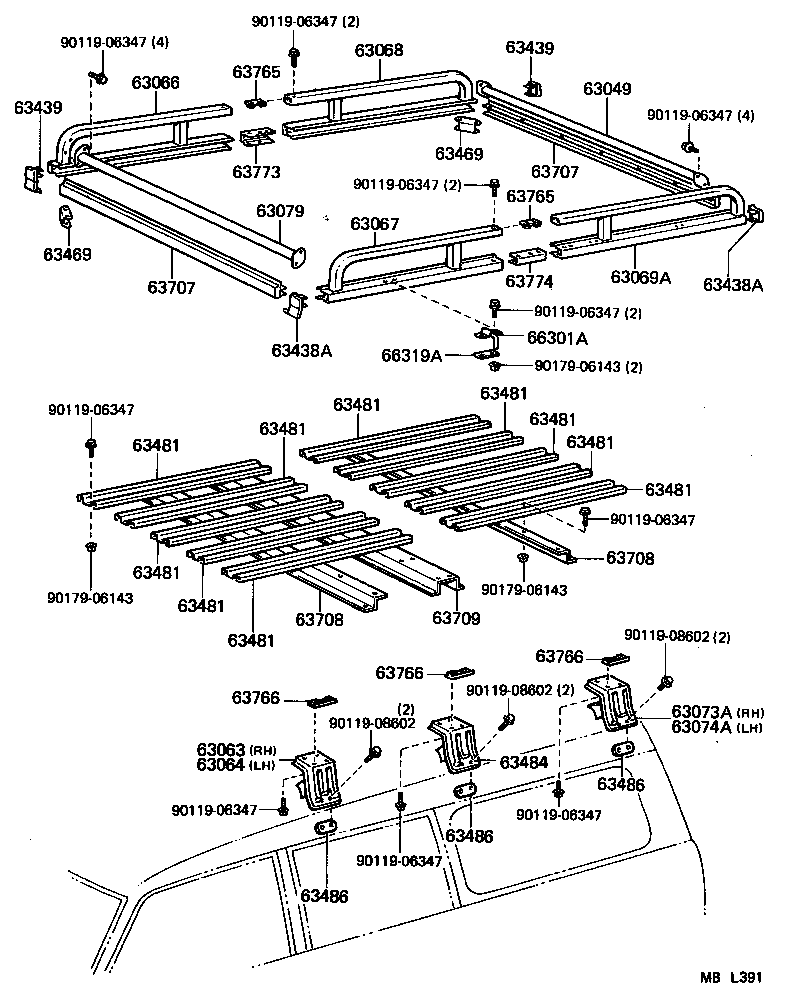

MBL391 1986-08 → —

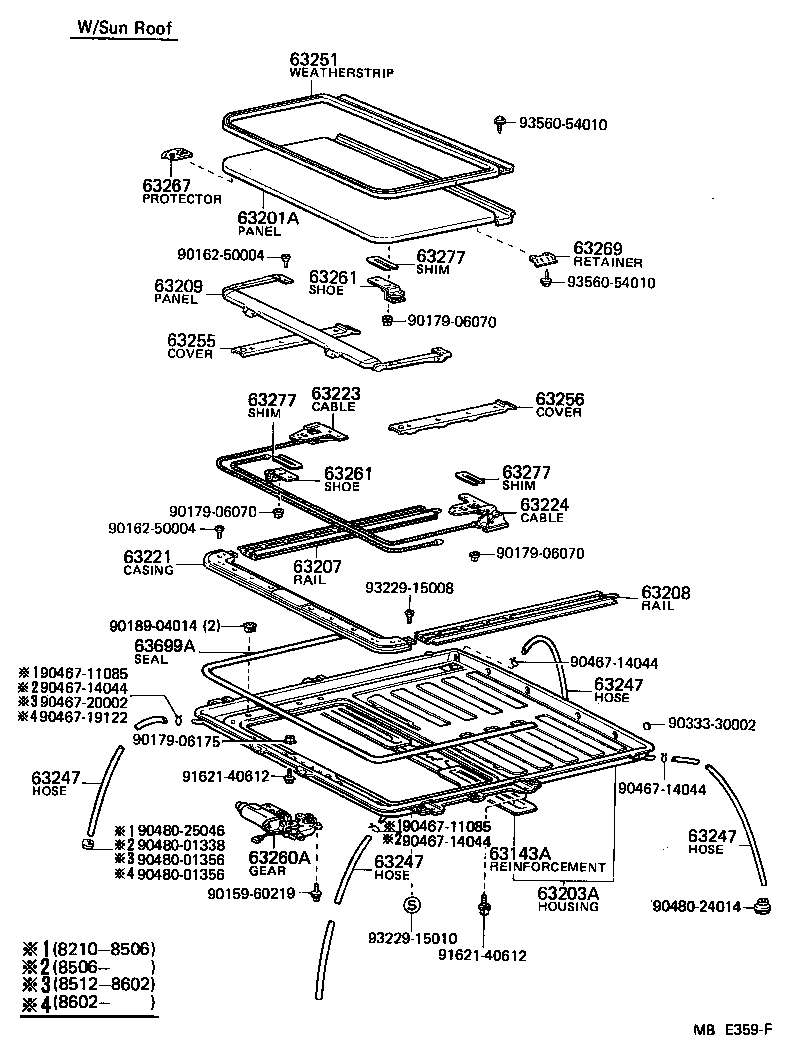

MBE359F 1982-10 → —

Part groups

PNC	Description
58169B	Retainer, Rear Heater Mounting
61277A	Joint, Roof Drip Channel
63015	Bracket Sub-assy, Roof Console
63043	Panel Sub-assy, Roof Rack Wind Deflector
63047A	Frame Sub-assy, Roof Rack Rail, Upper NO.1
63048A	Frame Sub-assy, Roof Rack Rail, Upper NO.2
63049	Frame Sub-assy, Roof Rack, Upper End
63063	Stay Sub-assy, Roof Rack, Front RH
63064	Stay Sub-assy, Roof Rack, Front LH
63066	Frame Sub-assy, Roof Rack, Lower Front RH
63067	Frame Sub-assy, Roof Rack, Lower Front LH
63068	Frame Sub-assy, Roof Rack, Lower Rear RH
63069A	Frame Sub-assy, Roof Rack, Lower Rear LH
63073A	Stay Sub-assy, Roof Rack, Rear RH
63074A	Stay Sub-assy, Roof Rack, Rear LH
63079	Frame Sub-assy, Roof Rack, Upper Front
63104	Reinforcement Sub-assy, Roof Panel, Center
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63124	Reinforcement, Roof Panel, NO.1
63125	Reinforcement, Roof Panel, NO.2
63132	Panel, Windshield Header, Inner
63143A	Reinforcement, Roof Panel
63145	Reinforcement, Windshield Header Inner Panel
63186	Bracket, Roof Rack, Front
63187A	Bracket, Roof Rack, Rear
63189A	Bracket, Roof Rack, Center
63201A	Panel Sub-assy, Sliding Roof OR Removable Roof
63203A	Housing Sub-assy, Sliding Roof OR Removable Roof
63207	Rail Sub-assy, Sliding Roof Guide, RH
63208	Rail Sub-assy, Sliding Roof Guide, LH
63209	Panel Sub-assy, Roof Wind Deflector
63221	Casing, Sliding Roof Cable Guide
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63247	Hose, Sliding Roof Housing Drain
63251	Weatherstrip, Sliding Roof Panel OR Removable Roof
63255	Cover, Sliding Roof Guide Rail, RH
63256	Cover, Sliding Roof Guide Rail, LH
63260A	Gear Sub-assy, Sliding Roof Drive
63261	Shoe, Sliding Roof, Front
63267	Protector, Sliding Roof Weatherstrip
63269	Retainer, Sliding Roof Weatherstrip
63277	Shim, Sliding Roof Rail
63401	Frame Sub-assy, Roof Rack, Upper
63402	Frame Sub-assy, Roof Rack, Lower
63403	Deck Sub-assy, Roof Rack
63404	Leg Sub-assy, Roof Rack, Front
63405	Leg Sub-assy, Roof Rack, Rear RH
63406	Leg Sub-assy, Roof Rack, Rear LH
63407	Support Sub-assy, Roof Rack Leg, Front
63408	Support Sub-assy, Roof Rack Leg, Rear
63438A	Cover, Roof Rack End, NO.1
63439	Cover, Roof Rack End, NO.2
63450A	Moulding, Roof Carrier
63451	Support, Roof Carrier, NO.1
63451A	Seal, Roof Carrier, NO.1 Support
63452	Support, Roof Carrier, NO.2
63452A	Seal, Roof Carrier, NO.2 Support
63453	Support, Roof Carrier, NO.3
63453A	Seal, Roof Carrier, NO.3 Support
63457	Bar, Roof Carrier, Front
63457A	Protector, Roof Carrier, Front Bar
63457B	Retainer, Roof Carrier, NO.1 RH
63458	Bar, Roof Carrier, Rear
63458A	Protector, Roof Carrier, Rear Bar
63458B	Retainer, Roof Carrier, NO.1 LH
63459	Bar, Roof Carrier, Side
63459A	Protector, Roof Carrier, Side Bar
63459B	Retainer, Roof Carrier, NO.2
63460	Rack Assy, Roof
63469	Gusset, Roof Rack Lower Frame
63481	Board, Roof Rack Deck, NO.1
63484	Stay, Roof Rack
63486	Cushion, Roof Rack Leg
63498A	Stay, Roof Rack, Rear RH
63499A	Stay, Roof Rack, Rear LH
63699A	Seal, Sliding Roof Guide Rail
63707	Frame Sub-assy, Roof Rack, Lower NO.1
63708	Frame Sub-assy, Roof Rack, Lower NO.2
63709	Frame Sub-assy, Roof Rack, Lower NO.3
63765	Retainer, Roof Rack, Upper
63766	Retainer, Roof Rack, Lower
63773	Gusset, Roof Rack Center Frame, RH
63774	Gusset, Roof Rack Center Frame, LH
66301A	Hook Sub-assy, Rope
66319A	Plate, Rope Hook

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
