Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

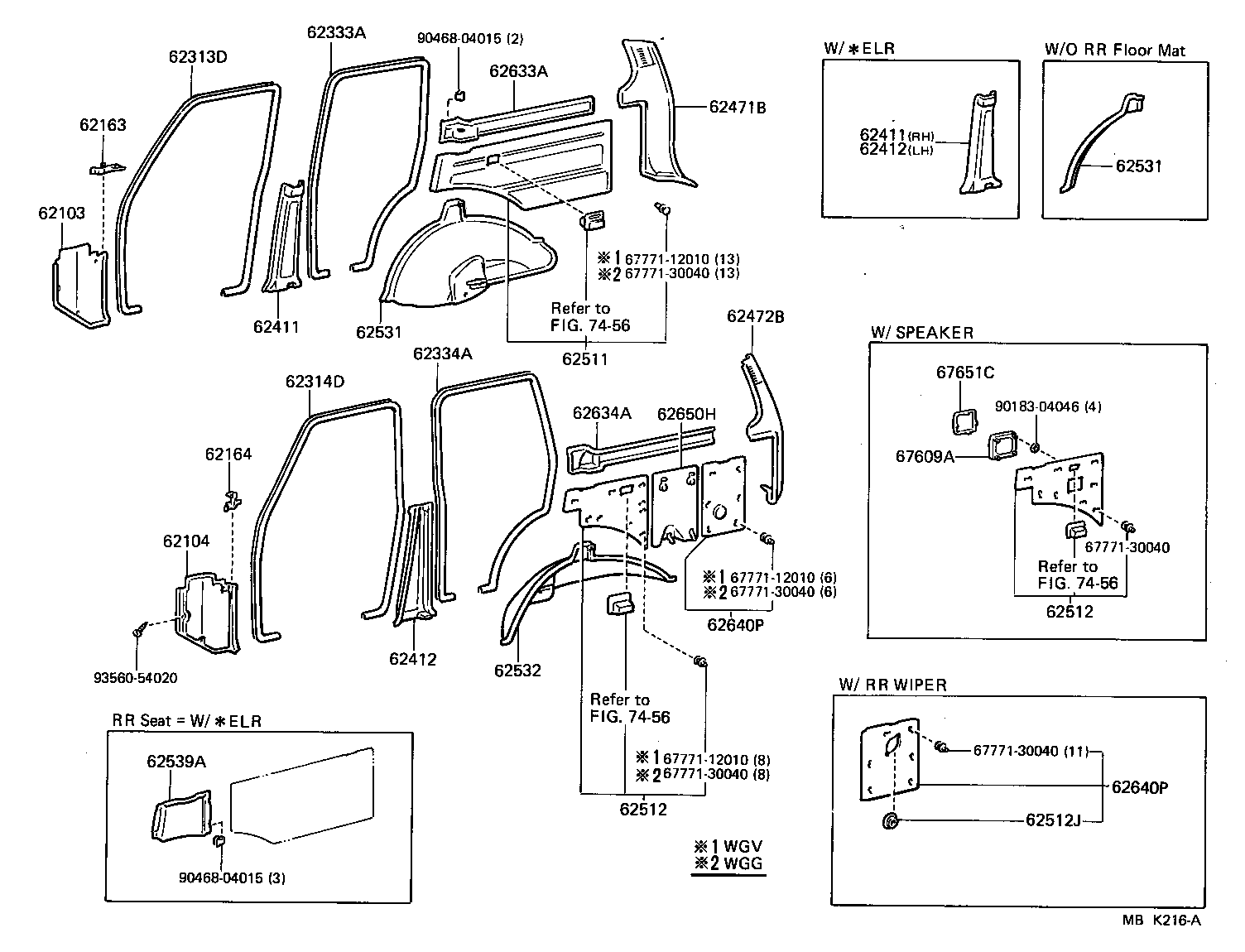

Inside Trim Board
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62163 | Cover, Cowl Side Instrument Panel Bracket, RH |
| 62164 | Cover, Cowl Side Instrument Panel Bracket, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62471B | Cover, Rear Pillar, RH |
| 62472B | Cover, Rear Pillar, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512J | Cover, Quarter Trim Washer |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62539A | Cover, Quarter Trim Upper Belt Hole |
| 62633A | Garnish, Quarter Trim, RH |
| 62634A | Garnish, Quarter Trim, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62650H | Panel Assy, Quarter Trim, Center |
| 67609A | Cover, Quarter Trim Speaker |
| 67651C | Grille, Quarter Trim Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
