Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

32 part groups · 2 illustrations

Illustrations

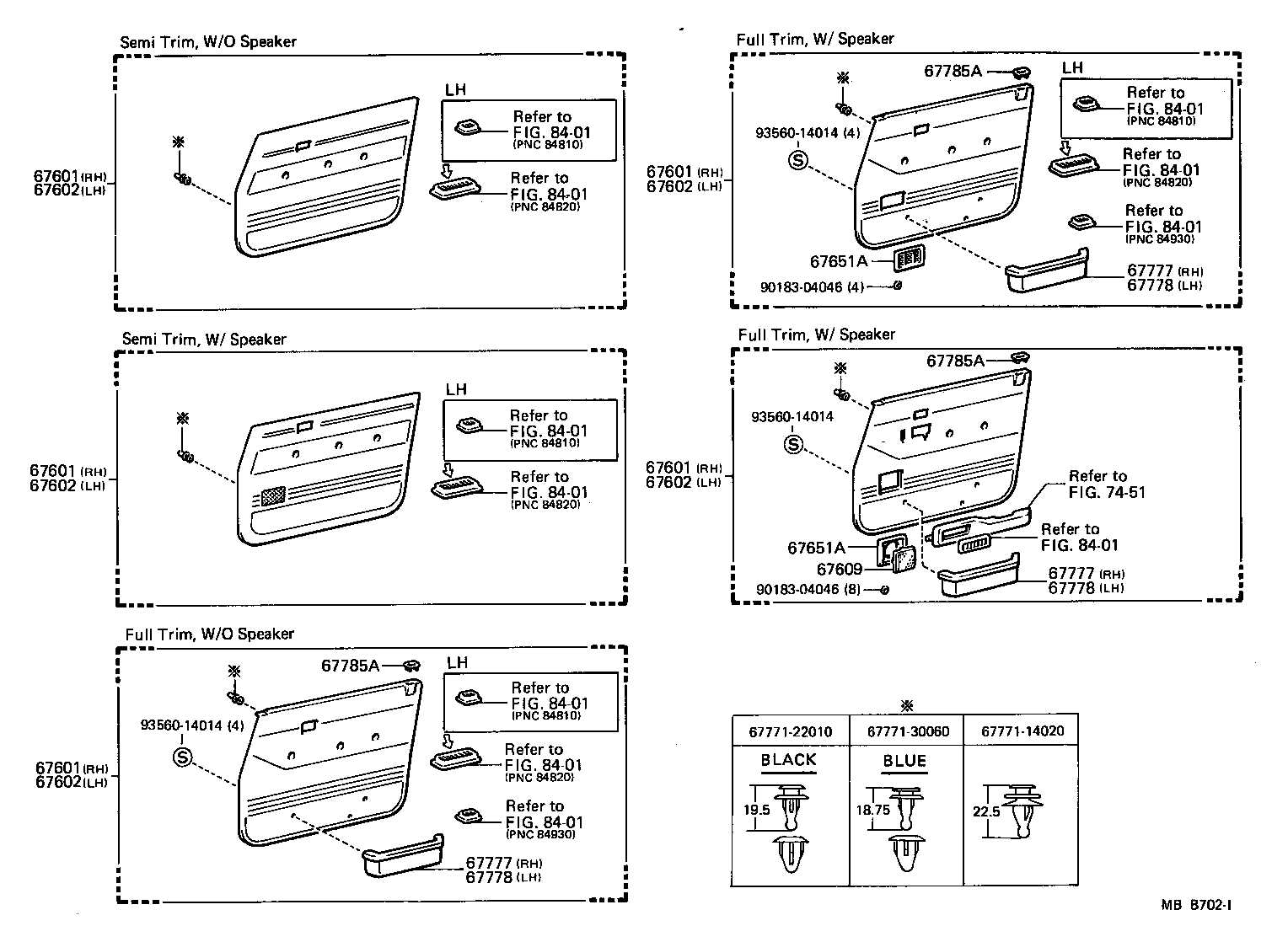

Figure MBB701G MBB701G 1980-08 → — Figure MBB702I MBB702I 1980-08 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67118 Retainer, Outer Mirror
67401 Bar Sub-assy, Front Door Window, Front RH
67402 Bar Sub-assy, Front Door Window, Front LH
67407 Frame Sub-assy, Front Door, Rear Lower RH
67408 Frame Sub-assy, Front Door, Rear Lower LH
67481A Seal, Front Door Front Lower Frame, RH
67482A Seal, Front Door Front Lower Frame, LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67609 Cover, Front Speaker Glill
67651A Grille, Speaker Door
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67785A Holder, Door Locking Button Collar(FOR FRONT DOOR)
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68143 Run, Front Door Glass, Lower
68161 Weatherstrip, Front Door Glass, Outer
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170 Weatherstrip Assy, Front Door Glass, Inner
68610 Check Assy, Front Door
68610A Pin(FOR FRONT DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
