Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

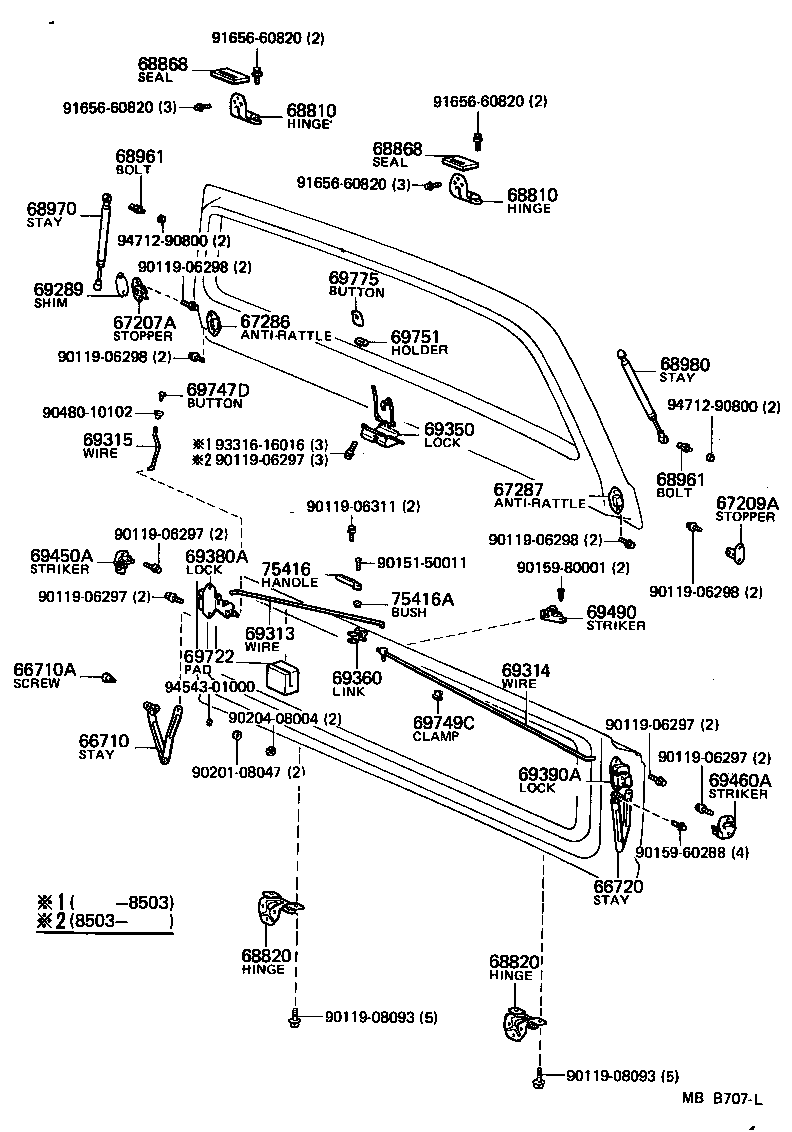

Back Door Lock & Hinge
57 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 66710 | Stay Assy, Tail Gate, RH |
| 66710A | Screw, Tail Gate Assy |
| 66720 | Stay Assy, Tail Gate, LH |
| 67207A | Stopper Sub-assy, Back Door, RH |
| 67207B | Stopper Sub-assy, Back Door, Upper |
| 67209A | Stopper Sub-assy, Back Door, LH |
| 67209B | Stopper Sub-assy, Back Door, Lower |
| 67286 | Anti-rattle, Back Door, RH |
| 67286A | Anti-rattle, Back Door, Upper |
| 67287 | Anti-rattle, Back Door, LH |
| 67287A | Anti-rattle, Back Door, Lower |
| 68810 | Hinge Assy, Back Door, Upper |
| 68820 | Hinge Assy, Back Door, Lower |
| 68830 | Hinge Assy, Back Door, RH |
| 68840 | Hinge Assy, Back Door, LH |
| 68852 | Cover, Back Door Hinge |
| 68868 | Seal, Back Door Hinge |
| 68961 | Bolt, Back Door Stay |
| 68970 | Stay Assy, Back Door, RH |
| 68980 | Stay Assy, Back Door |
| 69211 | Handle, Back Door Outside, RH |
| 69211B | Cushion(FOR BACK DOOR OUTSIDE HANDLE) |
| 69263 | Bezel, Back Door Inside Handle |
| 69289 | Shim, Back Door Stopper |
| 69291 | Handle Assy, Back Door Inside |
| 69305 | Lock Sub-assy, Back Door, Upper |
| 69305A | Striker Assy, Back Door, Upper |
| 69306 | Lock Sub-assy, Back Door, Lower |
| 69306A | Striker Assy, Back Door, Lower |
| 69307 | Lock Sub-assy, Back Door, Center |
| 69307B | Striker Assy, Back Door, Center |
| 69313 | Wire, Tail Gate Lock, NO.1 |
| 69314 | Wire, Tail Gate Lock, NO.2 |
| 69315 | Wire, Tail Gate Lock, NO.3 |
| 69350 | Lock Assy, Back Door |
| 69357A | Rod, Back Door Opening, Upper |
| 69359 | Cushion, Back Door Lock |
| 69360 | Link Assy, Tail Gate Remote Control |
| 69377A | Snap, Back Door Upper Lock Rod |
| 69380A | Lock Assy, Tail Gate, Lower RH |
| 69390A | Lock Assy, Tail Gate, Lower LH |
| 69450A | Striker Assy, Tail Gate, Lower RH |
| 69452A | Plate, Back Door Upper Lock Striker |
| 69460A | Striker Assy, Tail Gate, Lower LH |
| 69490 | Striker Assy, Back Door Lock |
| 69721 | Rod, Back Door Lower Lock Control, NO.1 |
| 69722 | Pad, Back Door Lock Control |
| 69747C | Button, Door Locking(FOR BACK DOOR) |
| 69747D | Button, Door Locking(FOR TAIL GATE) |
| 69749C | Clamp, Tail Gate Lock Link |
| 69751 | Holder, Door Lock Control Knob |
| 69759 | Snap, Door Lock Control Link, NO.1 |
| 69766 | Link, Back Door Lock Control, NO.2 |
| 69775 | Button, Door Locking(FOR BACK DOOR) |
| 69790 | Control Assy, Back Door Lock |
| 75416 | Handle, Tail Gate, Inside |
| 75416A | Bush, Tail Gate Inside Handle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
