Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

26 part groups · 4 illustrations

Illustrations

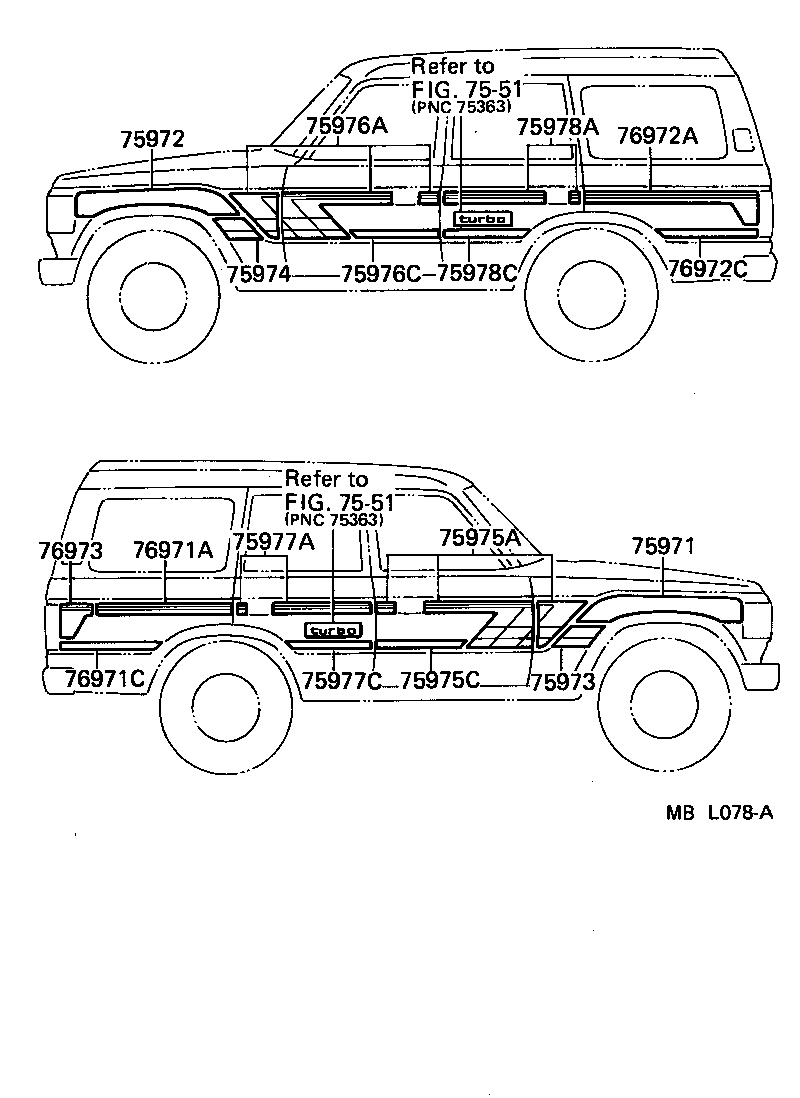

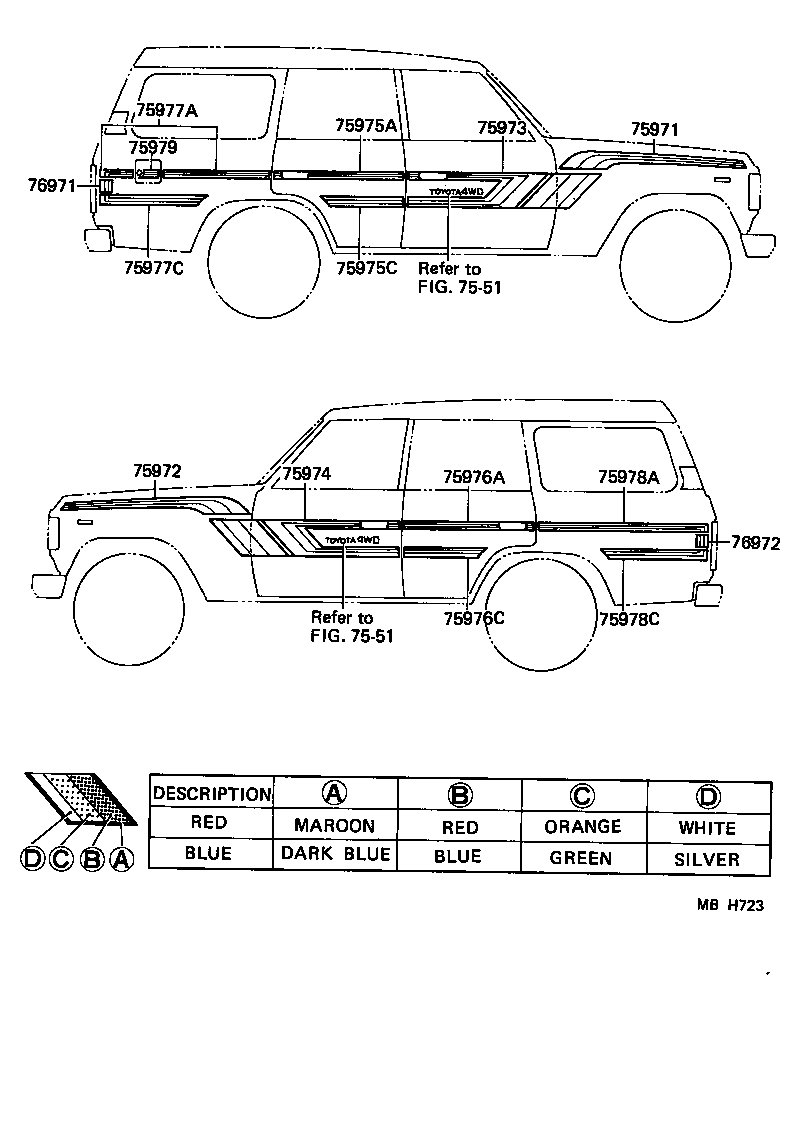

Figure MBE353 MBE353 1982-10 → 1983-05 Figure MBE353 MBE353 1983-05 → 1984-11 Figure MBH723 MBH723 1984-11 → 1986-08 Figure MBL078A MBL078A 1986-08 → —

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75972 Stripe, Side, LH NO.1
75973 Stripe, Side, RH NO.2
75973A Stripe, Side, RH NO.2 (FOR UPPER)
75974 Stripe, Center Pillar, LH NO.2
75974A Stripe, Side, LH NO.2(FOR UPPER)
75975 Stripe, Side, RH Upr NO.3
75975A Stripe, Side, RH NO.3 (FOR UPPER)
75975C Stripe, Side, RH NO.3 (FOR LOWER)
75976 Stripe, Side, LH Upr
75976A Stripe, Side, LH NO.3 (FOR UPPER)
75976C Stripe, Side, LH NO.3 (FOR LOWER)
75977 Stripe, Side, RH NO.4
75977A Stripe, Side, RH NO.4(FOR UPPER)
75977C Stripe, Side, RH NO.4(FOR LOWER)
75978 Stripe, Side, LH NO.4
75978A Stripe, Side, LH NO.4(FOR UPPER)
75978C Stripe, Side, LH NO.4(FOR LOWER)
75979 Stripe, Fuel Filler Opening Lid
76971 Stripe, Side, RH NO.5
76971A Stripe, Side, RH NO.5 (FOR UPPER)
76971C Stripe, Side, RH NO.5 (FOR LOWER)
76972 Stripe, Quarter, Rear LH
76972A Stripe, Side, LH NO.5 (FOR UPPER)
76972C Stripe, Side, LH NO.5 (FOR LOWER)
76973 Stripe, Side, RH NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
