Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

66 part groups · 10 illustrations

Illustrations

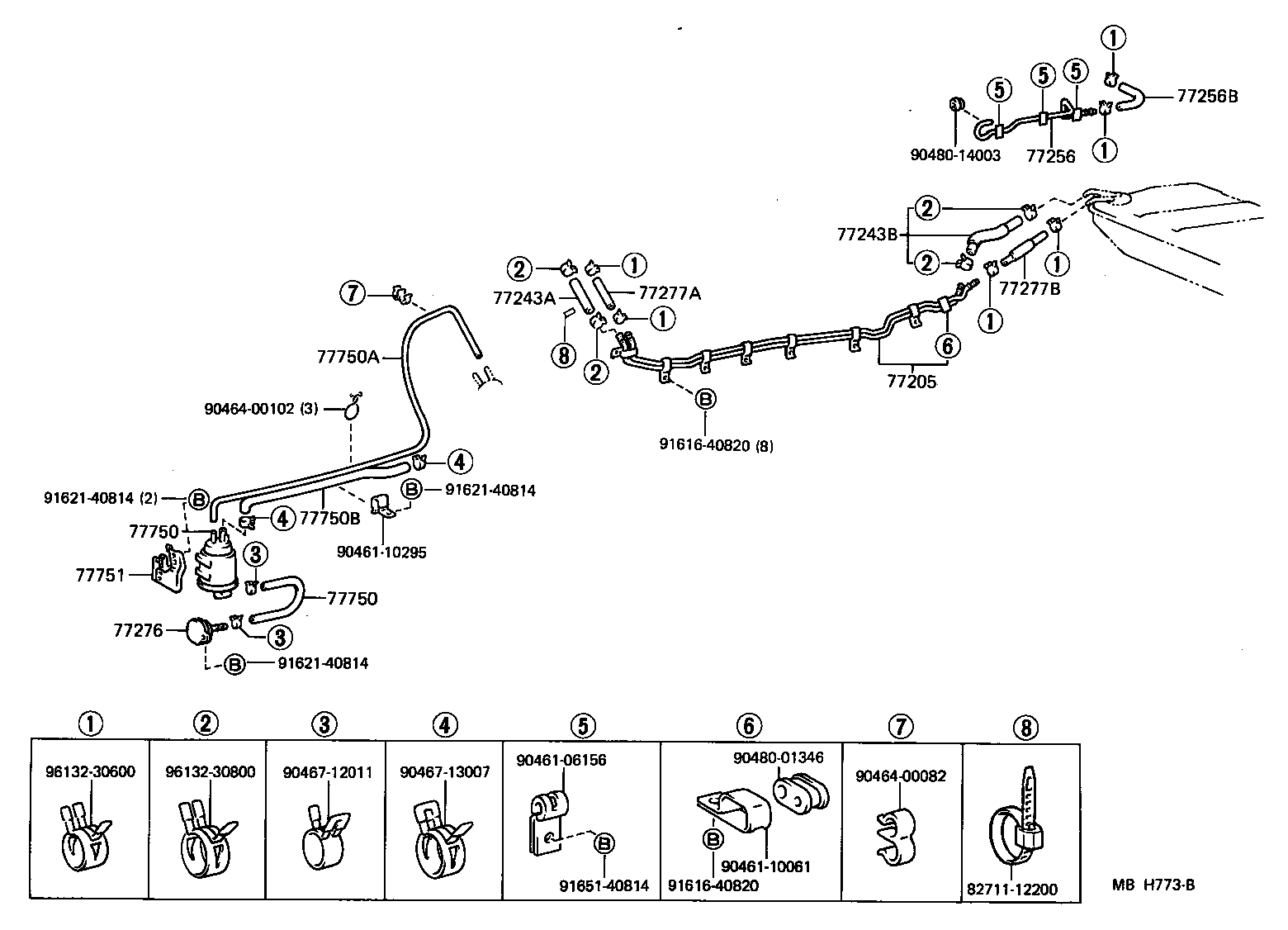

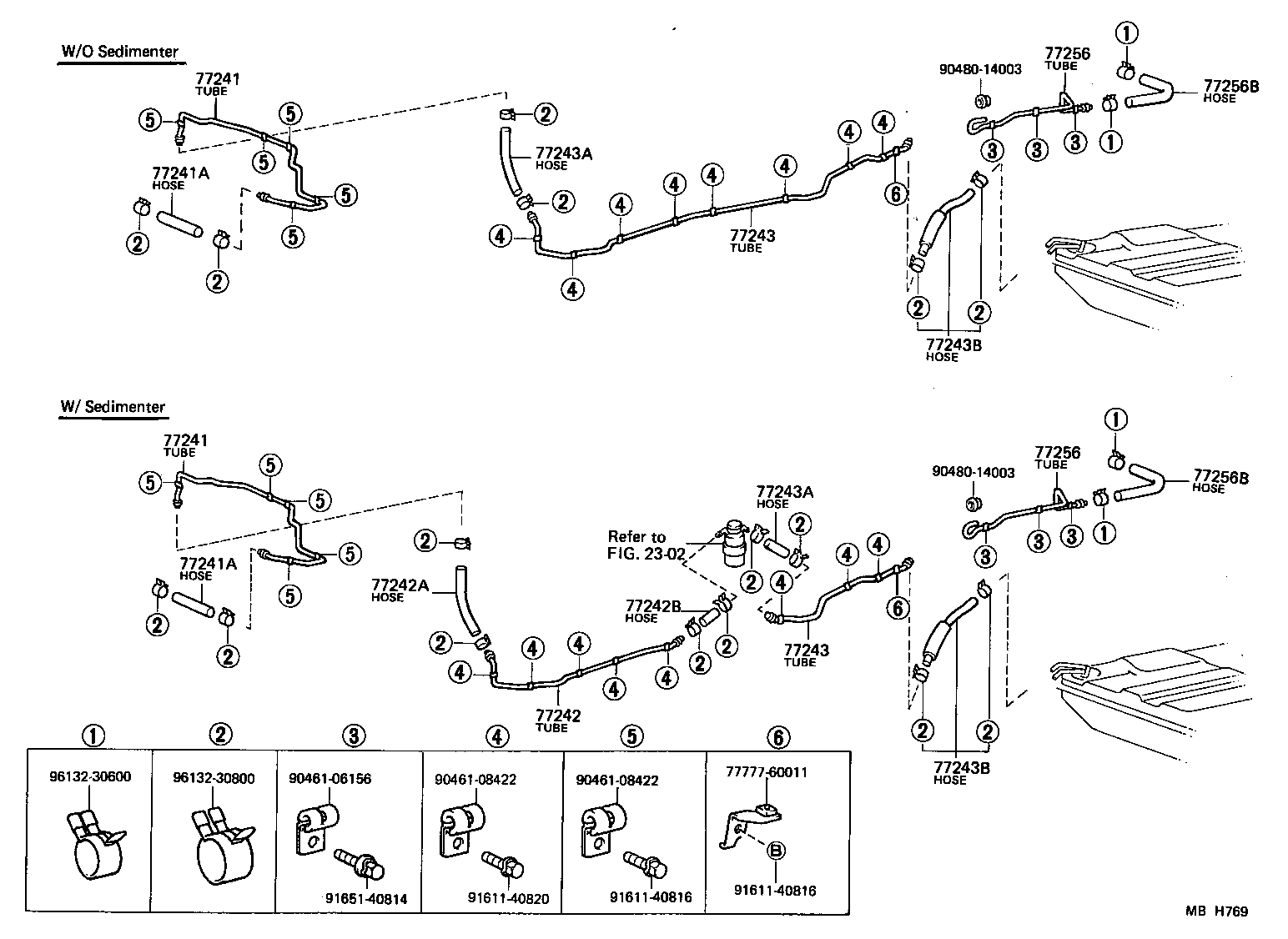

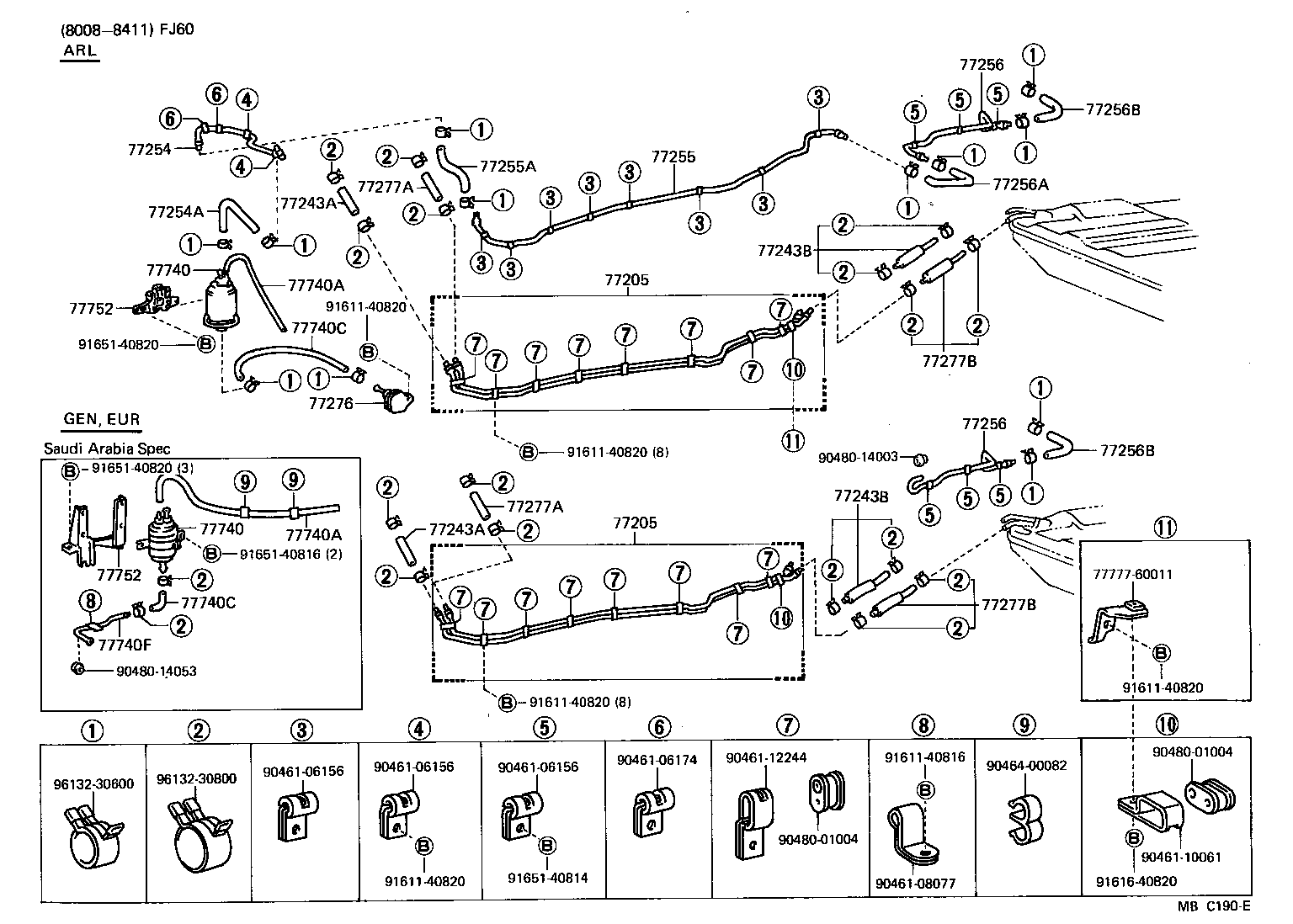

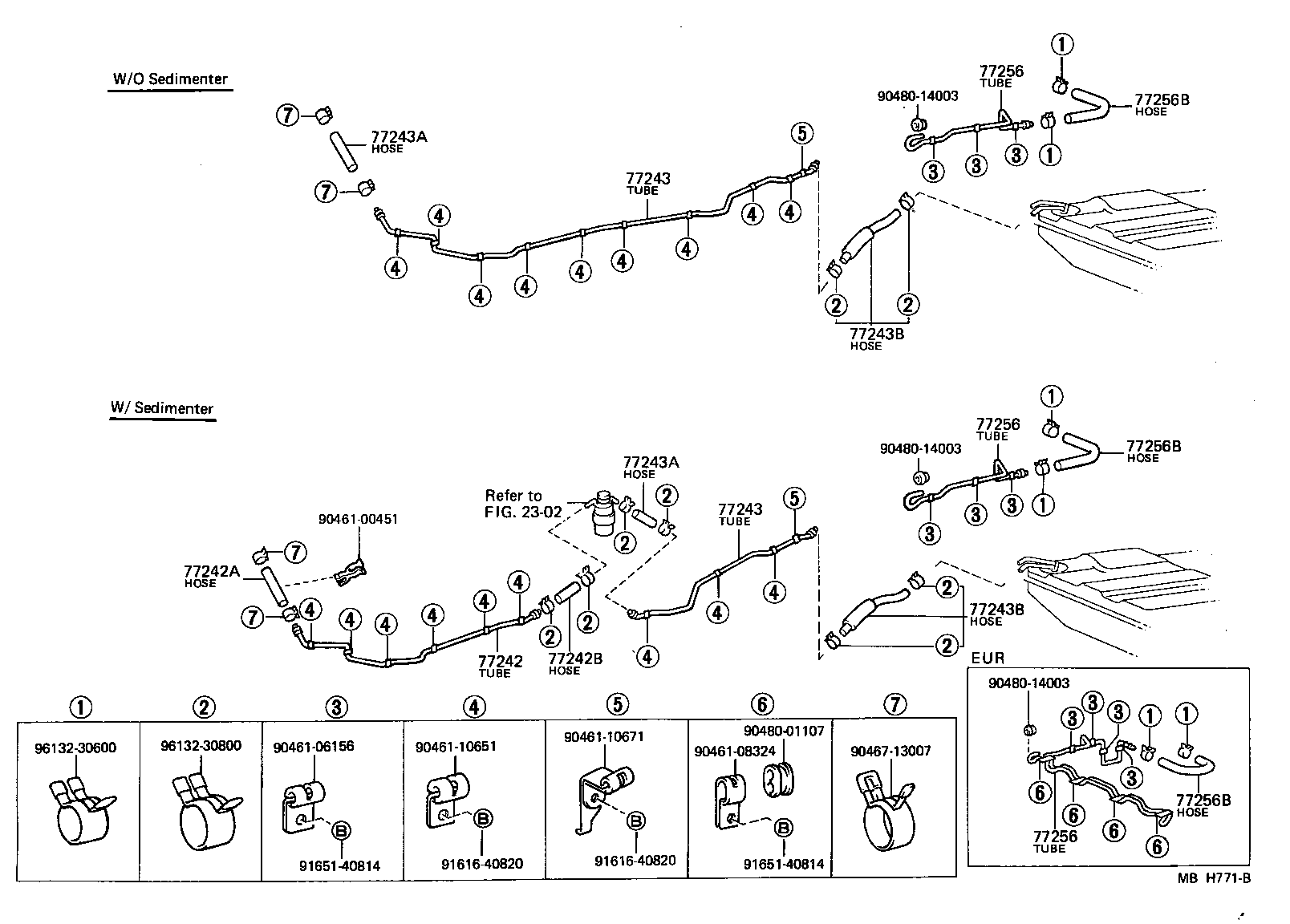

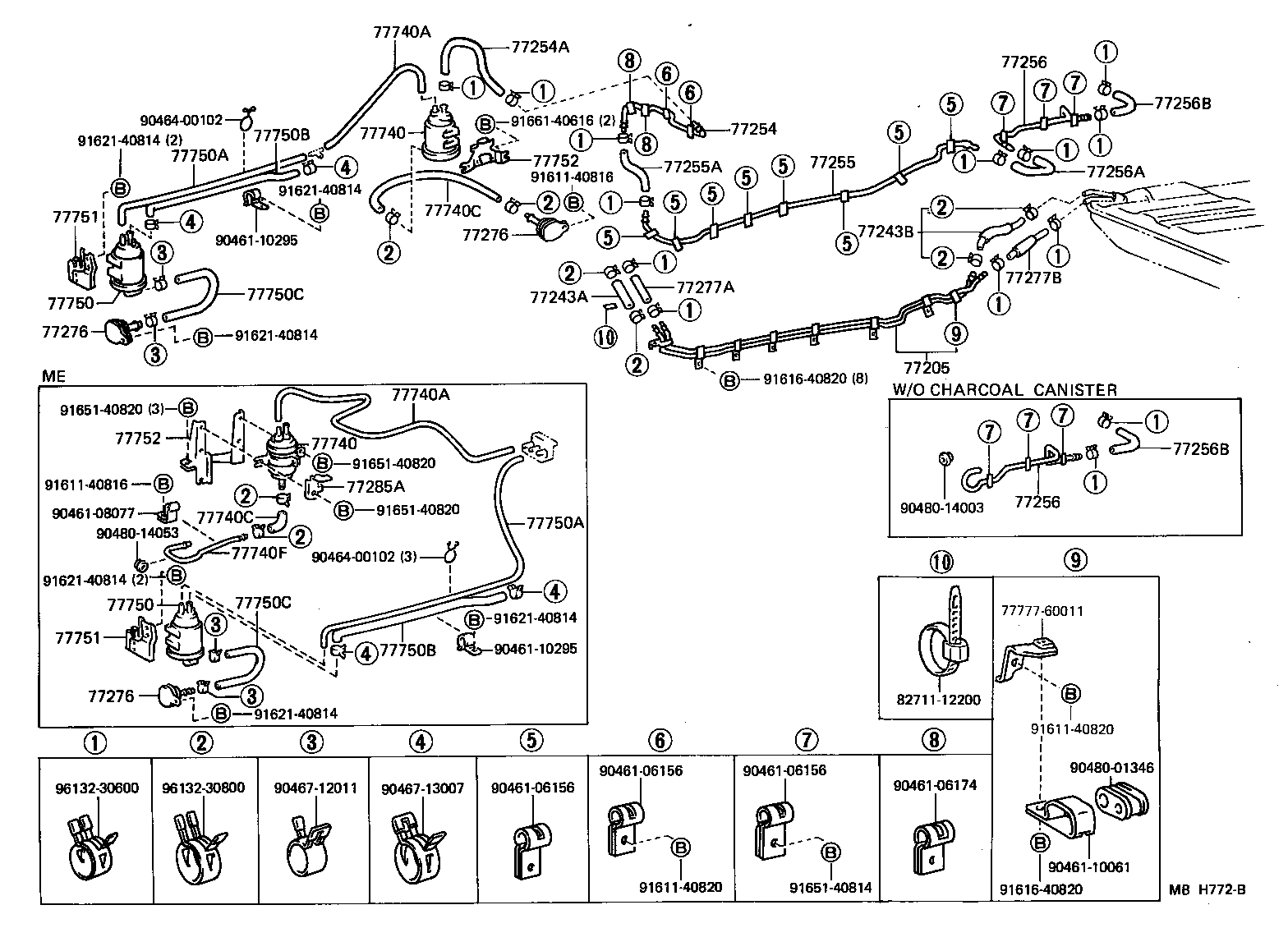

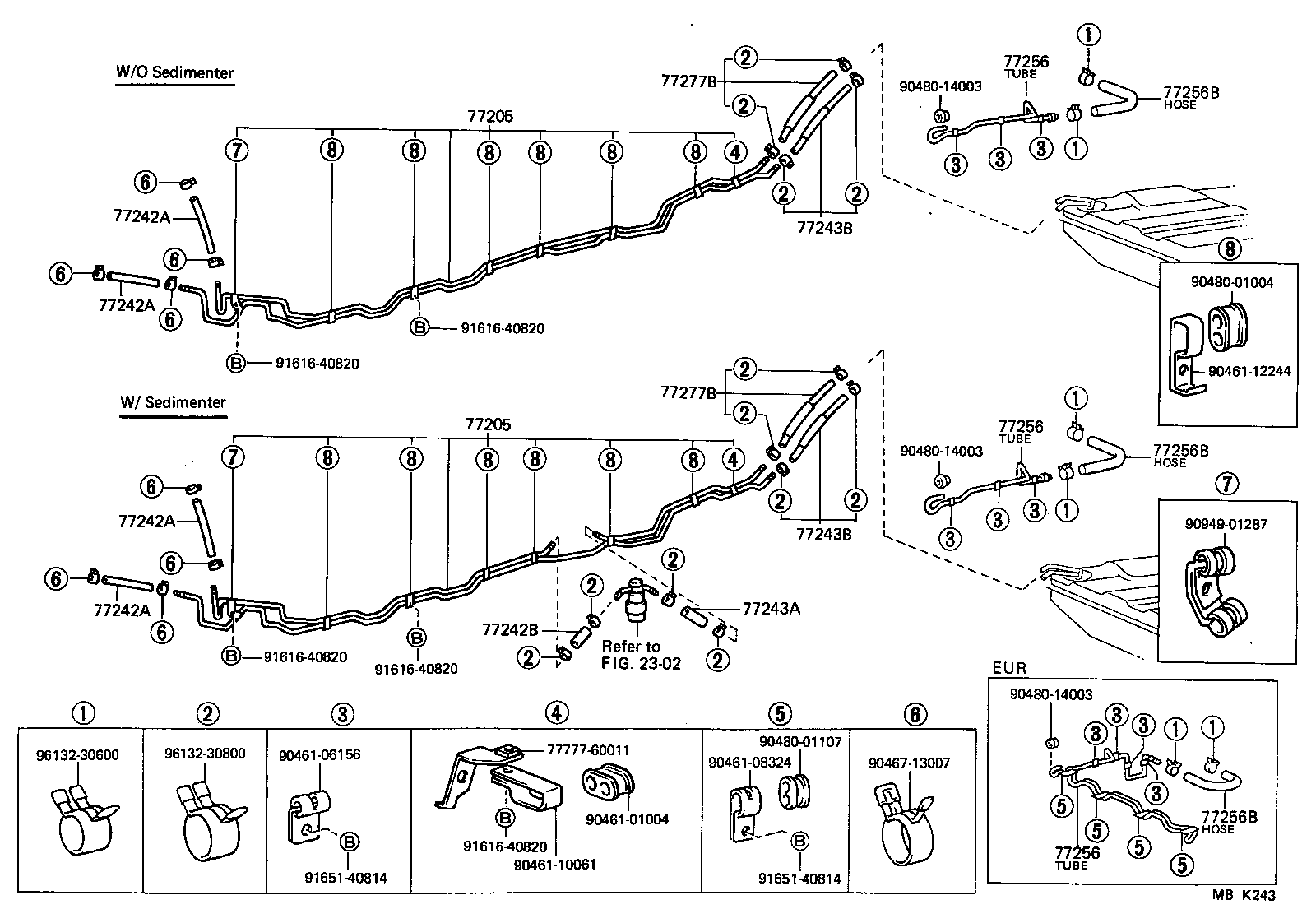

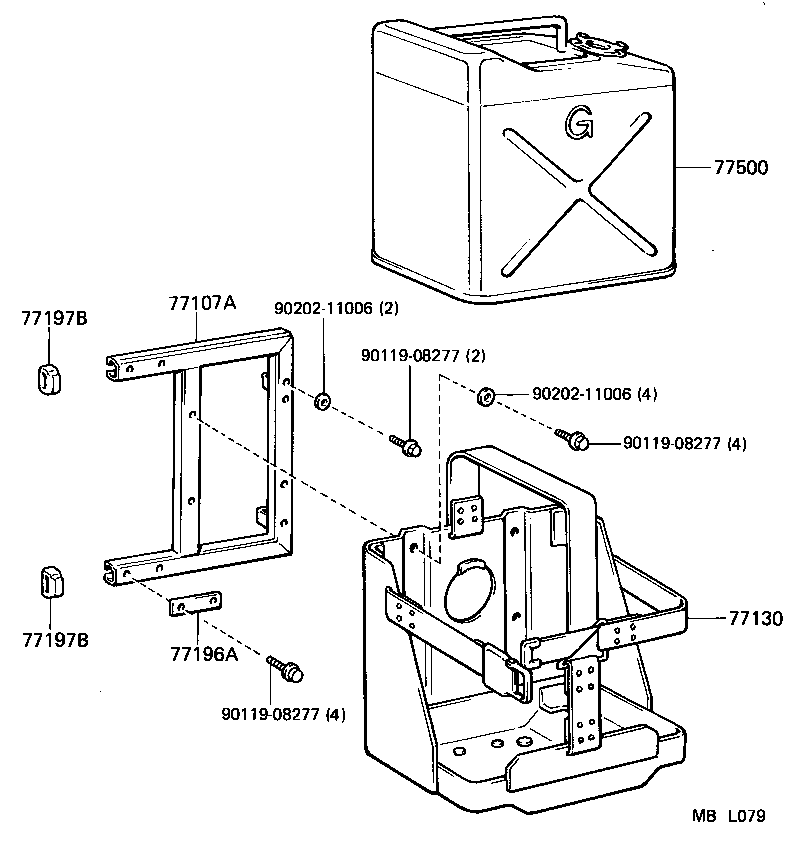

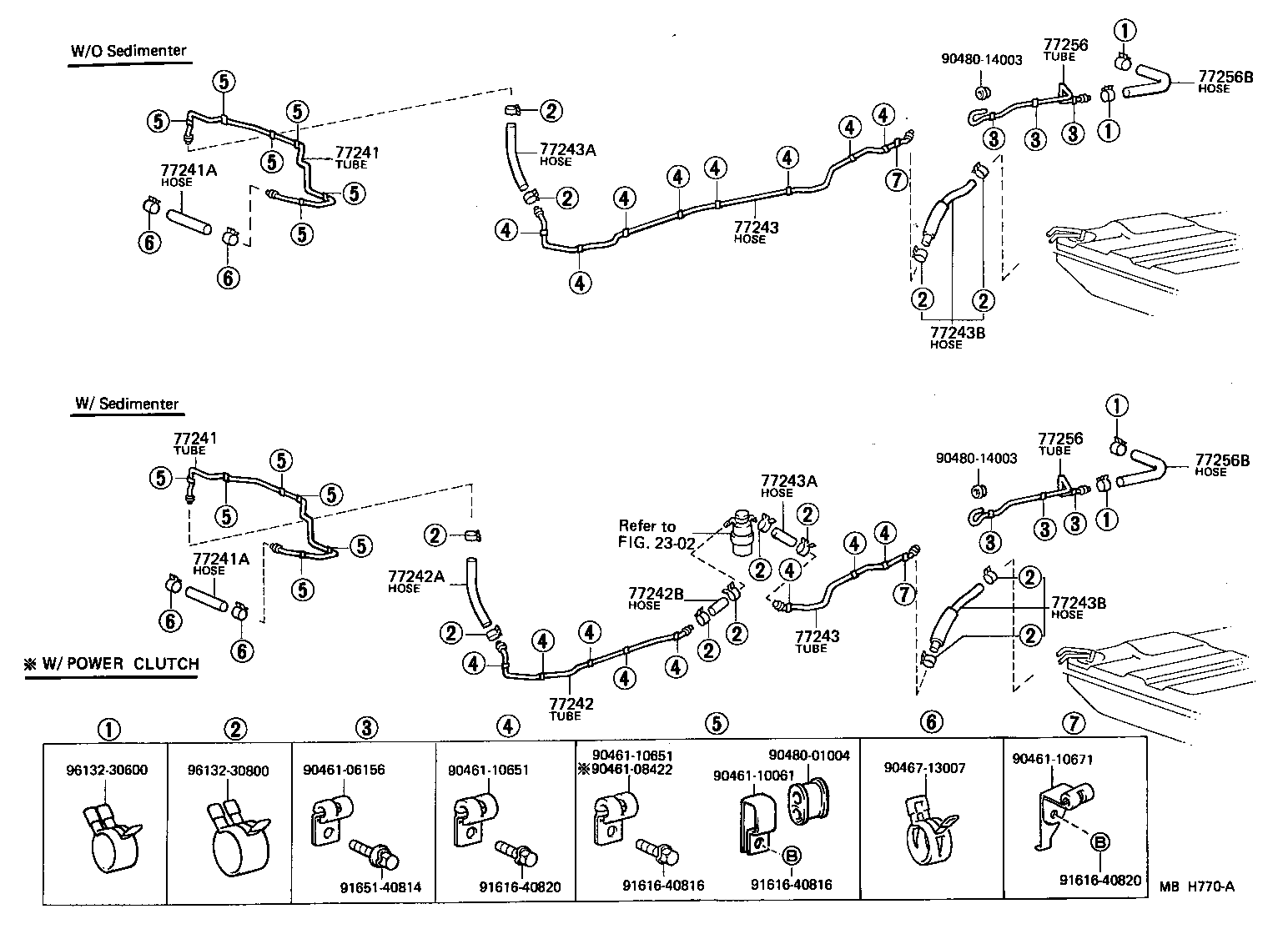

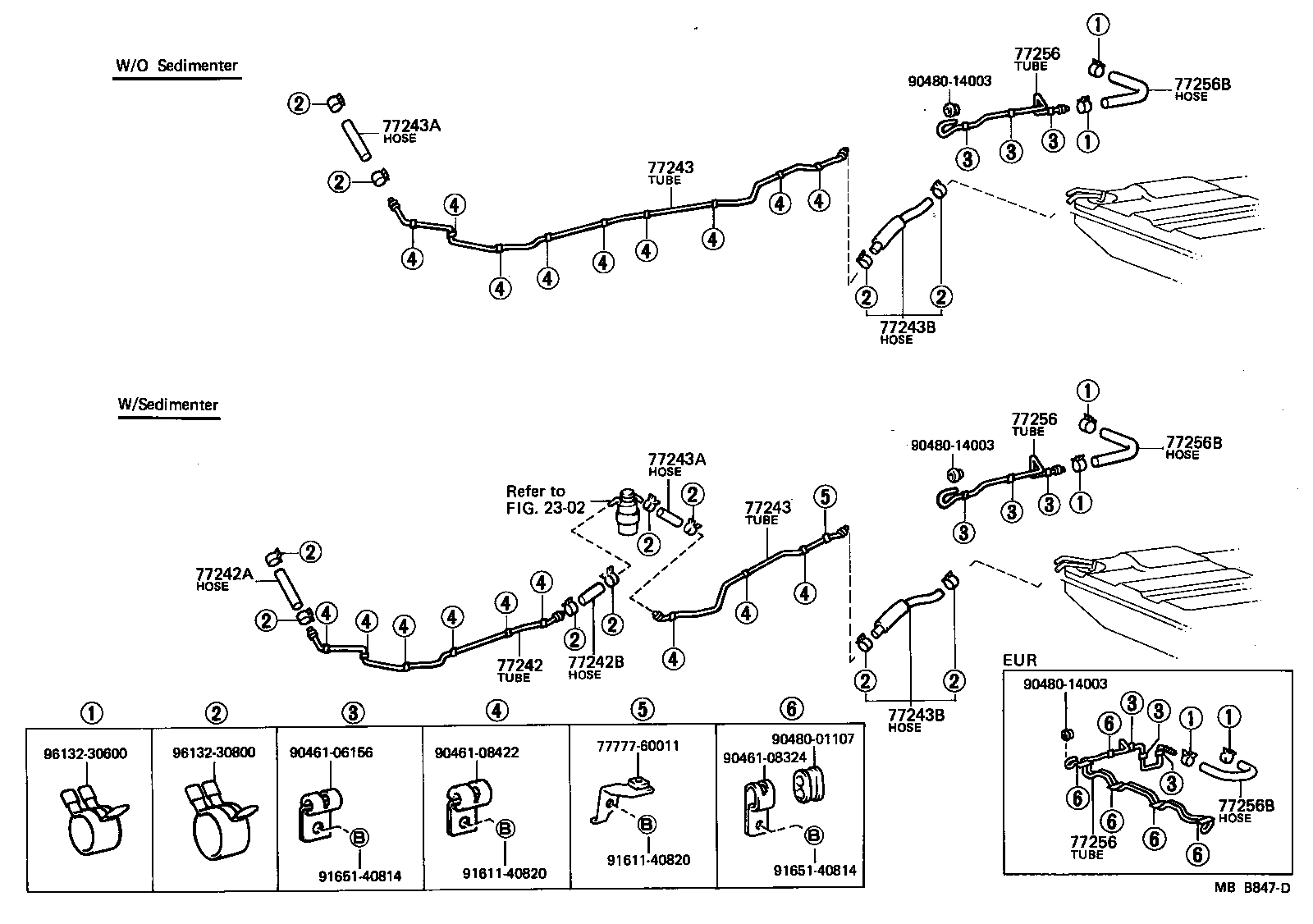

Figure 772344 772344 1980-08 → — Figure MBH769 MBH769 1980-08 → 1984-11 Figure MBH770A MBH770A 1984-11 → — Figure MBB847D MBB847D 1980-08 → 1984-11 Figure MBH771B MBH771B 1984-11 → — Figure MBK243 MBK243 1985-10 → — Figure MBC190E MBC190E 1980-08 → 1984-11 Figure MBH772B MBH772B 1984-11 → — Figure MBH773B MBH773B 1984-11 → — Figure MBL079 MBL079 1981-02 → —

Part groups

PNCDescription
77014 Strainer Sub-assy, Fuel
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100E Hose, Fuel, NO.2(FOR FUEL TANK)
77100F Hose, Fuel, NO.3(FOR FUEL TANK)
77100G Hose, Fuel, NO.4(FOR FUEL TANK)
77100Q Hose, Fuel, NO.5(FOR FUEL TANK)
77107A Carrier Sub-assy, Auxiliary Fuel Tank
77108 Protector Sub-assy, Fuel Tank
77130 Bracket Assy, Auxiliary Fuel Tank
77196A Pad, Auxiliary Fuel Tank Carrier
77197B Cover, Auxiliary Fuel Tank Carrier
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206G Gasket (FOR FUEL TANK SUCTION TUBE)
77209 Connector Sub-assy, Fuel Tube
77213 Hose, Fuel Tank Sub Inlet
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243 Tube, Fuel Main, NO.3
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77256 Tube, Fuel Emission, NO.3
77256A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3)
77256B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77285A Support, Fuel Return And Main Tube
77295 Shield, Fuel Filler Pipe
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77366 Spring, Fuel Filler Opening Lid Hinge
77367 Stopper, Fuel Filler Opening Lid
77500 Tank Assy, Auxiliary Fuel
77611 Band, Fuel Tank
77652 Cushion, Fuel Tank, NO.1
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77750C Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77752 Bracket, Charcoal Canister Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
