Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

26 part groups · 14 illustrations

Illustrations

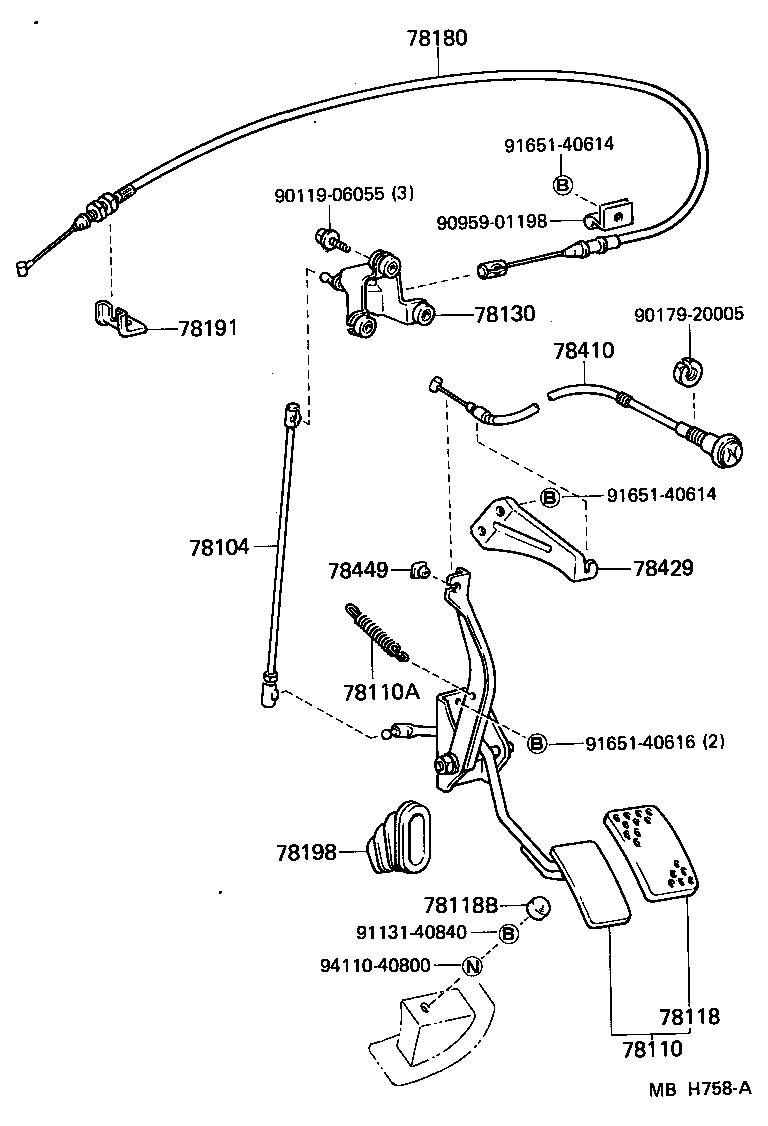

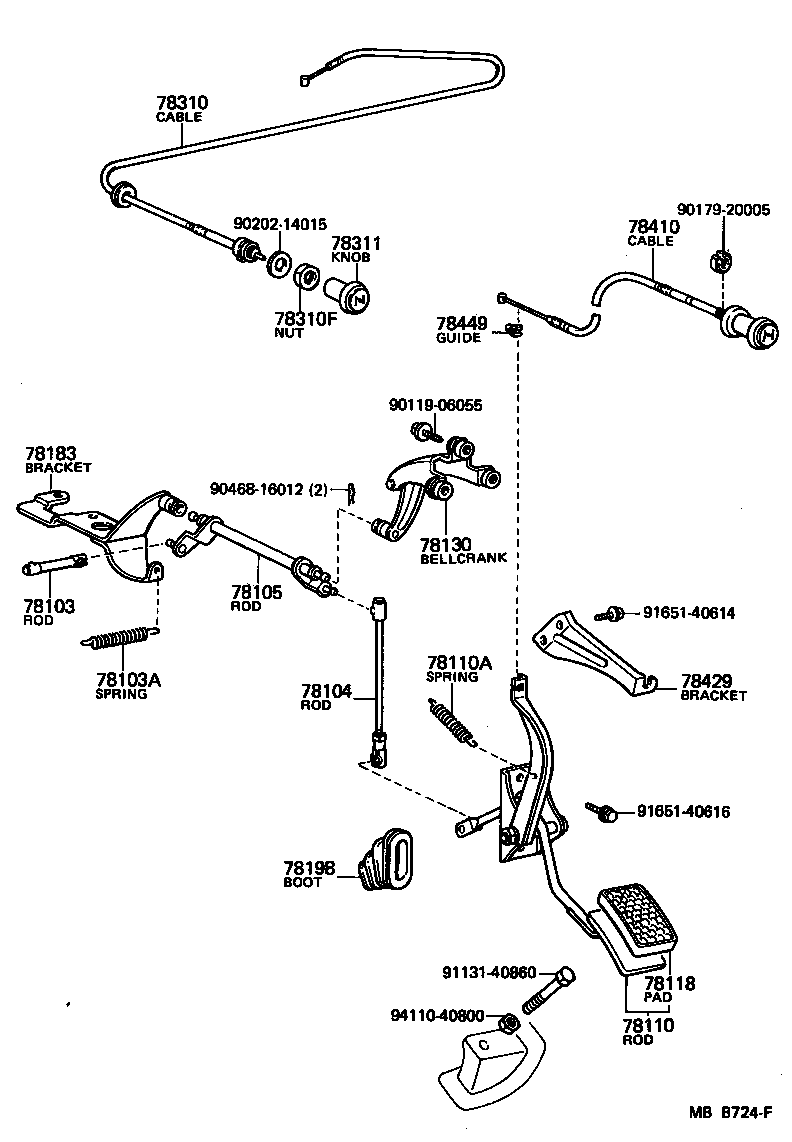

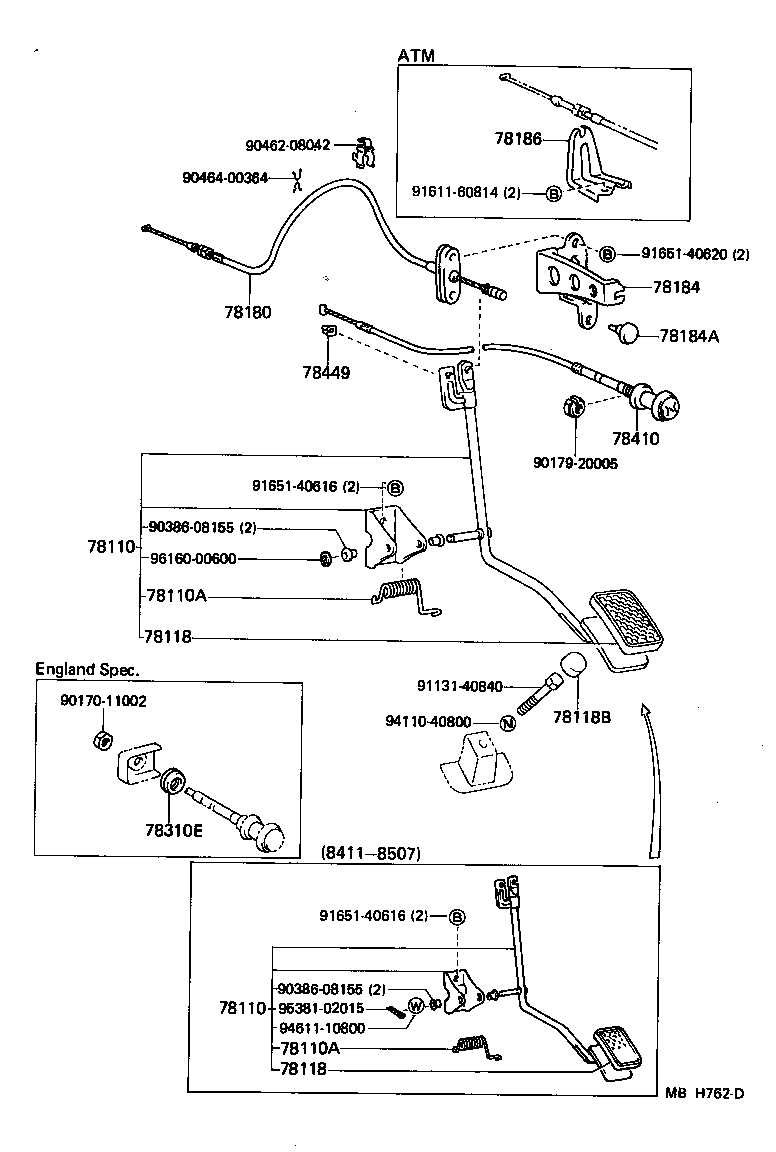

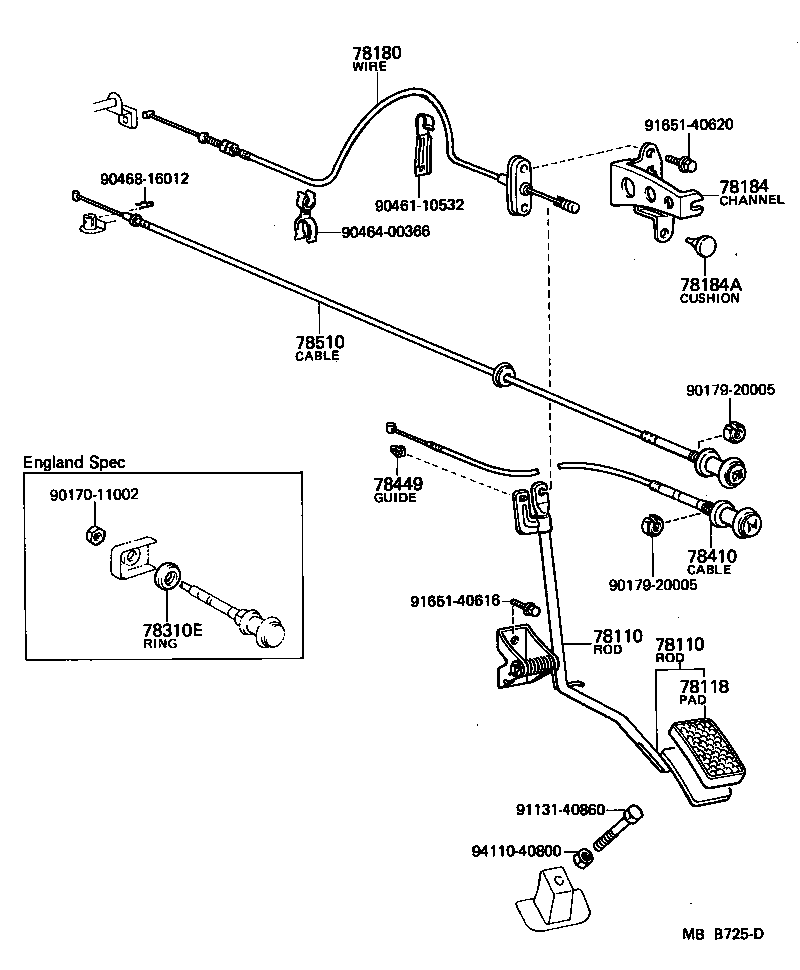

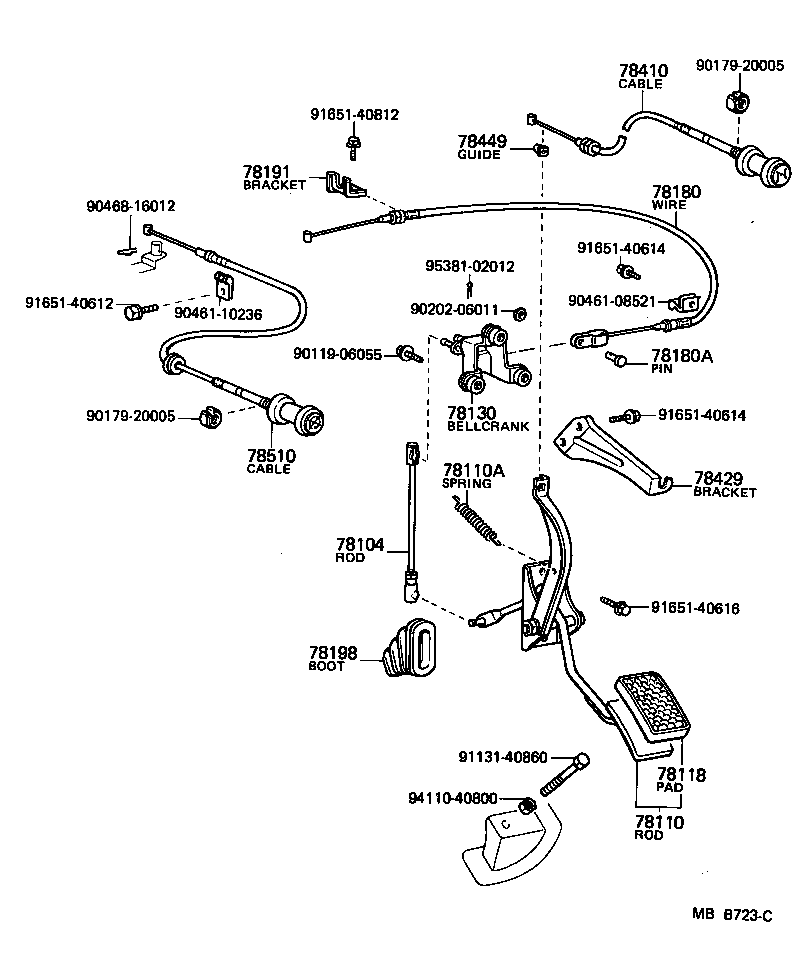

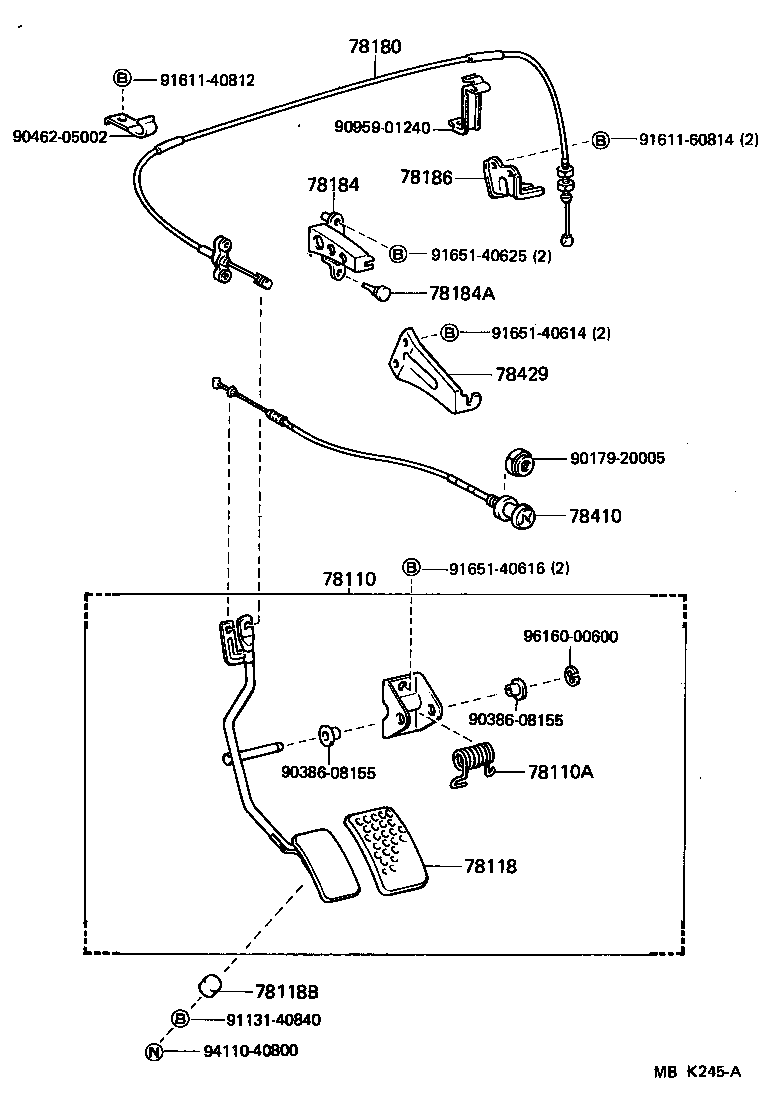

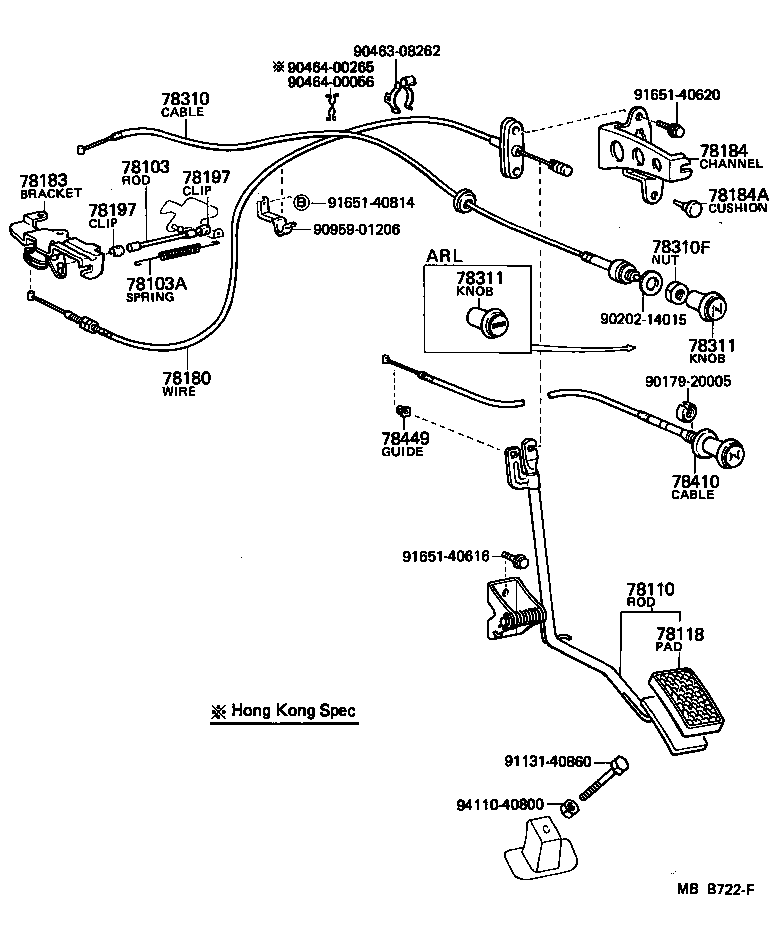

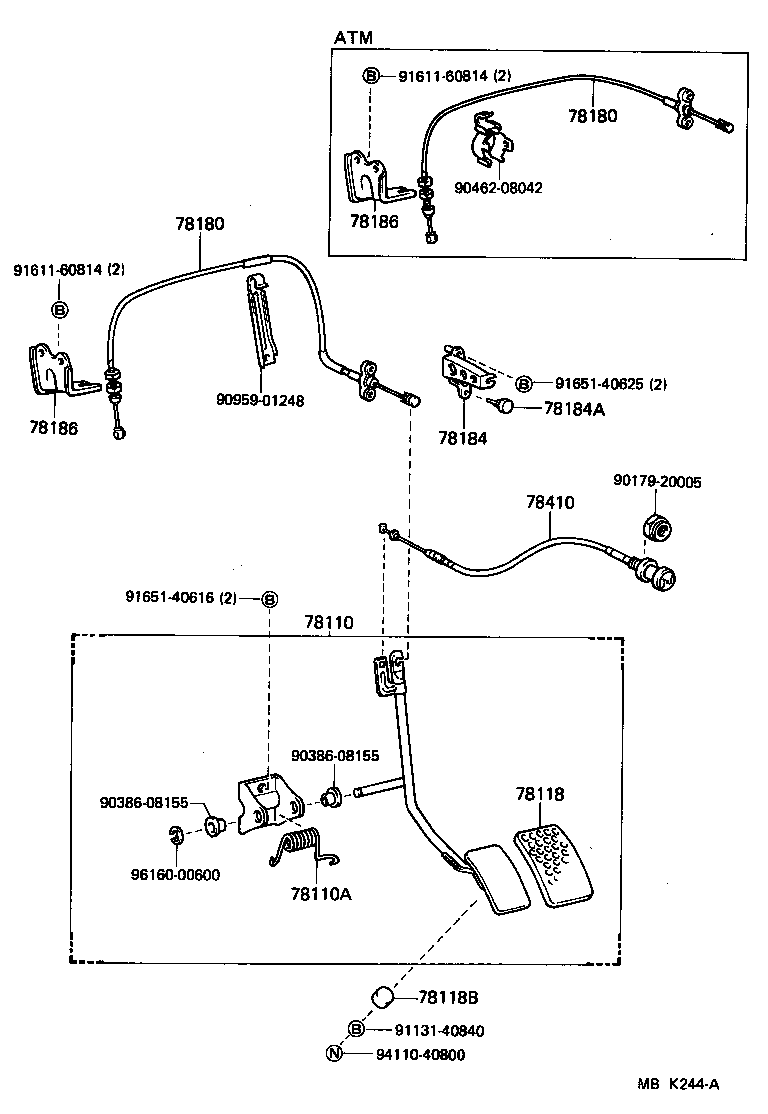

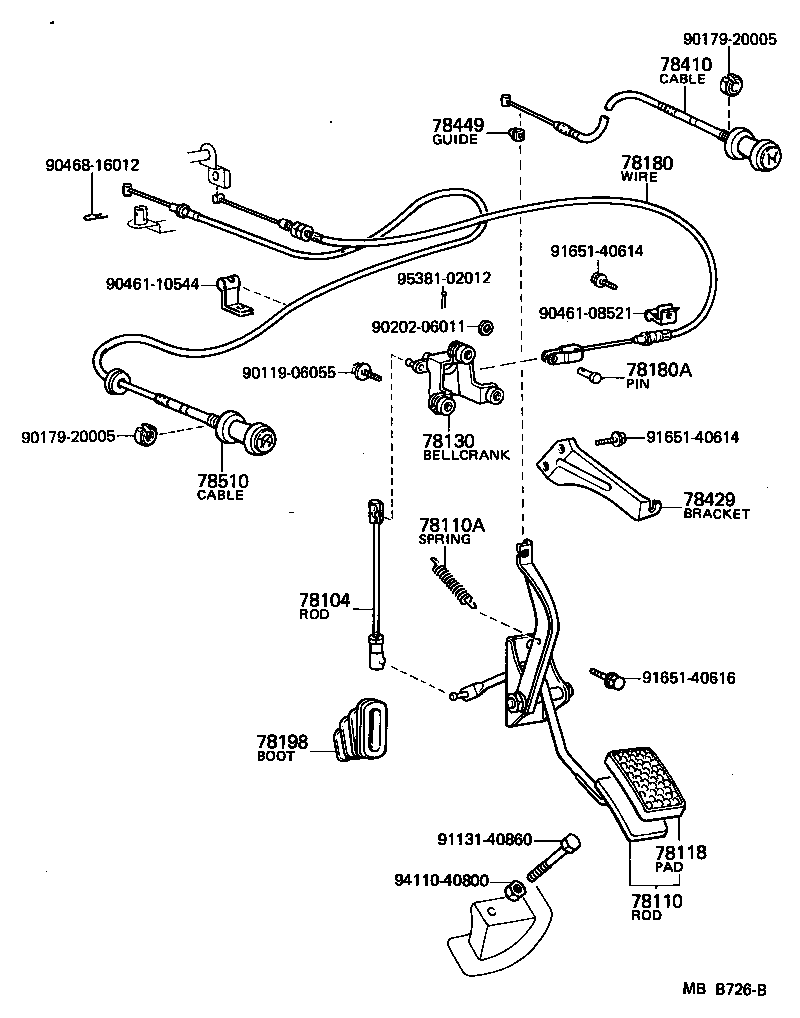

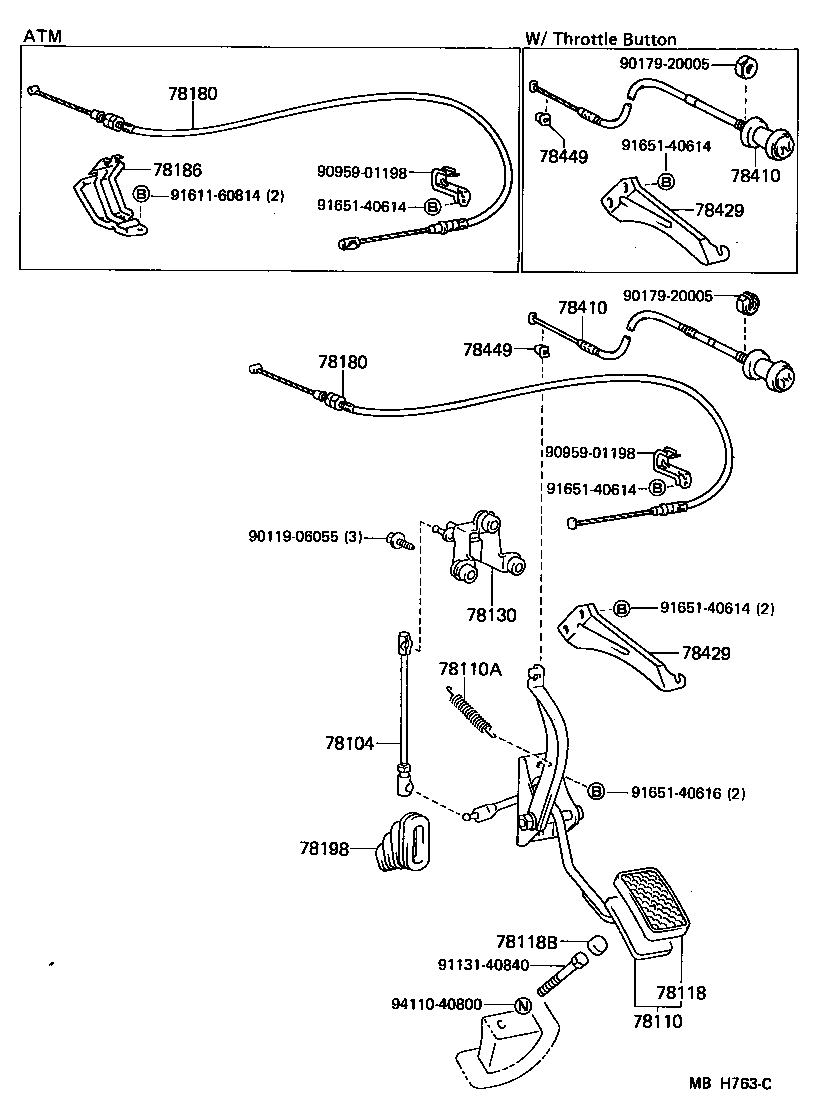

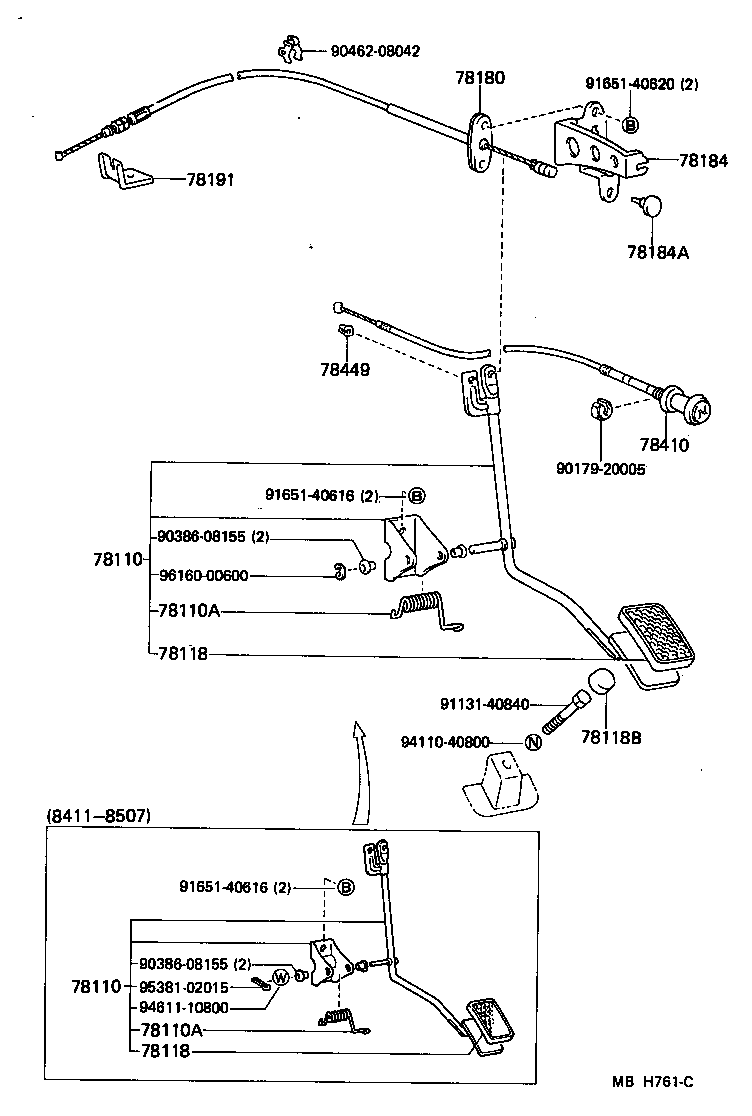

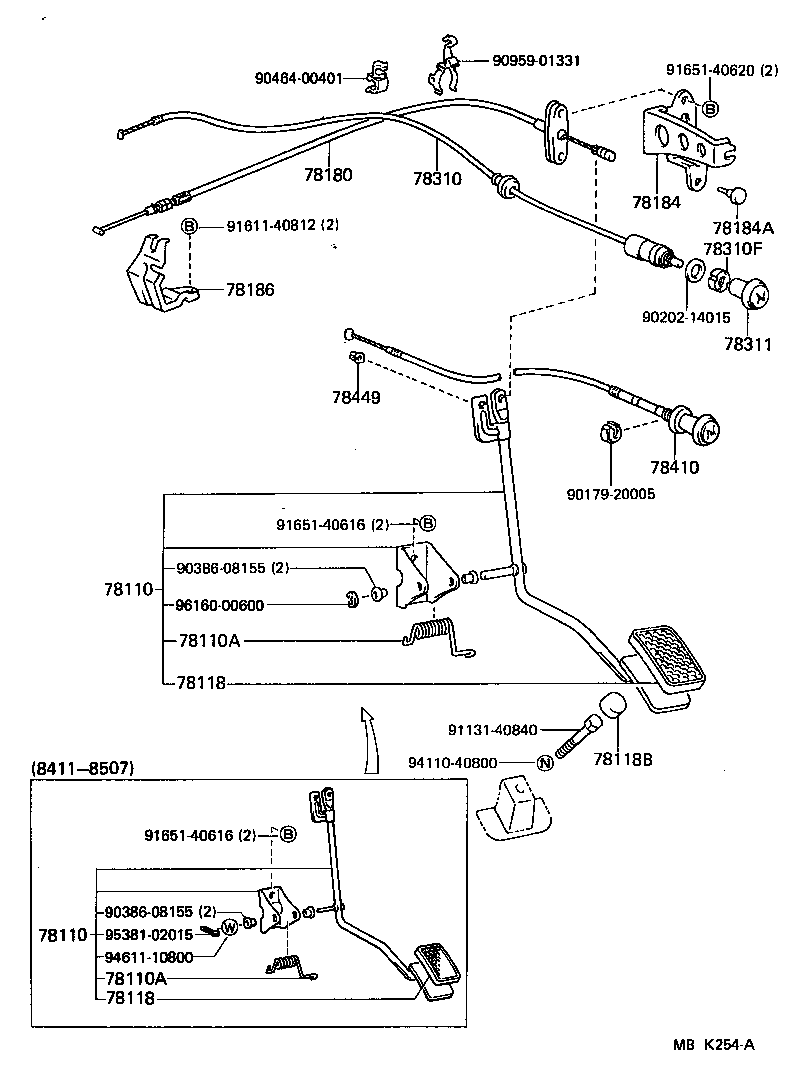

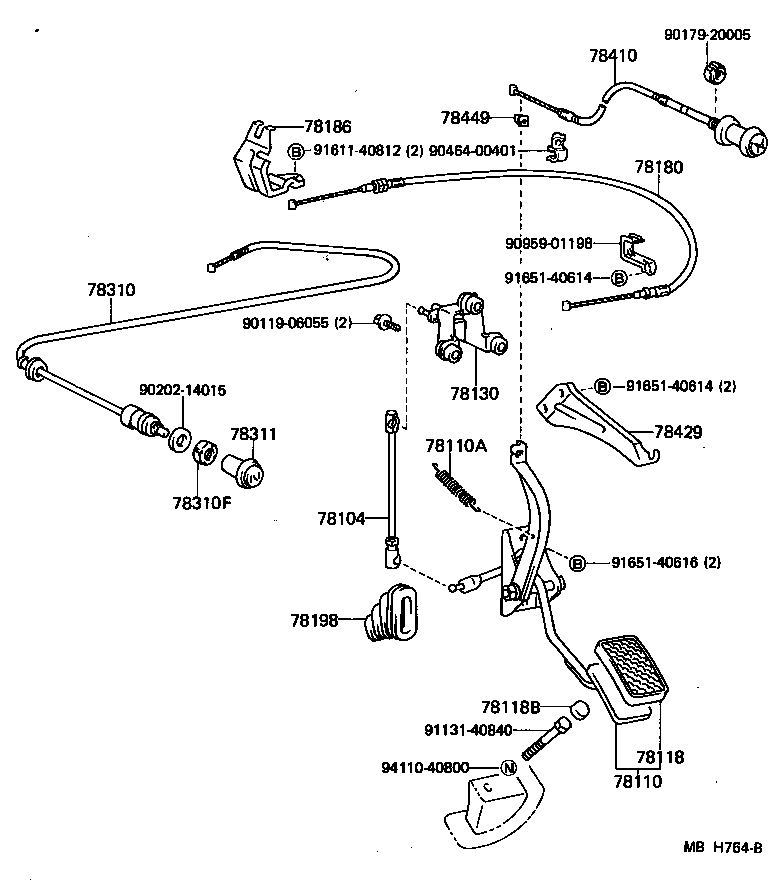

Figure MBB721C MBB721C 1980-08 → 1984-11 Figure MBH761C MBH761C 1984-11 → — Figure MBB723C MBB723C 1980-08 → 1984-11 Figure MBH758A MBH758A 1984-11 → — Figure MBB725D MBB725D 1980-08 → 1984-11 Figure MBH762D MBH762D 1984-11 → — Figure MBK244A MBK244A 1985-10 → — Figure MBB726B MBB726B 1980-08 → 1984-11 Figure MBH763C MBH763C 1984-11 → — Figure MBK245A MBK245A 1985-10 → — Figure MBB722F MBB722F 1980-08 → 1984-11 Figure MBK254A MBK254A 1984-11 → — Figure MBB724F MBB724F 1980-08 → 1984-11 Figure MBH764B MBH764B 1984-11 → —

Part groups

PNCDescription
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78103A Spring (FOR ACCELERATOR CONNECTING ROD, NO.1)
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78118 Pad, Accelerator Pedal
78118B Stopper, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78180 Wire Assy, Accelerator
78180A Pin, Accelerator Wire Set
78183 Bracket, Accelerator Link Rod
78184 Channel, Accelerator Idle Adjusting Stopper
78184A Cushion (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78186 Support, Accelerator Control Cable, NO.1
78191 Bracket, Accelerator Wire Support
78197 Clip, Accelerator Joint Ball
78198 Boot, Accelerator Connecting Rod
78310 Cable Assy, Choke
78310E Ring, Choke
78310F Nut, Choke
78311 Knob, Choke Control Cable
78410 Cable Assy, Throttle Control
78429 Bracket, Throttle Rod
78449 Guide, Throttle Cable
78510 Cable Assy, Stop
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
