Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

8 part groups · 7 illustrations

Illustrations

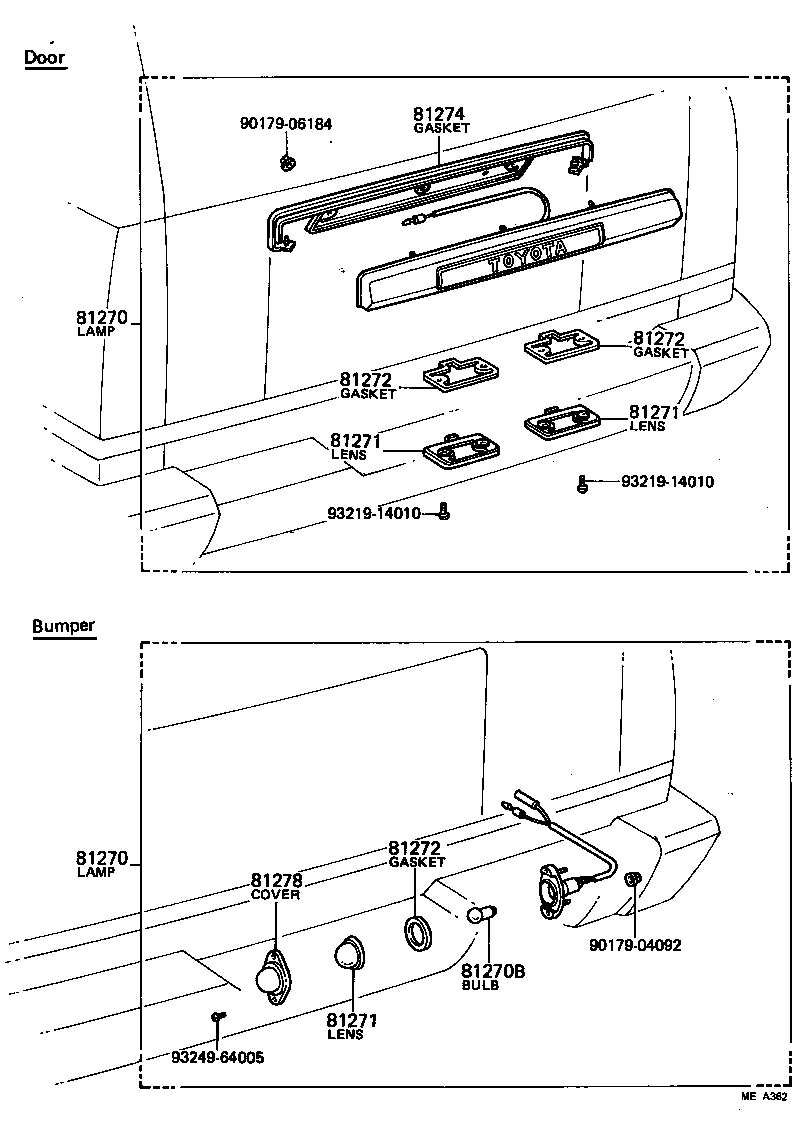

Figure ME8980F ME8980F 1980-08 → 1984-11 Figure ME8980F ME8980F 1984-02 → 1984-11 Figure ME8980F ME8980F 1984-11 → — Figure MEA362 MEA362 1980-08 → 1984-02 Figure MEA362 MEA362 1984-02 → 1984-11 Figure MEF448A MEF448A 1984-11 → 1985-10 Figure MEF448A MEF448A 1986-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81277C Shade, License Plate Lamp, RH
81278 Cover, License Plate Lamp
81278A Bracket, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
