Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Diesel Injection Control System

6 part groups · 2 illustrations

Illustrations

Figure ME9036

ME9036 1980-08 → —

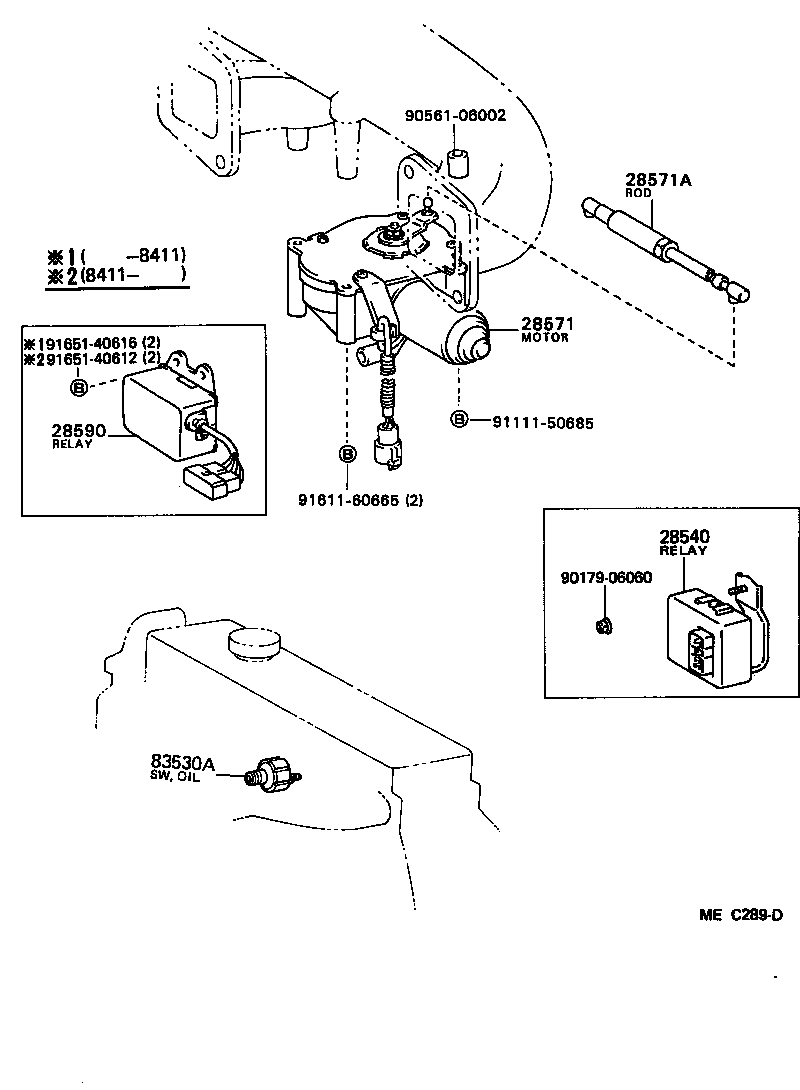

Figure MEC289D

MEC289D 1980-08 → —

Part groups

PNC	Description
28540	Relay Assy, Air Control
28571	Motor, Fuel Control
28571A	Rod, Fuel Control Motor
28579	Bracket, Fuel Control Motor
28590	Relay Assy, Fuel Control
83530A	Switch Assy, Oil Pressure

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
