Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

18 part groups · 2 illustrations

Illustrations

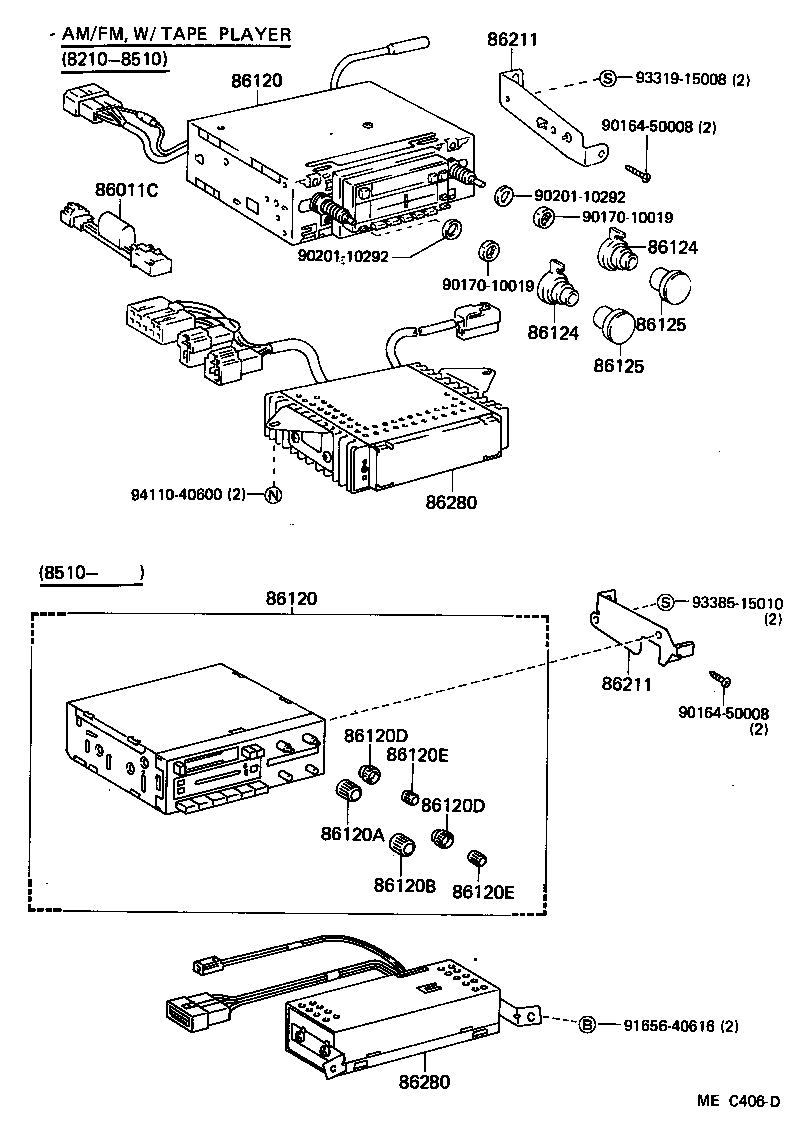

Figure ME9152I ME9152I 1980-08 → — Figure MEC406D MEC406D 1980-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86203 Wire, Radio
86206 Converter Sub-assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86260A Knob, Tape Player Volume
86260B Knob, Tape Player Tone
86265 Bracket, Tape Player, NO.1
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
