Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

9 part groups · 2 illustrations

Illustrations

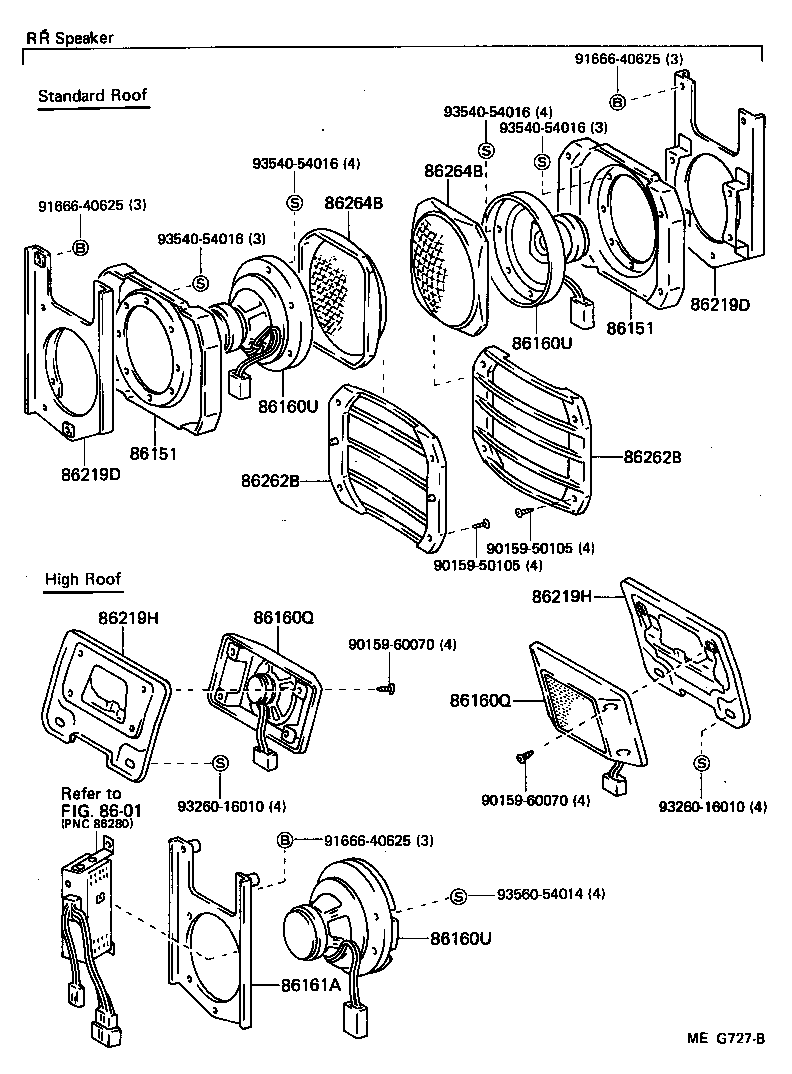

Figure MEA486D MEA486D 1980-08 → — Figure MEG727B MEG727B 1985-10 → —

Part groups

PNCDescription
86151 Box, Speaker
86160 Speaker Assy, Front NO.1
86160Q Speaker Assy, Roof
86160U Speaker Assy, Quarter Side
86161A Bracket, Speaker, Rear
86219D Bracket, Speaker, Rear NO.1
86219H Bracket, Speaker, Roof, NO.1
86262B Cover, Speaker, Rear
86264B Grille, Speaker, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
