Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

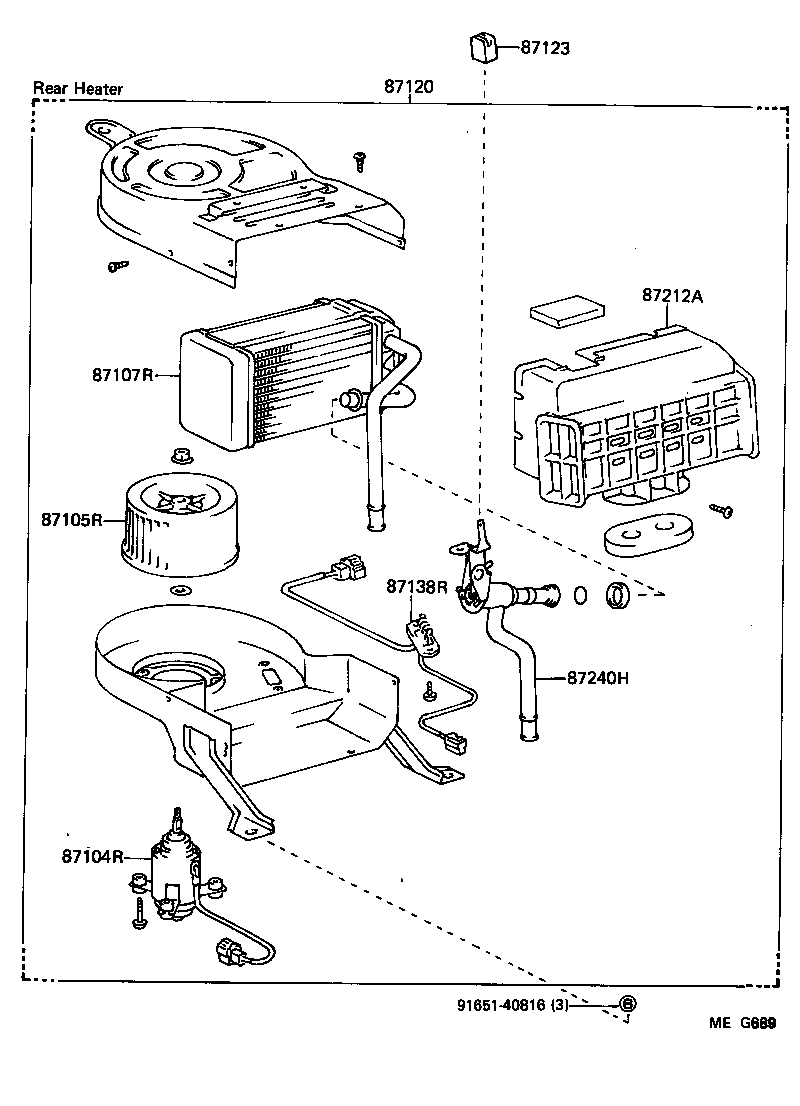

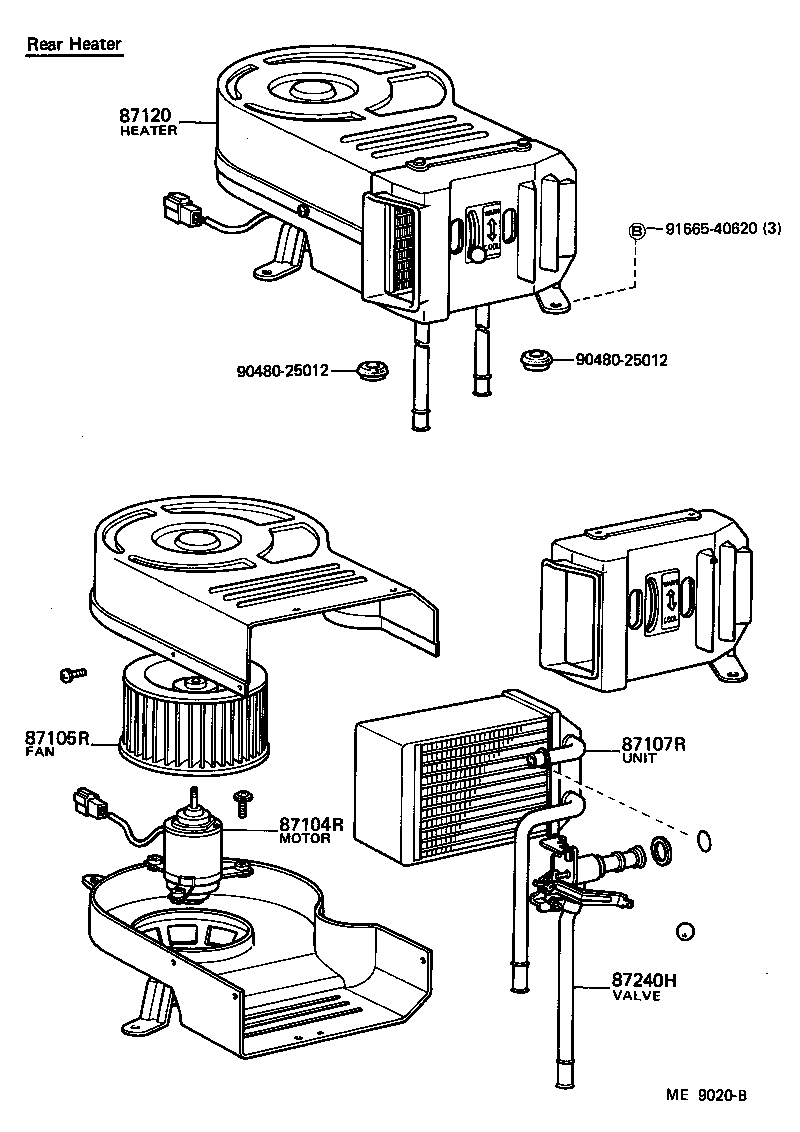

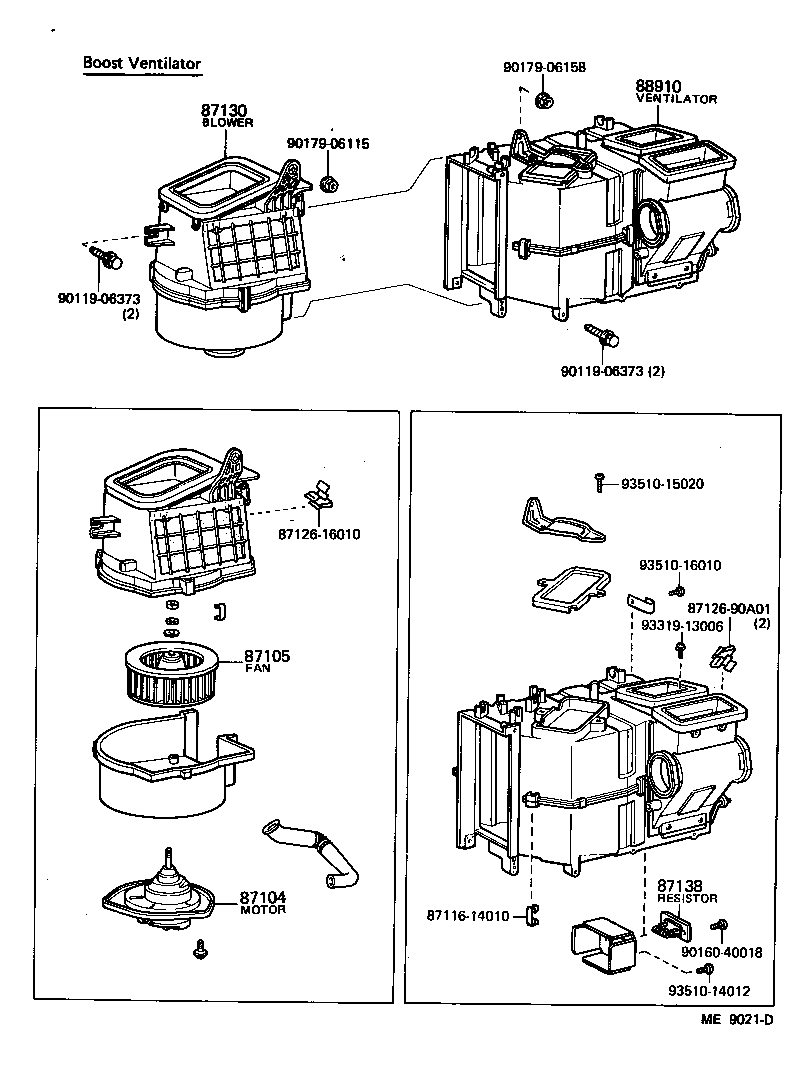

Heating & Air Conditioning - Heater Unit & Blower
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87114 | Cover, Heater |
| 87120 | Heater Assy, Rear |
| 87123 | Knob, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87212A | Duct, Air, Rear NO.1 |
| 87240H | Valve Assy, Water Unit |
| 87248E | Pipe, Heater Water Inlet, E |
| 87249E | Pipe, Heater Water Outlet, E (FOR HEATER UNIT) |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
