Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

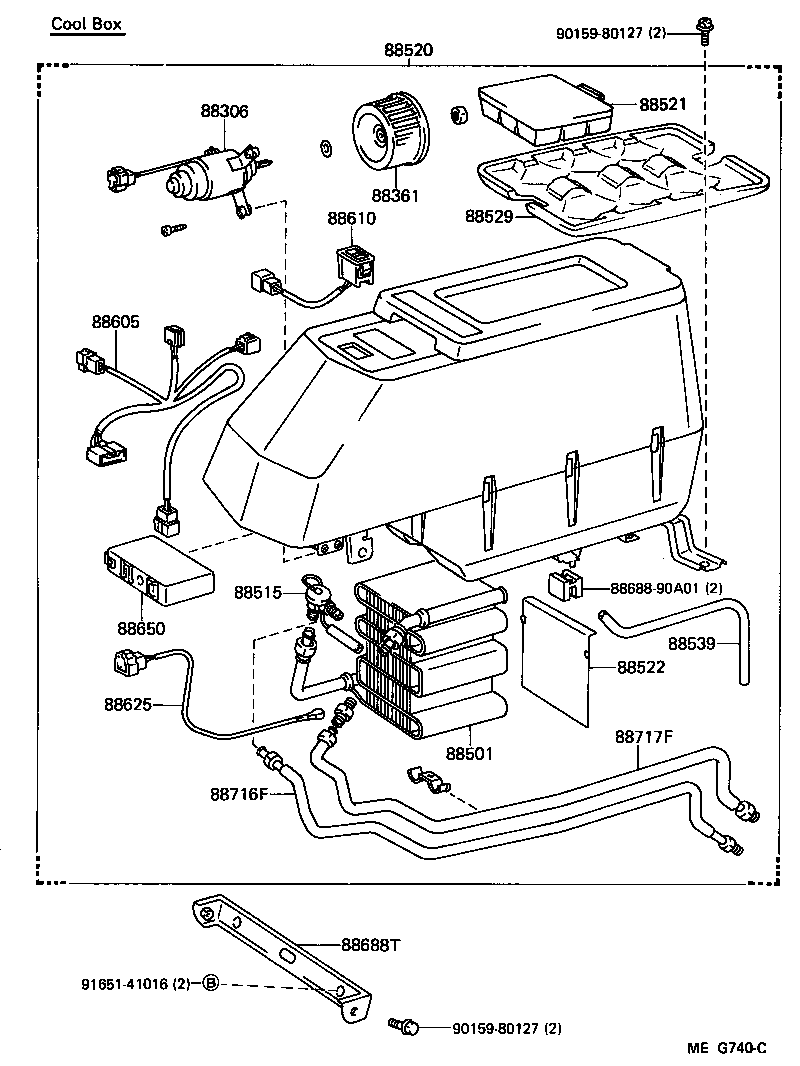

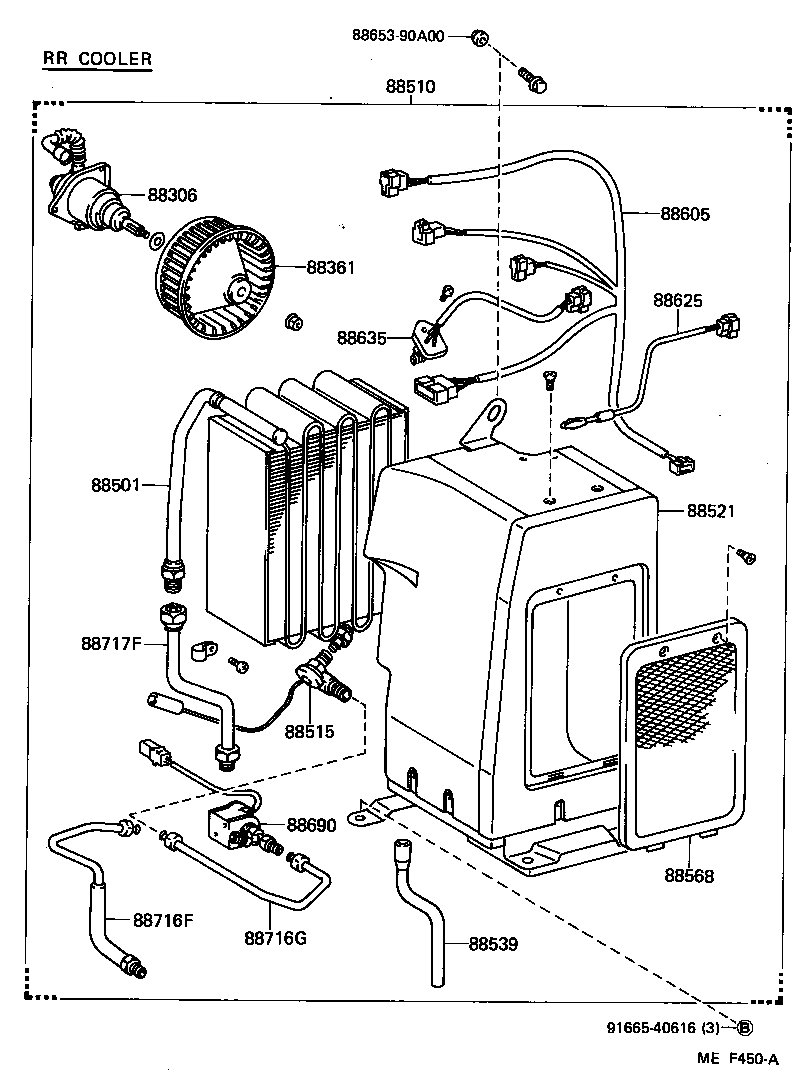

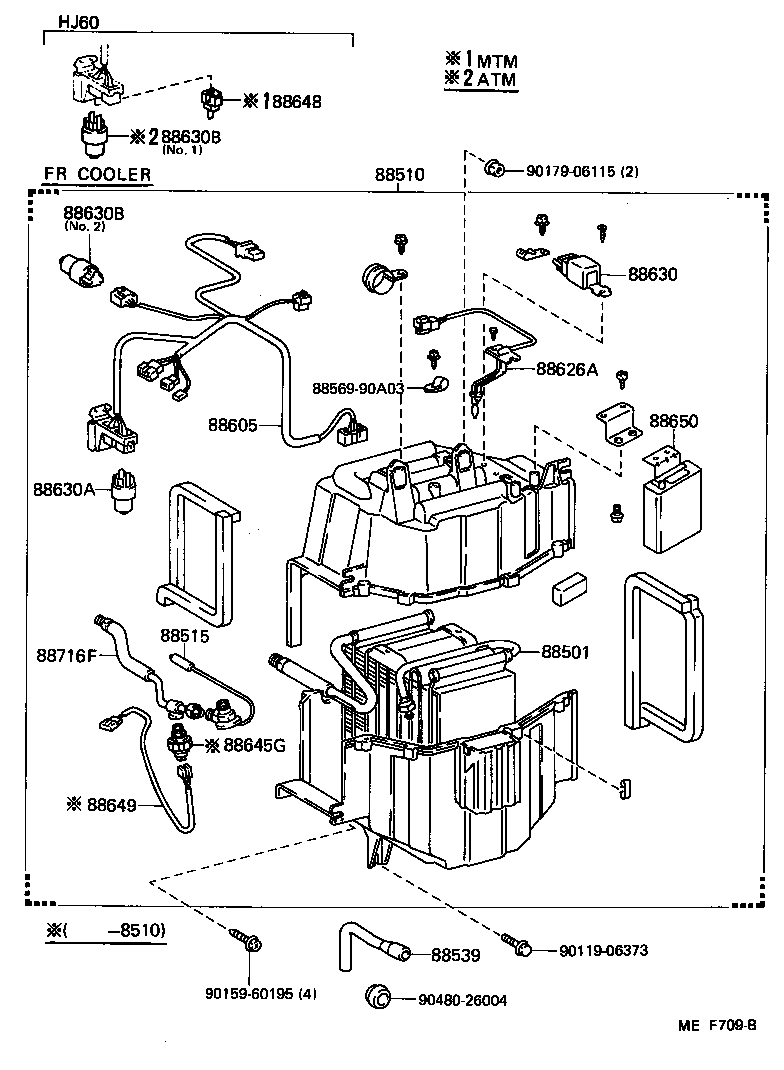

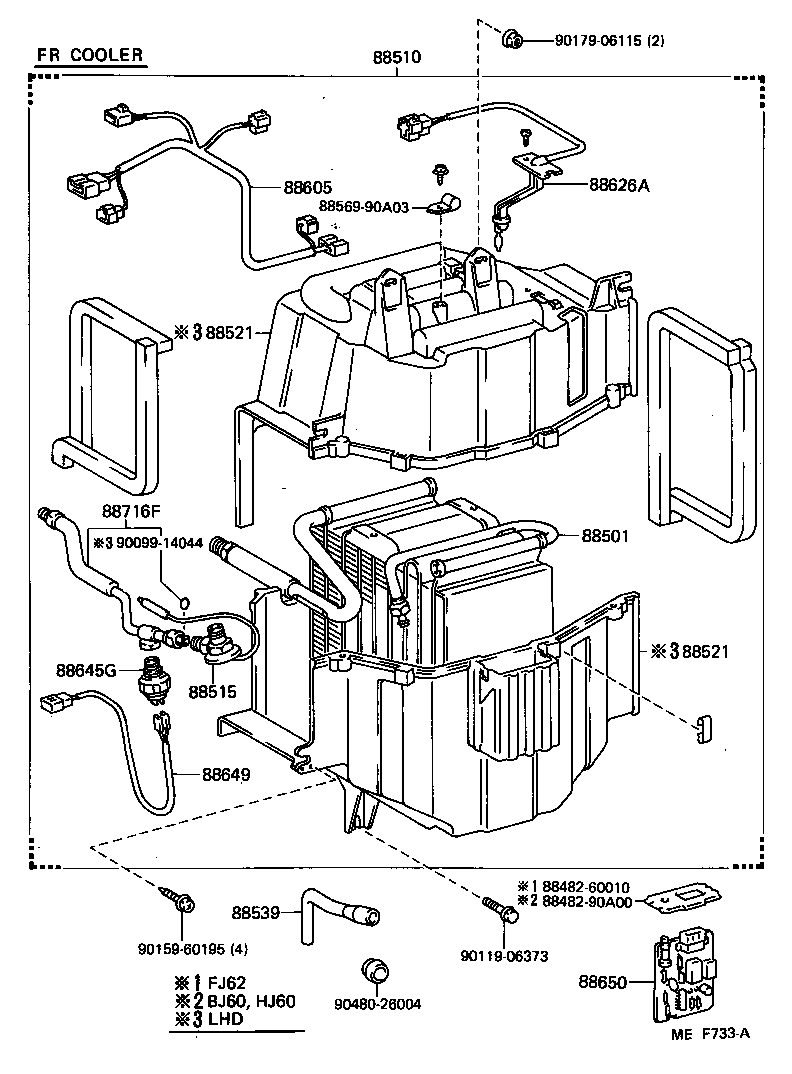

Heating & Air Conditioning - Cooler Unit
28 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88361 | Fan, Cooler Blower, NO.1 |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88520 | Box Assy, Cooling |
| 88521 | Case, Cooler Unit |
| 88522 | Door, Cooling Unit |
| 88529 | Tray, Cooling Box |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88568 | Filter, Cooler Unit Cover |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88625 | Thermistor, Cooler, NO.1 |
| 88626A | Holder, Thermistor |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88645G | Switch, Pressure |
| 88648 | Wiring, Cooler, NO.1 |
| 88649 | Wiring, Cooler, NO.2 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688T | Bracket (FOR COOL BOX) |
| 88690 | Valve Assy, Cooler Magnet |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88716G | Pipe, Cooler Refrigerant Liquid, G |
| 88717F | Pipe, Cooler Refrigerant Suction, F |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
