Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

24 part groups · 8 illustrations

Illustrations

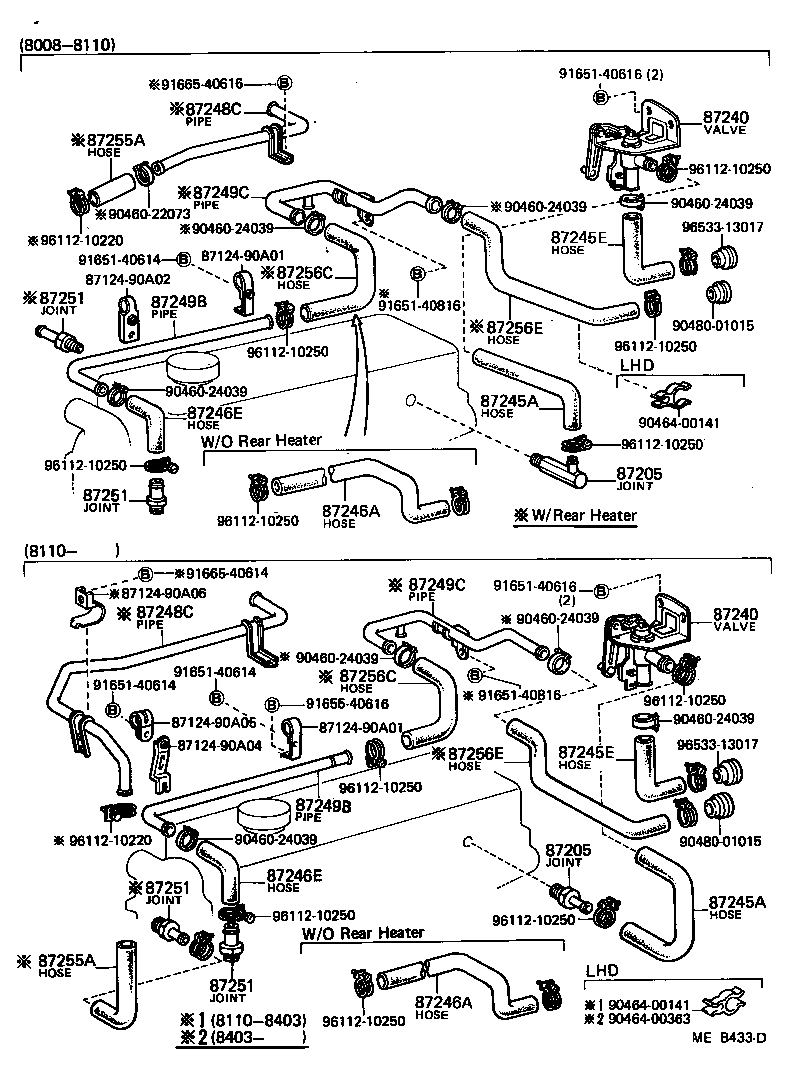

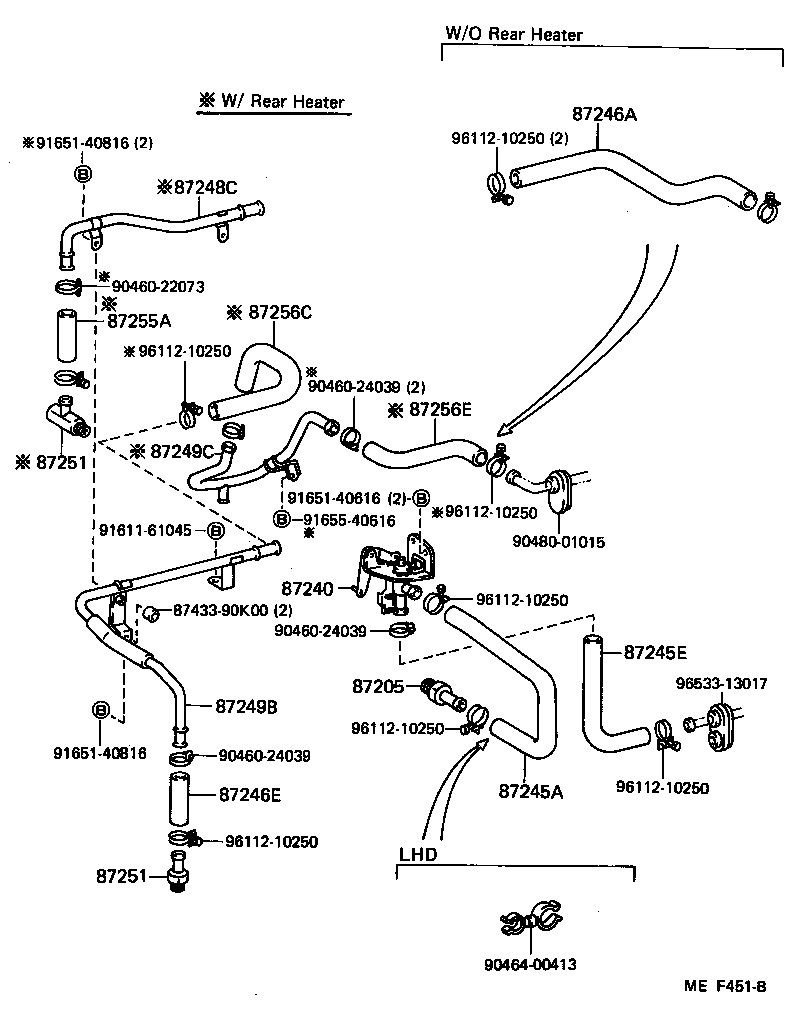

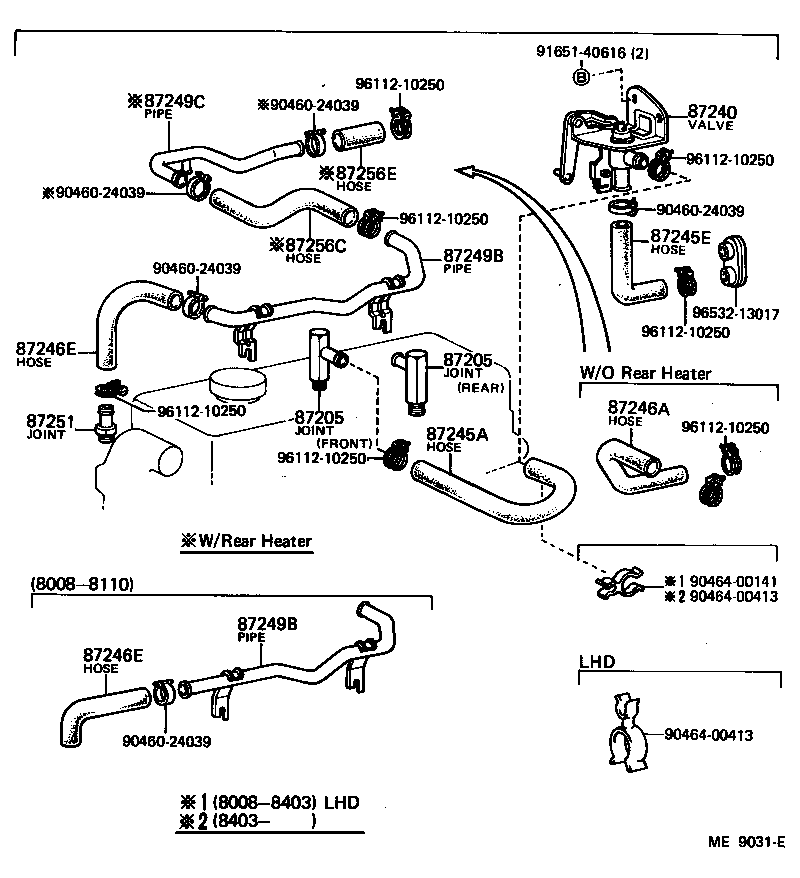

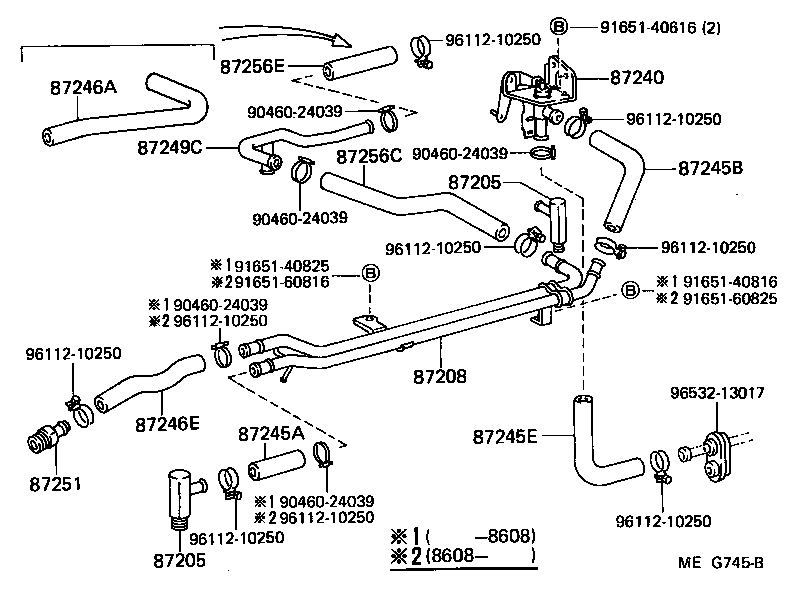

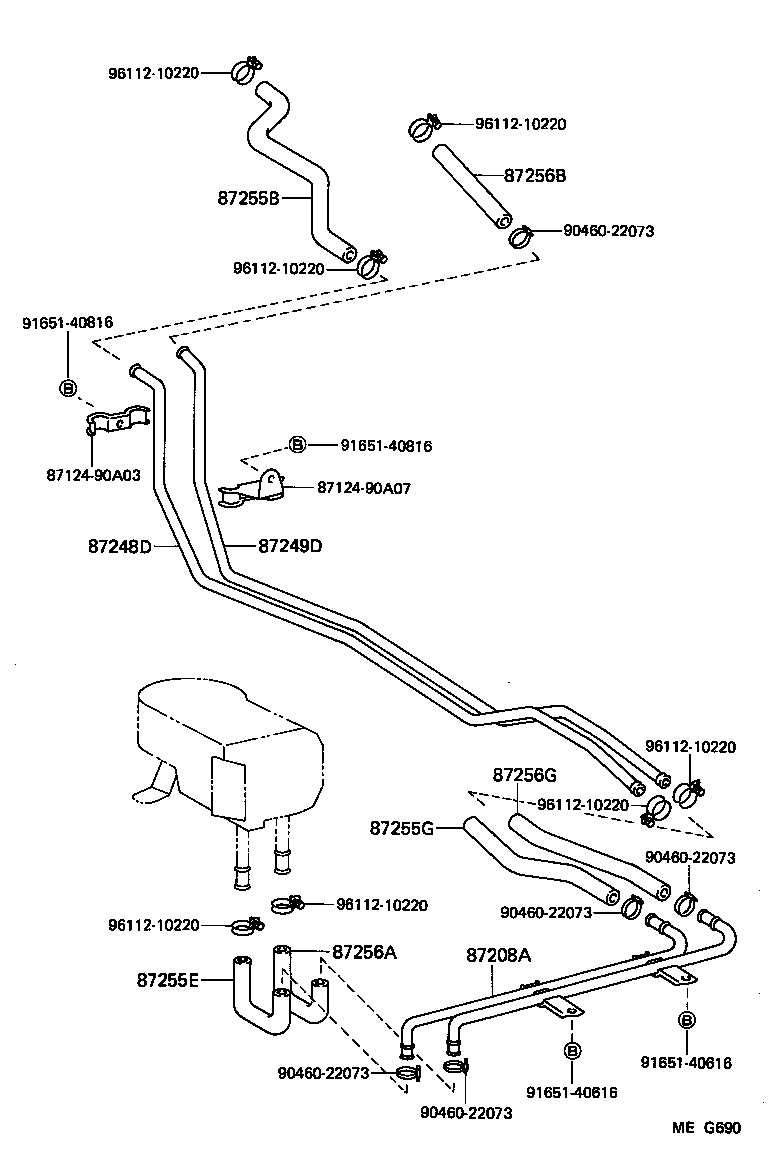

Figure ME9030H ME9030H 1980-08 → — Figure MEB433D MEB433D 1980-08 → 1984-11 Figure MEF451B MEF451B 1984-11 → — Figure ME9031E ME9031E 1980-08 → — Figure MEG745B MEG745B 1985-10 → — Figure ME9033B ME9033B 1980-08 → 1985-10 Figure ME9033B ME9033B 1985-10 → — Figure MEG690 MEG690 1985-10 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255G Hose, Rear Heater Water Inlet, G
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87256G Hose, Rear Heater Water Outlet, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
