Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

4 part groups · 2 illustrations

Illustrations

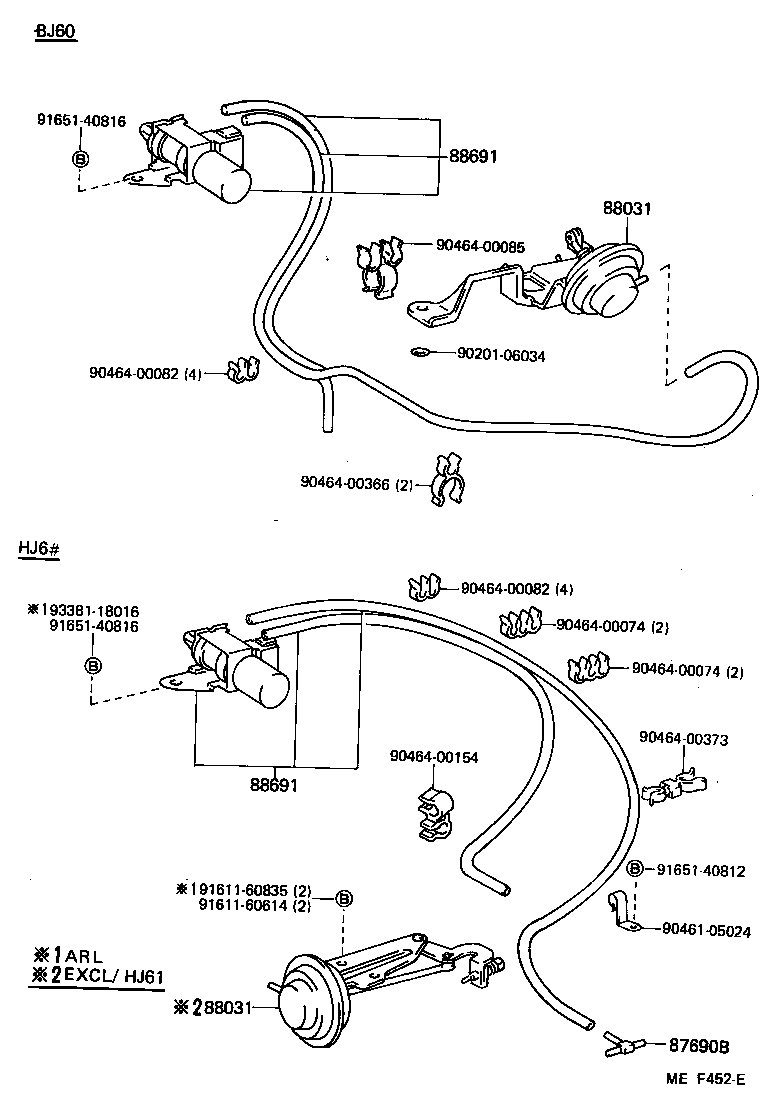

Figure ME9437F ME9437F 1980-08 → — Figure MEF452E MEF452E 1984-11 → —

Part groups

PNCDescription
87690B Way, 3
88031 Actuator Set, Idle-up
88645D Hose (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
