Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

34 part groups · 20 illustrations

Illustrations

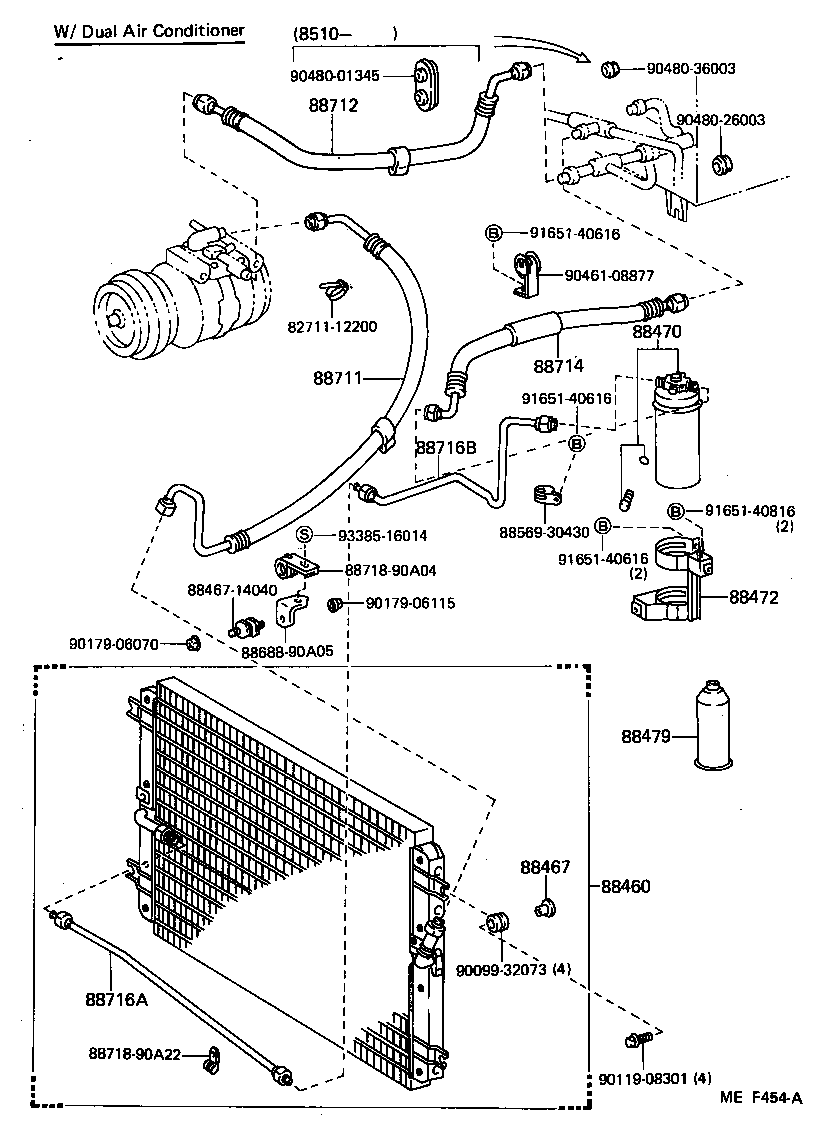

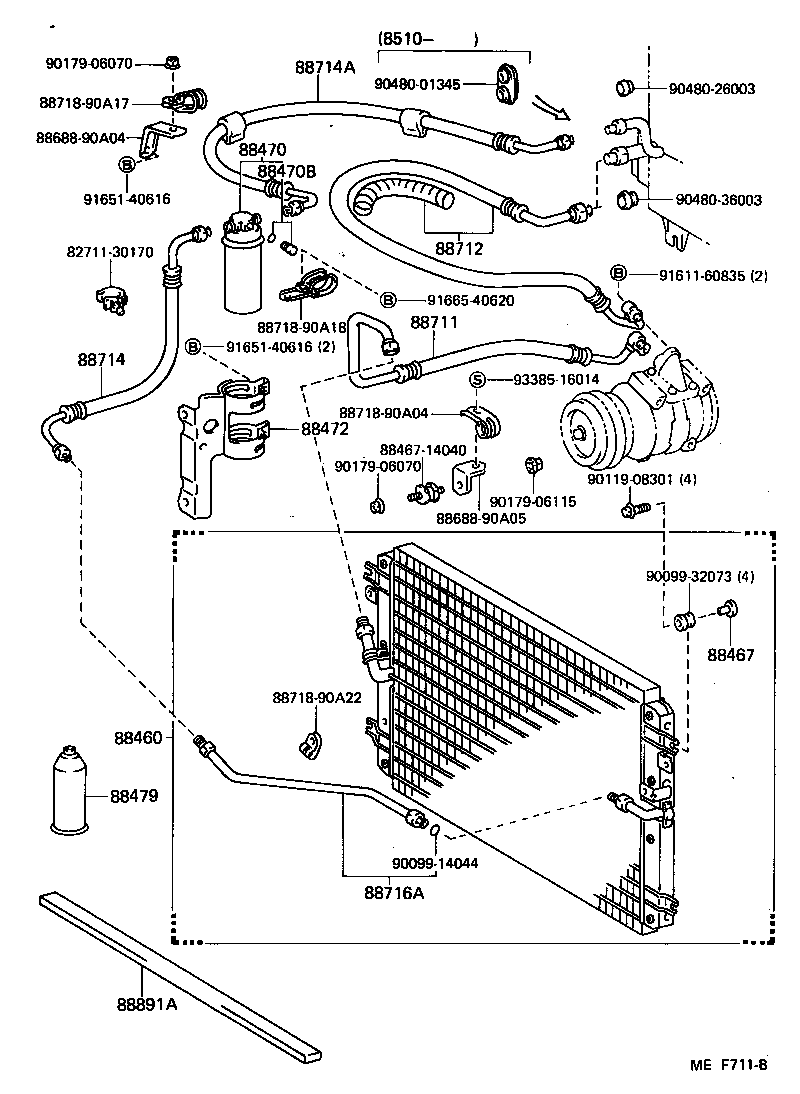

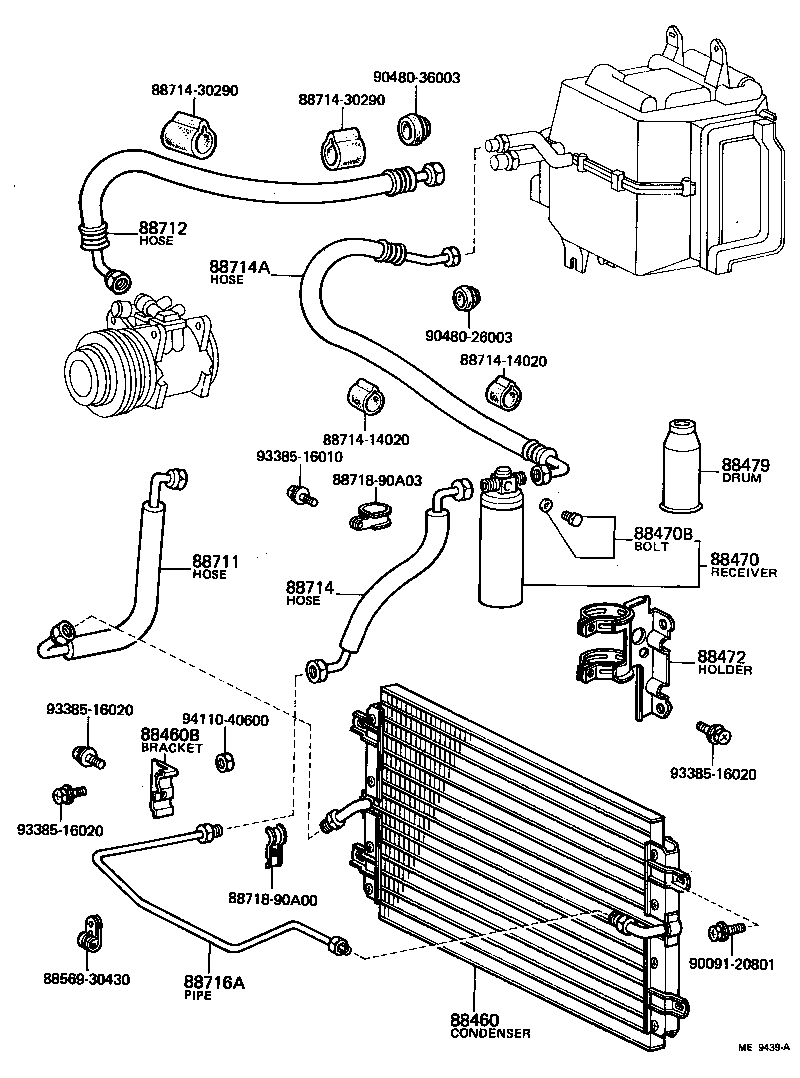

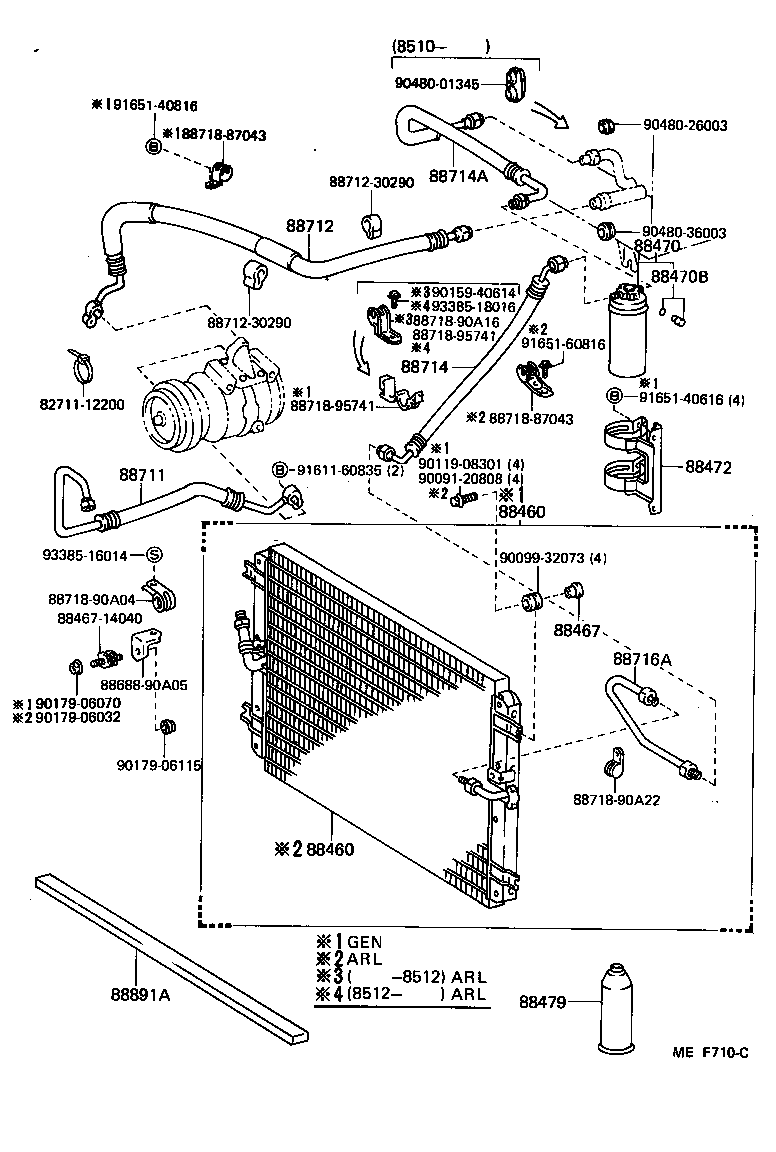

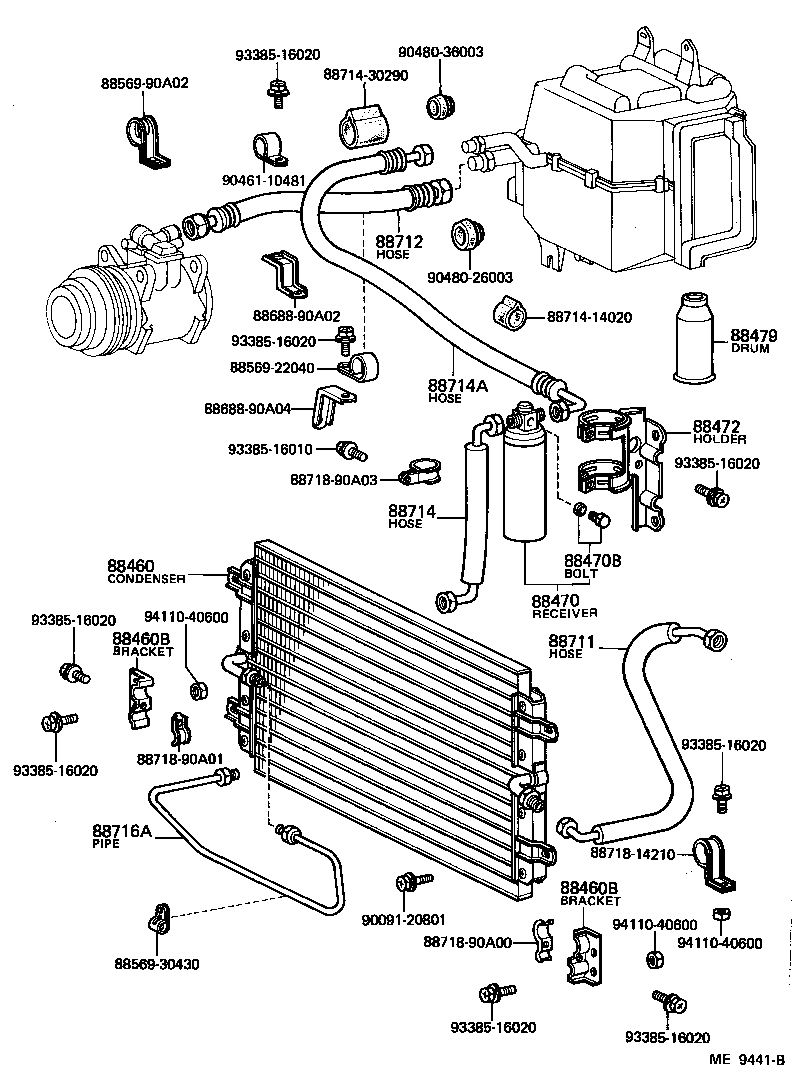

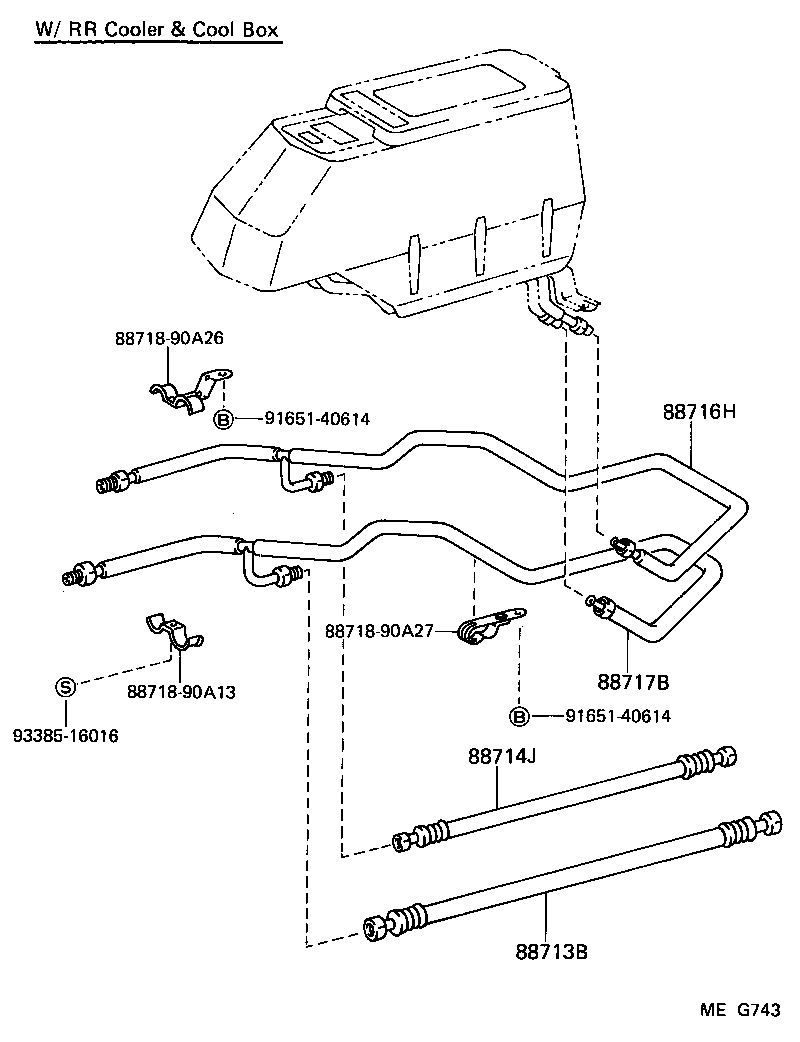

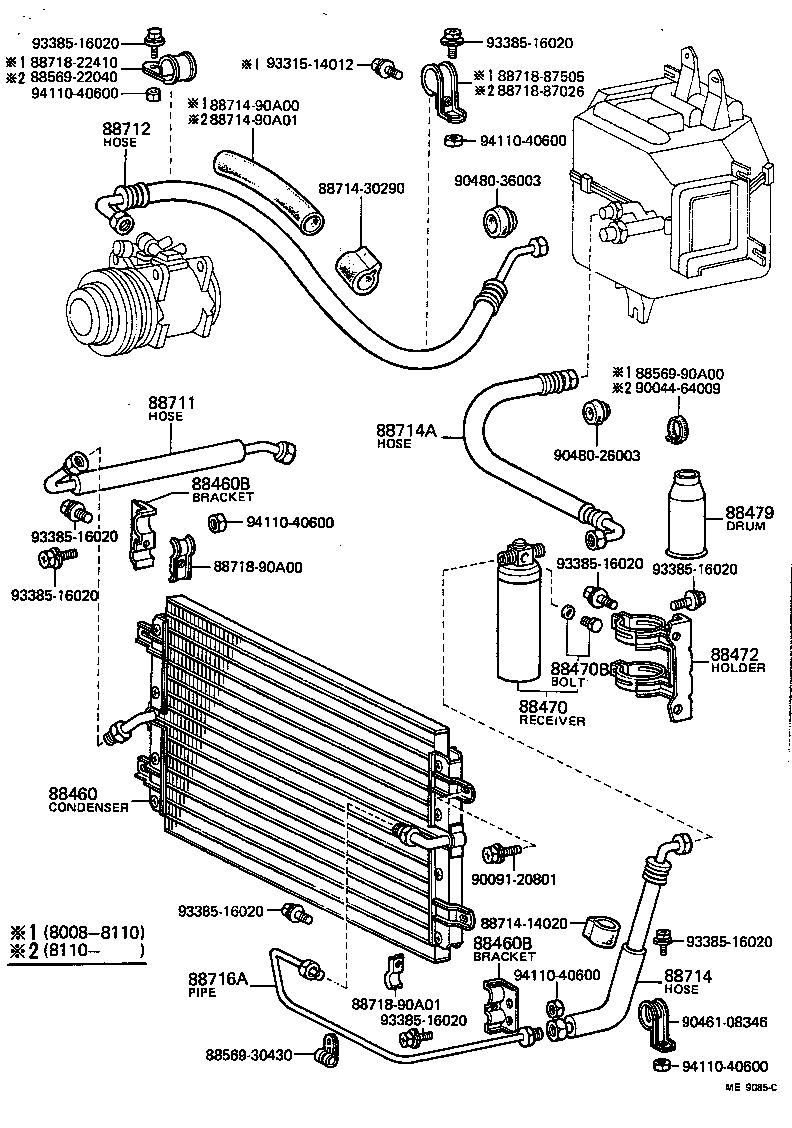

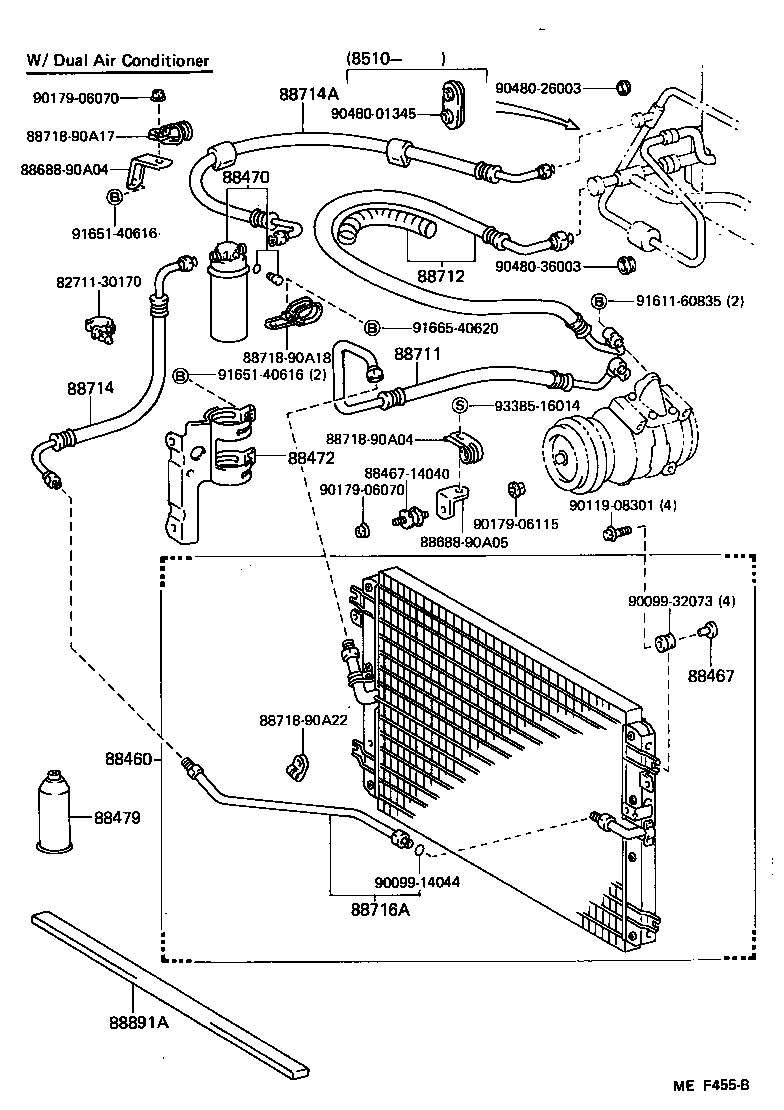

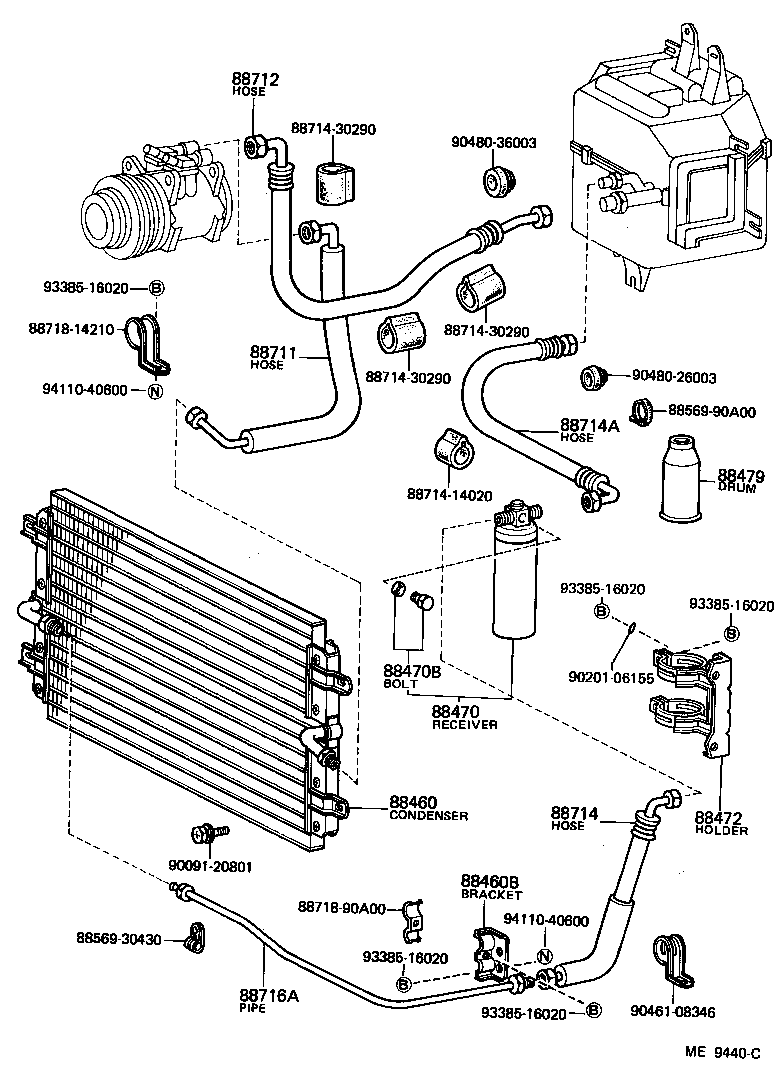

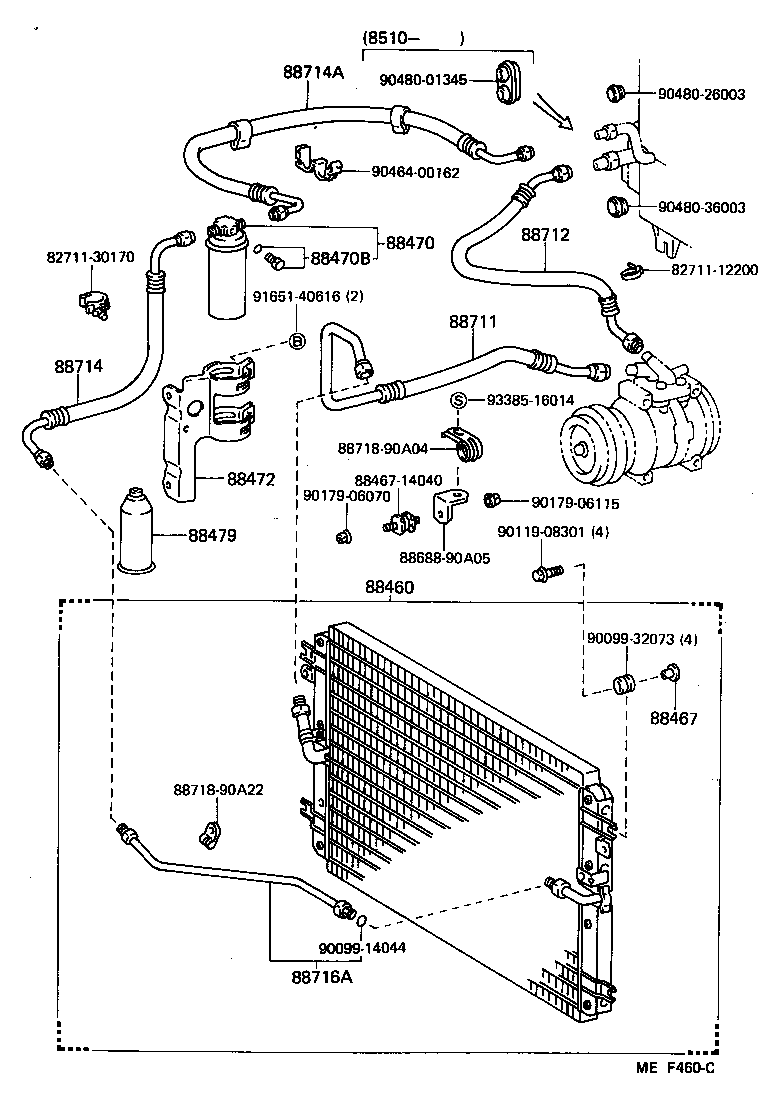

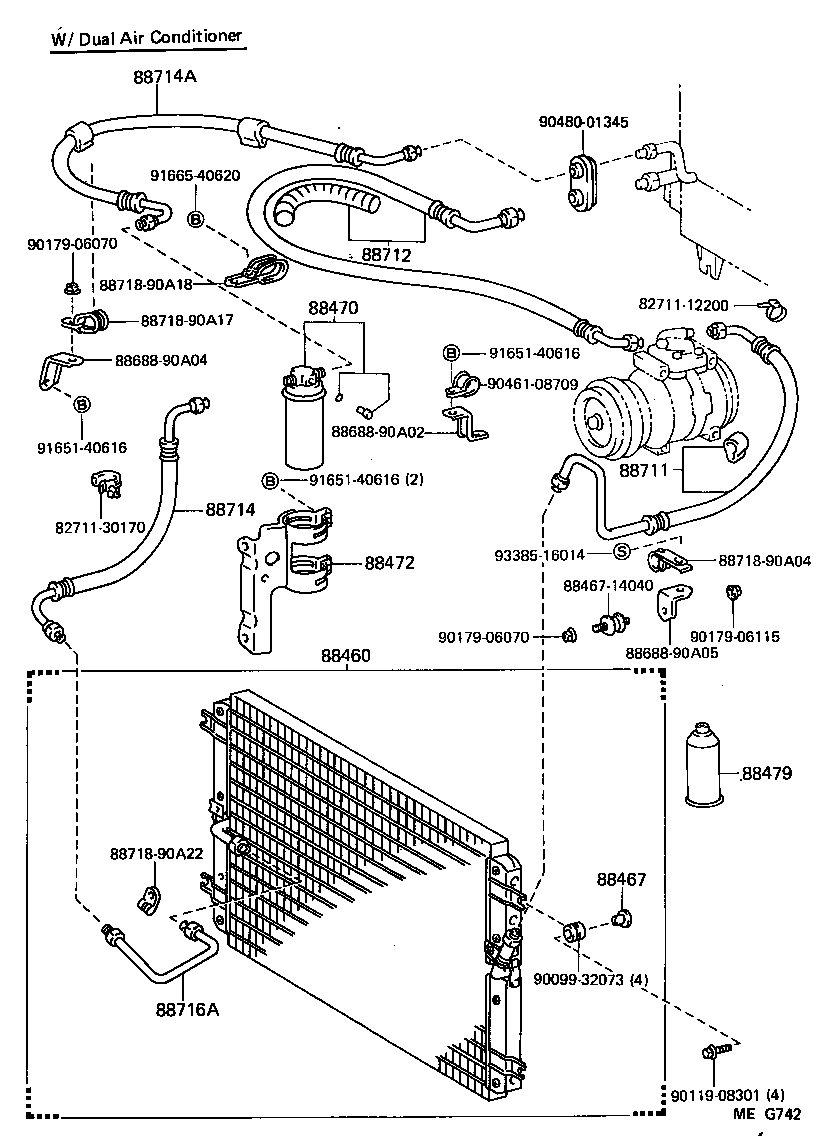

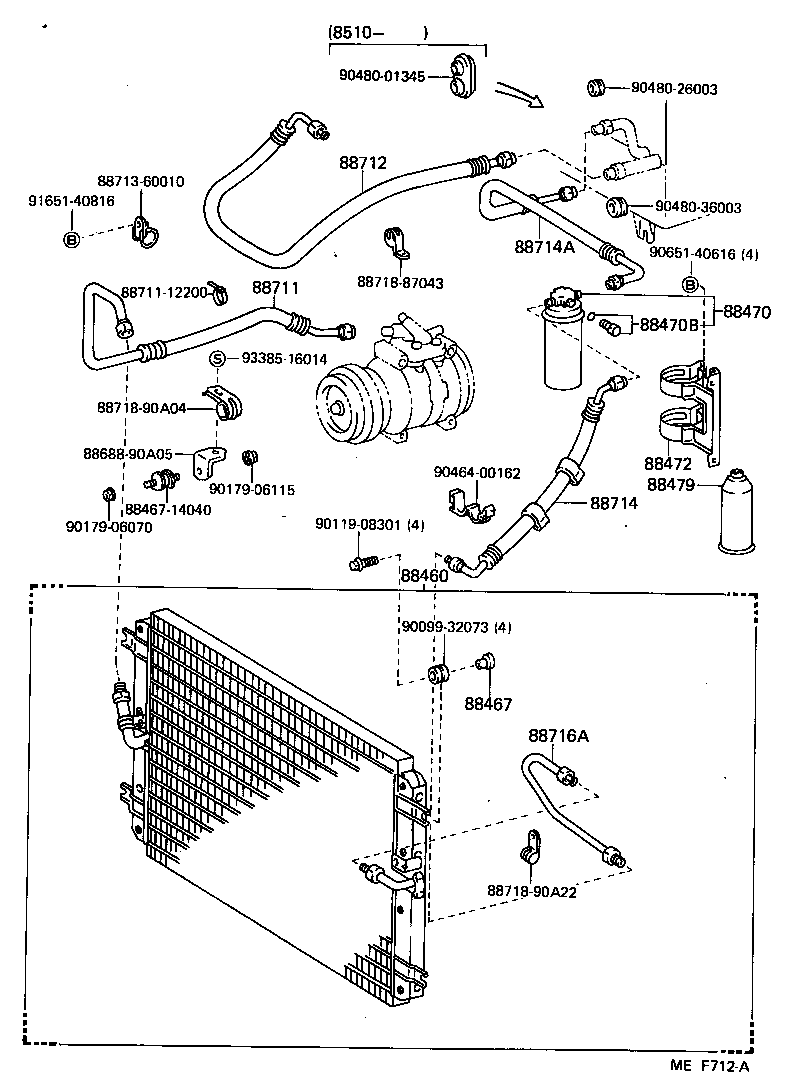

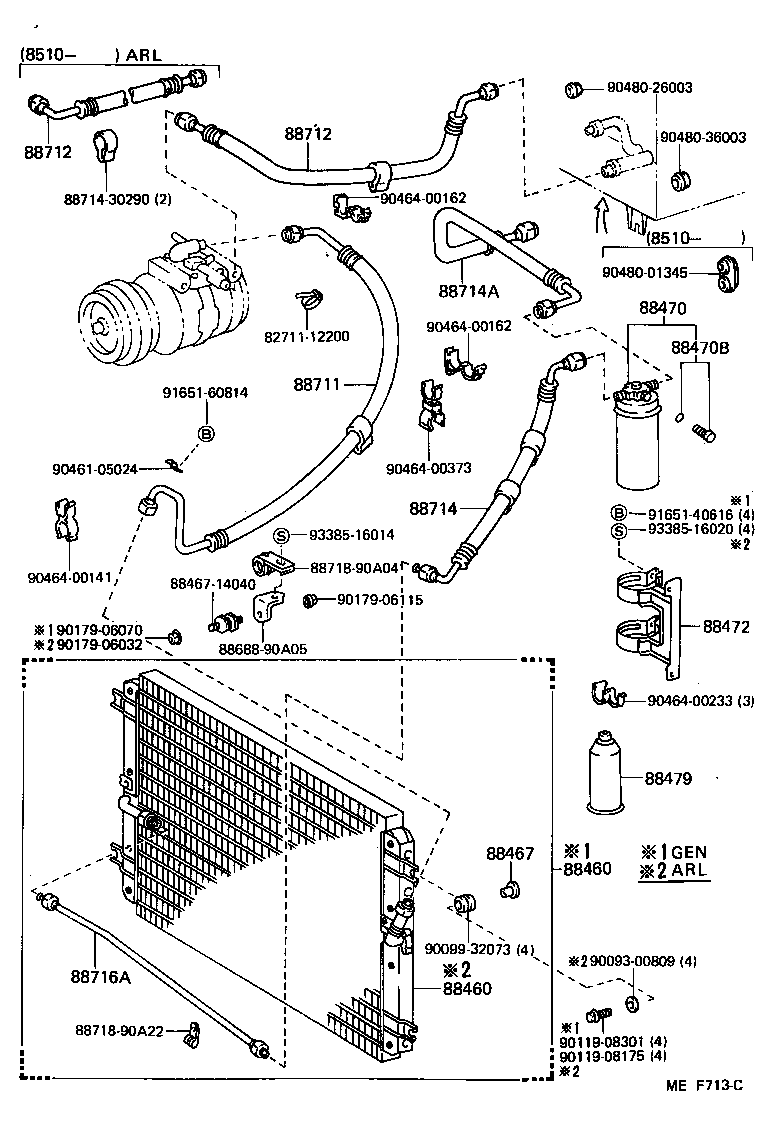

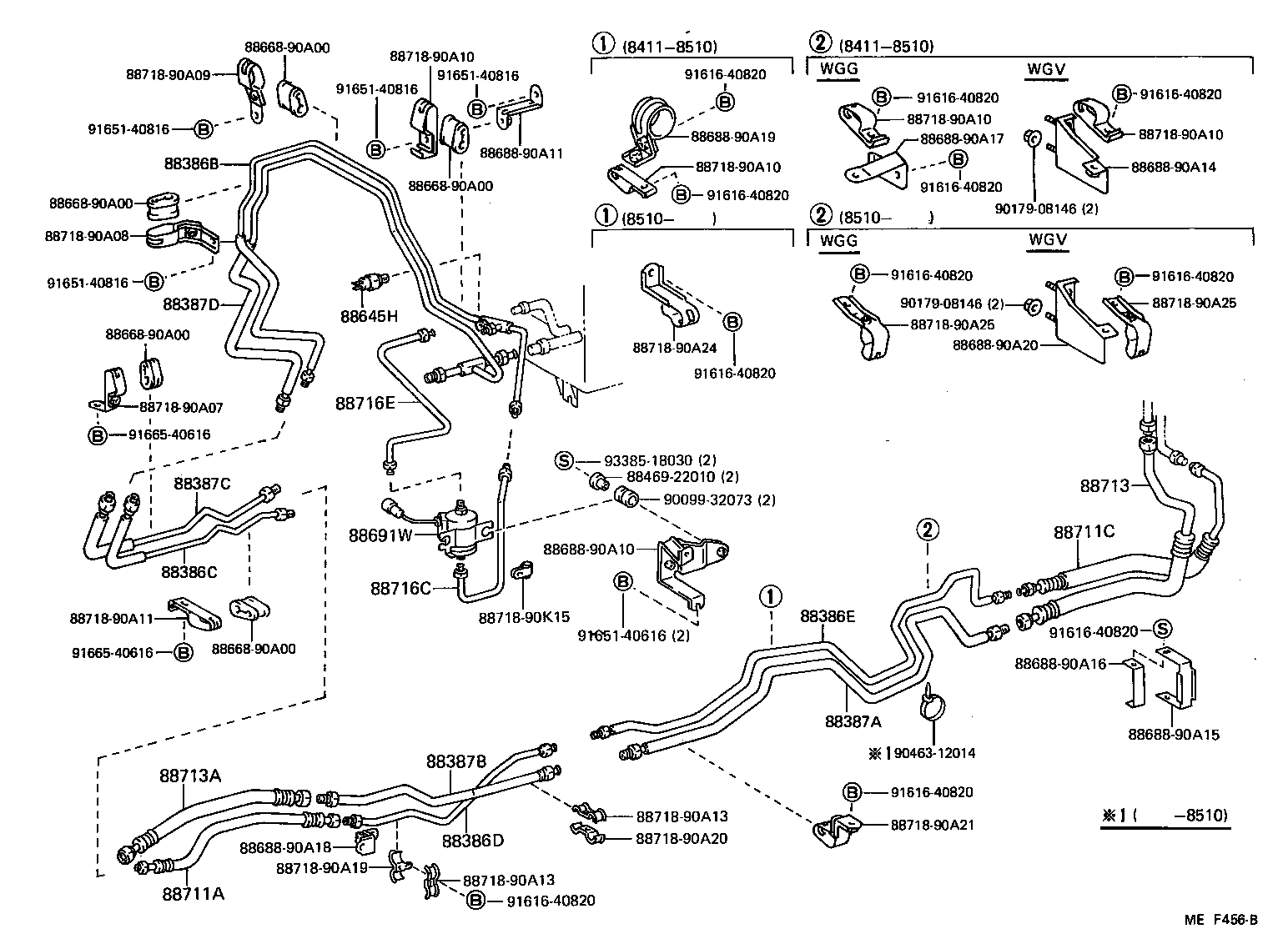

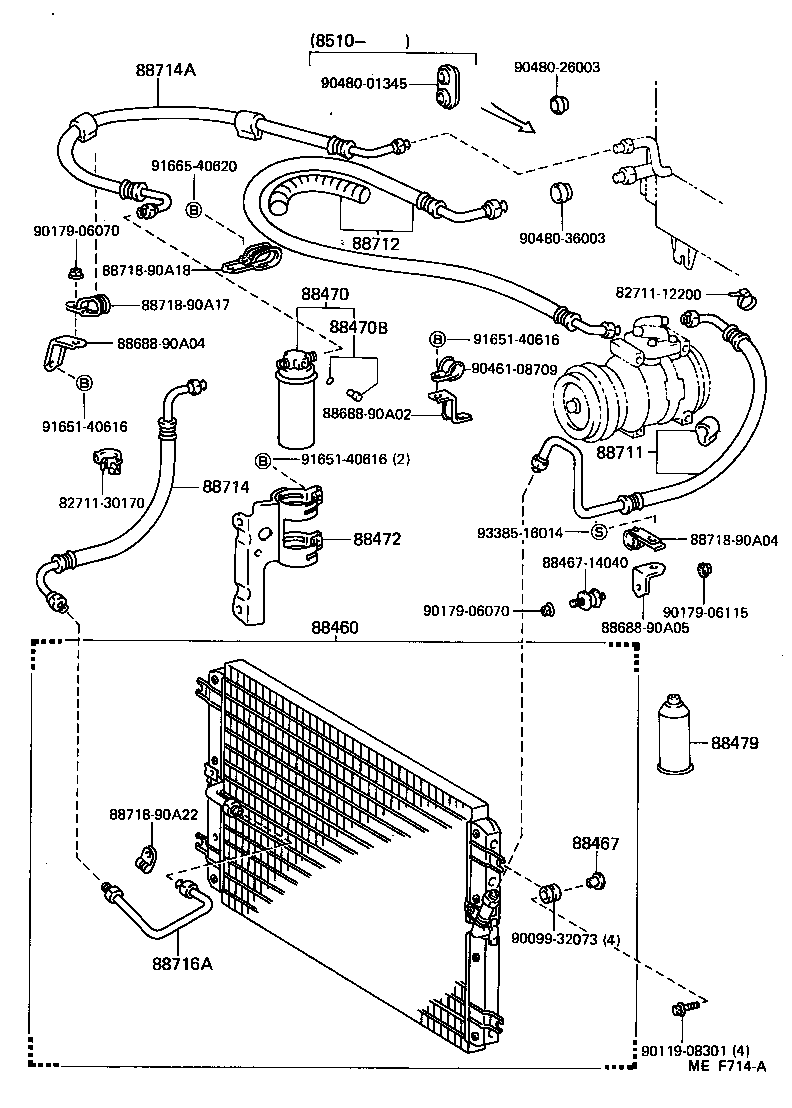

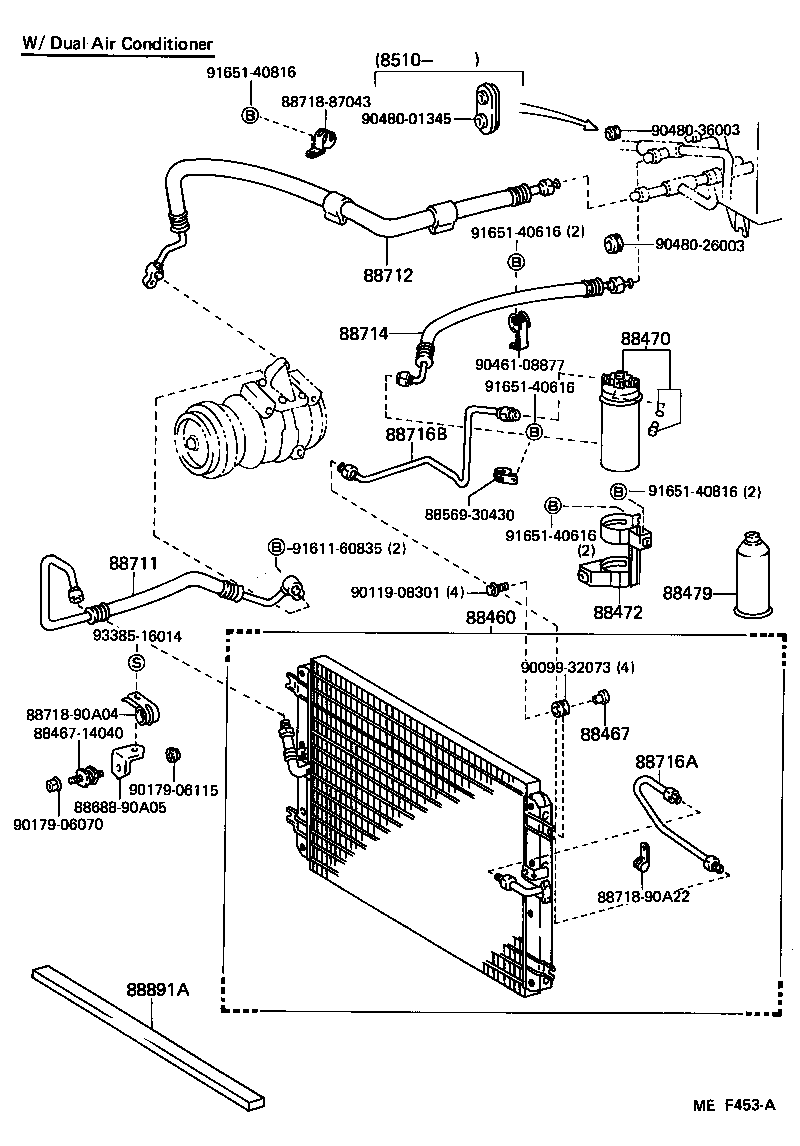

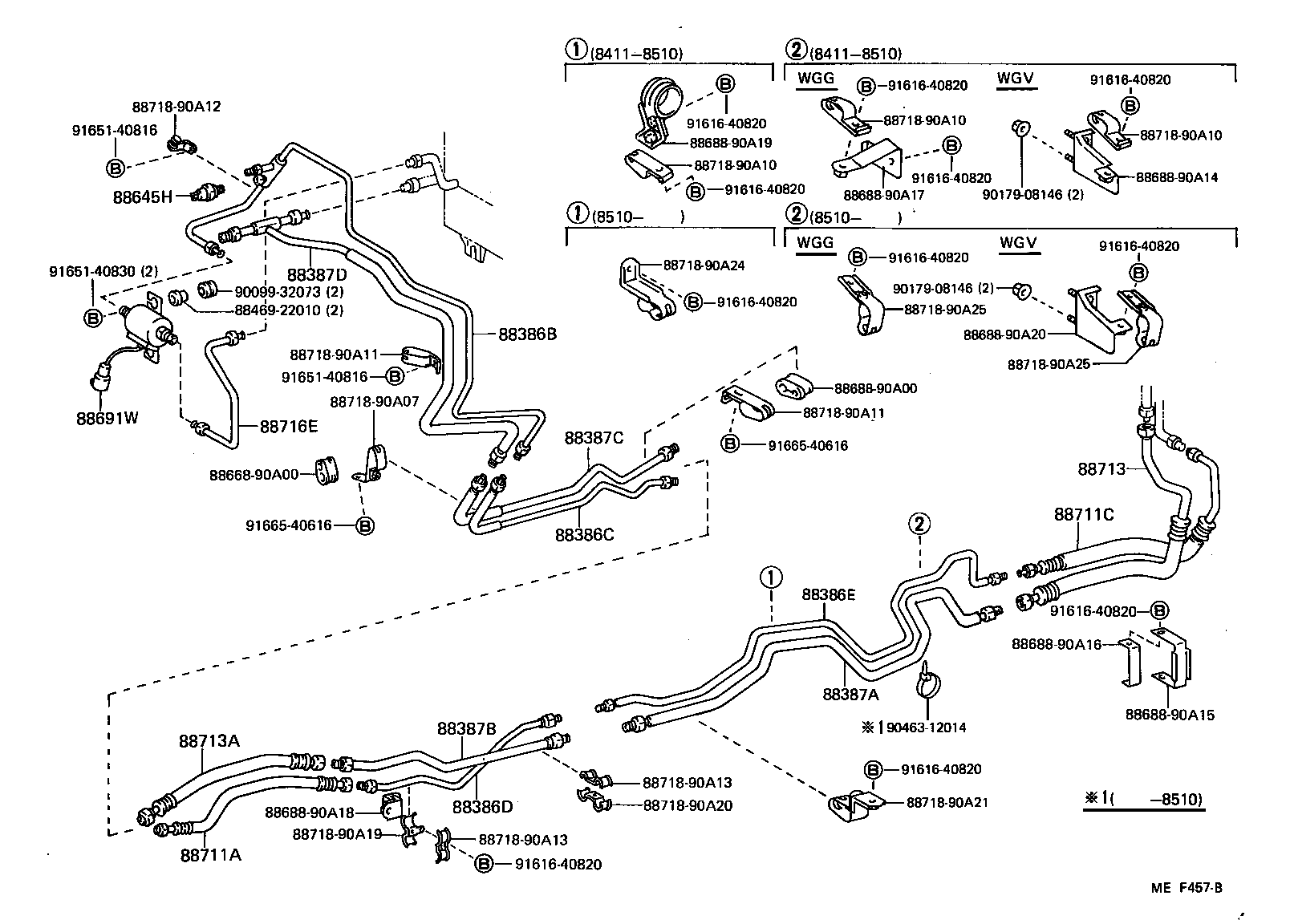

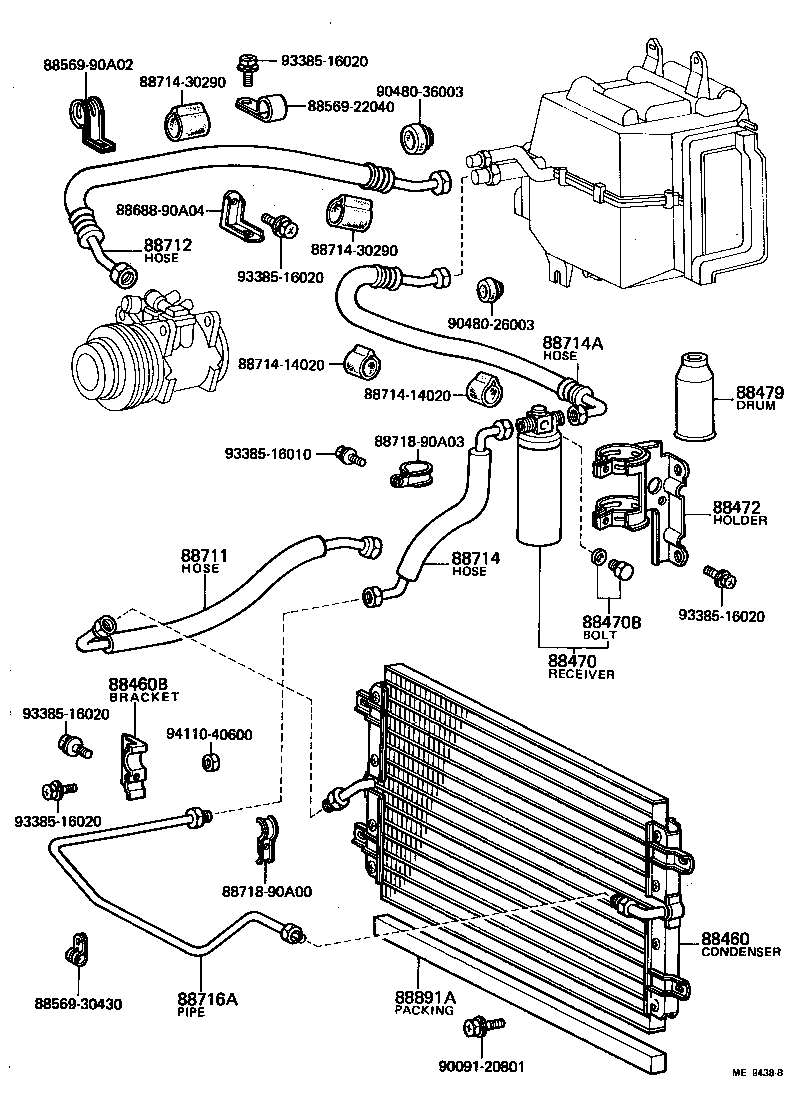

Figure ME9164B ME9164B 1980-08 → 1984-11 Figure MEF710C MEF710C 1984-11 → — Figure ME9438B ME9438B 1980-08 → 1984-11 Figure MEF711B MEF711B 1984-11 → — Figure ME9085C ME9085C 1980-08 → 1984-11 Figure MEF712A MEF712A 1984-11 → — Figure ME9439A ME9439A 1980-08 → 1984-11 Figure MEF460C MEF460C 1984-11 → — Figure ME9440C ME9440C 1980-08 → 1984-11 Figure MEF713C MEF713C 1984-11 → — Figure ME9441B ME9441B 1980-08 → 1984-11 Figure MEF714A MEF714A 1983-05 → — Figure MEF714A MEF714A 1984-11 → — Figure MEF453A MEF453A 1984-11 → — Figure MEF454A MEF454A 1984-11 → — Figure MEF455B MEF455B 1984-11 → — Figure MEG742 MEG742 1985-10 → — Figure MEF456B MEF456B 1984-11 → — Figure MEF457B MEF457B 1984-11 → — Figure MEG743 MEG743 1985-10 → —

Part groups

PNCDescription
88386B Pipe, Rear Cooler Refrigerant Liquid, B
88386C Pipe, Rear Cooler Refrigerant Liquid, C
88386D Pipe, Rear Cooler Refrigerant Liquid, D
88386E Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88387A Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B Pipe, Rear Cooler Refrigerant Suction, B
88387C Pipe, Rear Cooler Refrigerant Suction, C
88387D Pipe, Rear Cooler Refrigerant Suction, D
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711C Hose, Cooler Refrigerant Discharge, NO.3
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88713A Hose, Cooler Refrigerant Suction, NO.3
88713B Hose, Cooler Refrigerant Suction, NO.4
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88714J Hose, Cooler Refrigerant Liquid, NO.3
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88717B Pipe, Cooler Refrigerant Suction, B
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
