Cylinder Head

113 part groups · 10 illustrations

Illustrations

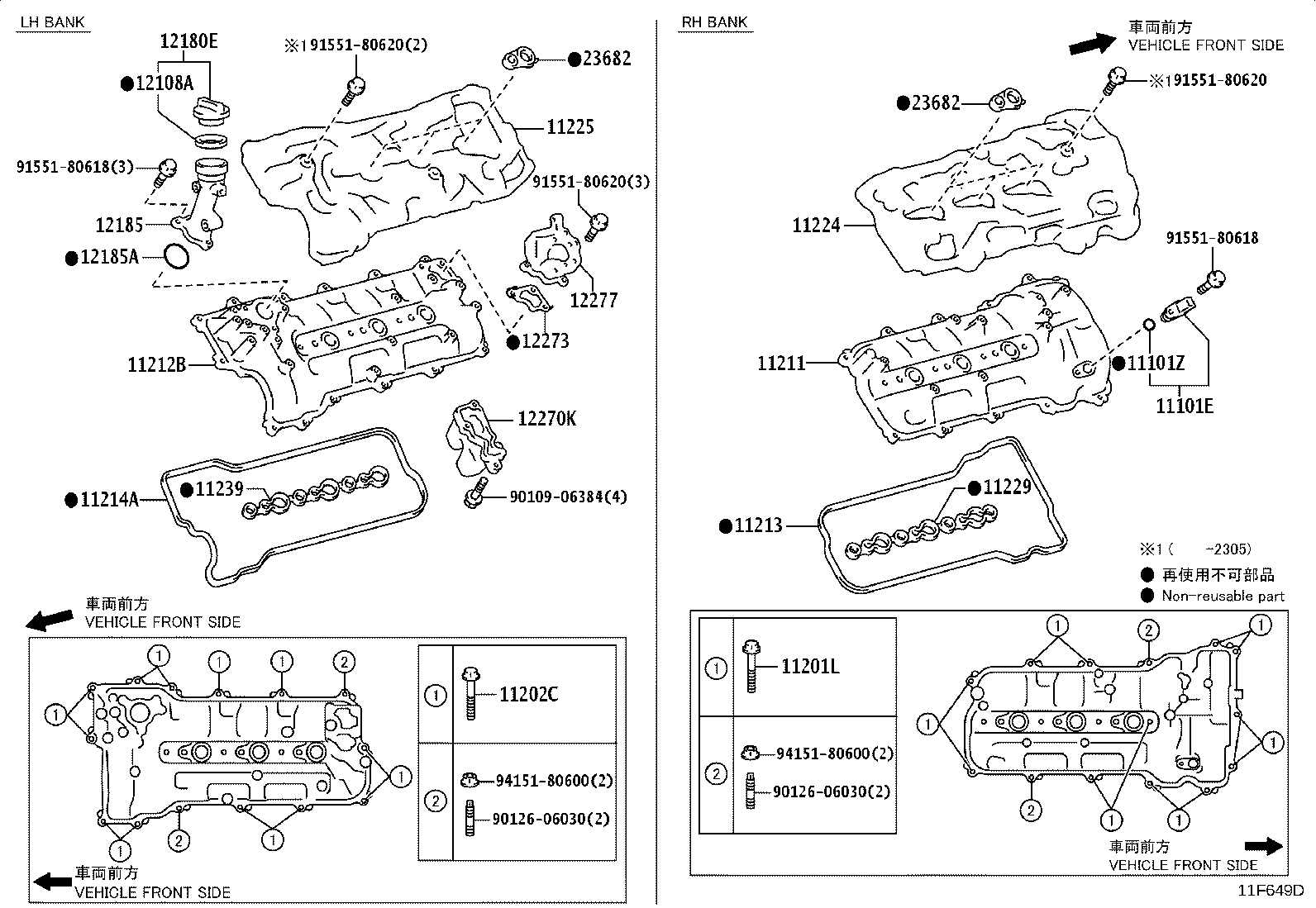

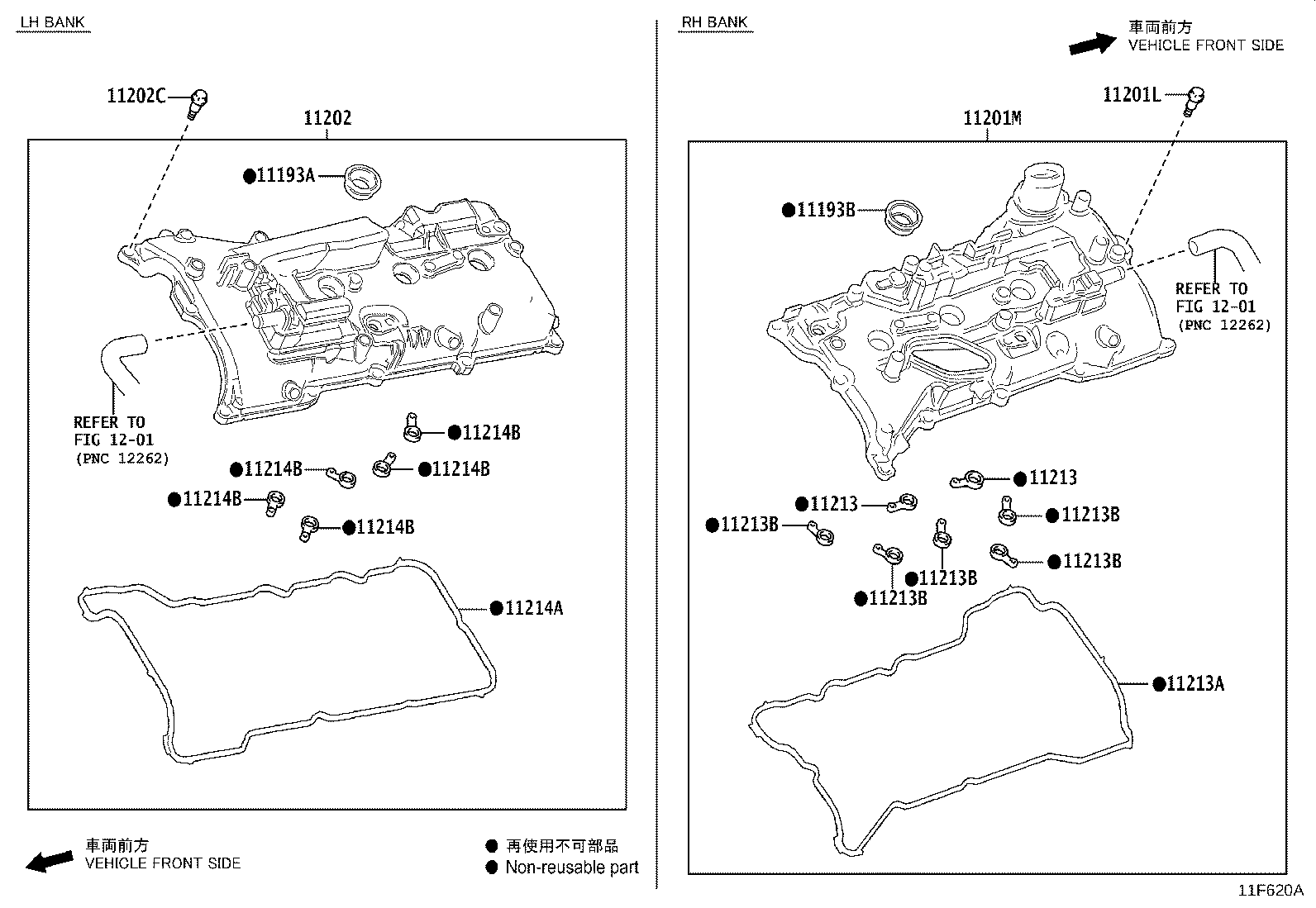

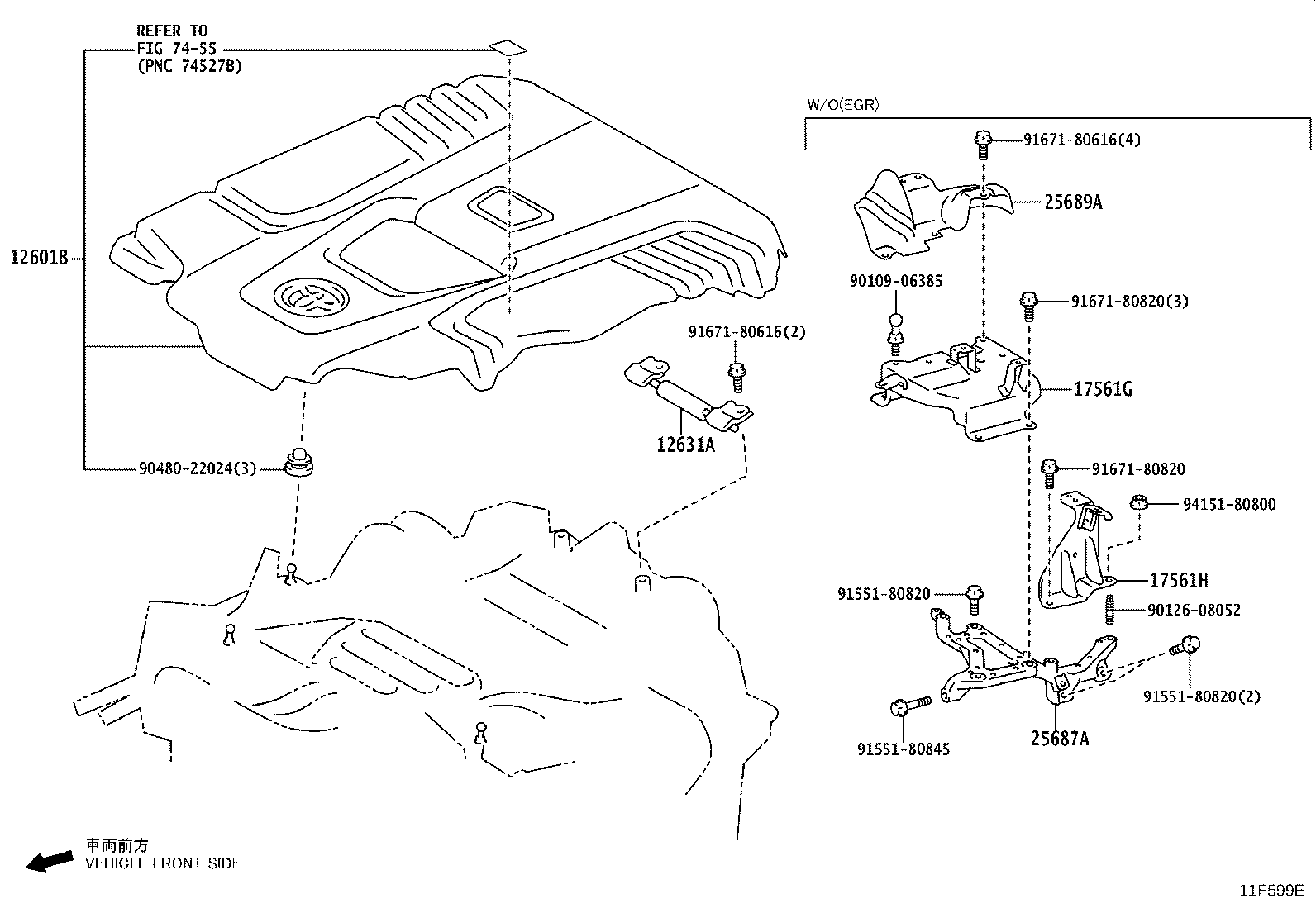

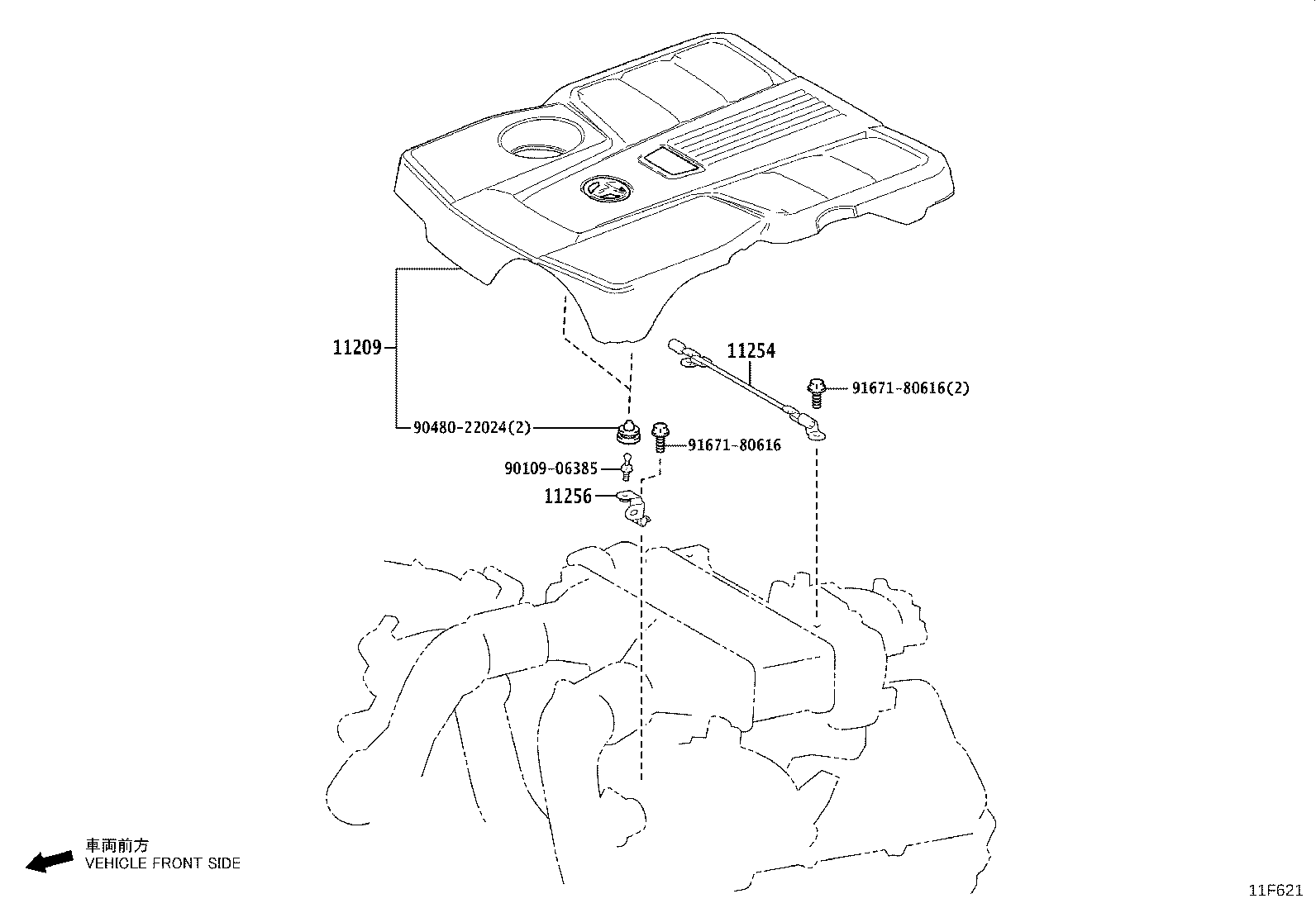

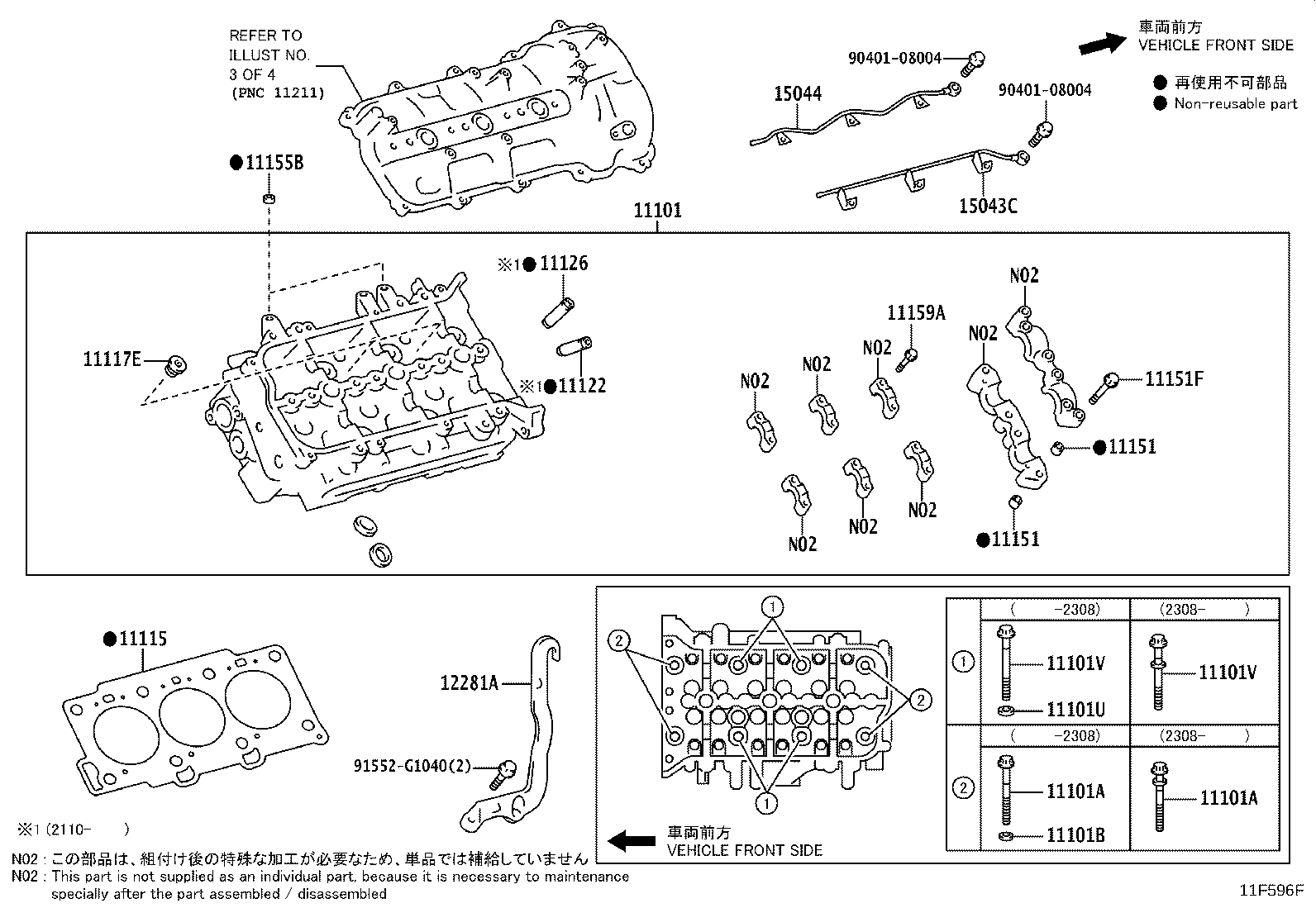

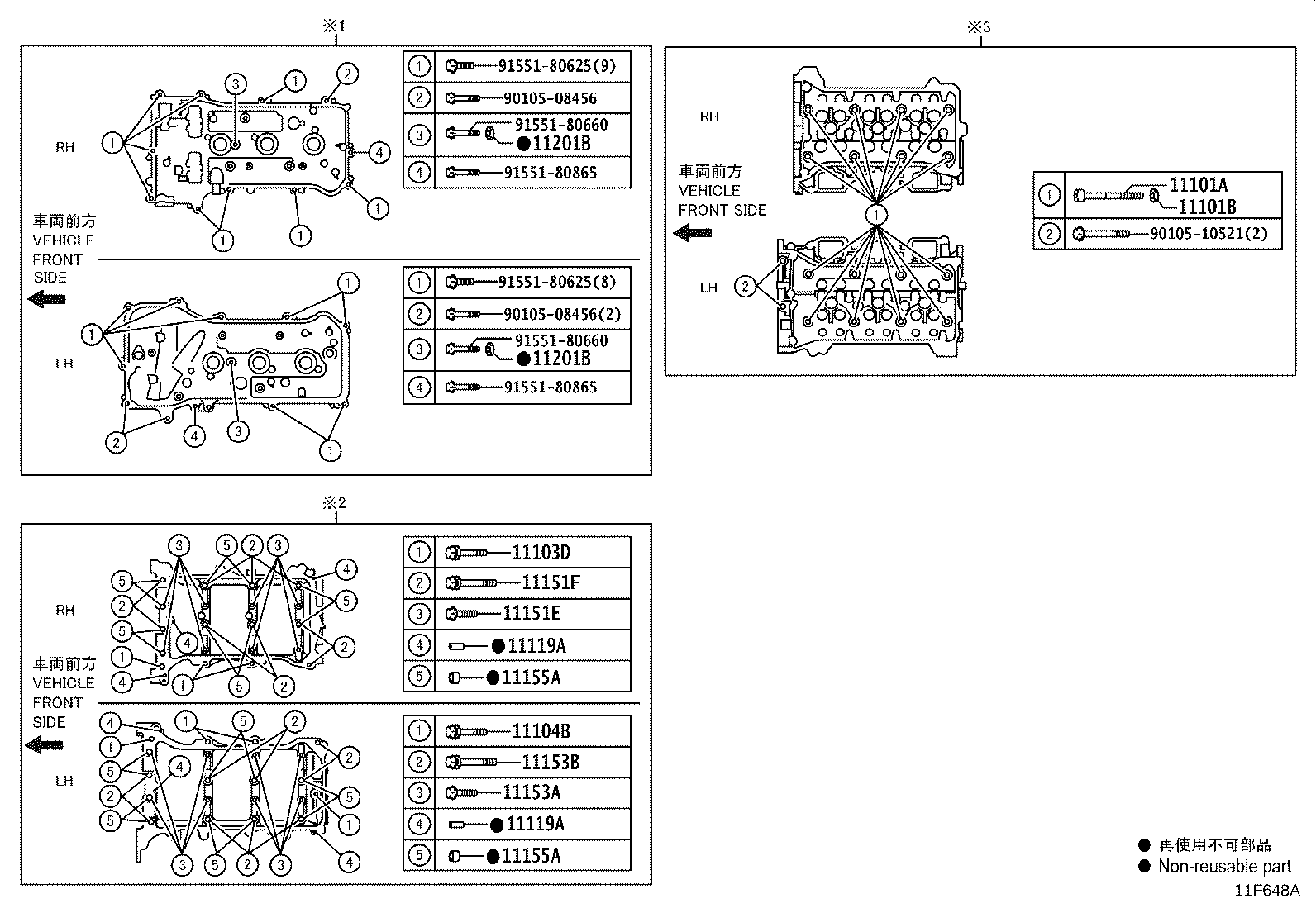

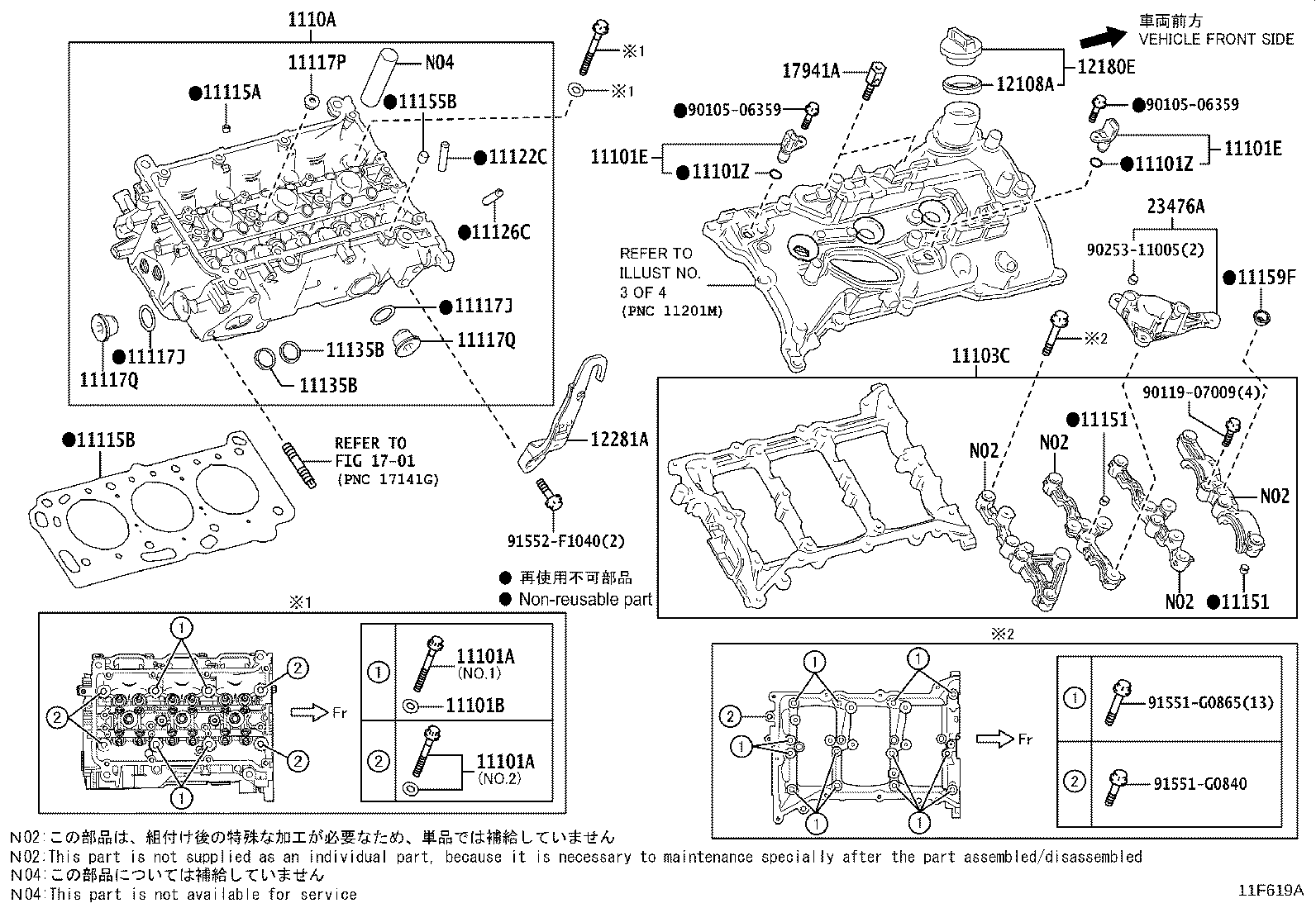

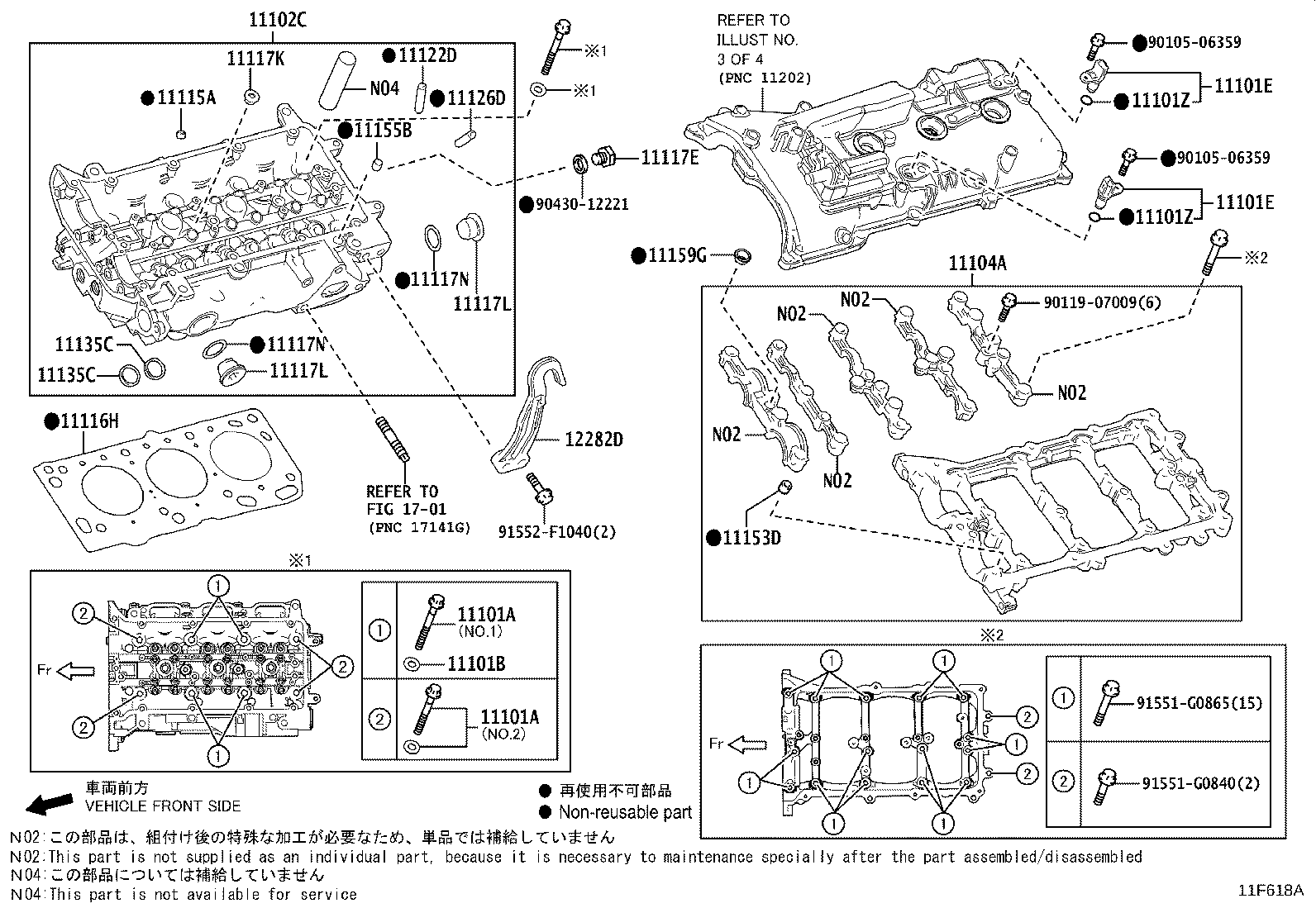

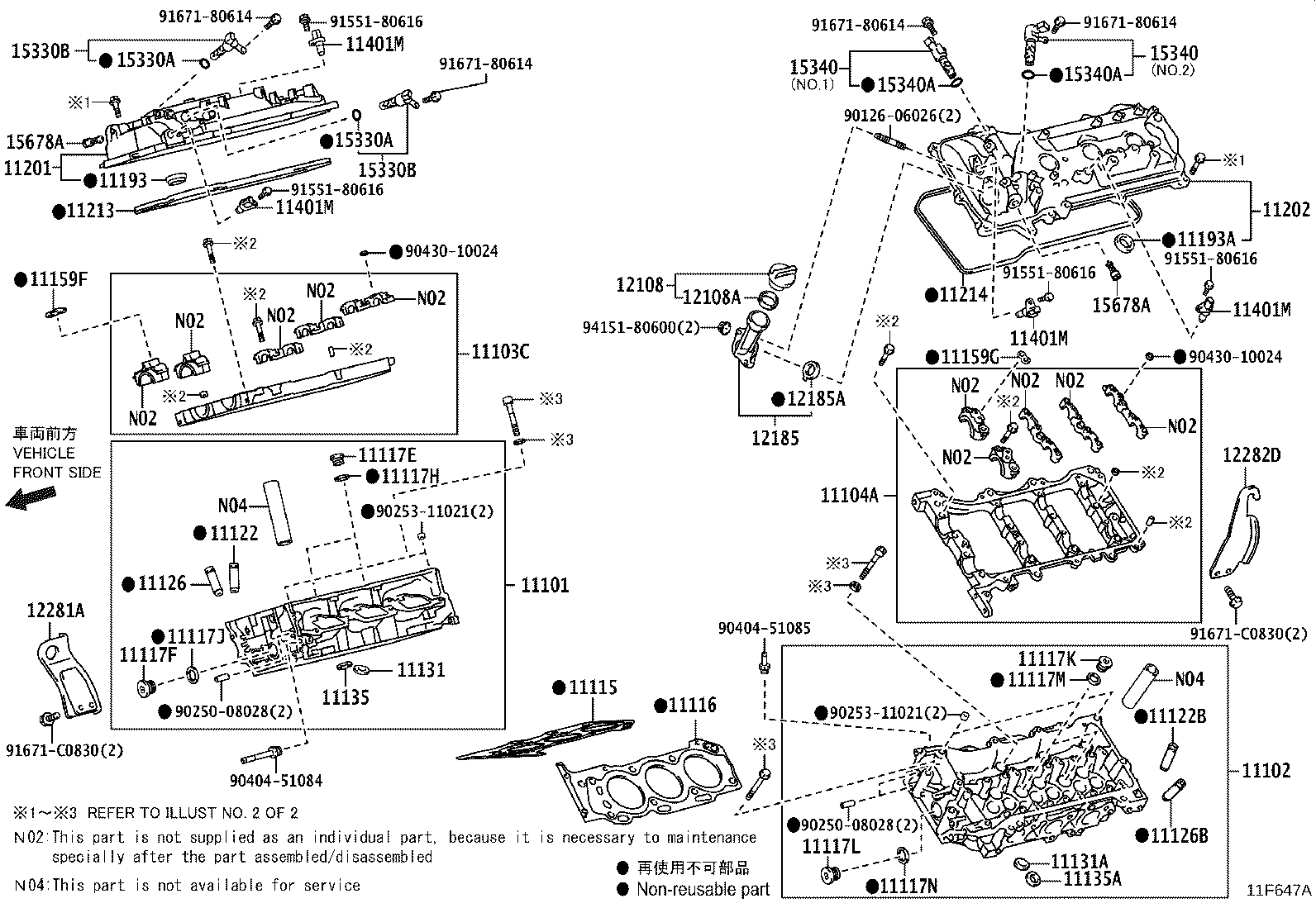

Figure 11F595E 11F595E 2021-07 → — Figure 11F596F 11F596F 2021-07 → — Figure 11F649D 11F649D 2021-07 → — Figure 11F599E 11F599E 2021-07 → — Figure 11F647A 11F647A 2021-04 → — Figure 11F648A 11F648A 2021-04 → — Figure 11F618A 11F618A 2021-04 → — Figure 11F619A 11F619A 2021-04 → — Figure 11F620A 11F620A 2021-04 → — Figure 11F621 11F621 2021-04 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101U Spacer(FOR CYLINDER HEAD SET BOLT)
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11101Z O Ring, Cam Position Sensor
11102 Head, Cylinder, LH
11102C Head Sub-assy, Cylinder, LH
11103C Housing Sub-assy, Camshaft, RH
11103D Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
11104A Housing Sub-assy, Camshaft, LH
11104B Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
1110A Head Sub-assy, Cylinder, RH
11115 Gasket, Cylinder Head
11115A Pin, Ring
11115B Gasket, Cylinder Head, RH
11116 Gasket, Cylinder Head, NO.2
11116H Gasket, Cylinder Head, LH
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11117K Plug, W/Head Straight Screw, LH NO.1
11117L Plug, W/Head Straight Screw, LH NO.2
11117M Gasket(FOR WATER HOLE NO.2)
11117N Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
11117P Plug, W/Head Straight Screw, RH NO.1
11117Q Plug, W/Head Straight Screw, RH NO.2
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11122B Bush, Intake Valve Guide, NO.2
11122C Bush, Intake Valve Guide, RH
11122D Bush, Intake Valve Guide, LH
11126 Bush, Exhaust Valve Guide
11126B Bush, Exhaust Valve Guide, NO.2
11126C Bush, Exhaust Valve Guide, RH
11126D Bush, Exhaust Valve Guide, LH
11131 Seat, Intake Valve
11131A Seat, Intake Valve, NO.2
11135 Seat, Exhaust Valve
11135A Seat, Exhaust Valve, NO.2
11135B Seat, Exhaust Valve, RH
11135C Seat, Exhaust Valve, LH
11151 Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH)
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151E Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11151F Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
11153A Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11153B Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
11153C Pin, Straight(FOR CAMSHAFT HOUSING LH)
11153D Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING LH)
11155A Pin, Ring W/Head
11155B Pin, Ring
11155C Pin, Ring NO.2
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159C Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159F Gasket, Camshaft Bearing Cap Oil Hole, RH
11159G Gasket, Camshaft Bearing Cap Oil Hole, LH
11193 Gasket, Spark Plug Tube
11193A Gasket, Spark Plug Tube, LH
11193B Gasket, Spark Plug Tube, RH
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201L Bolt(FOR CYLINDER HEAD COVER RH)
11201M Cover Sub-assy, Cylinder Head, RH
11202 Cover Sub-assy, Cylinder Head, LH
11202C Bolt(FOR CYLINDER HEAD COVER LH)
11209 Cover Sub-assy, V-bank
11211 Cover, Cylinder Head, RH
11212B Cover, Cylinder Head, LH
11213 Gasket, Cylinder Head Cover
11213A Gasket, Cylinder Head Cover, RH NO.1
11213B Gasket, Cylinder Head Cover, RH NO.2
11214 Gasket, Cylinder Head Cover, NO.2
11214A Gasket, Cylinder Head Cover, LH NO.1
11214B Gasket, Cylinder Head Cover, LH NO.2
11224 Silencer, Cylinder Head Cover
11225 Silencer, Cylinder Head Cover LH
11229 Gasket, Cylinder Head Cover, NO.3
11239 Gasket, Clinder Head Coner, NO.4
11254 Bracket, V-bank Cover, NO.1
11256 Bracket, V-bank Cover, NO.2
11401M Sensor, Crank Position, NO.2
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12180E Cap Assy, Oil Filler
12185 Housing, Oil Filler Cap
12185A Gasket, Oil Filler Cap Housing
12270K Separator Assy, Oil
12273 Gasket, Oil Separator
12277 Holder, Oil Separator
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12601B Cover Sub-assy, Engine, NO.1
12631A Bracket, Engine Cover
15043C Pipe Sub-assy, Camshaft Oil Feed
15044 Pipe Sub-assy, Camshaft Oil Feed
15045A Pipe Sub-assy, Camshaft Oil Feed, NO.3
15046A Pipe Sub-assy, Camshaft Oil Feed, NO.4
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15330B Valve Assy, Cam Timing Oil Control, RH
15340 Valve Assy, Cam Timing Oil Control, LH
15340A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
17561G Stay, Clamp
17561H Stay, Clamp, NO.2
17941A Guide, Intercooler Air, NO.1
23476A Housing, Fuel Pump Lifter, RH
23682 Gasket, Nozzle Holder
25687A Bracket, Clamp Stay
25688A Bracket, Clamp Stay, NO.2
25689A Insulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
