Timing Gear Cover & Rear End Plate

31 part groups · 5 illustrations

Illustrations

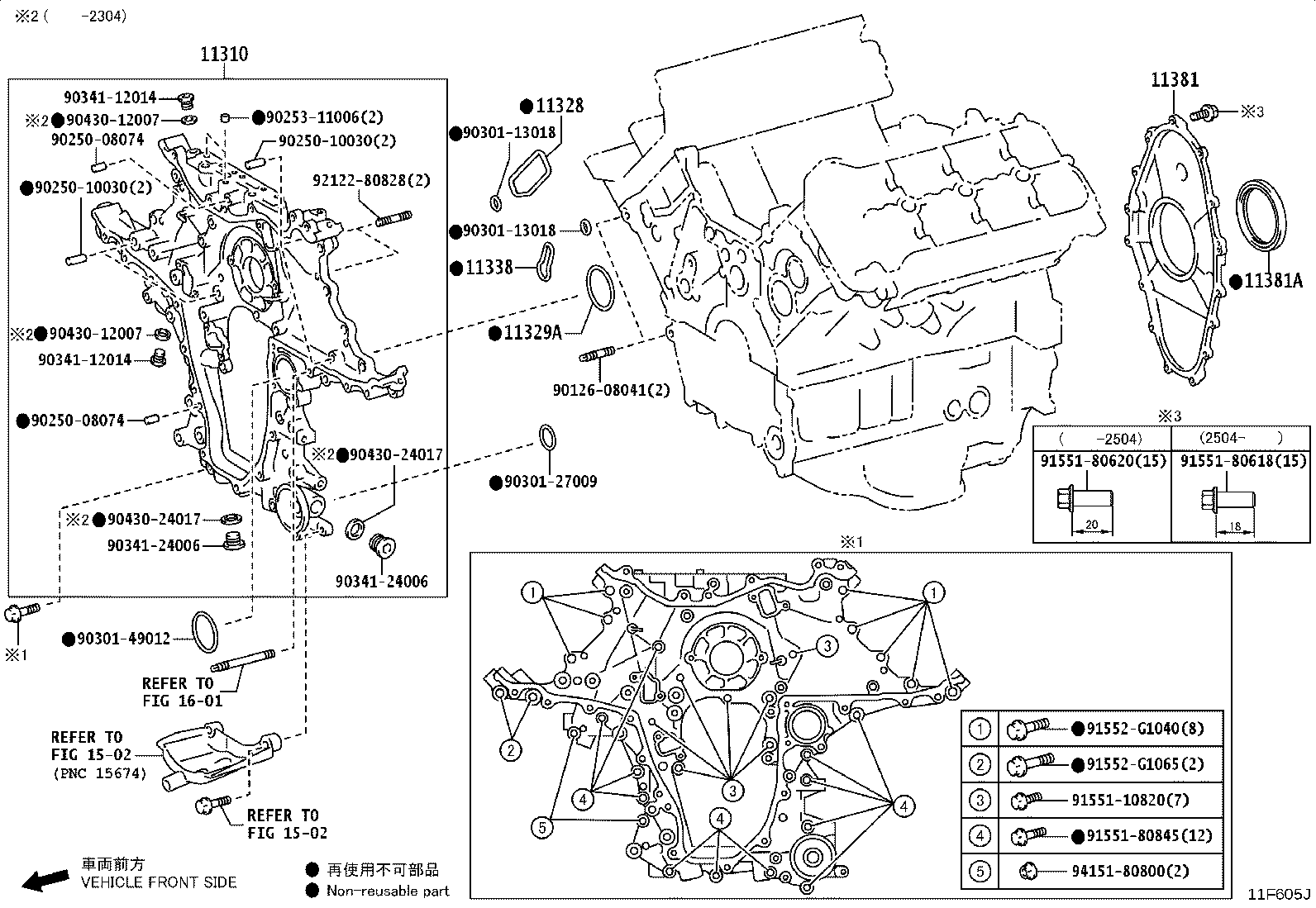

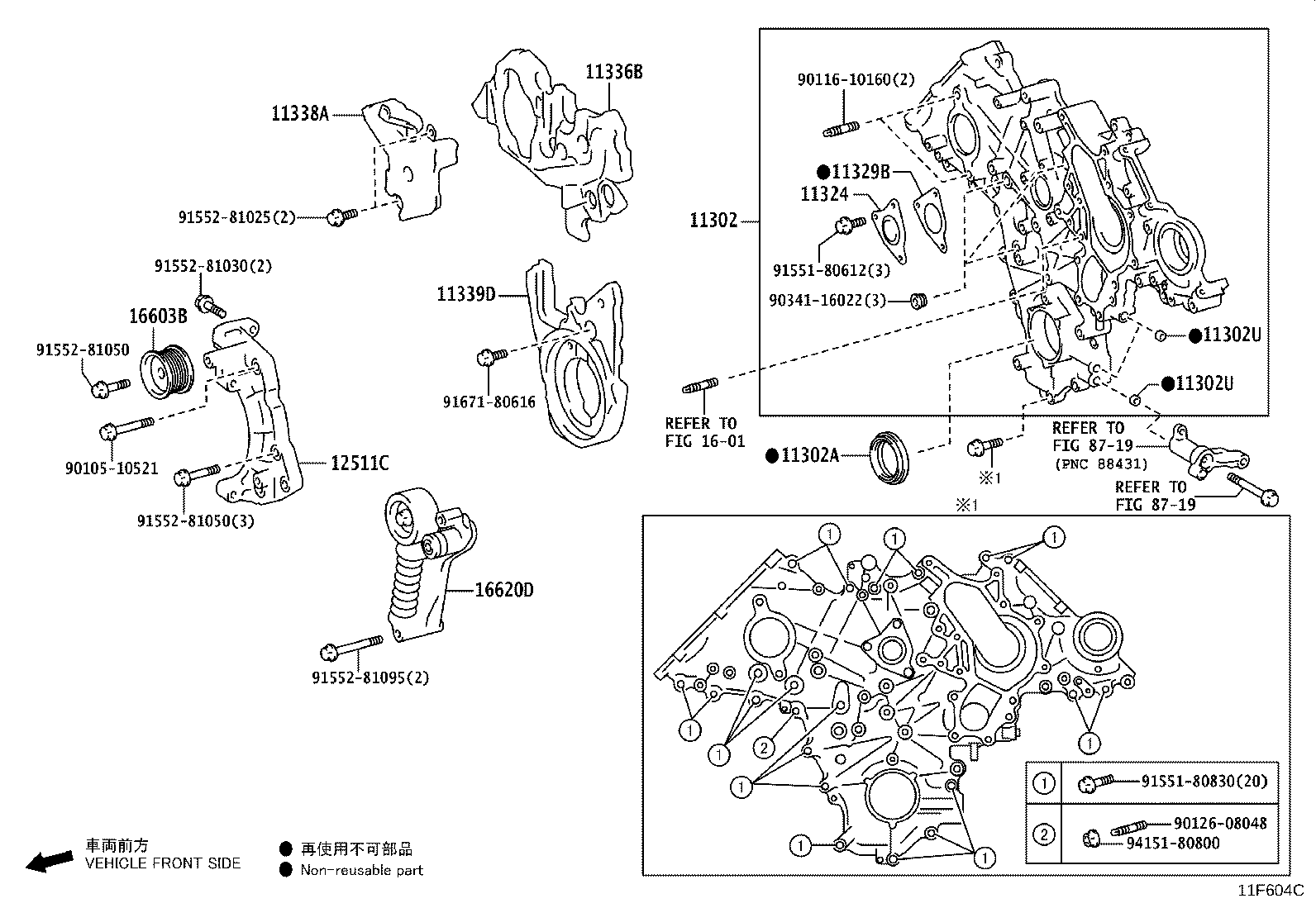

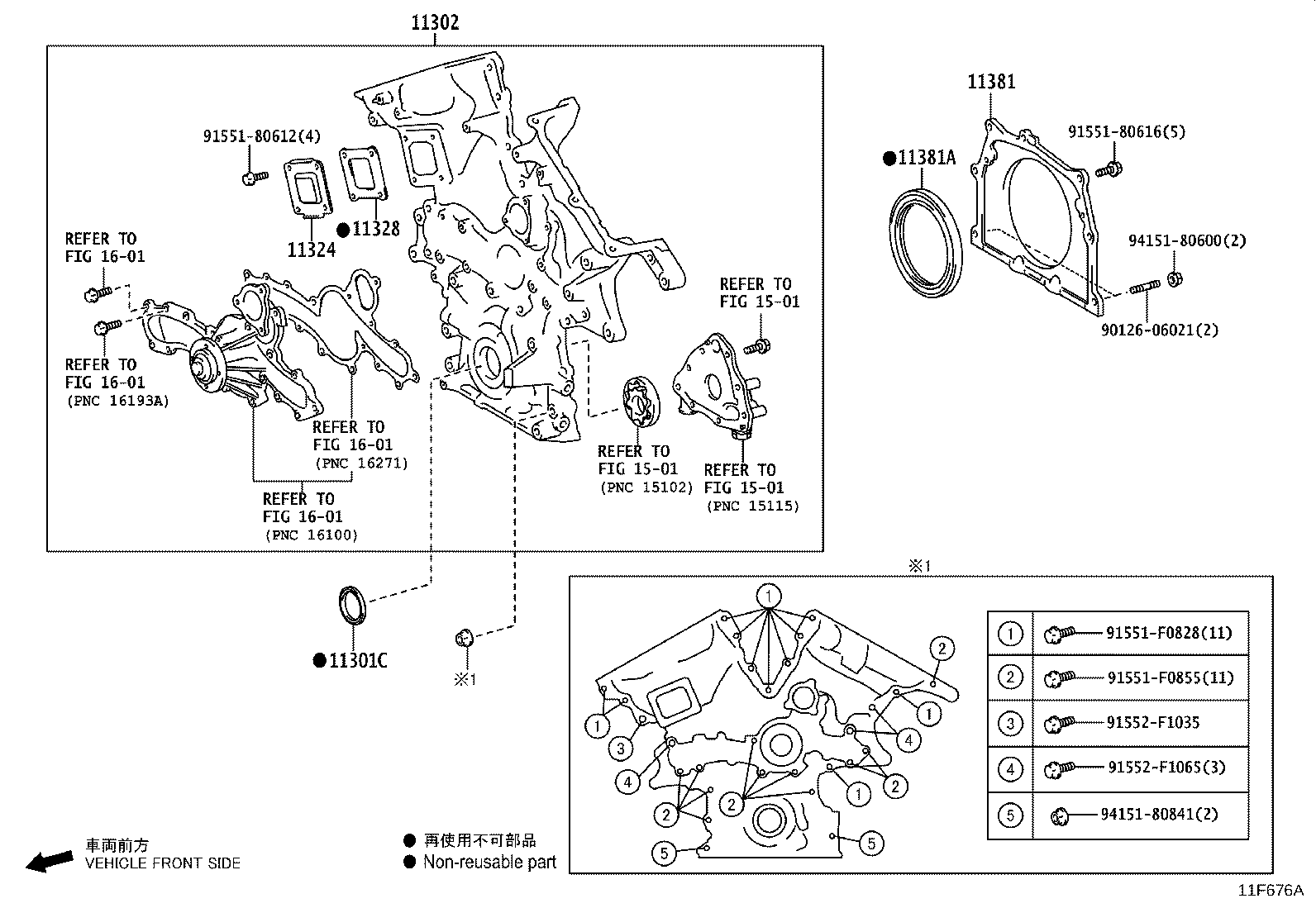

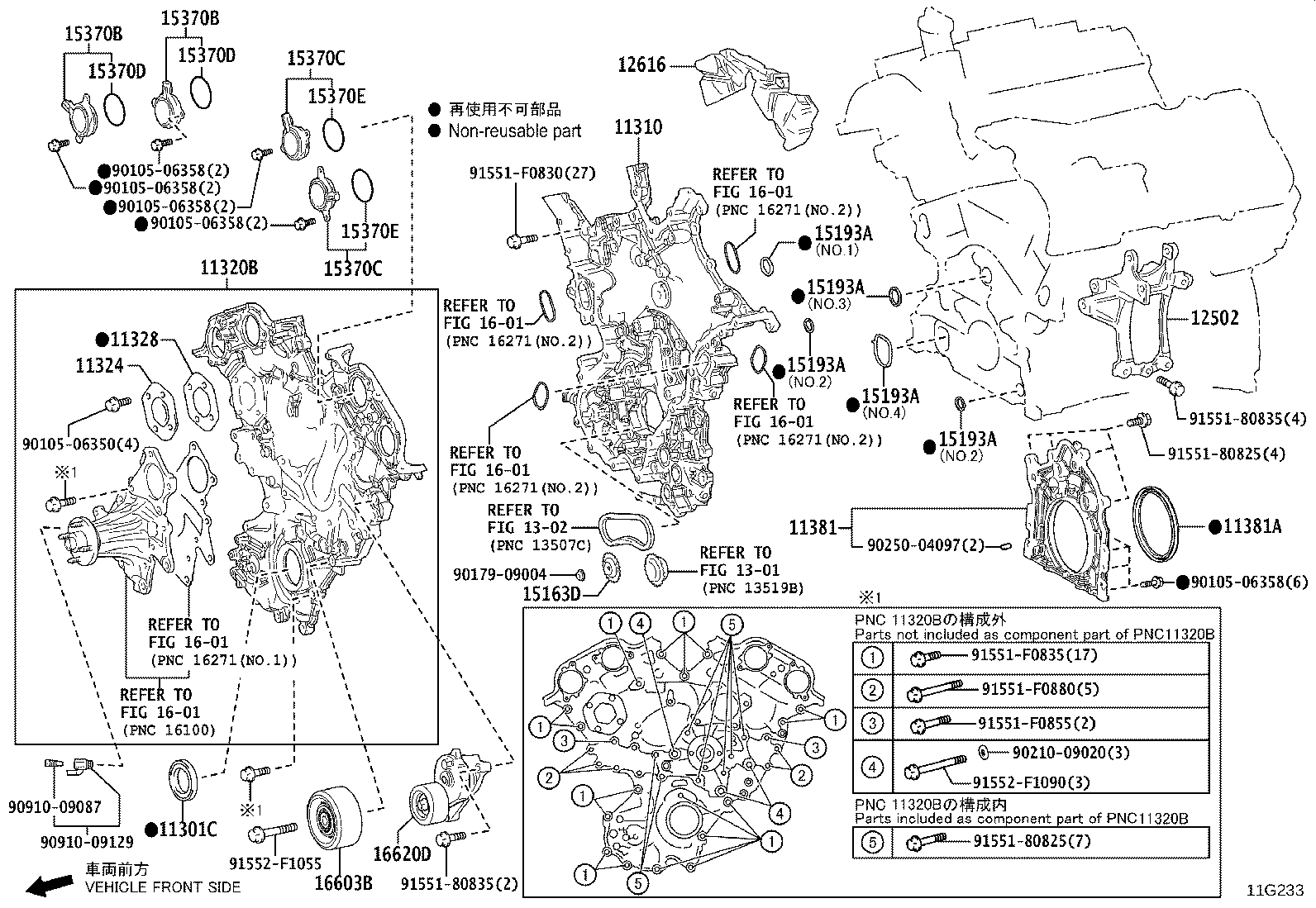

Figure 11F603E 11F603E 2021-07 → — Figure 11F604C 11F604C 2021-07 → — Figure 11F605J 11F605J 2021-07 → — Figure 11F676A 11F676A 2021-04 → — Figure 11G233 11G233 2021-04 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302U Pin, Ring
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11329B Gasket, Timing Chain Cover, NO.2
11336B Insulator, Timing Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
11338A Insulator, Timing Gear Case, NO.2
11339D Insulator, Timing Chain Cover, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12502 Bracket Sub-assy, Chain Cover & Compressor
12511C Bracket, Alternator
12616 Cover, Engine, NO.6
15163D Sprocket, Oil Pump Drive Shaft
15193A Gasket, Oil Pump
15370B Solenoid Assy, Cam Timing Oil Control, RH
15370C Solenoid Assy, Cam Timing Oil Control, LH
15370D Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370E Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
16603B Pulley Sub-assy, Idler
16604C Pulley Sub-assy, Idler, NO.2
16620D Tensioner Assy, V-ribbed Belt
16630H Pulley Assy, Idler
16630J Pulley Assy, Idler, NO.2
16631A Bracket, Idler Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
