Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

11 part groups · 3 illustrations

Illustrations

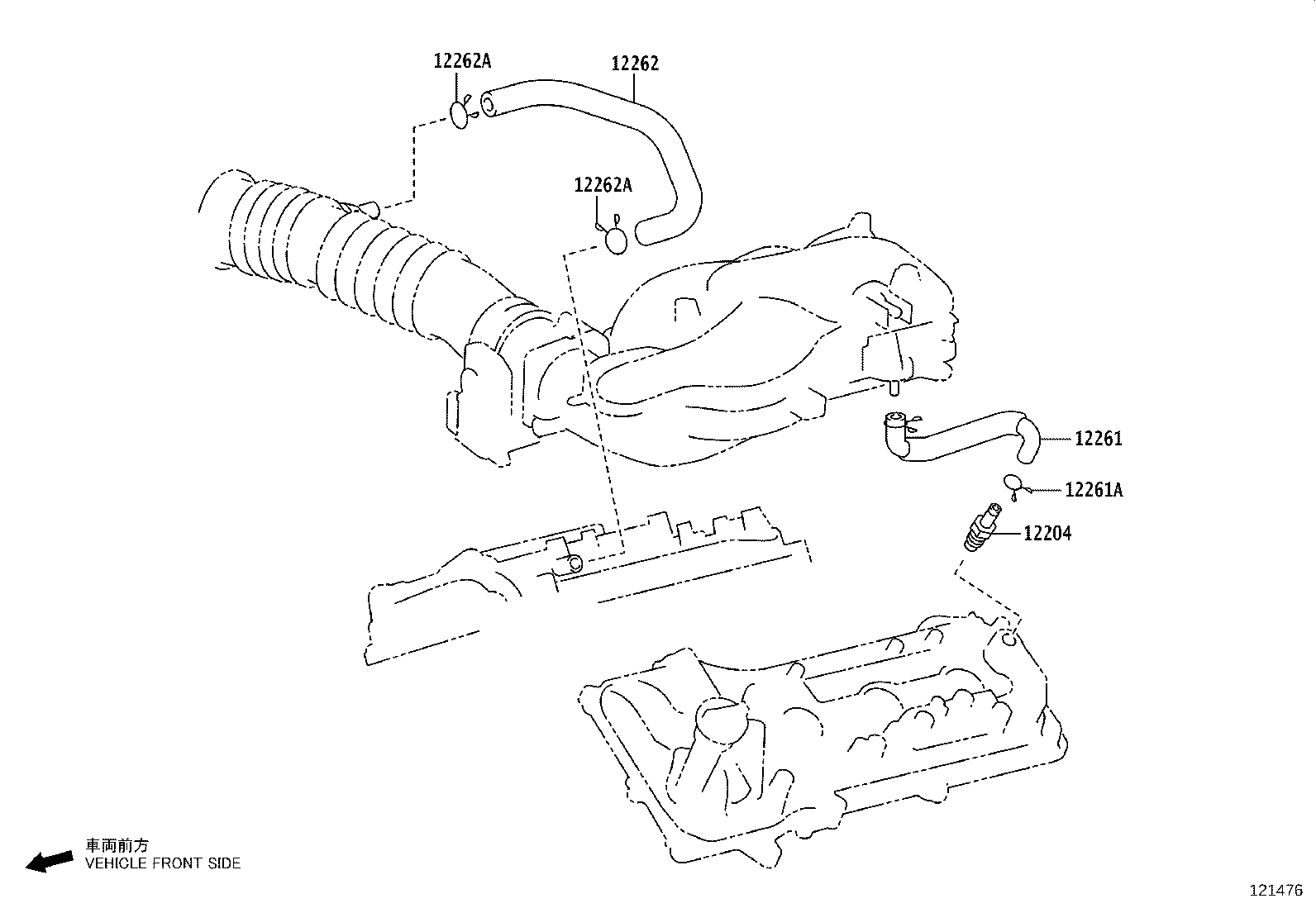

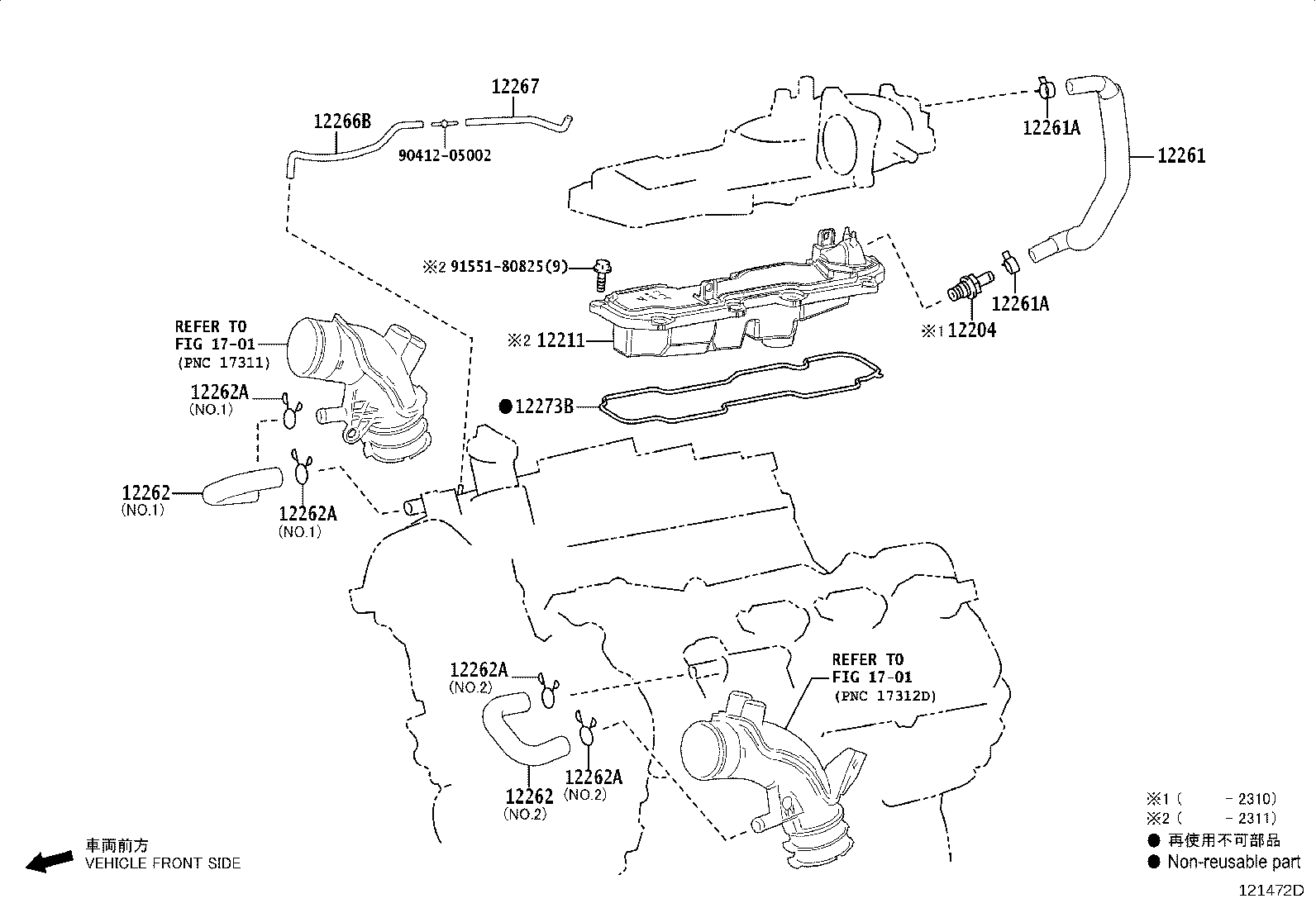

Figure 121471 121471 2021-07 → — Figure 121476 121476 2021-04 → — Figure 121472D 121472D 2021-04 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12266B Hose, Ventilation Pressure Sensor, NO.1
12267 Hose, Ventilation Pressure Sensor, NO.2
12273B Gasket, Oil Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
