Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

19 part groups · 3 illustrations

Illustrations

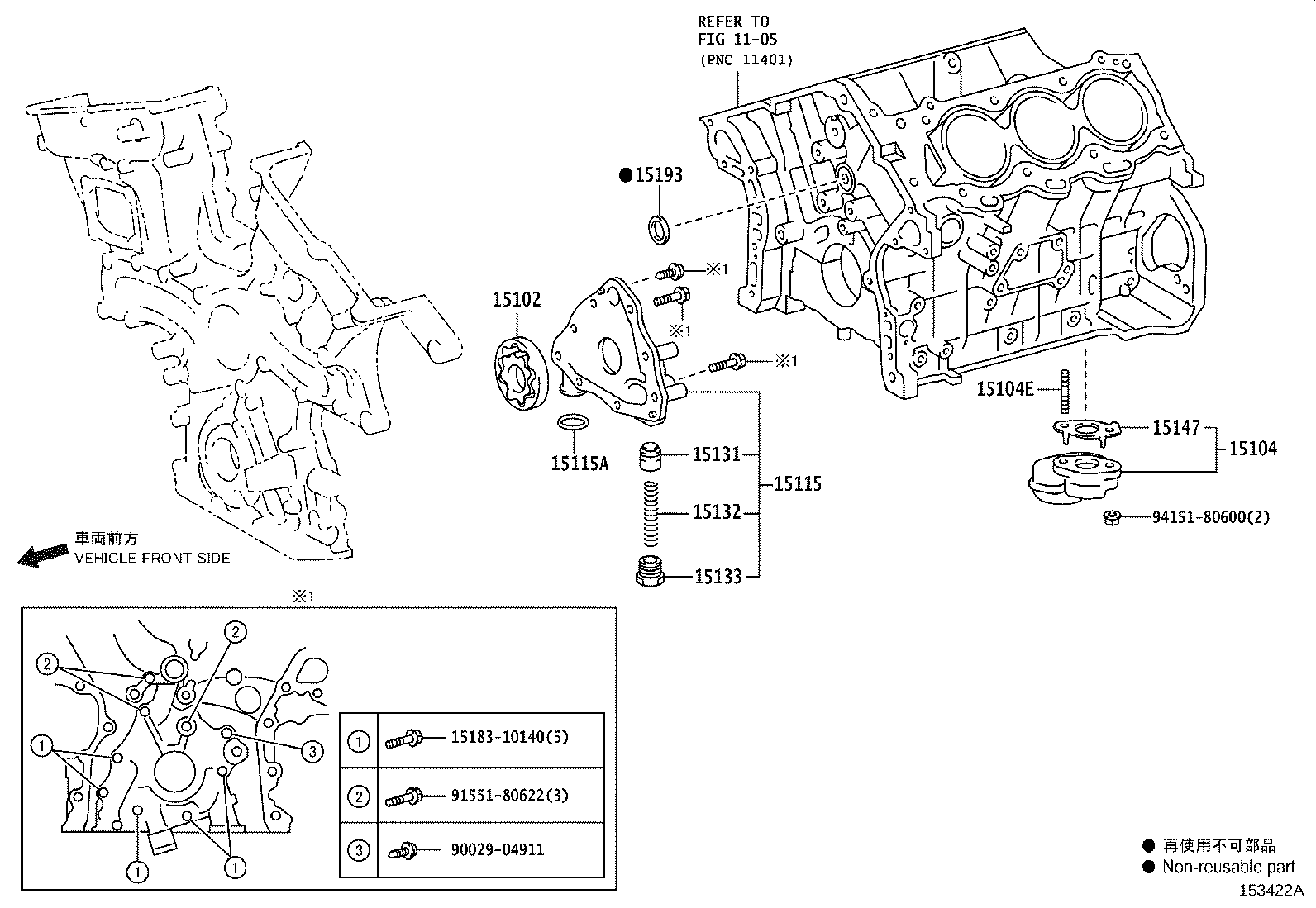

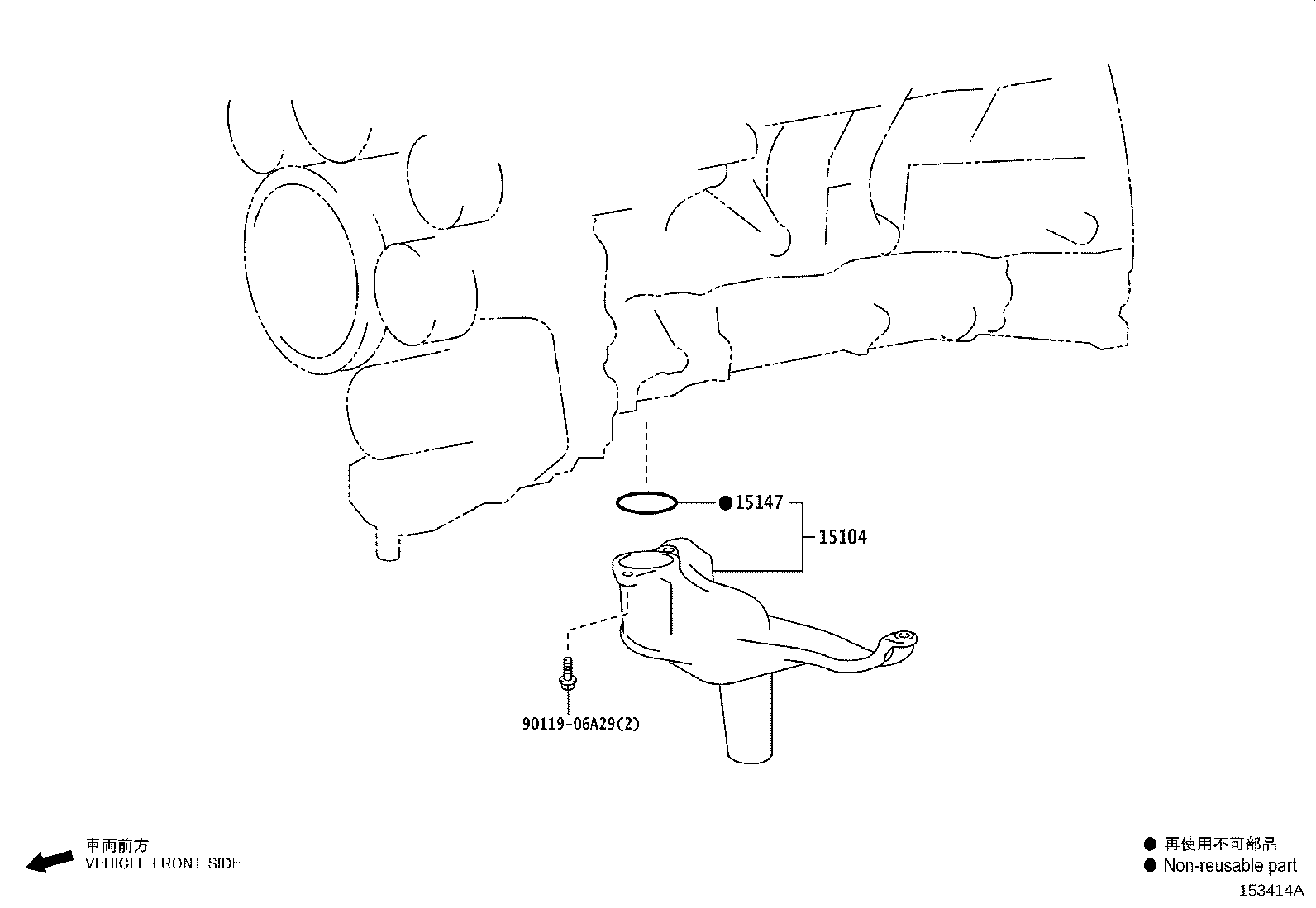

Figure 153409F 153409F 2021-07 → — Figure 153422A 153422A 2021-04 → — Figure 153414A 153414A 2021-04 → —

Part groups

PNCDescription
13549A Plate, Chain Tensioner
13565A Spring, Chain Damper
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100K Chain, Oil Pump
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15115A Ring, O(FOR OIL PUMP COVER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163C Sprocket, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
15413 Pipe, Oil Pump Outlet
15413M Ring, O(FOR OIL PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
