Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

12 part groups · 3 illustrations

Illustrations

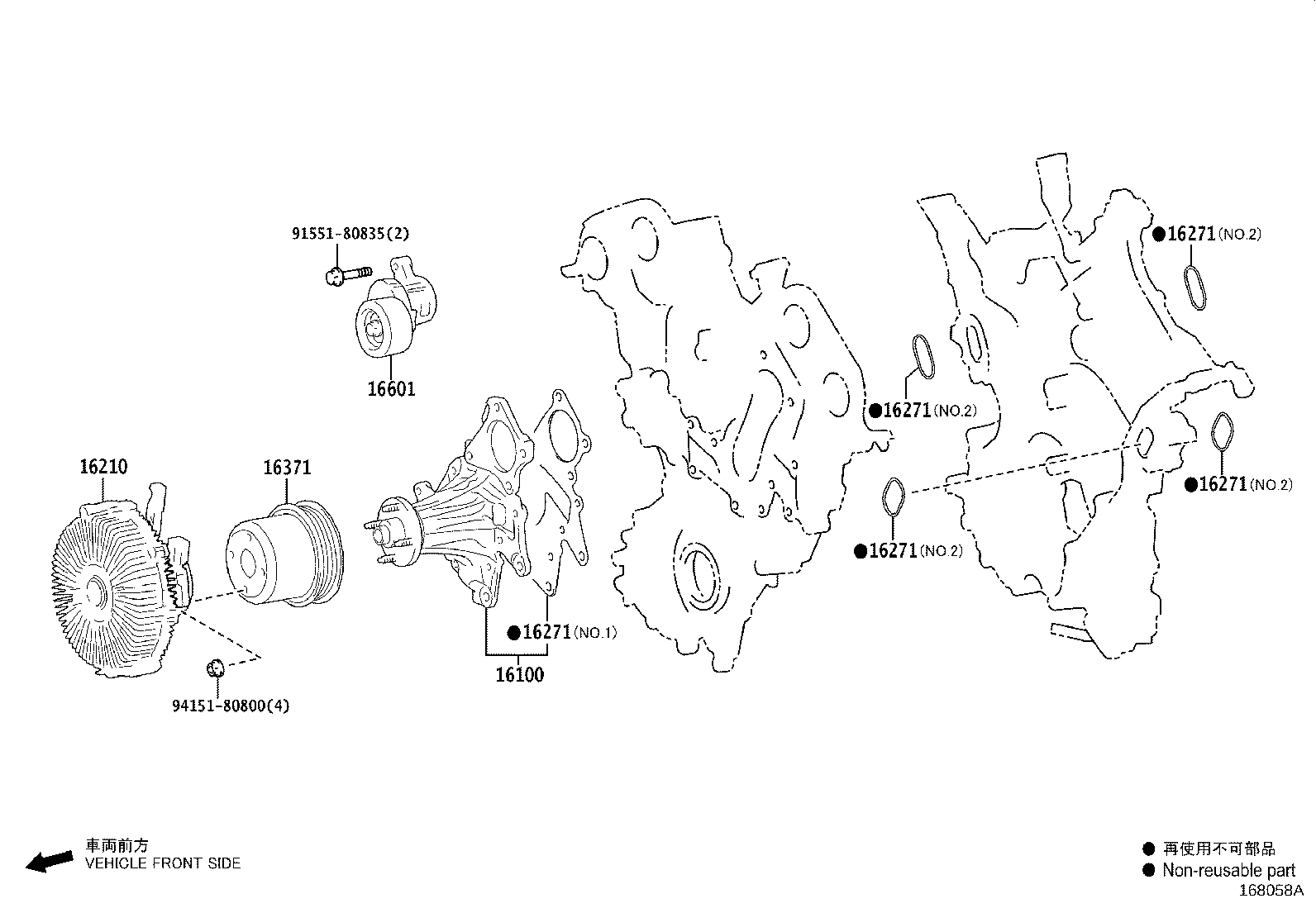

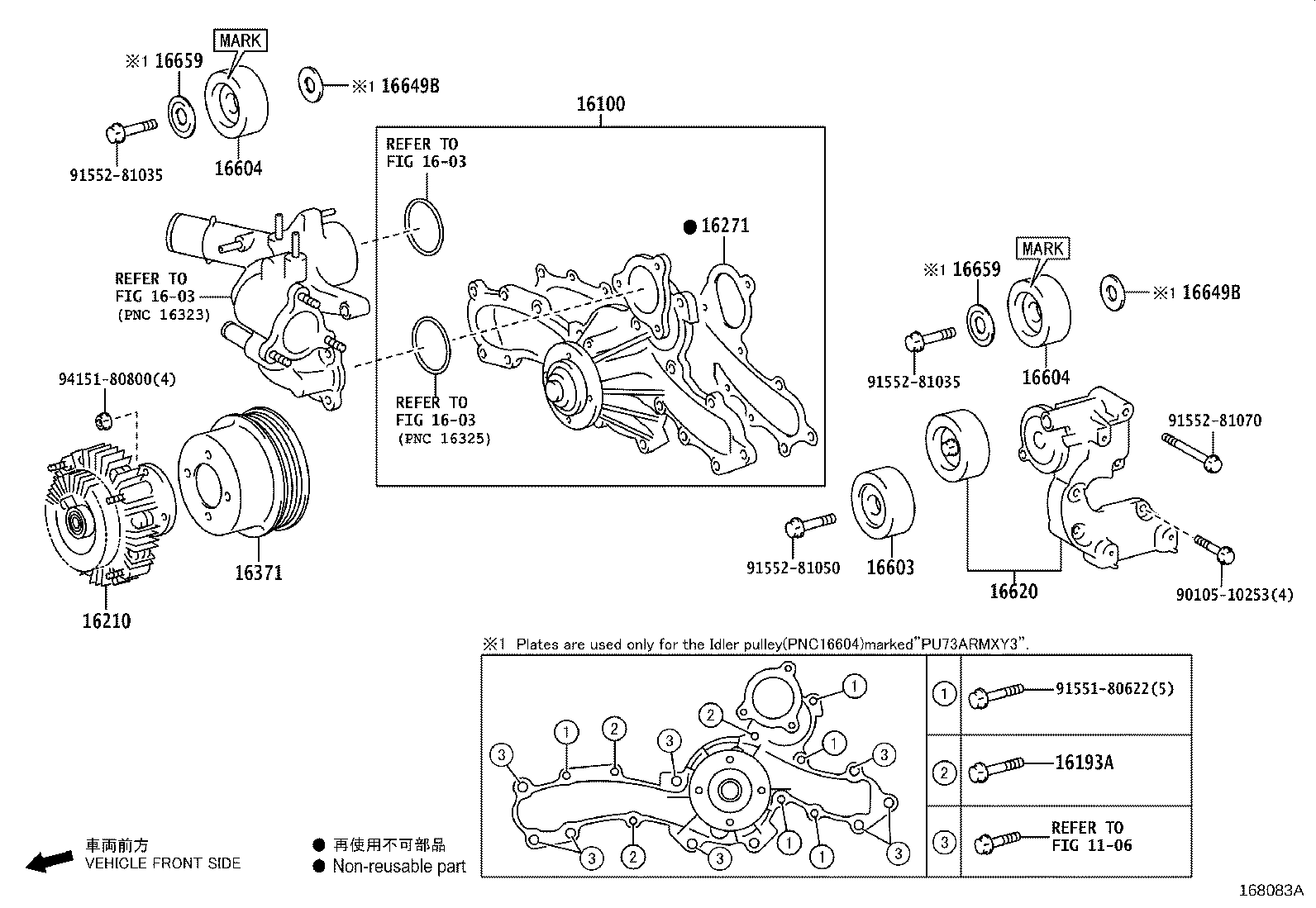

Figure 168041E 168041E 2021-07 → — Figure 168083A 168083A 2021-04 → — Figure 168058A 168058A 2021-04 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16193A Bolt(FOR WATER PUMP COVER)
16210 Coupling Assy, Fluid
16271 Gasket, Water Pump
16307A Bracket Sub-assy, Fan
16371 Pulley, Fan
16601 Tensioner Sub-assy, V-ribbed Belt
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
