Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

183 part groups · 16 illustrations

Illustrations

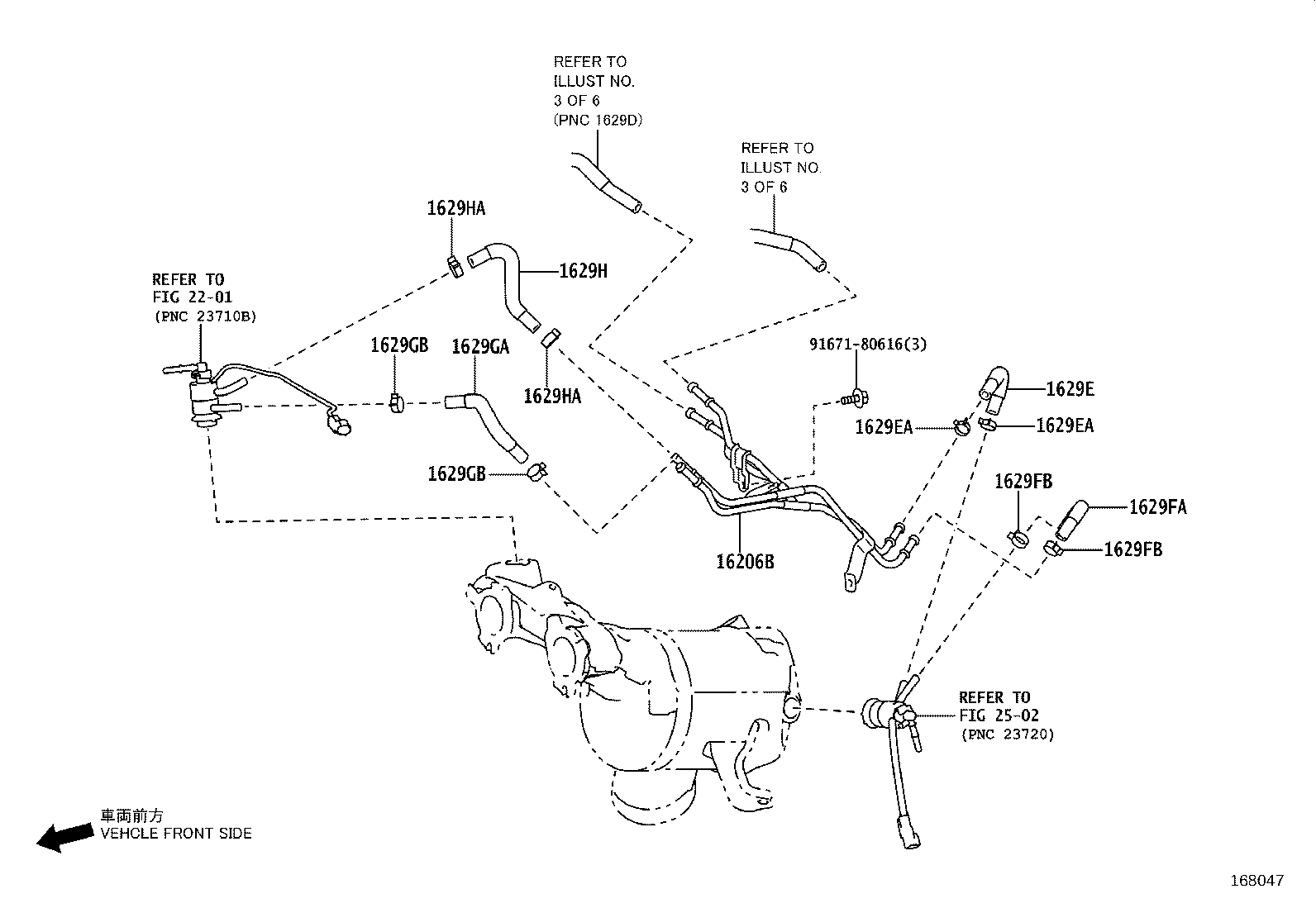

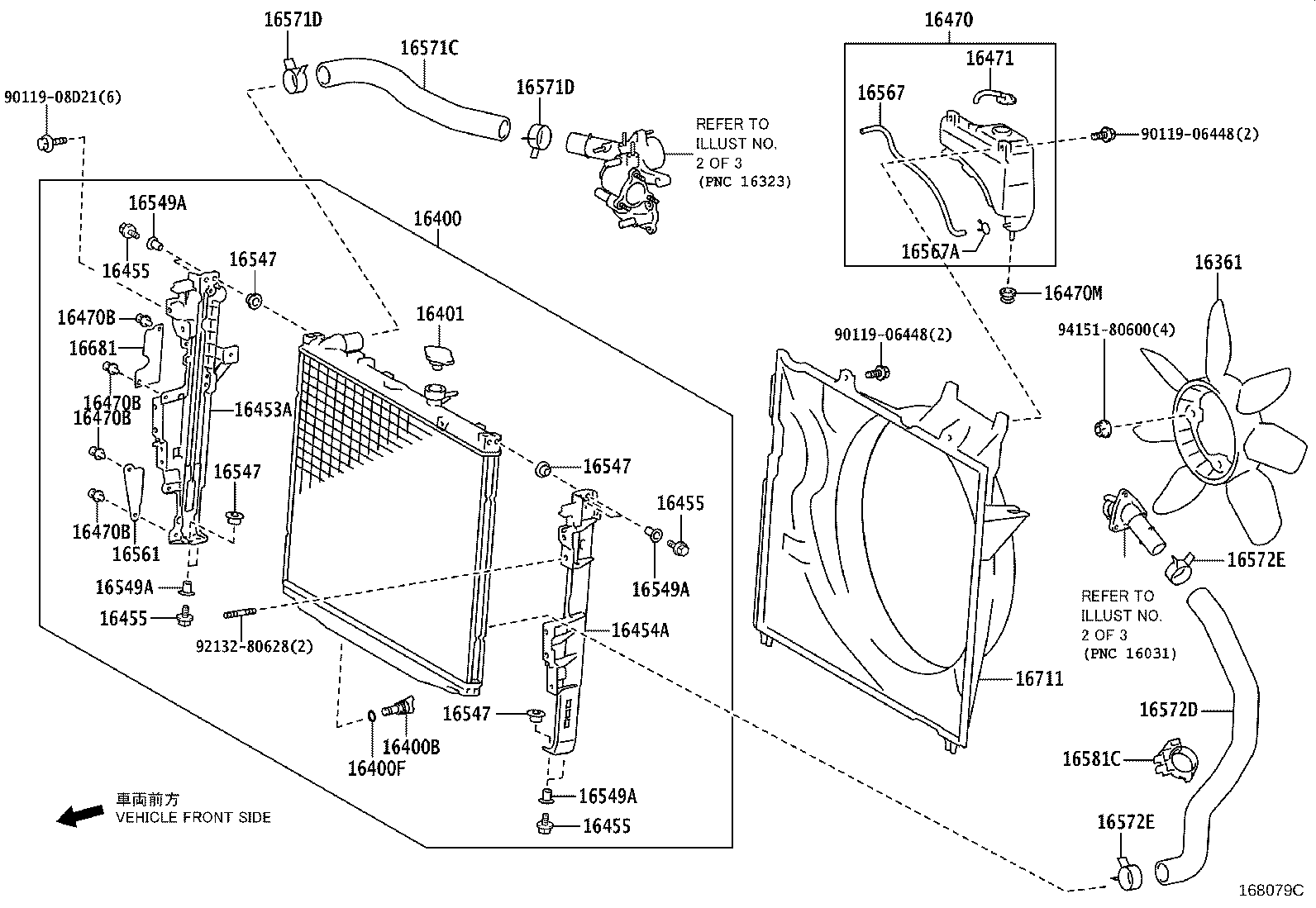

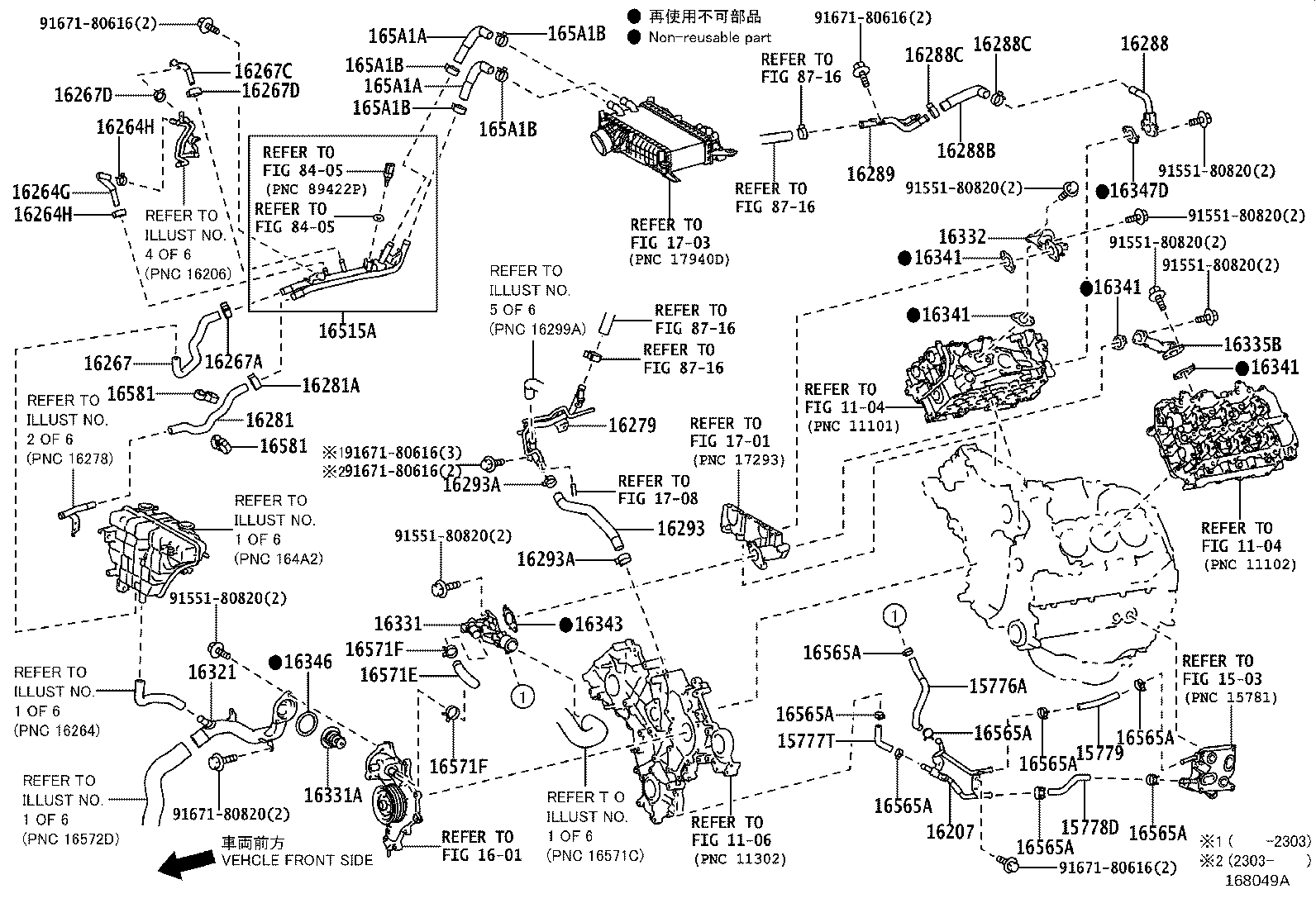

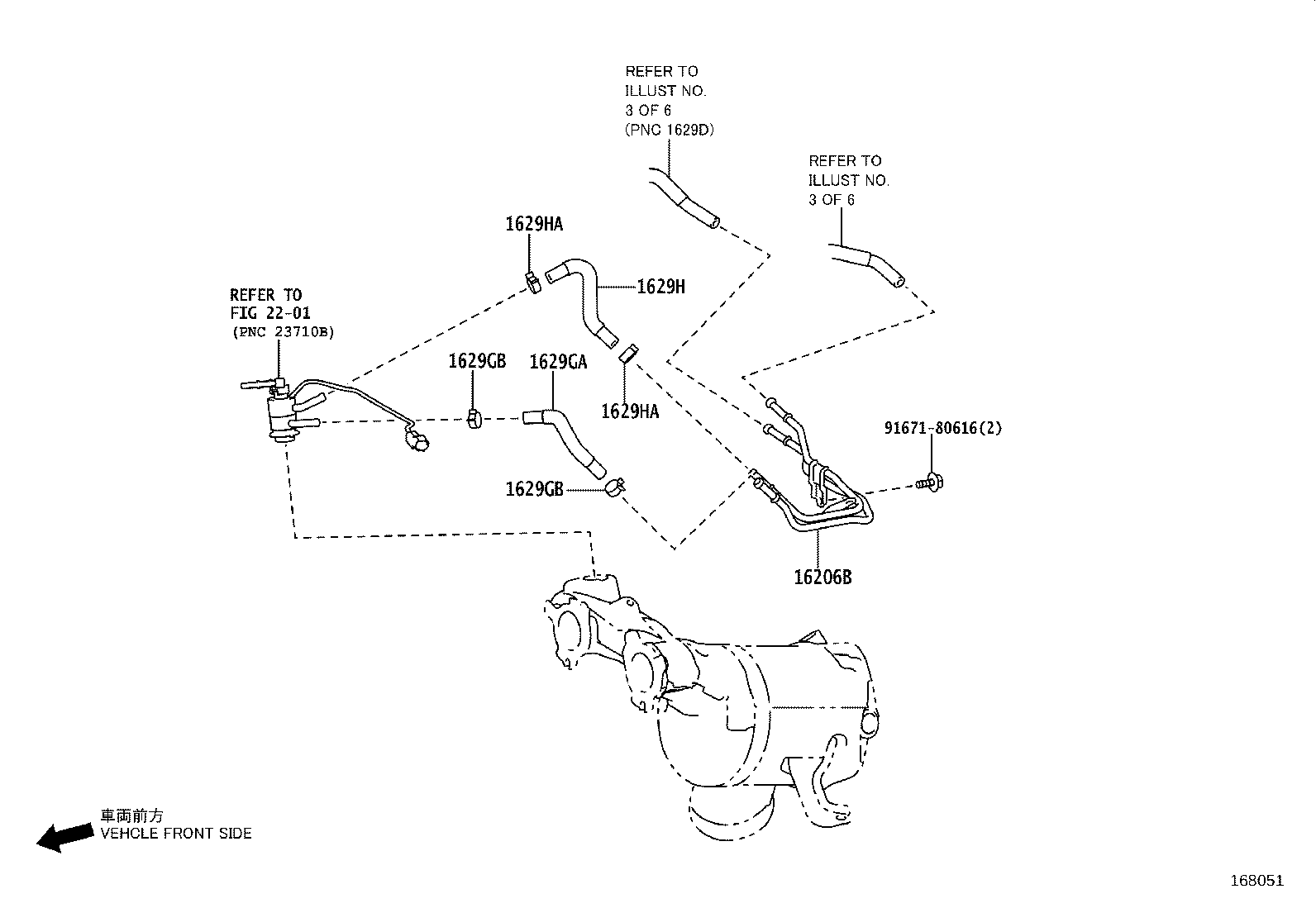

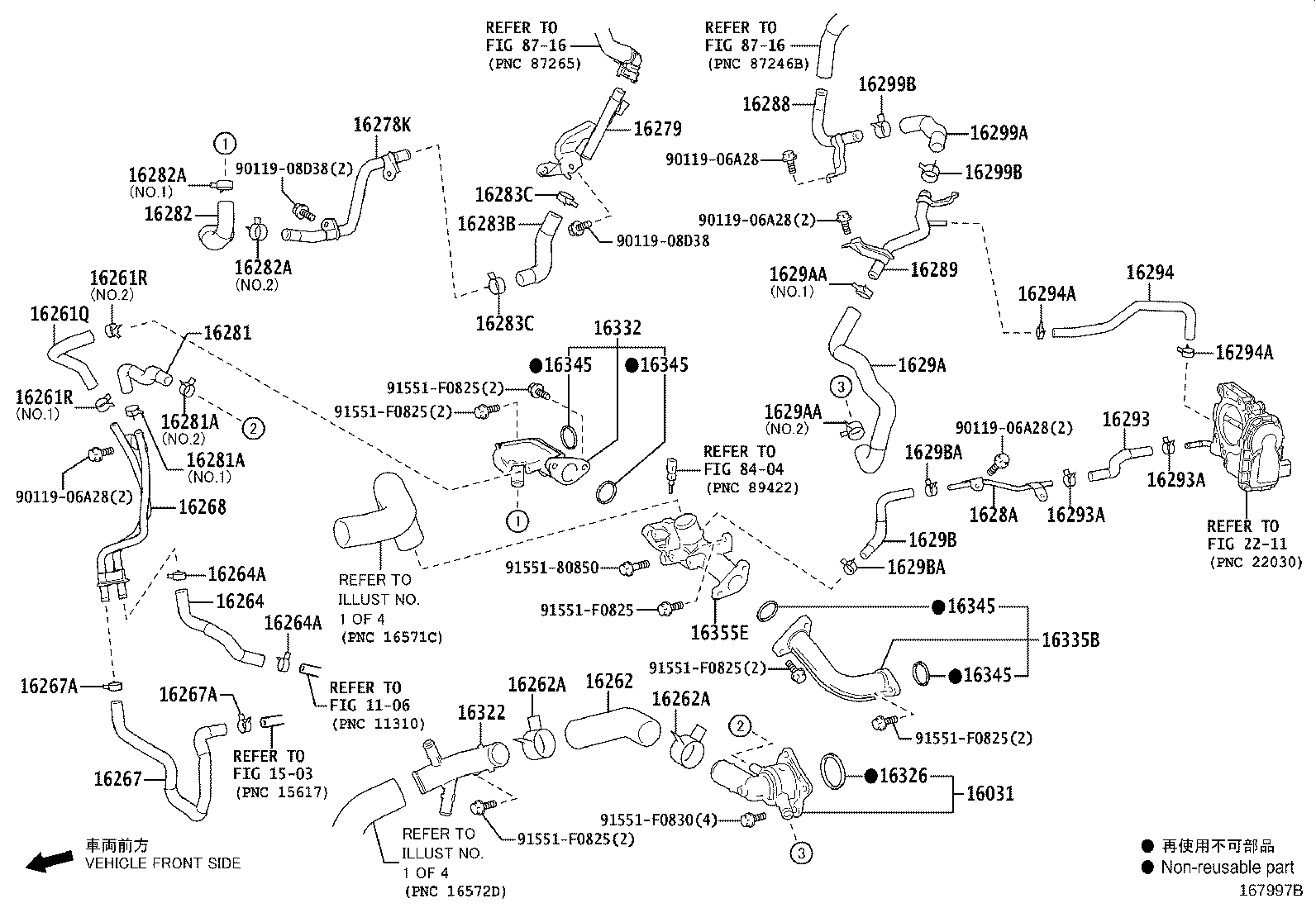

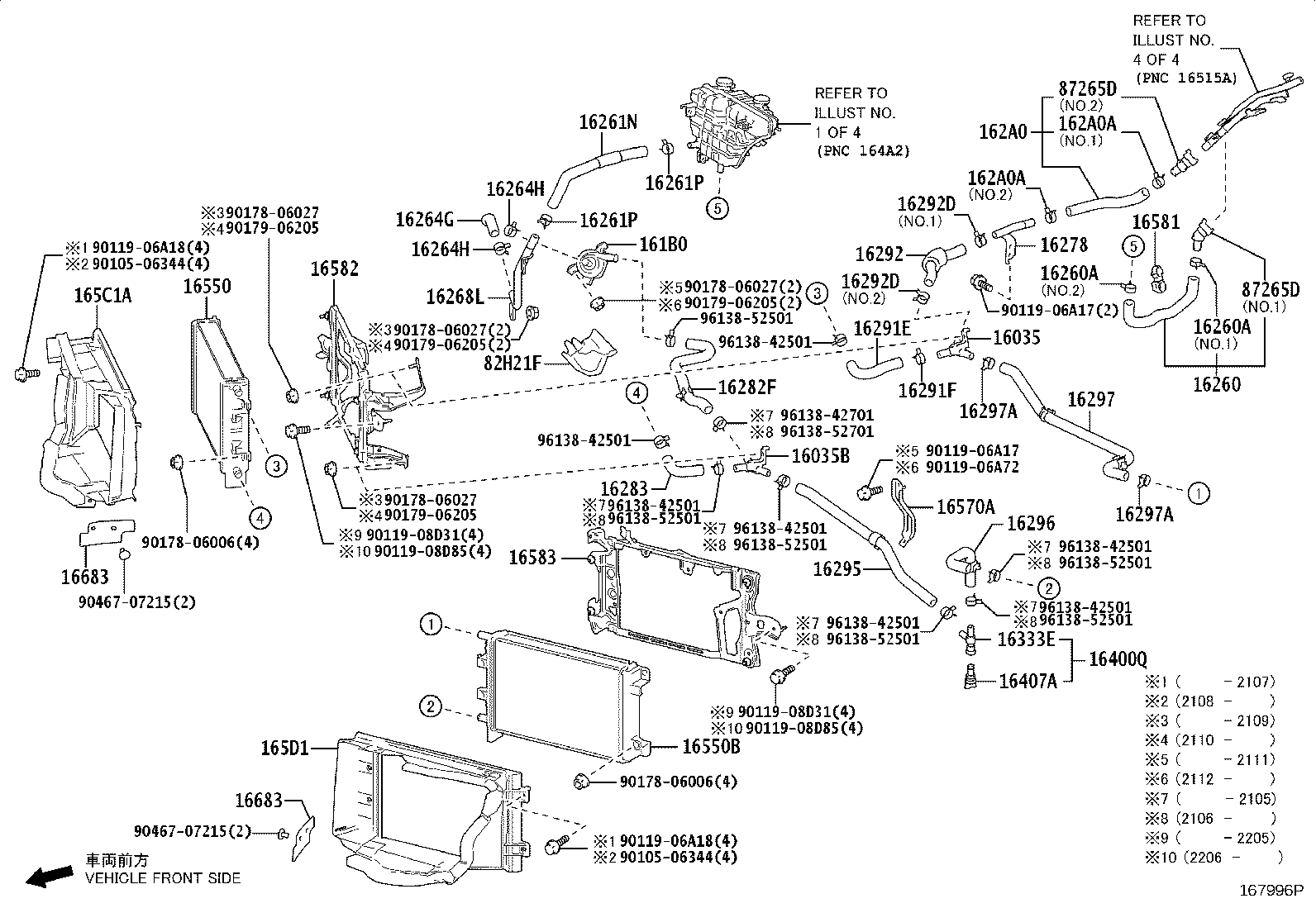

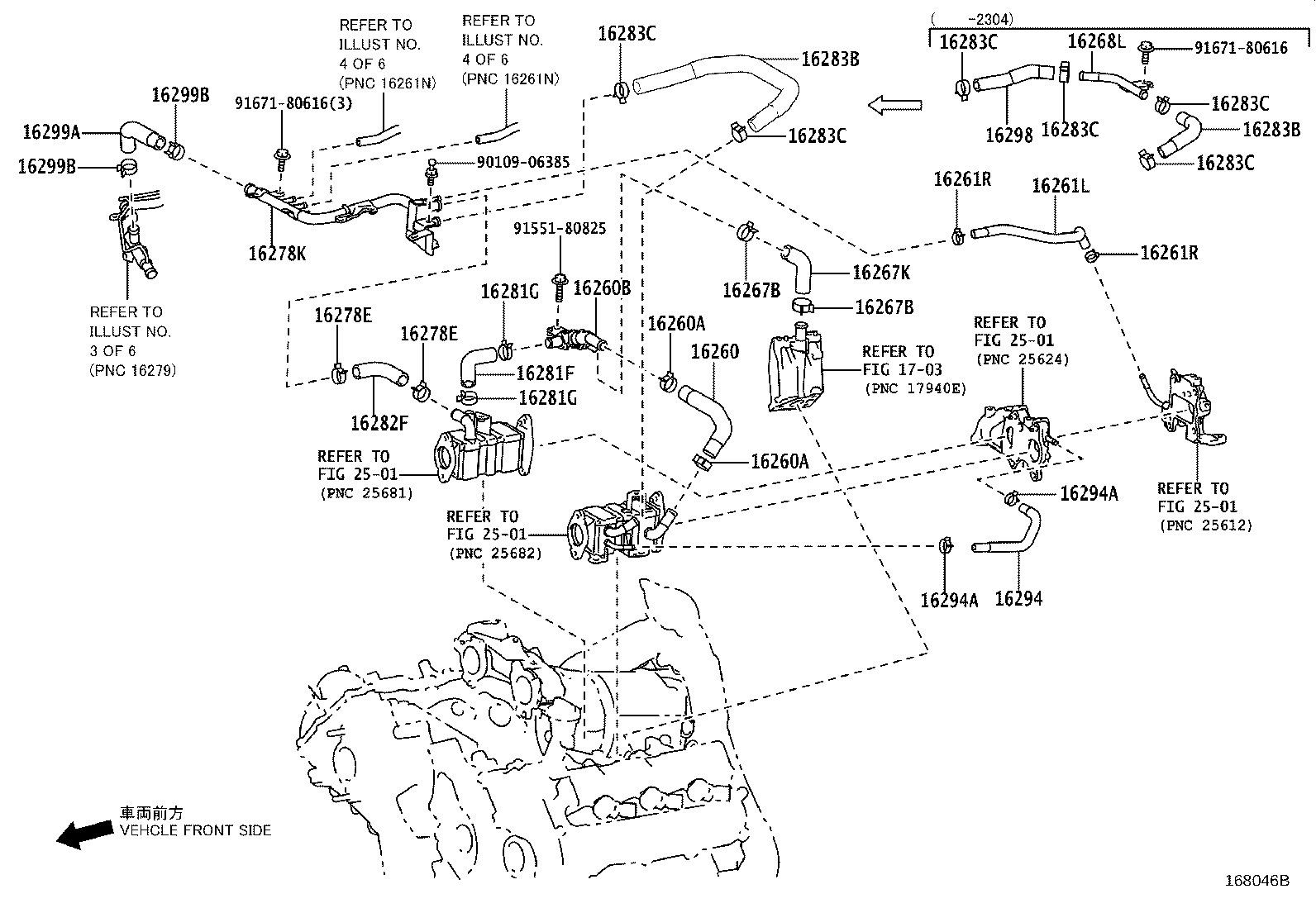

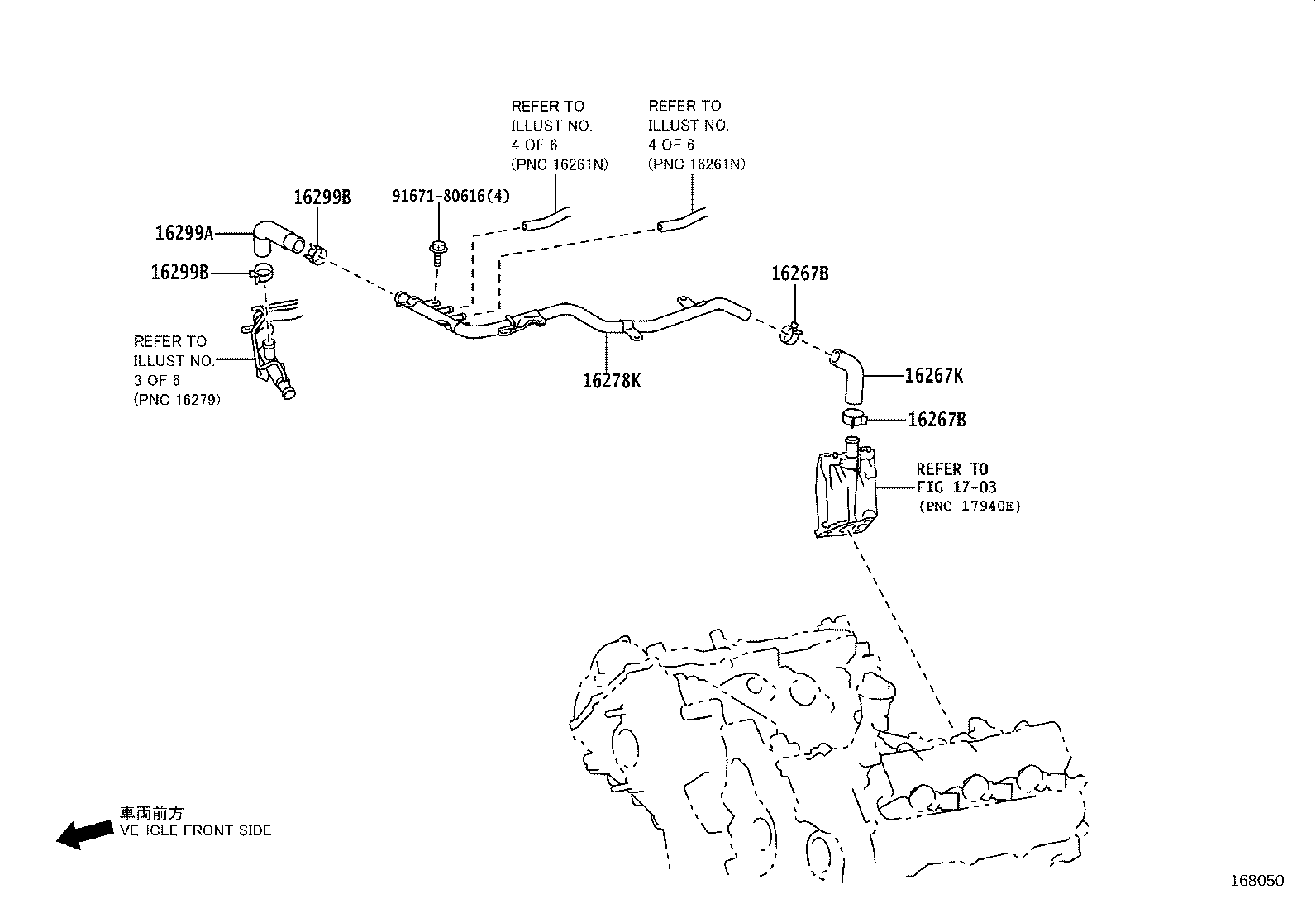

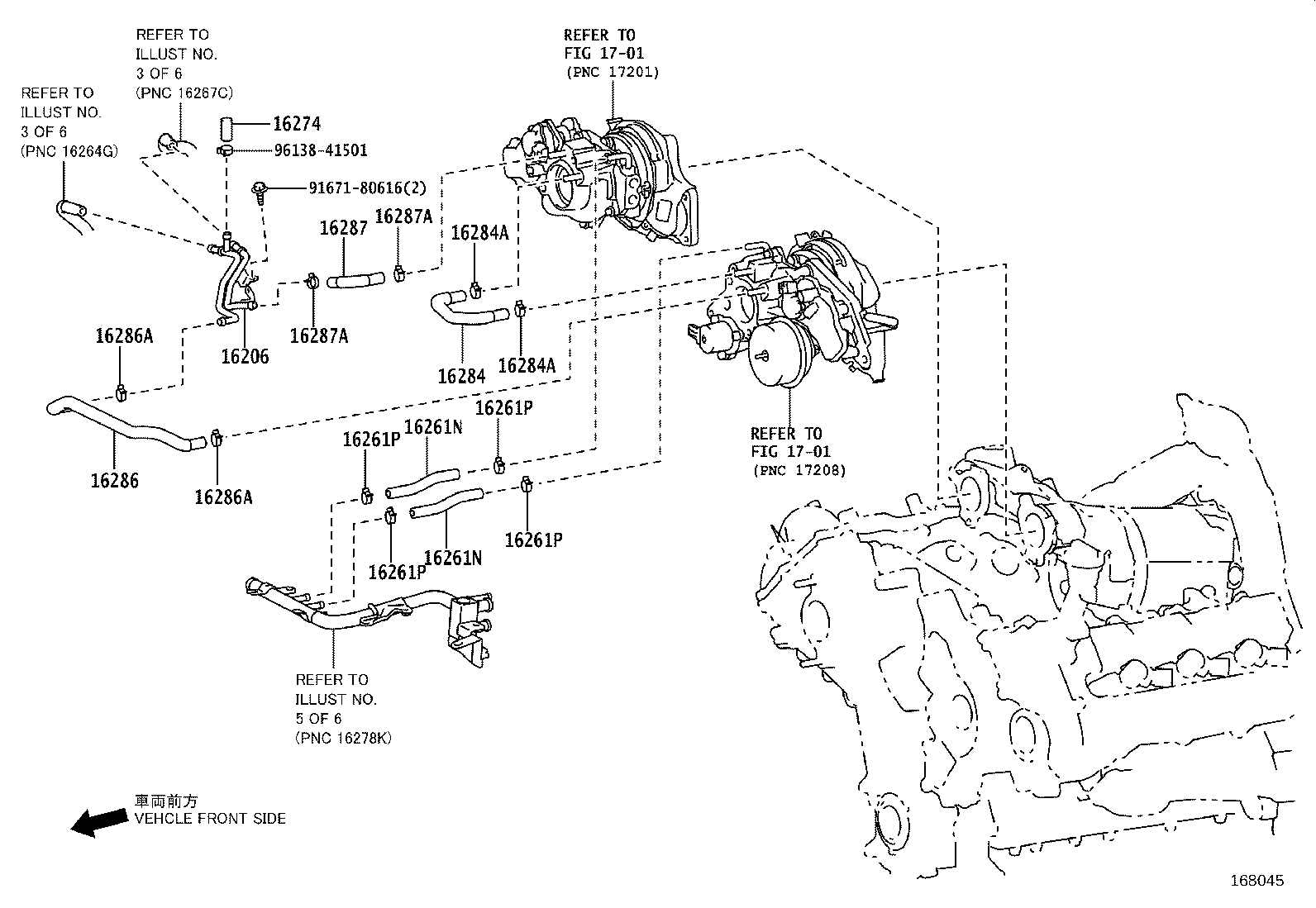

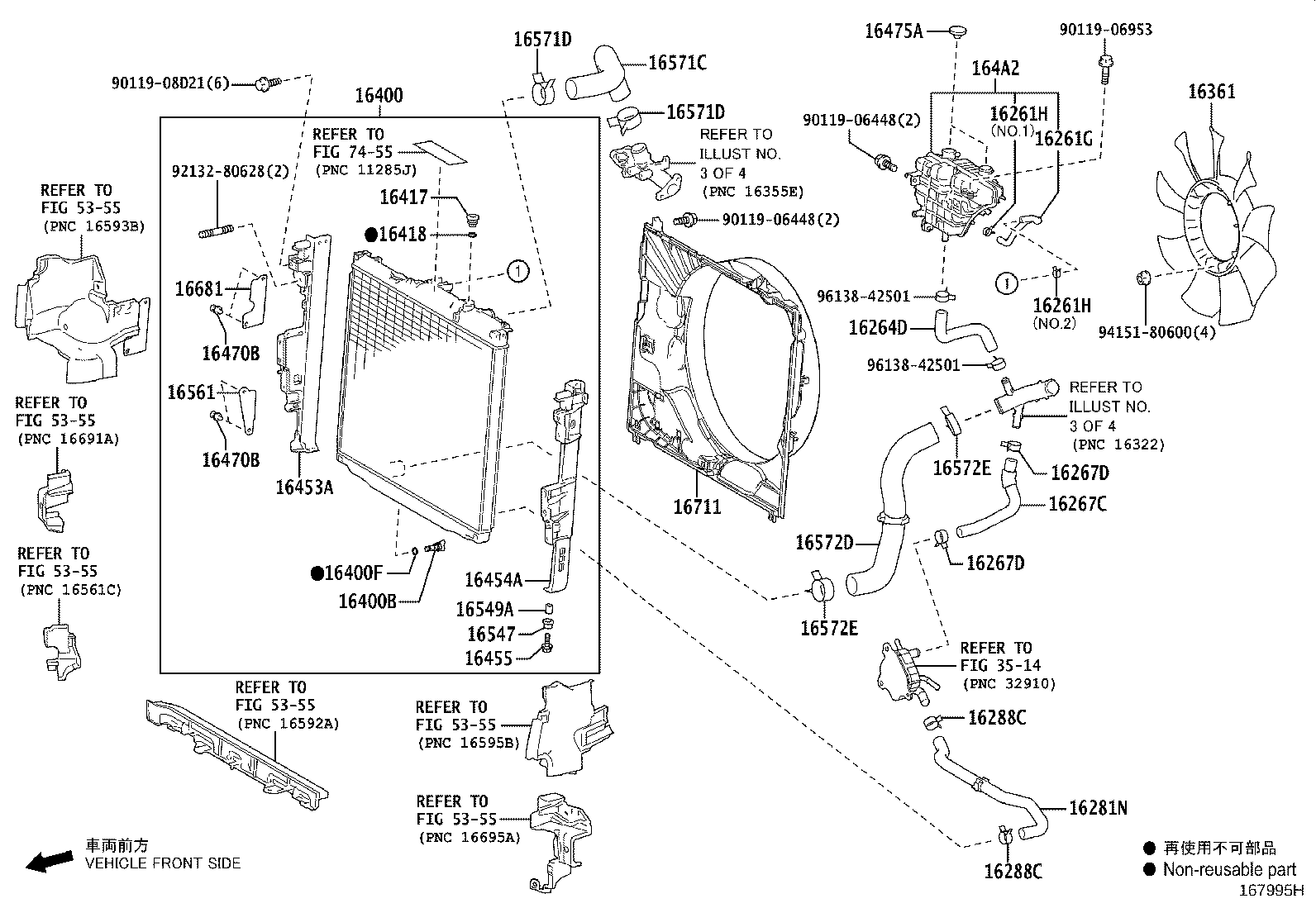

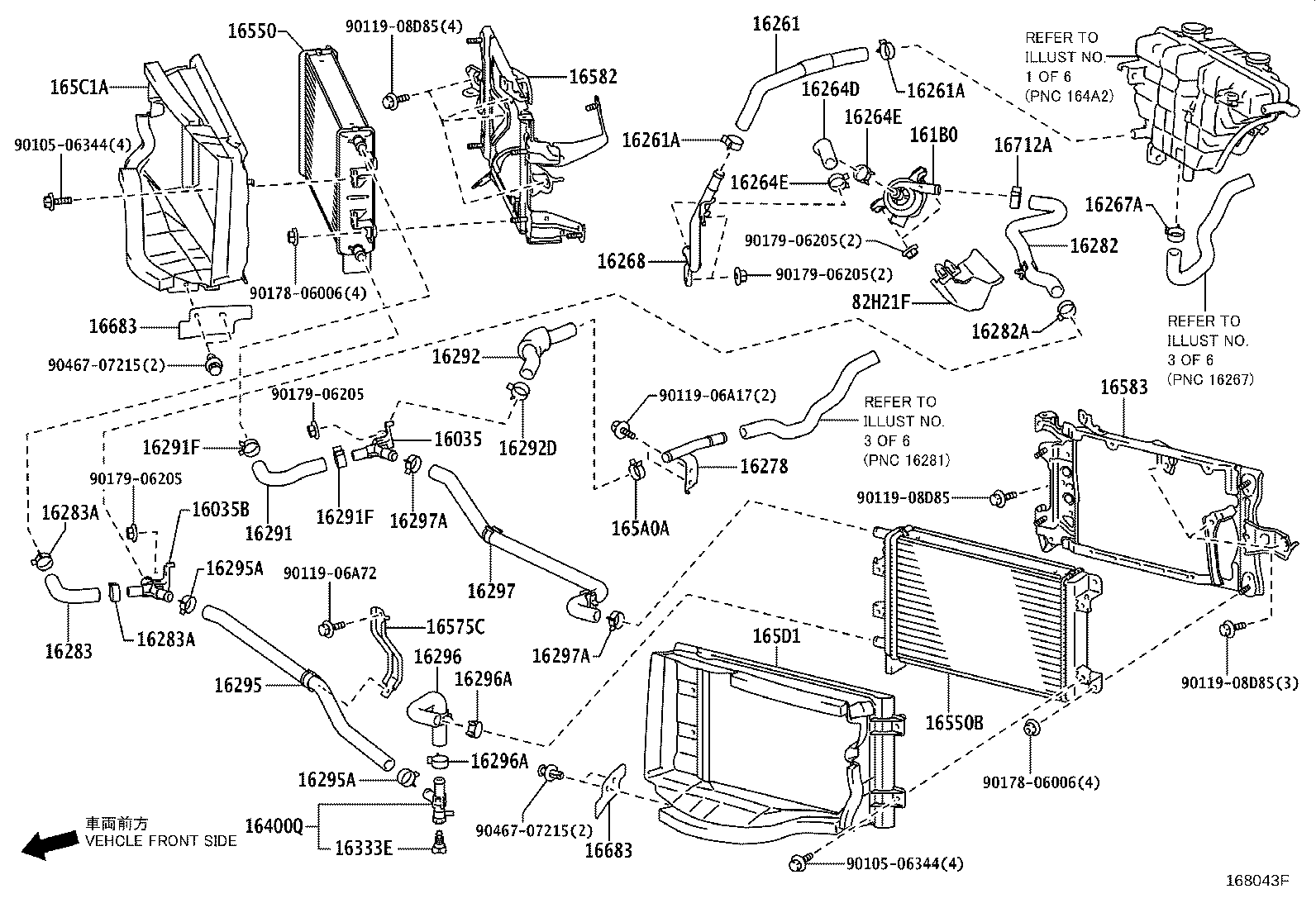

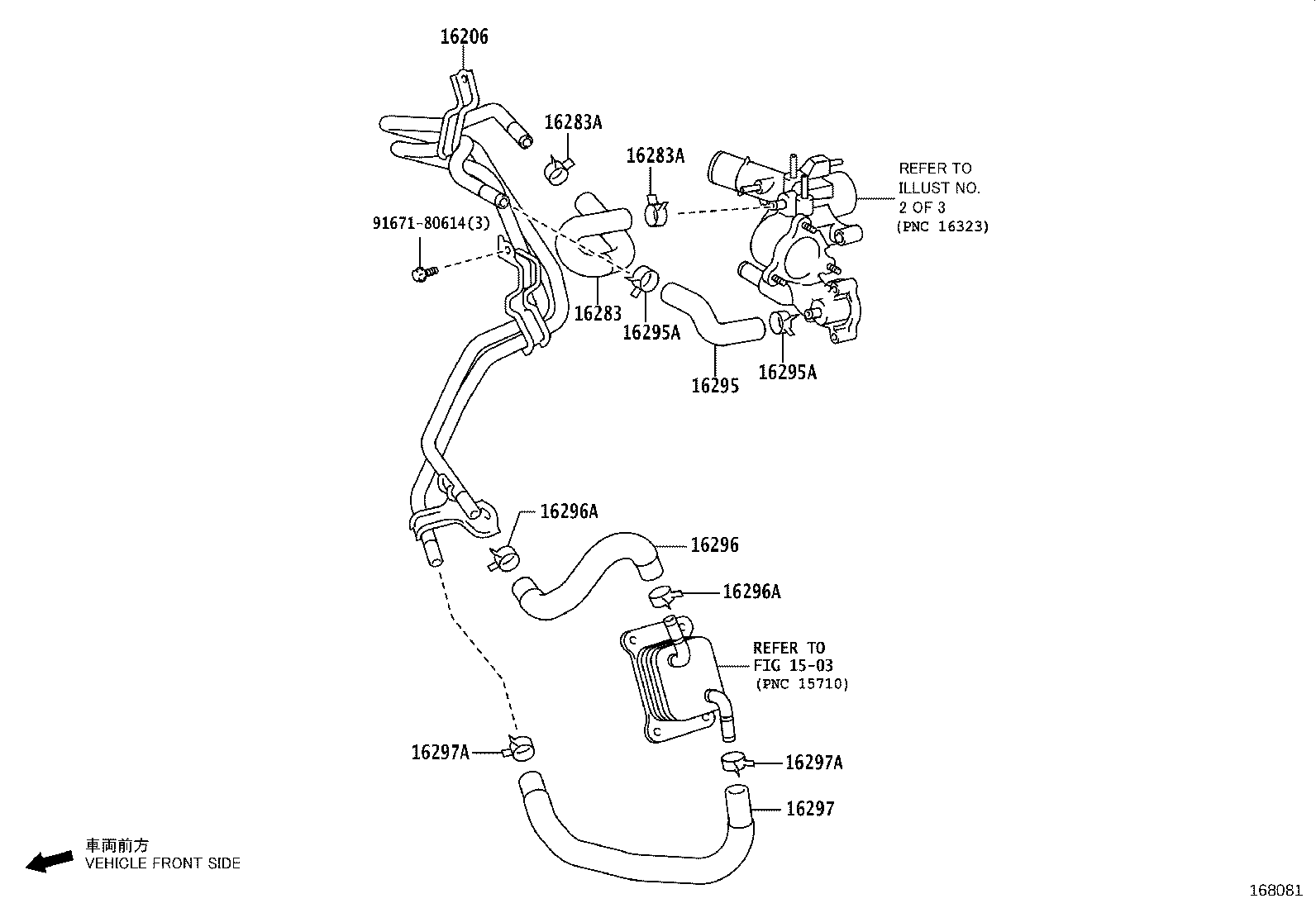

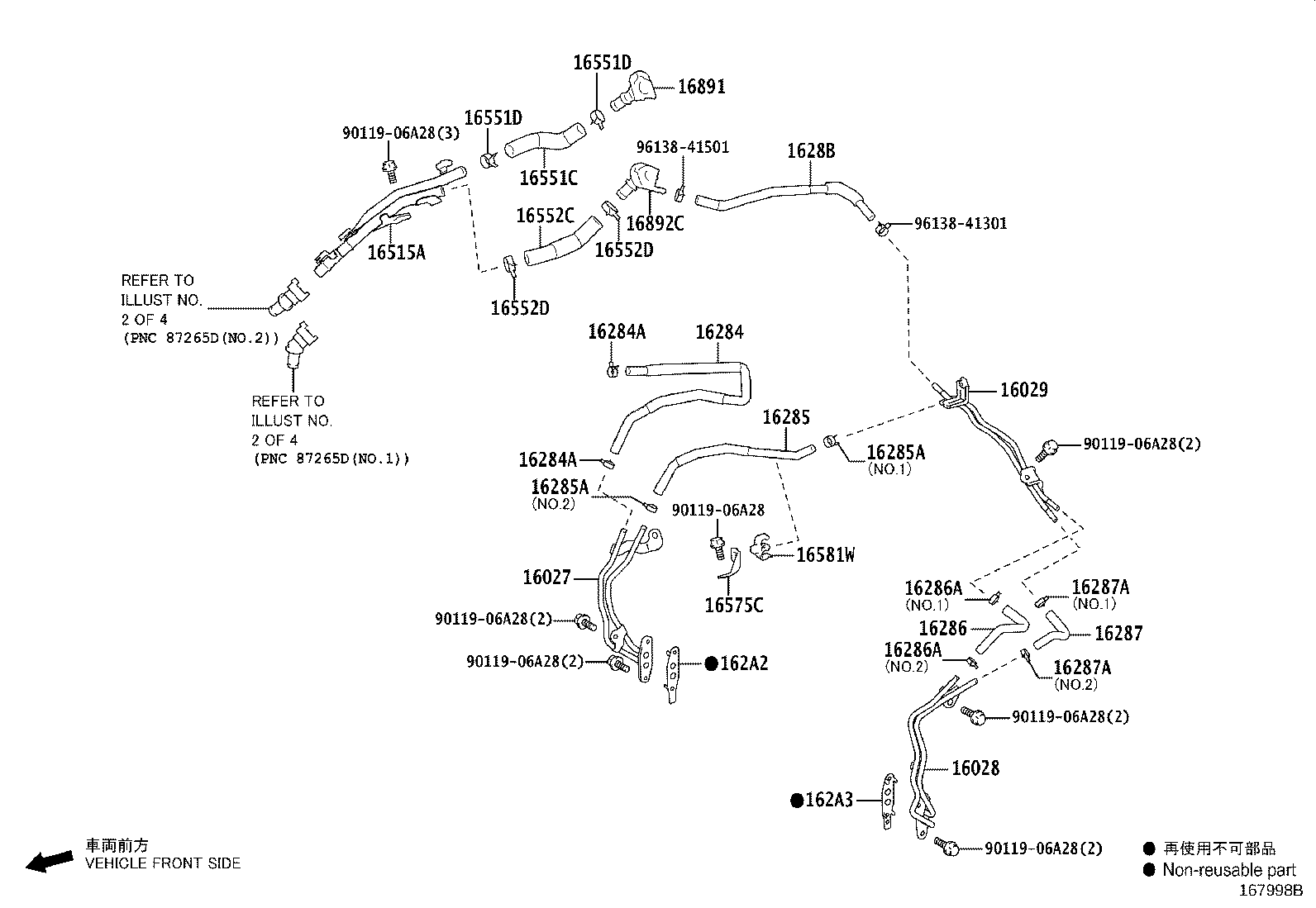

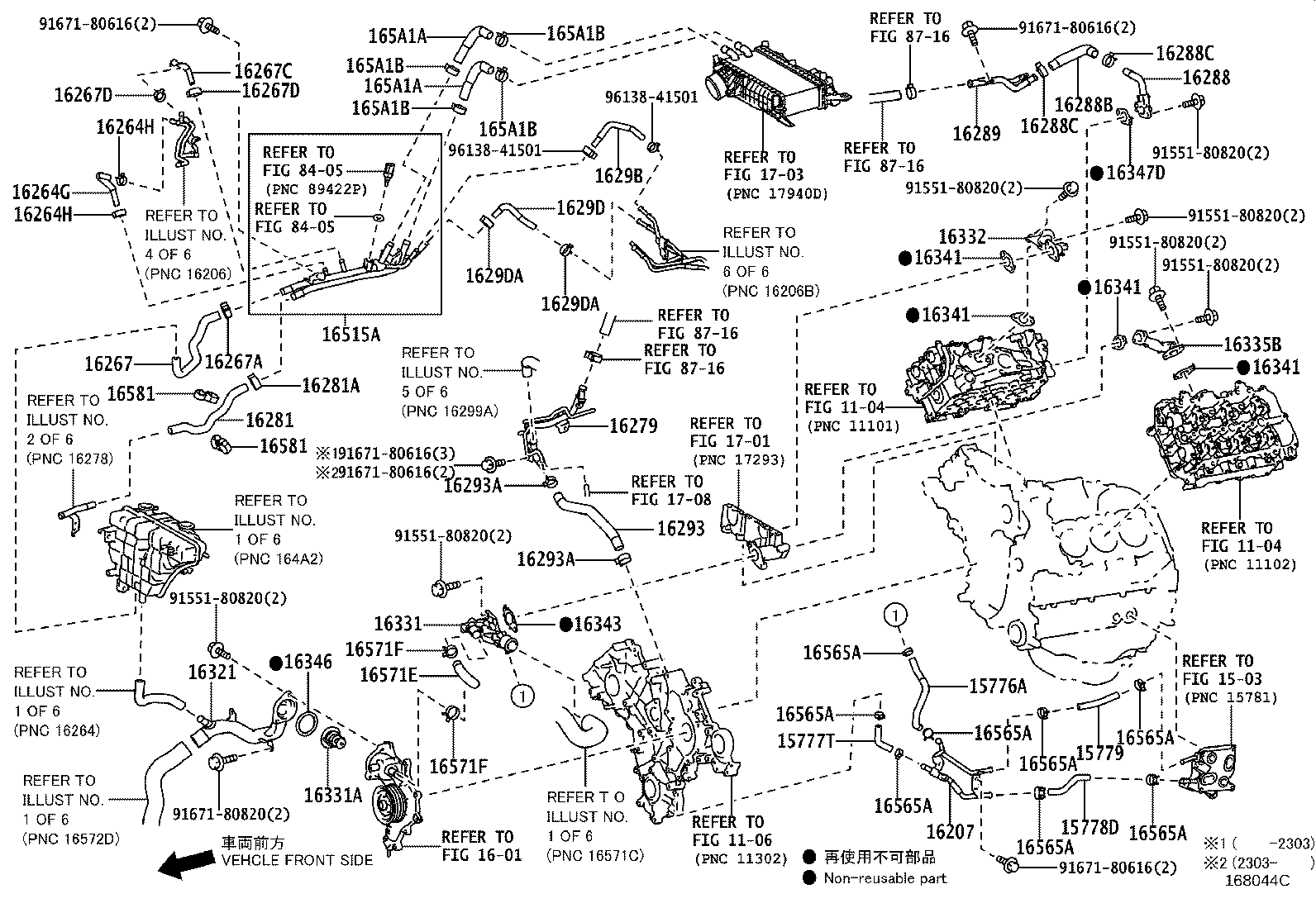

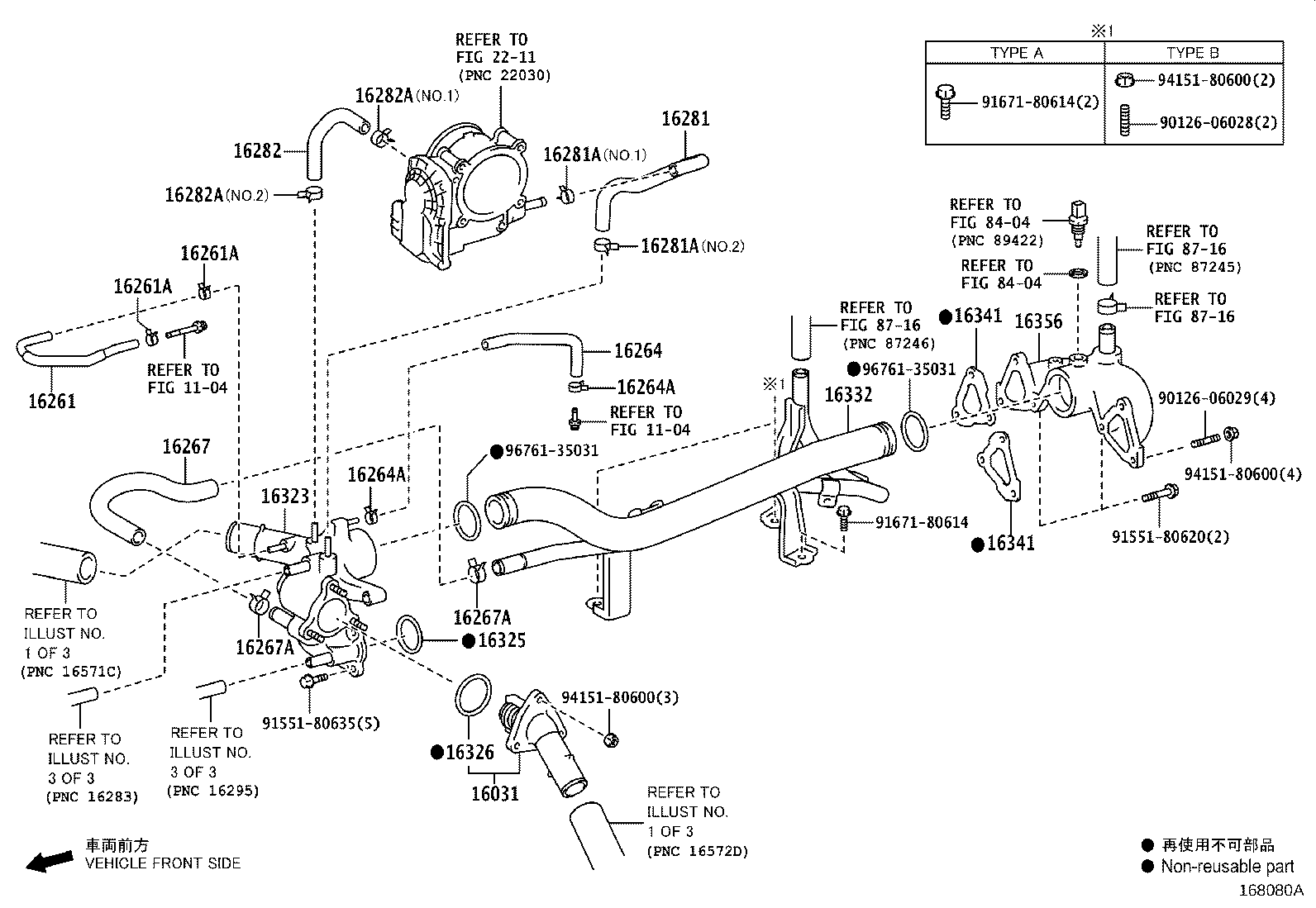

Figure 168042E 168042E 2021-07 → — Figure 168043F 168043F 2021-07 → — Figure 168044C 168044C 2021-07 → — Figure 168049B 168049B 2021-07 → — Figure 168045 168045 2021-07 → — Figure 168046B 168046B 2021-07 → — Figure 168050 168050 2021-07 → — Figure 168047 168047 2021-07 → — Figure 168051 168051 2021-07 → — Figure 168079C 168079C 2021-04 → — Figure 168080A 168080A 2021-04 → — Figure 168081 168081 2021-04 → — Figure 167995H 167995H 2021-04 → — Figure 167996P 167996P 2021-04 → — Figure 167997B 167997B 2021-04 → — Figure 167998B 167998B 2021-04 → —

Part groups

PNCDescription
15776A Hose, Oil Cooler, NO.4
15777T Hose, Oil Cooler, NO.1
15778D Hose, Oil Cooler, NO.2
15779 Hose, Oil Cooler, NO.3
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16029 Pipe Sub-assy, Turbo Water, NO.3
16031 Water Inlet Sub-assy, W/Thermostat
16035 Joint, Water Hose
16035B Joint Sub-assy, Water By-pass, Front
161B0 Pump Assy, Electric Water
16206 Pipe Sub-assy, Water By-pass
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16260 Hose Assy, Water By-pass
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16260B Pipe Assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16261Q Hose, Water By-pass
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16264G Hose, Water By-pass, NO.3
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268L Pipe, Water By-pass
16274 Plug, Water By-pass
16278 Pipe, Water By-pass, NO.2
16278E Clip(FOR WATER BY-PASS HOSE)
16278K Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16281N Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16282F Hose, Water By-pass, NO.5
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283B Hose, Water By-pass
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16288B Hose, Water(FOR WATER BY-PASS PIPE NO.4)
16288C Clip(FOR WATER BY-PASS PIPE NO.4)
16289 Pipe, Water By-pass, NO.5
1628A Pipe, Water By-pass, NO.6
1628B Hose, Turbo Water, NO.5
16291 Joint, Water Hose
16291E Joint,Water Hose, NO.1
16291F Clip(FOR WATER HOSE JOINT NO.1)
16292 Joint, Water Hose, NO.2
16292D Clip(FOR WATER HOSE JOINT NO.2)
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16294A Clip(FOR WATER BY-PASS HOSE NO.11)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16299A Hose, Water By-pass, NO.13
16299B Clip(FOR WATER BY-PASS HOSE NO.13)
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629D Hose, Water By-pass, NO.17
1629DA Clip(FOR WATER BY-PASS HOSE NO.17)
1629E Hose, Water By-pass, NO.18
1629EA Clip(FOR WATER BY-PASS HOSE NO.18)
1629FA Hose, Water By-pass, NO.19
1629FB Clip(FOR WATER BY-PASS HOSE NO.19)
1629GA Hose, Water By-pass, NO.20
1629GB Clip(FOR WATER BY-PASS HOSE NO.20)
1629H Hose, Water By-pass, NO.21
1629HA Clip(FOR WATER BY-PASS HOSE NO.21)
162A0 Hose Assy, Water By-pass, NO.4
162A0A Clip(FOR WATER BY-PASS HOSE ASSY NO.4)
162A2 Gasket, Turbo Water Pipe, RH
162A3 Gasket, Turbo Water Pipe, LH
16321 Inlet, Water
16322 Pipe, Water Inlet
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16333E Plug, Drain Cock
16335B Pipe, Water Outlet, NO.2
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16345 Gasket, Water Outlet Pipe
16346 Gasket, Thermostat
16347D Gasket, Water By-pass
16355E Joint, Water By-pass(FOR WATER OUTLET PIPE)
16356 Joint, Water By-pass, Rear
16361 Fan
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400Q Cock Assy, Drain
16401 Cap Sub-assy, Radiator
16407A Cock Sub-assy, Radiator Drain
16417 Cock
16418 Packing
16453A Plate, Radiator Side Support, RH
16454A Plate, Radiator Side Support, LH
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16475A Cap, Reserve Tank
164A2 Tank, Reserve Sealed W/O Cap
16515A Pipe, Intercooler Cooling Water, NO.1
16547 Bush, Radiator Support, NO.1
16549A Collar, Radiator Support, NO.1
16550 Radiator Assy, Intercooler Cooling
16550B Radiator Assy, Intercooler Cooling, NO.2
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C Hose, Intercooler Cooling Water, NO.2
16552D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
16561 Seal, Radiator TO Support, NO.1
16565A Clip
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16570A Bracket Assy, Water Hose Clamp
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16581 Clamp, Hose(FOR WATER HOSE)
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
16581W Clamp, Hose(FOR WATER HOSE)
16582 Bracket, Radiator, NO.1
16583 Bracket, Radiator, NO.2
165A0A Clip, Hose
165A1A Hose, Intercooler Cooling Water Inlet
165A1B Clip(FOR INTERCOOLER COOLING WATER INLET HOSE)
165C1A Duct, Sub-radiator, RH NO.1
165D1 Duct, Sub-radiator, LH NO.1
16681 Plate, Radiator Upper Air Guide
16683 Plate, Radiator Lower Air Guide
16711 Shroud, Fan
16712A Clip
16891 Connector, Turbo Water, NO.1
16892C Connector, Turbo Water, NO.2
82H21F Cover, Connector
87265D Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
