Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 5 illustrations

Illustrations

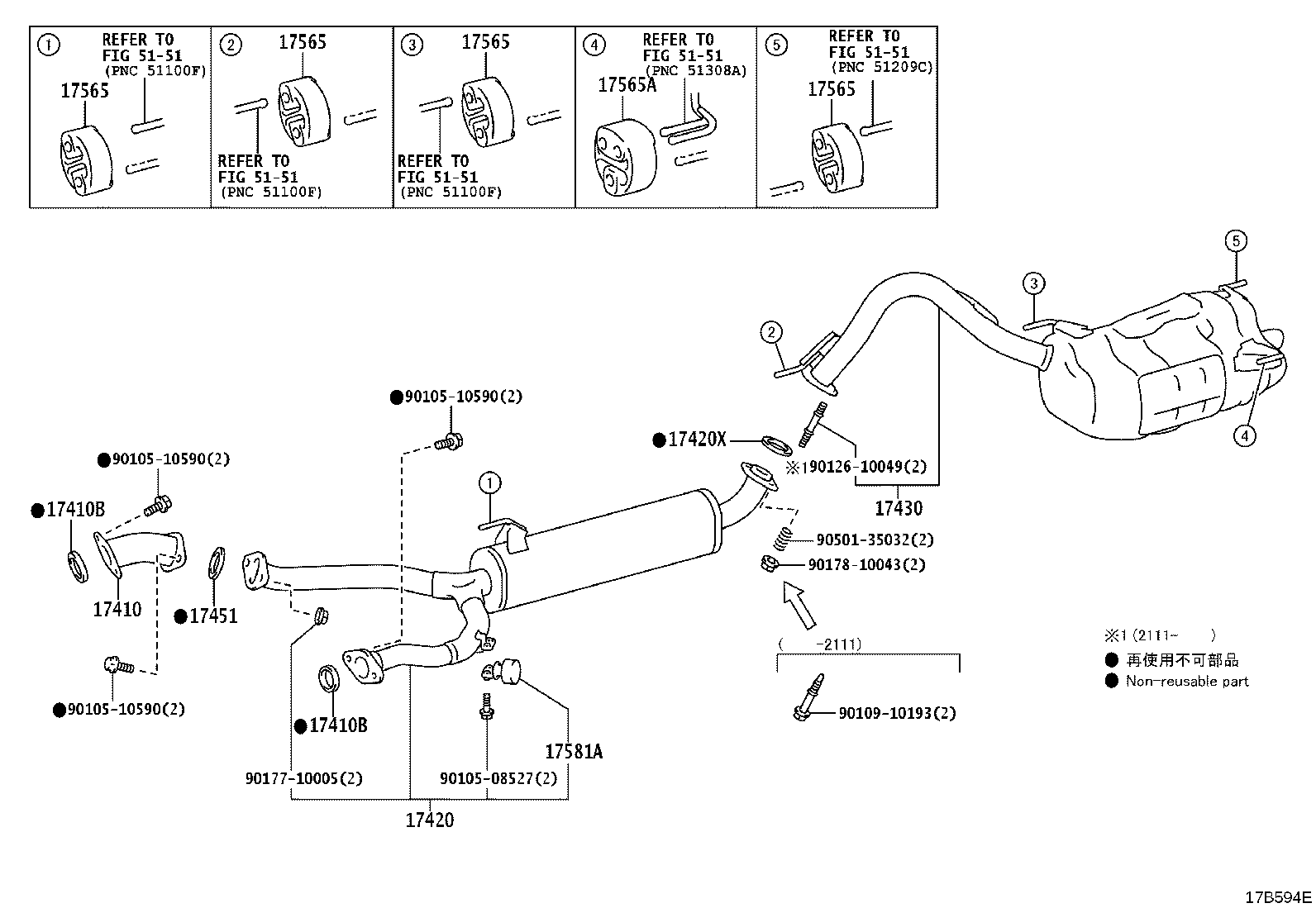

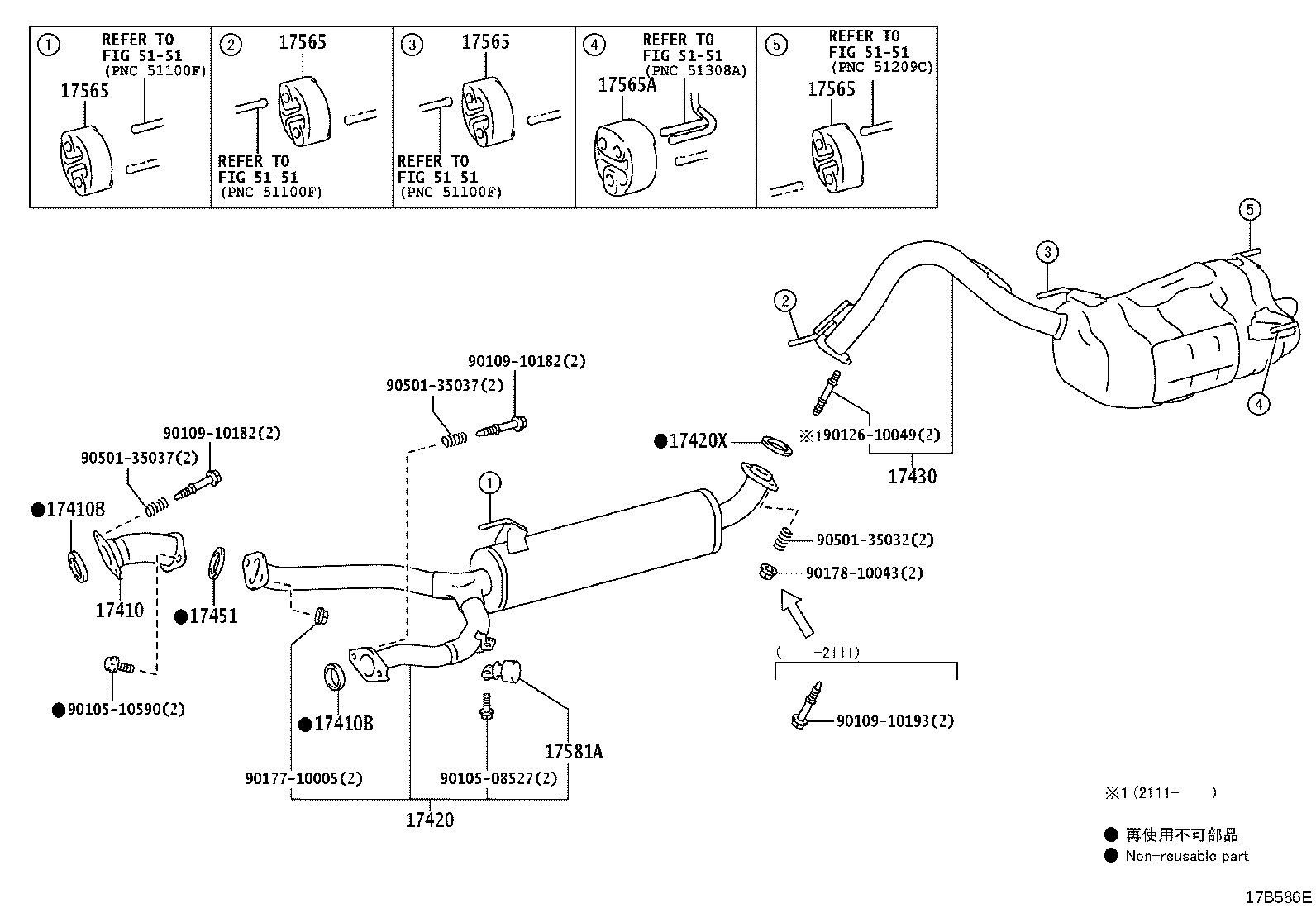

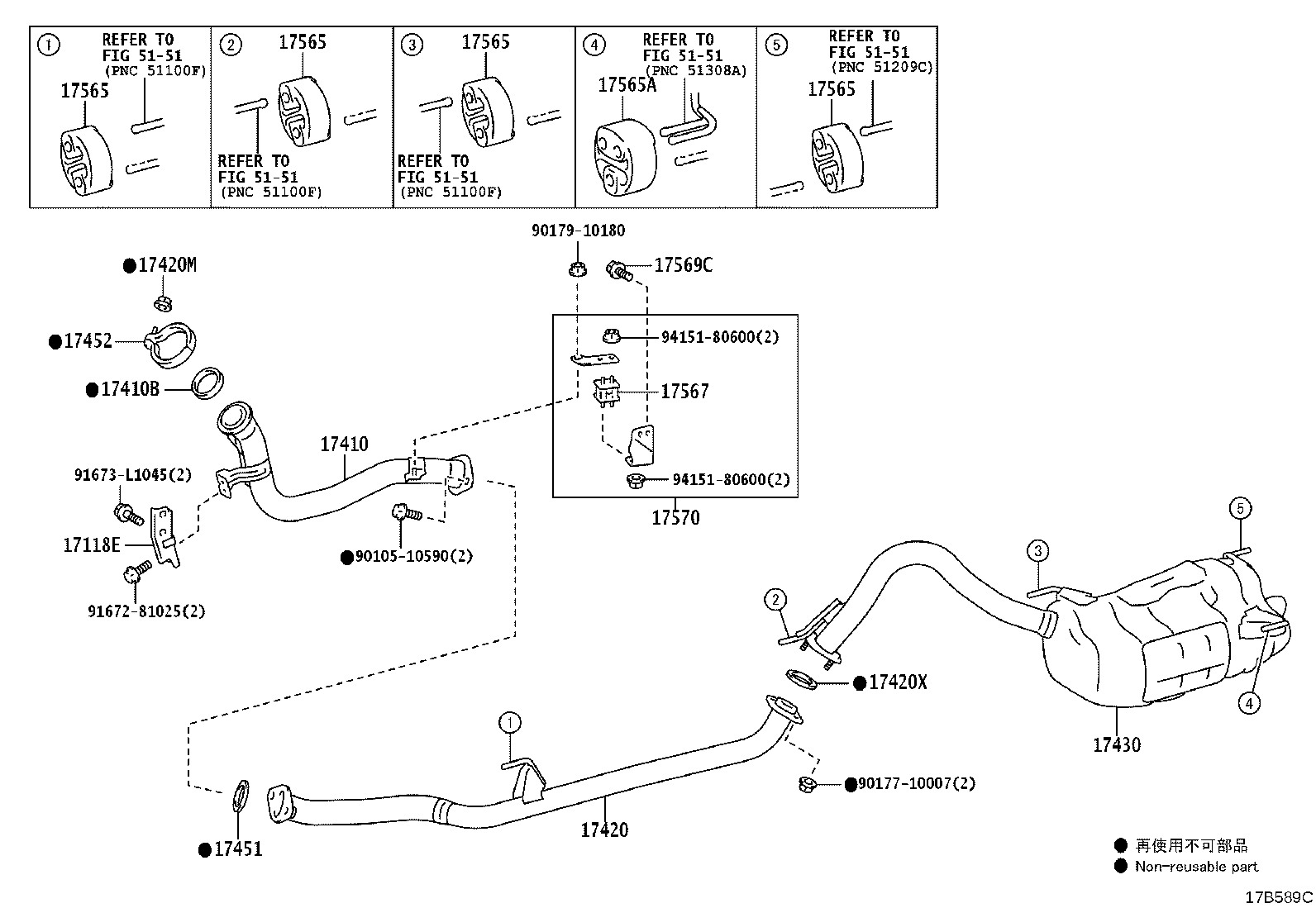

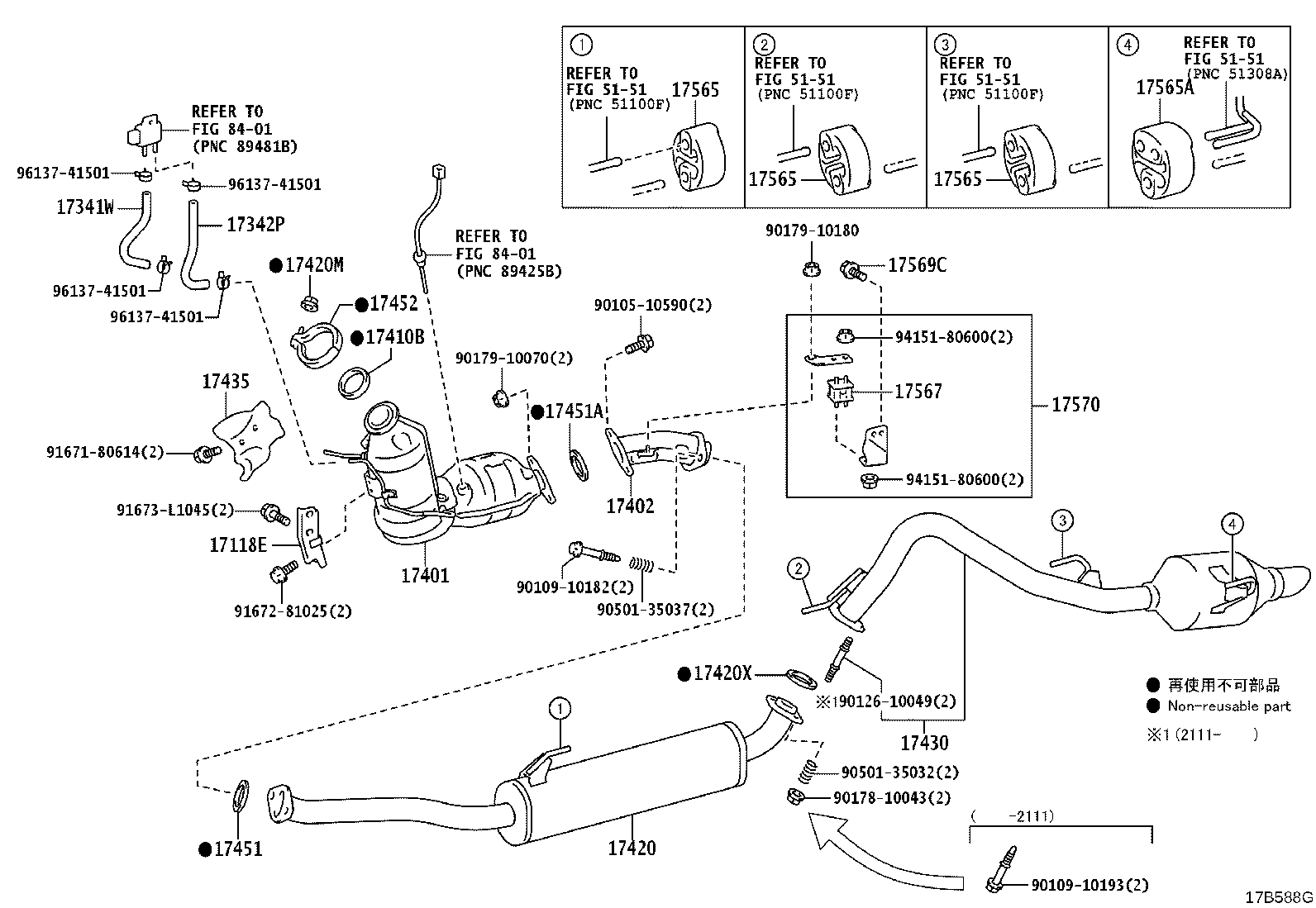

Figure 17B981A 17B981A 2021-07 → — Figure 17B588G 17B588G 2021-07 → — Figure 17B589C 17B589C 2021-07 → — Figure 17B586E 17B586E 2021-04 → — Figure 17B594E 17B594E 2021-04 → —

Part groups

PNCDescription
17118E Stay, Manifold
17341W Hose, Air, NO.1
17342P Hose, Air, NO.2
17401 Pipe Sub-assy, Exhaust, Front
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420M Nut, Lock(FOR EXHAUST PIPE)
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17435 Insulator, Exhaust Pipe Heat
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17452 Clamp, Exhaust Pipe
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17569C Bolt, Exhaust Pipe Support
17570 Bracket Assy, Exhaust Pipe Support
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
