Toyota Land Cruiser
2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe
Supported model
Data version 2024-11

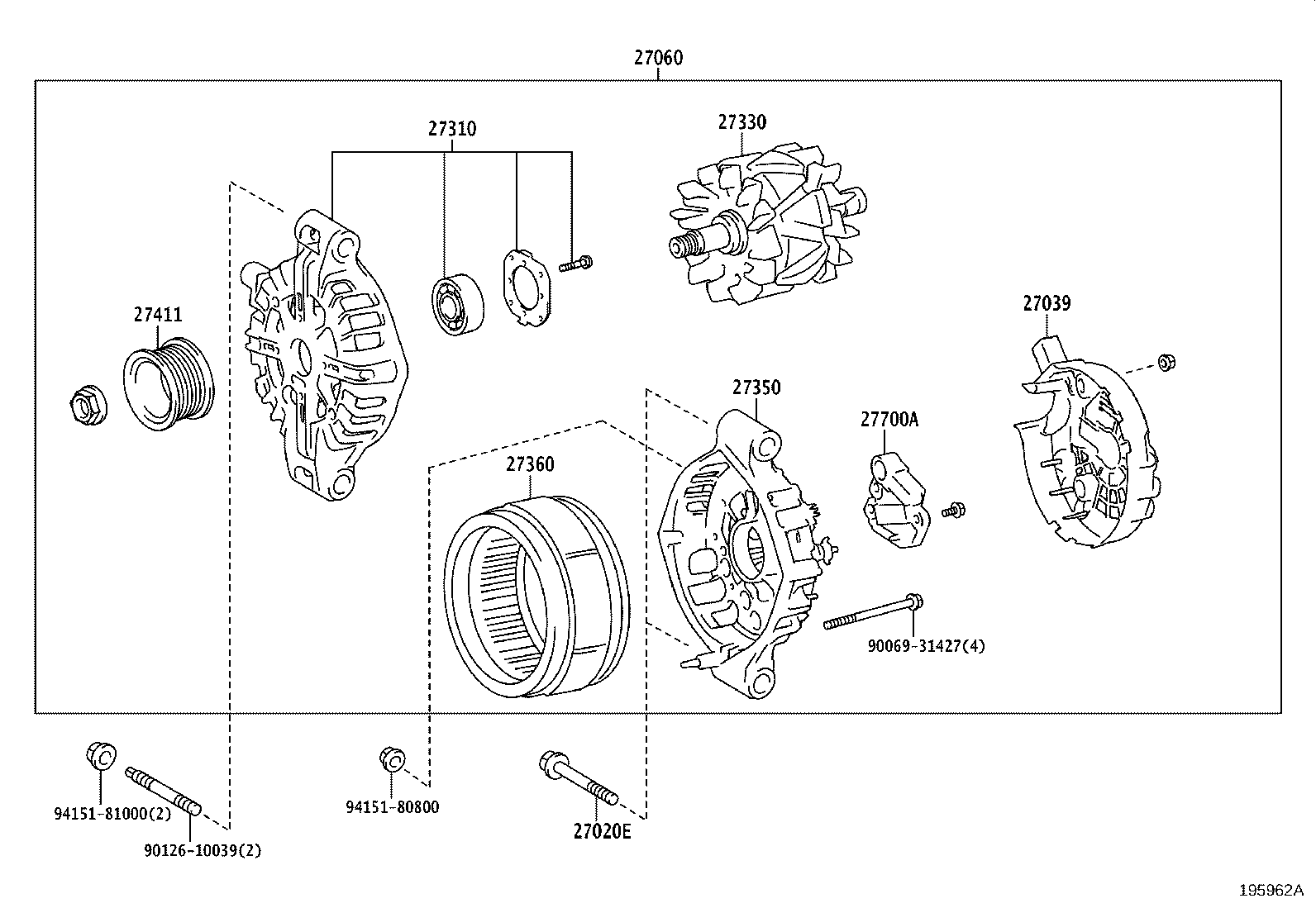

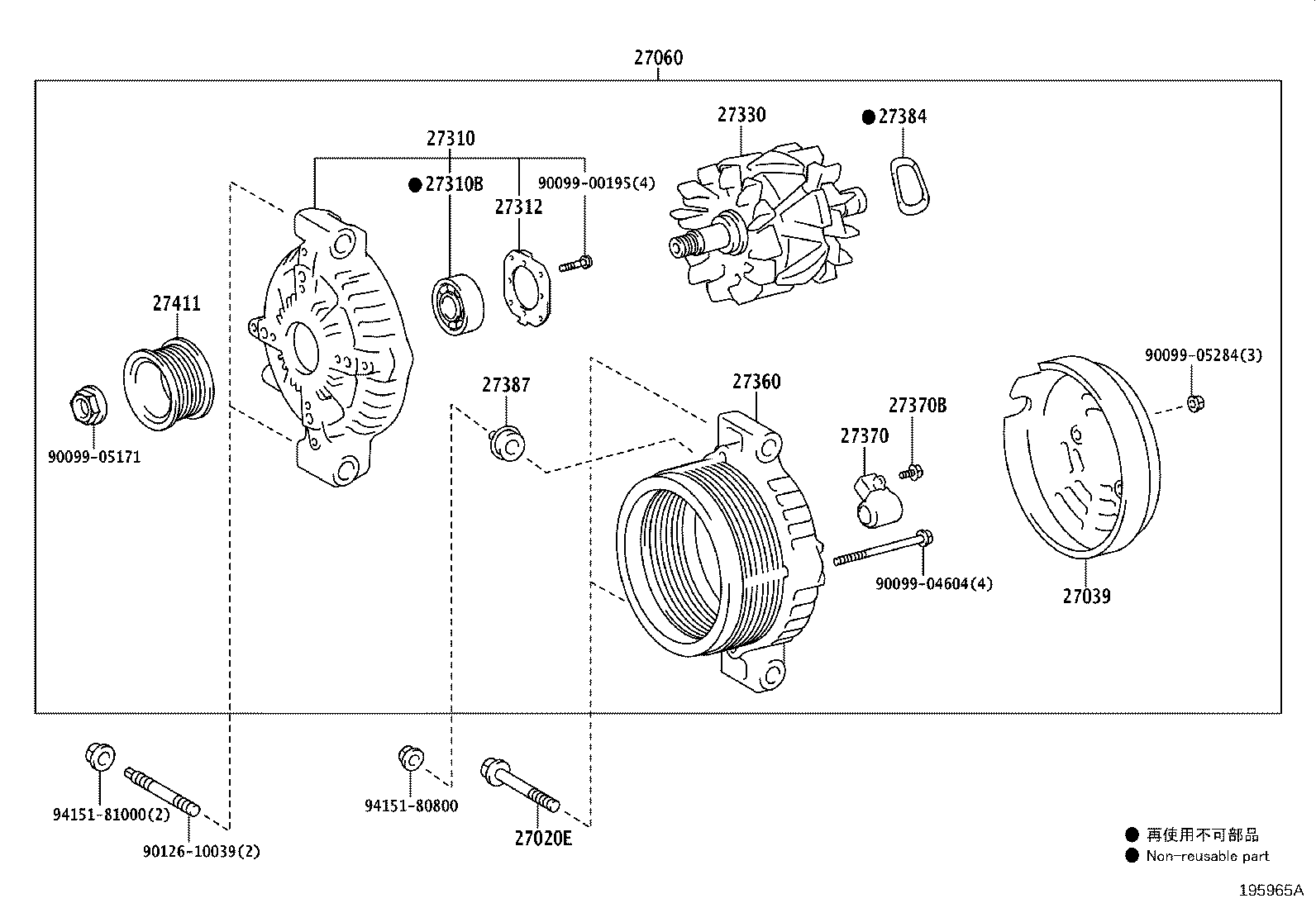

Alternator
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 12511F | Bracket, Alternator, NO.1 |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27020F | Bolt, NO.1(FOR ALTERNATOR) |
| 27020G | Bolt, NO.2(FOR ALTERNATOR) |
| 27020H | Bolt, NO.3(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27060 | Alternator Assy, W/Regulator |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27310F | Screw(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27350 | Frame Assy, Rectifier End |
| 27360 | Coil Assy, Alternator |
| 27370 | Holder Assy, Alternator Brush |
| 27370A | Holder Assy, Alternator Brush |
| 27370B | Screw(FOR ALTERNATOR BRUSH HOLDER) |
| 27384 | Washer |
| 27387 | Insulator, Terminal |
| 27387B | Insulator, Alternator Terminal |
| 27411 | Pulley, Alternator |
| 27415 | Pulley, Alternator W/Clutch |
| 27416 | Cap, Alternator Pulley |
| 27446 | Clip, Alternator Cord |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
