Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

13 part groups · 6 illustrations

Illustrations

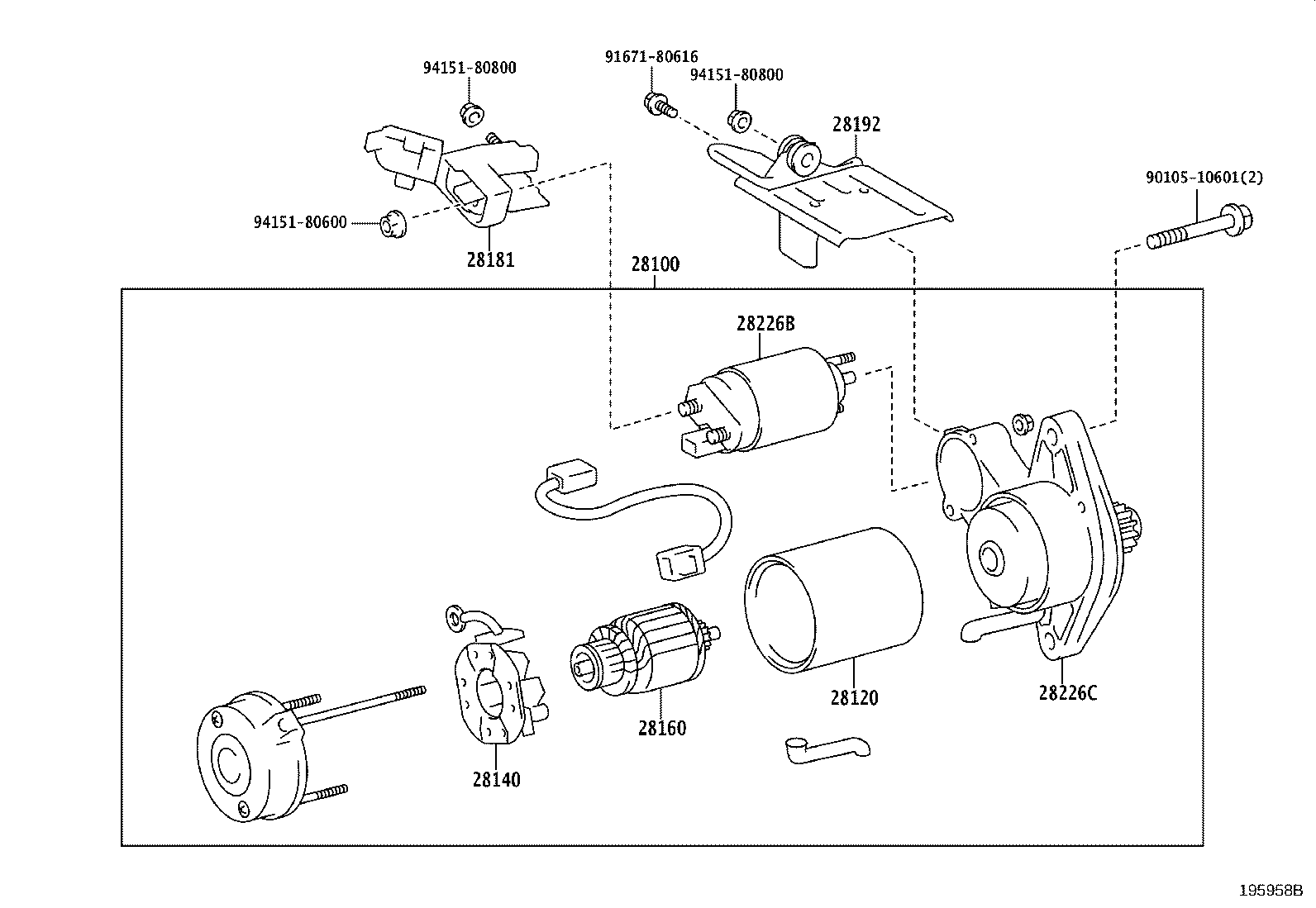

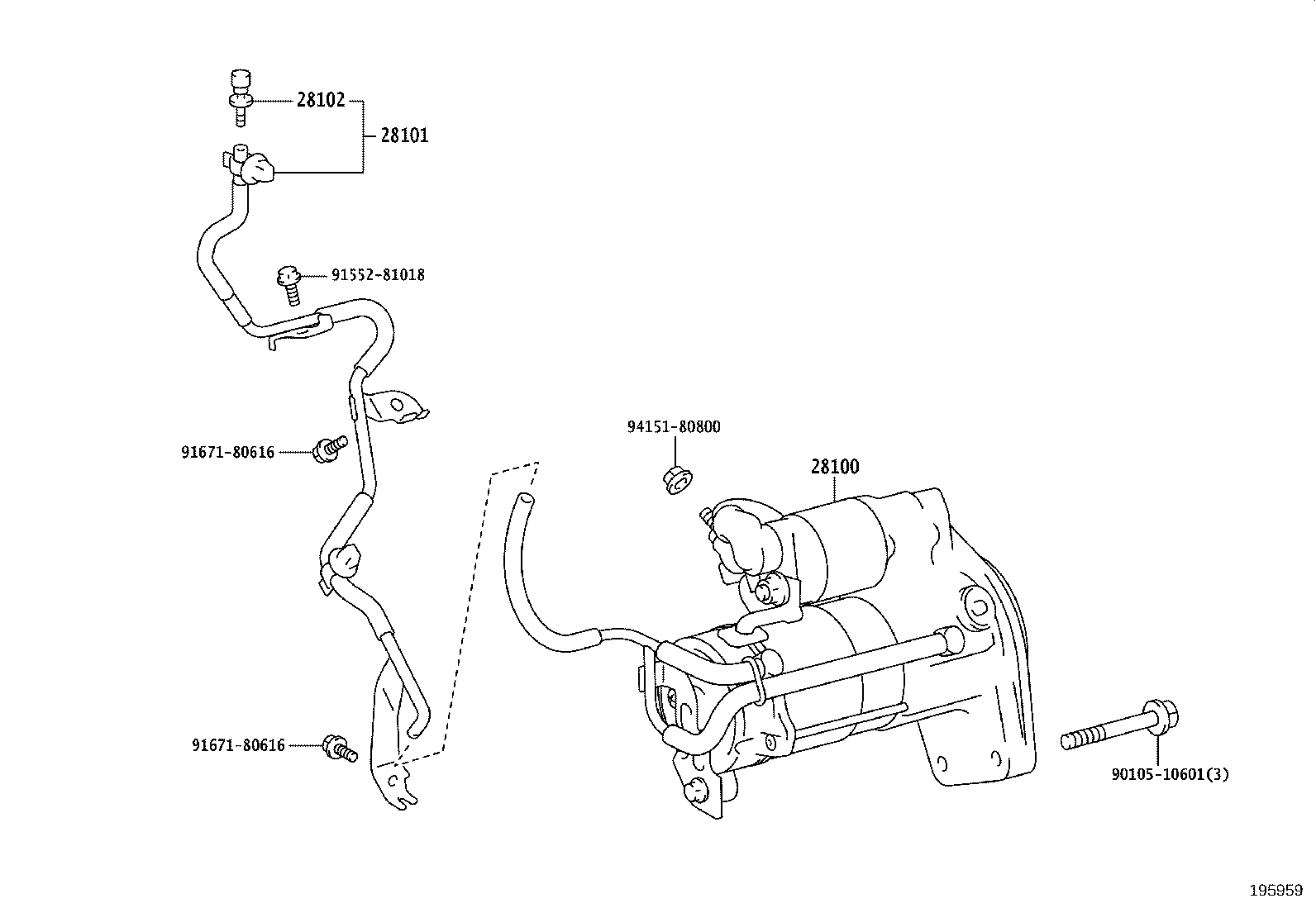

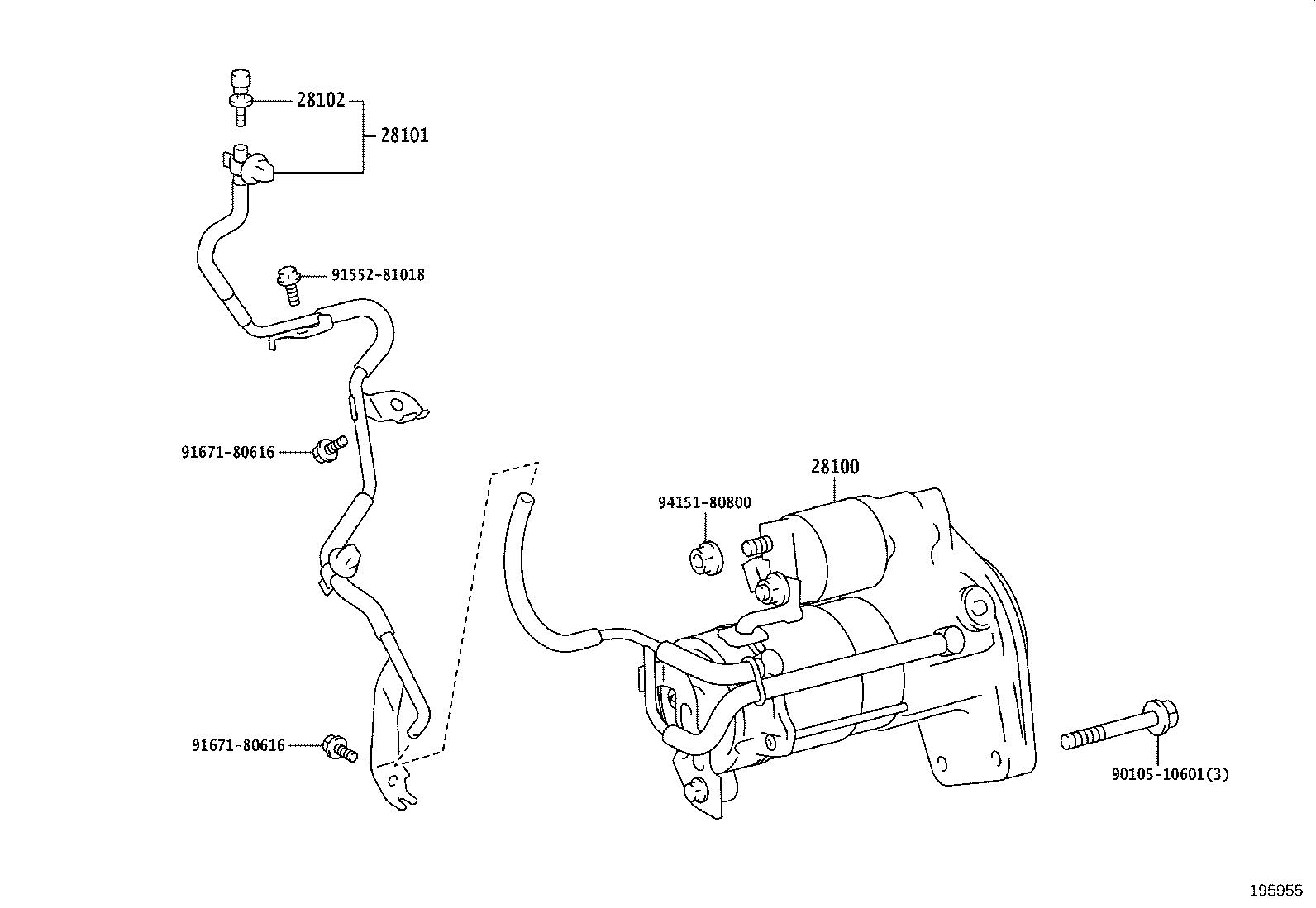

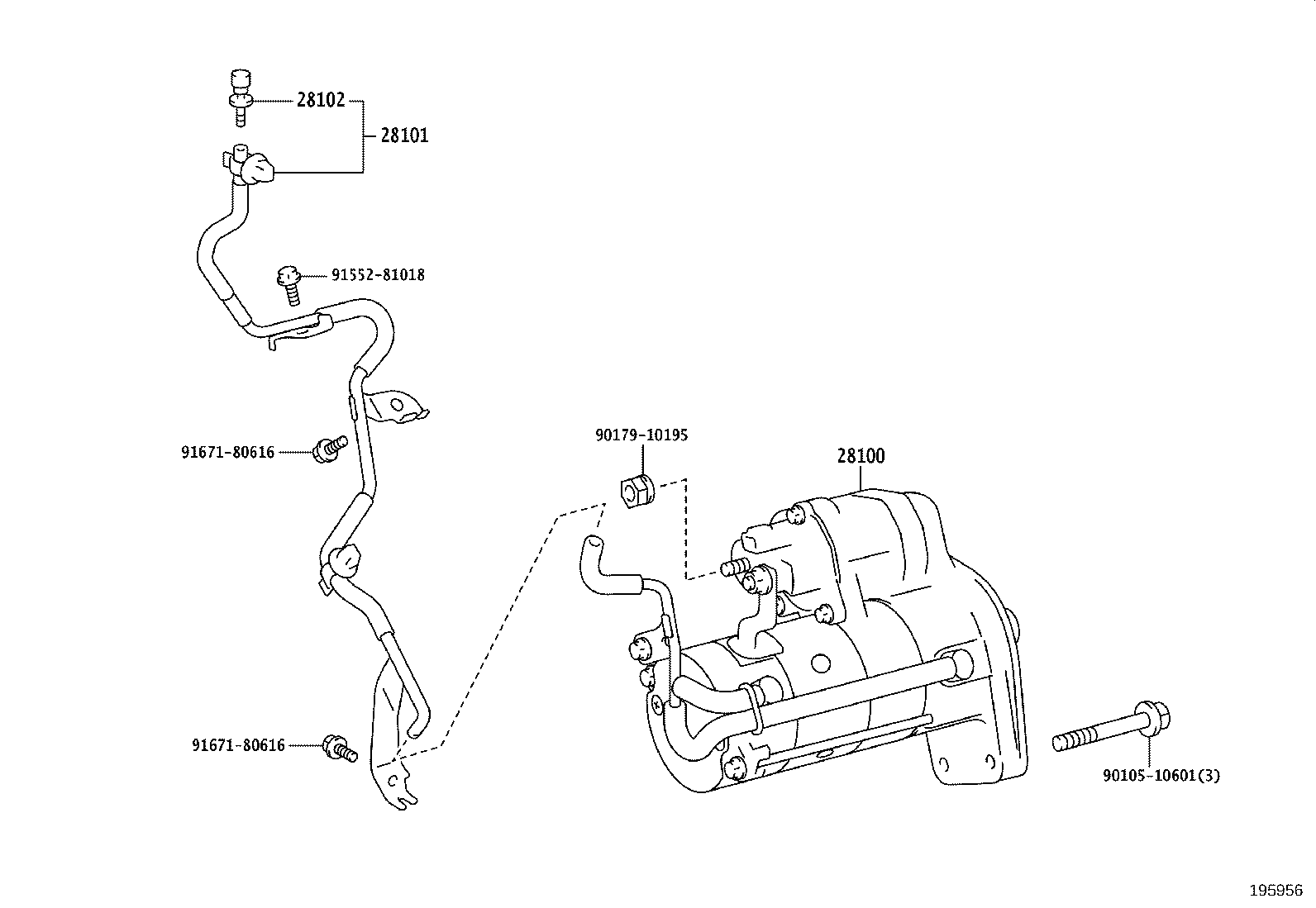

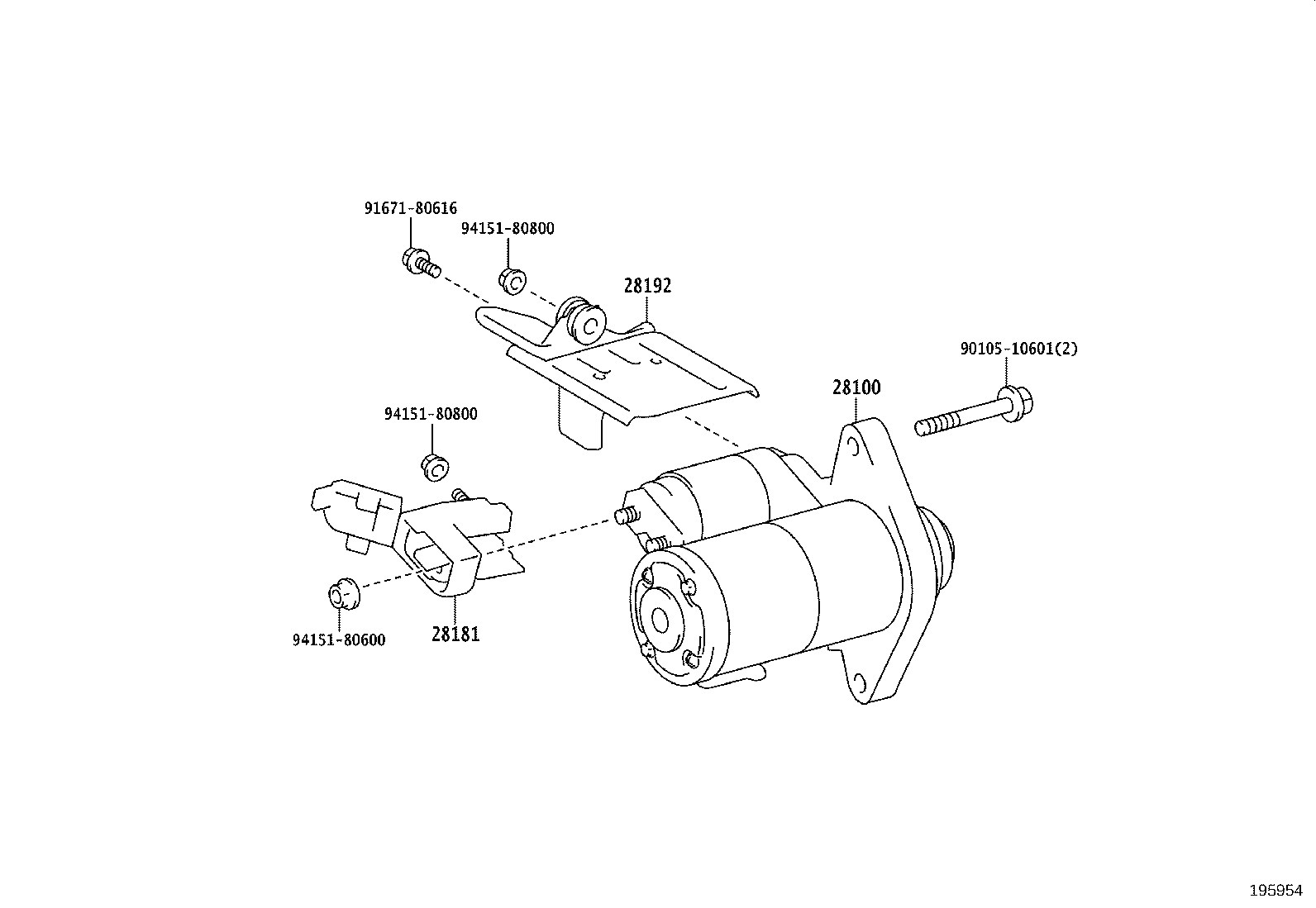

Figure 195957A 195957A 2021-04 → — Figure 195958B 195958B 2021-04 → — Figure 195954 195954 2021-04 → — Figure 195959 195959 2021-07 → — Figure 195955 195955 2021-07 → — Figure 195956 195956 2021-07 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28101 Bracket Sub-assy, Starter Hose
28102 Breather Sub-assy, Starter
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28181 Terminal, Starter
28192 Cover, Starter
28226B Starter Kit, Repair Service
28226C Starter Kit, Repair Service, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
